Automatic Transmission/Transaxle

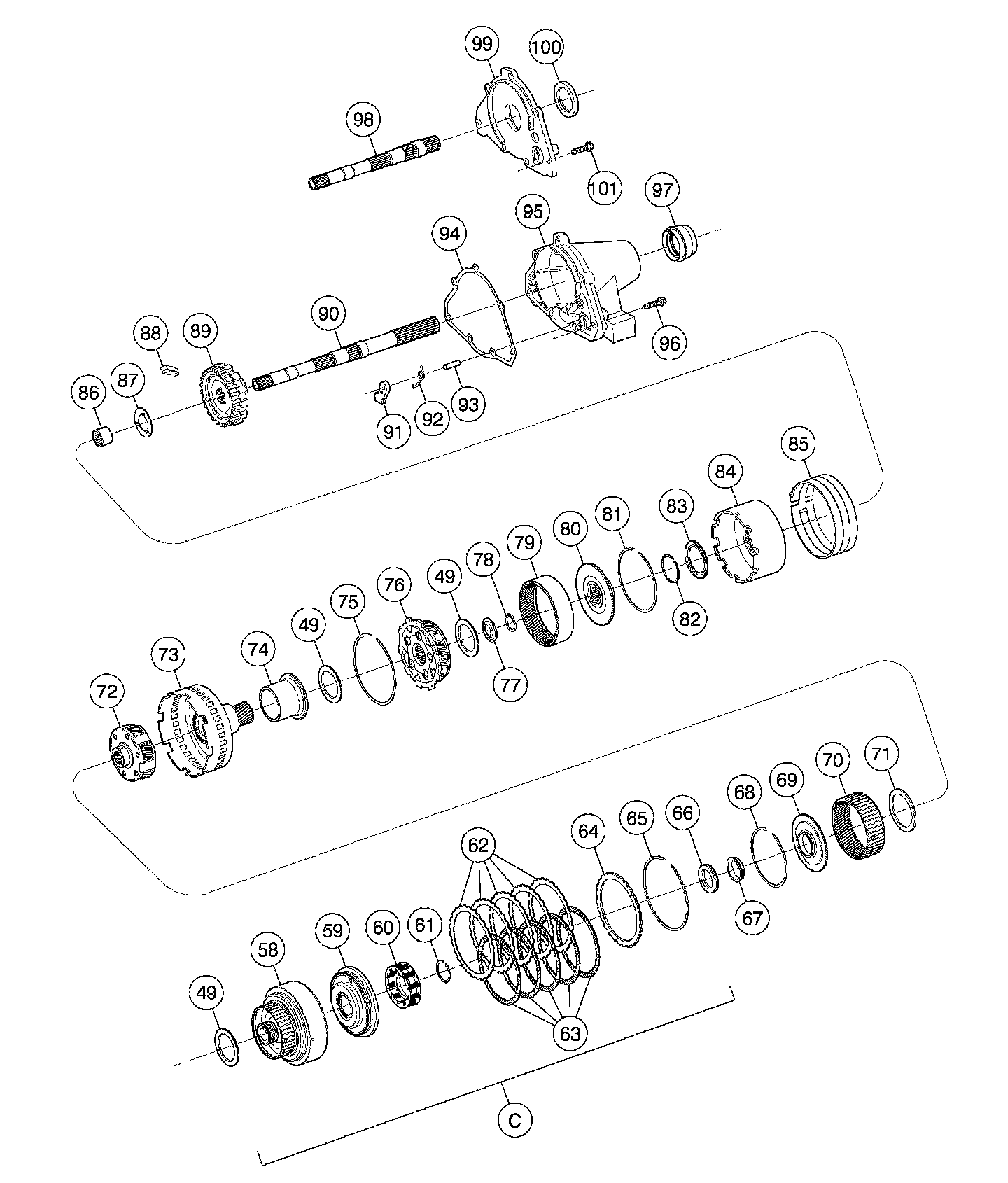

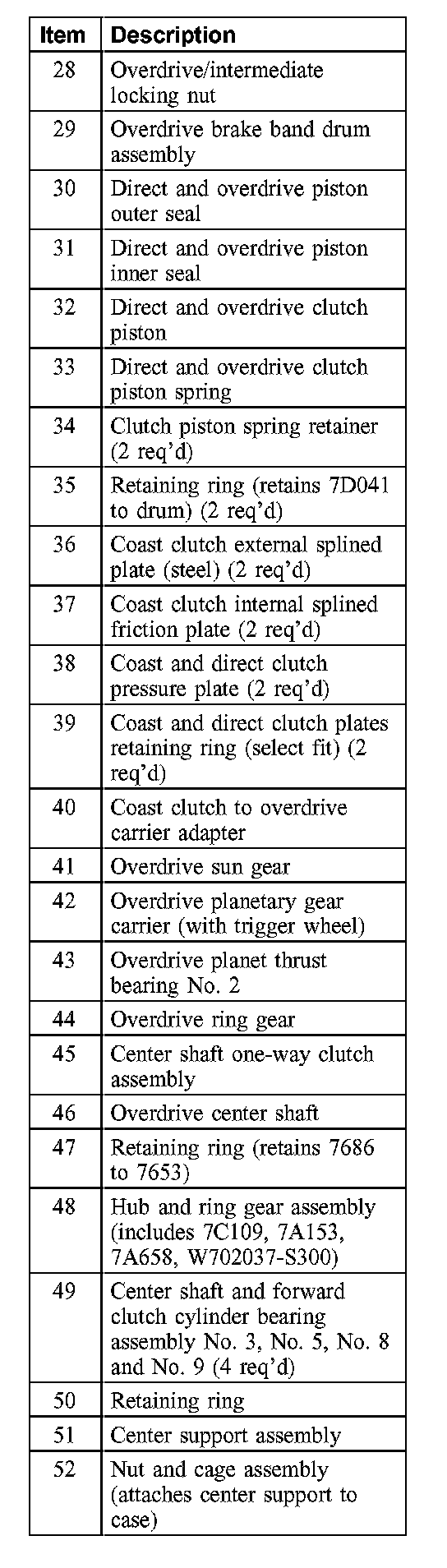

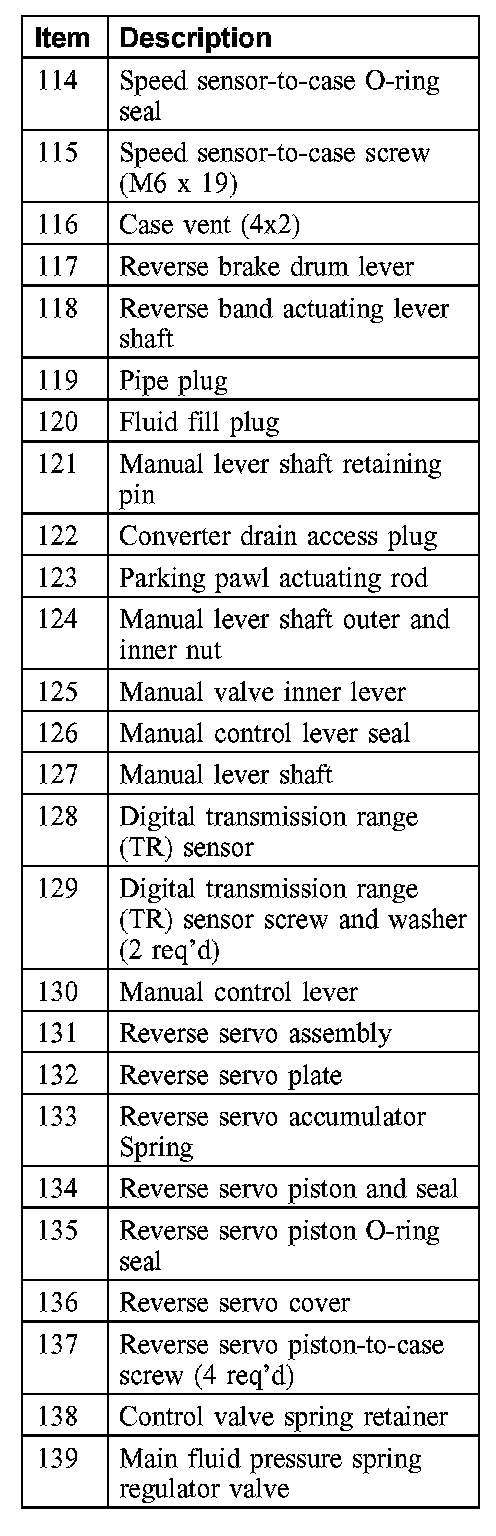

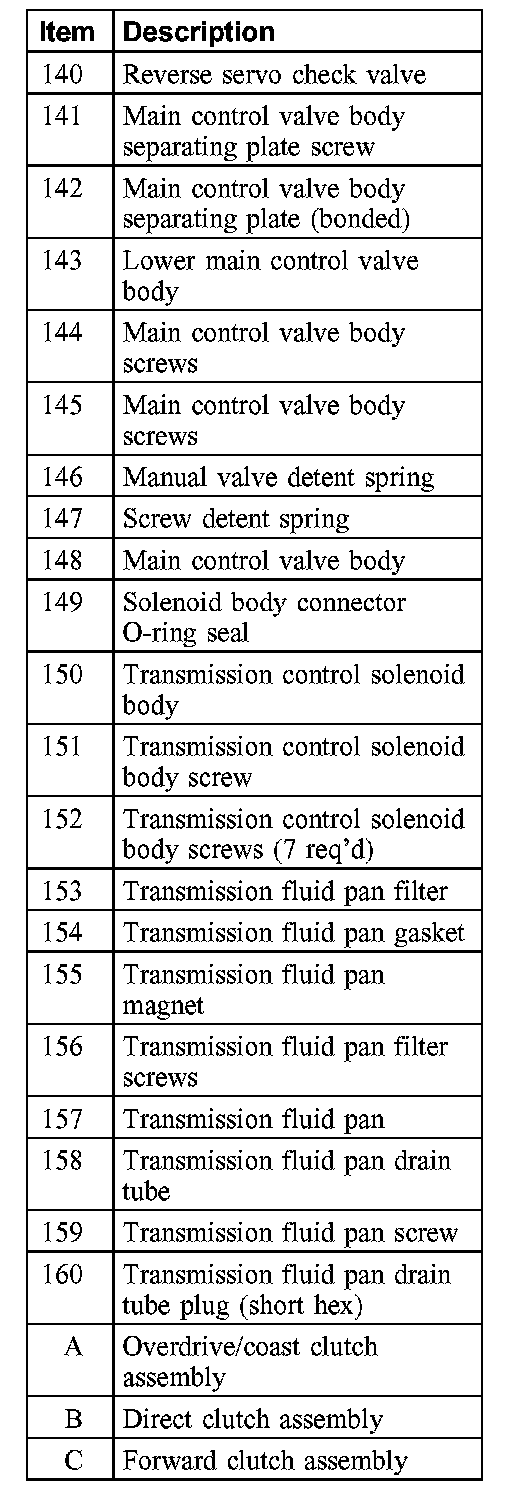

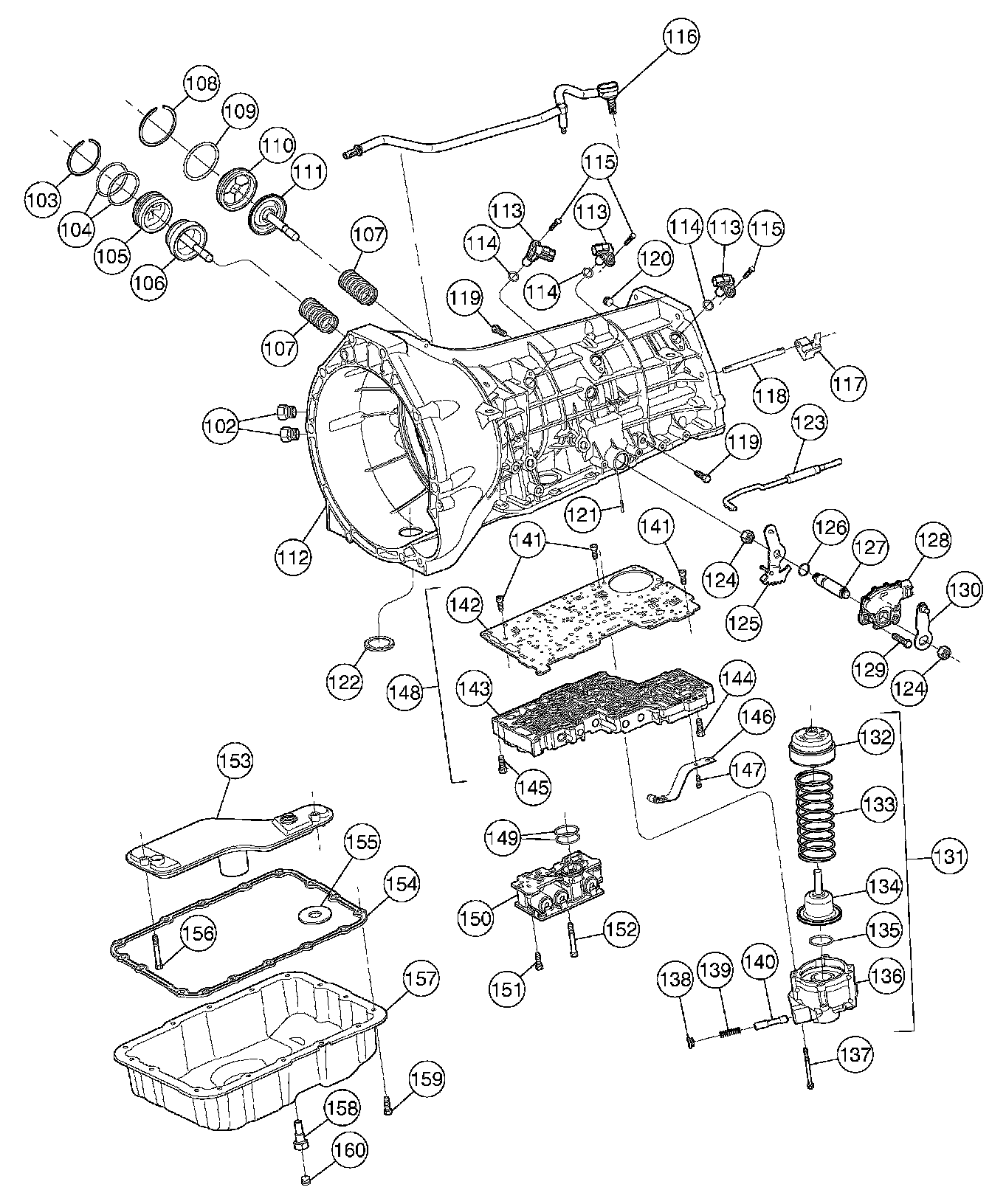

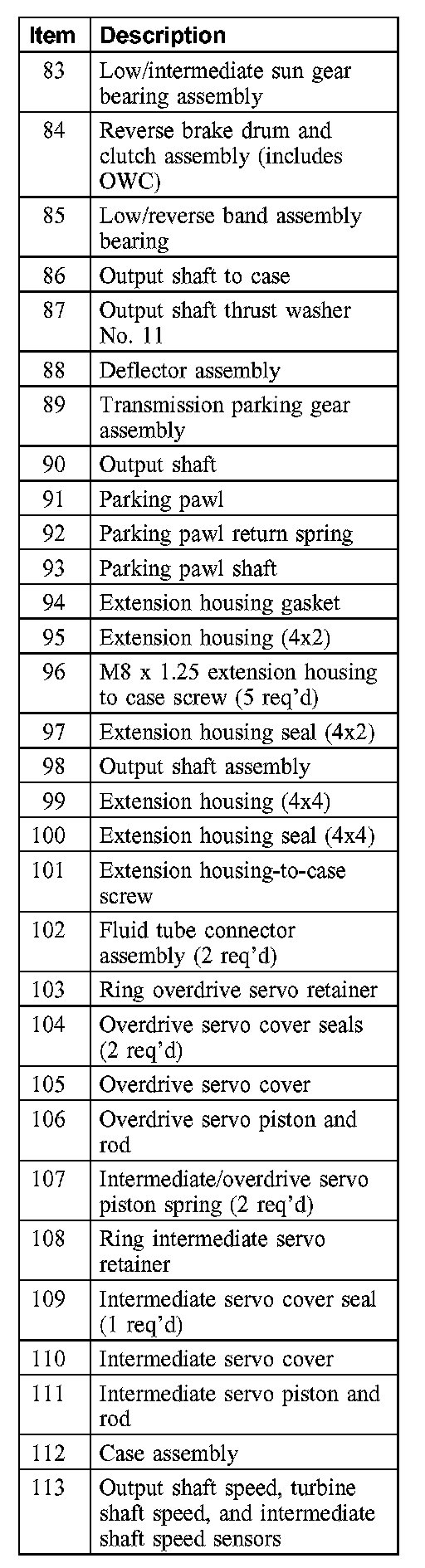

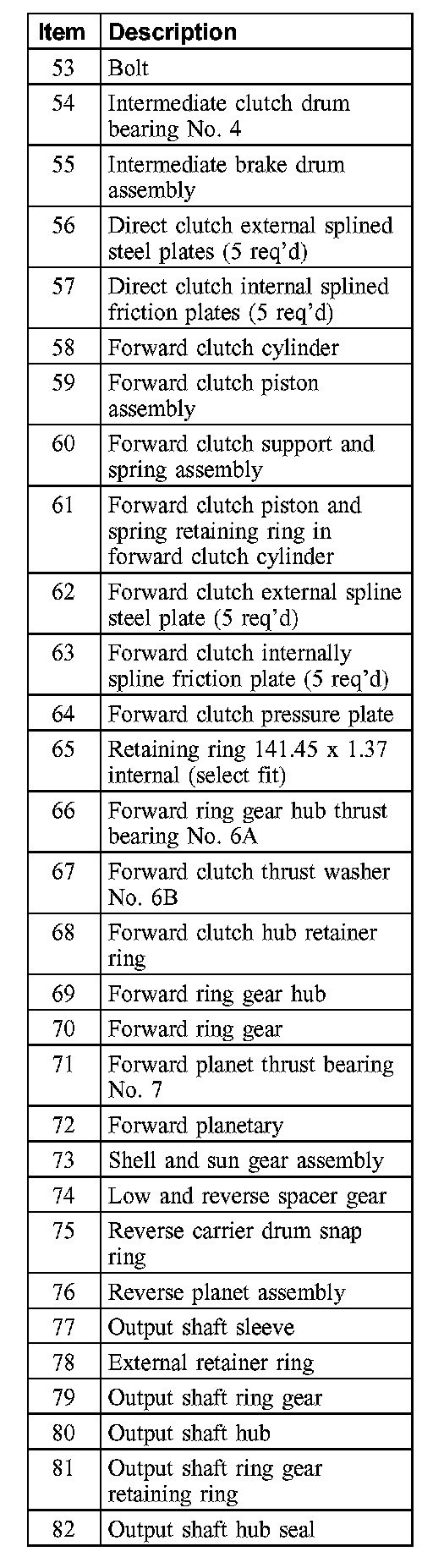

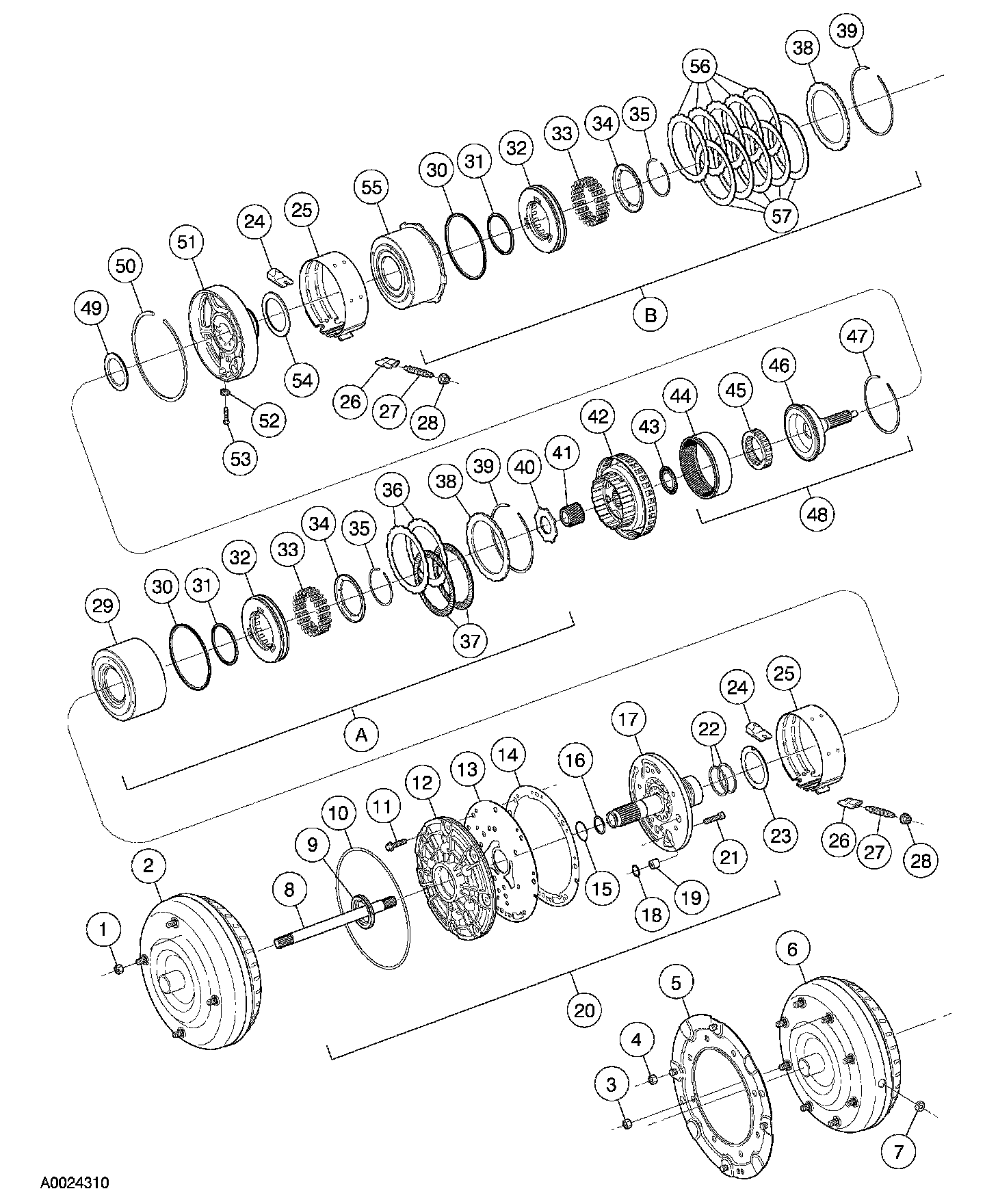

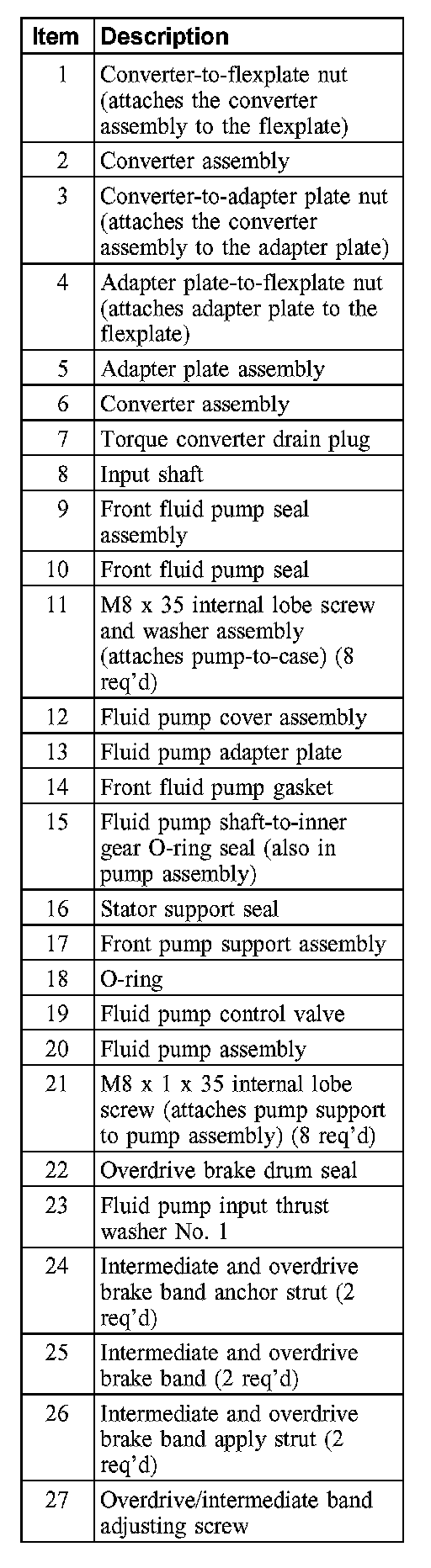

Disassembled Views

Part 1 Of 9:

Part 2 Of 9:

Part 3 Of 9:

Part 4 Of 9:

Part 5 Of 9:

Part 6 Of 9:

Part 7 Of 9:

Part 8 Of 9:

Part 9 Of 9:
