Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

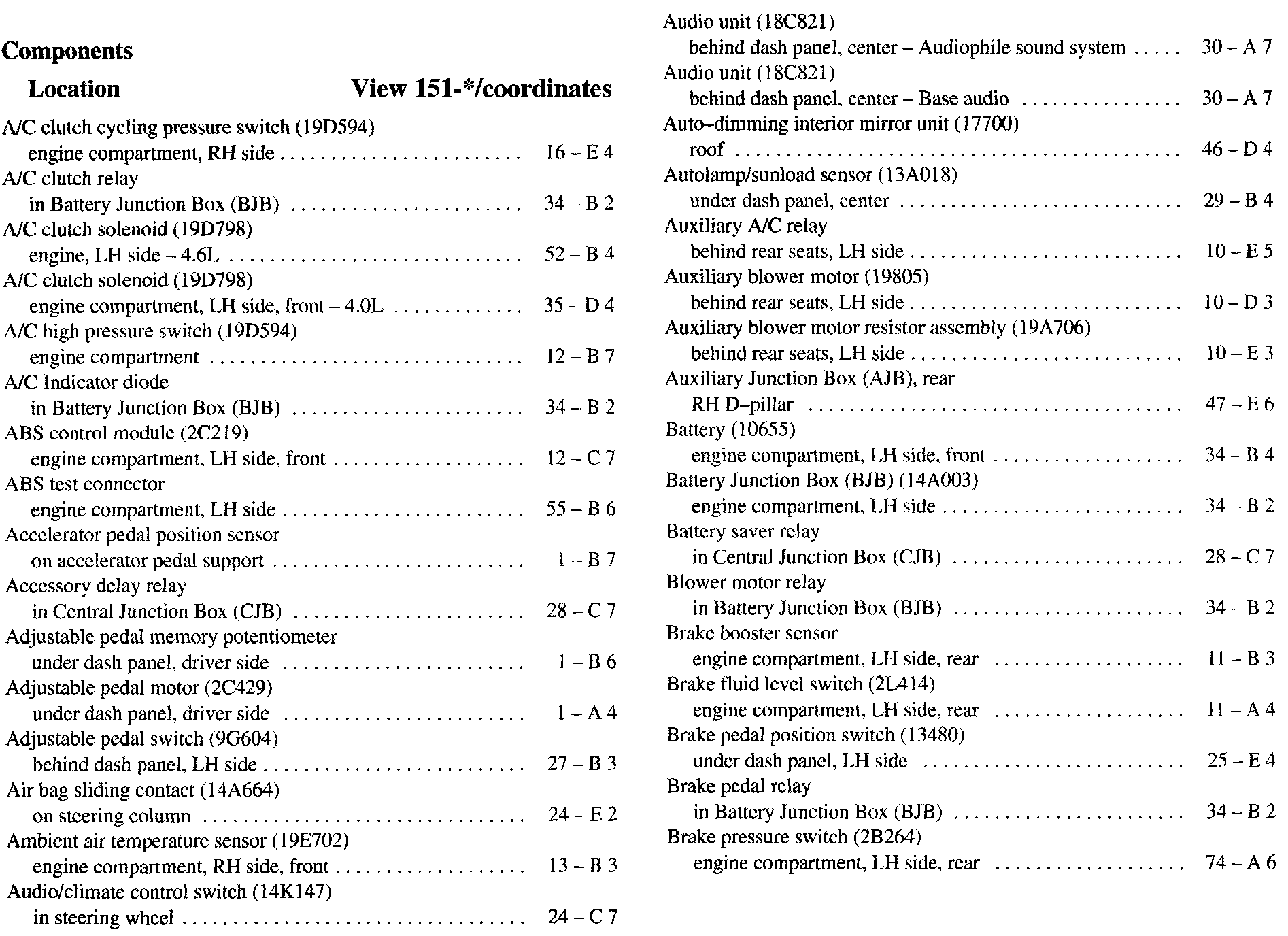

A/C-Br:

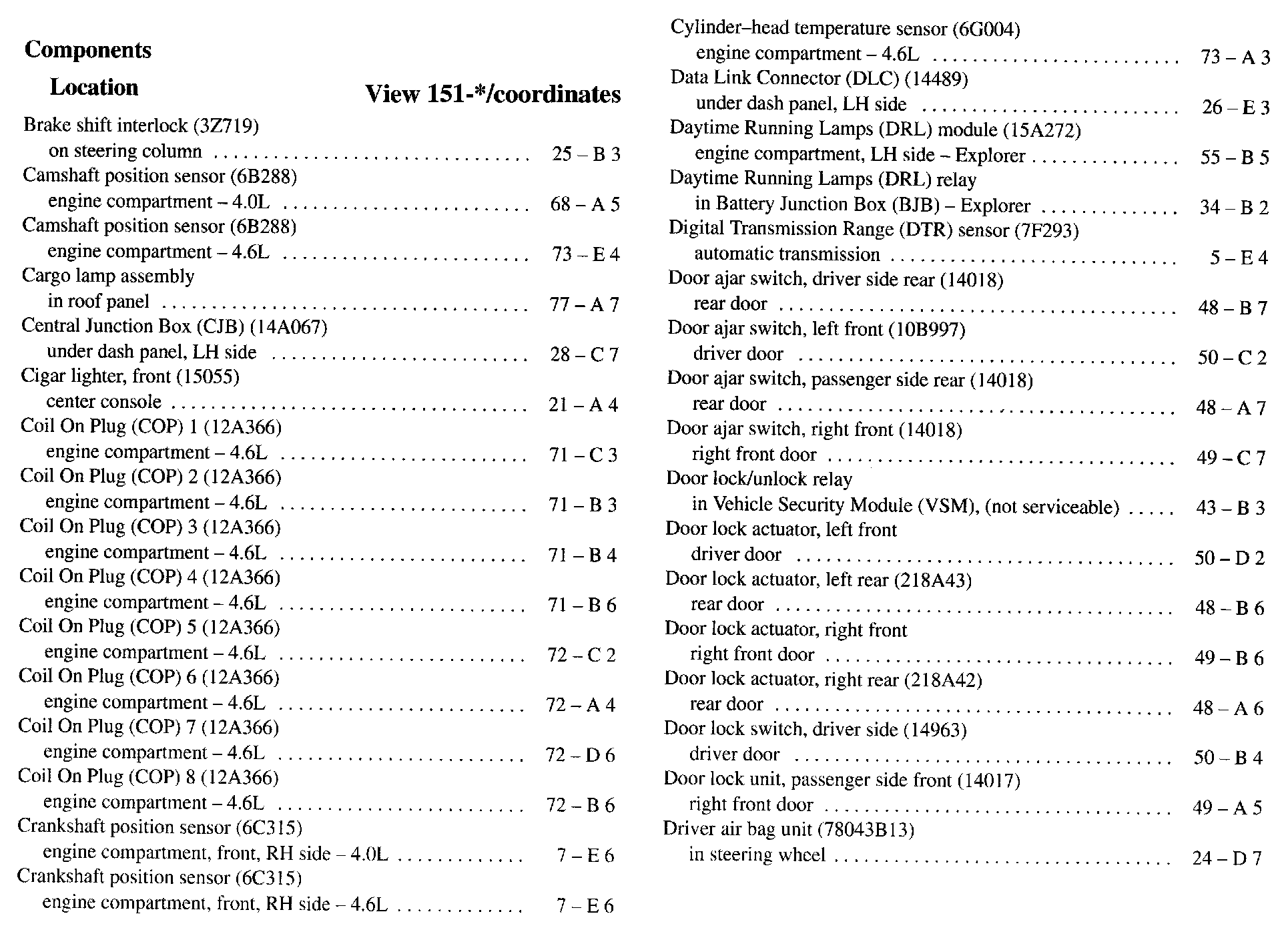

Br-Dr:

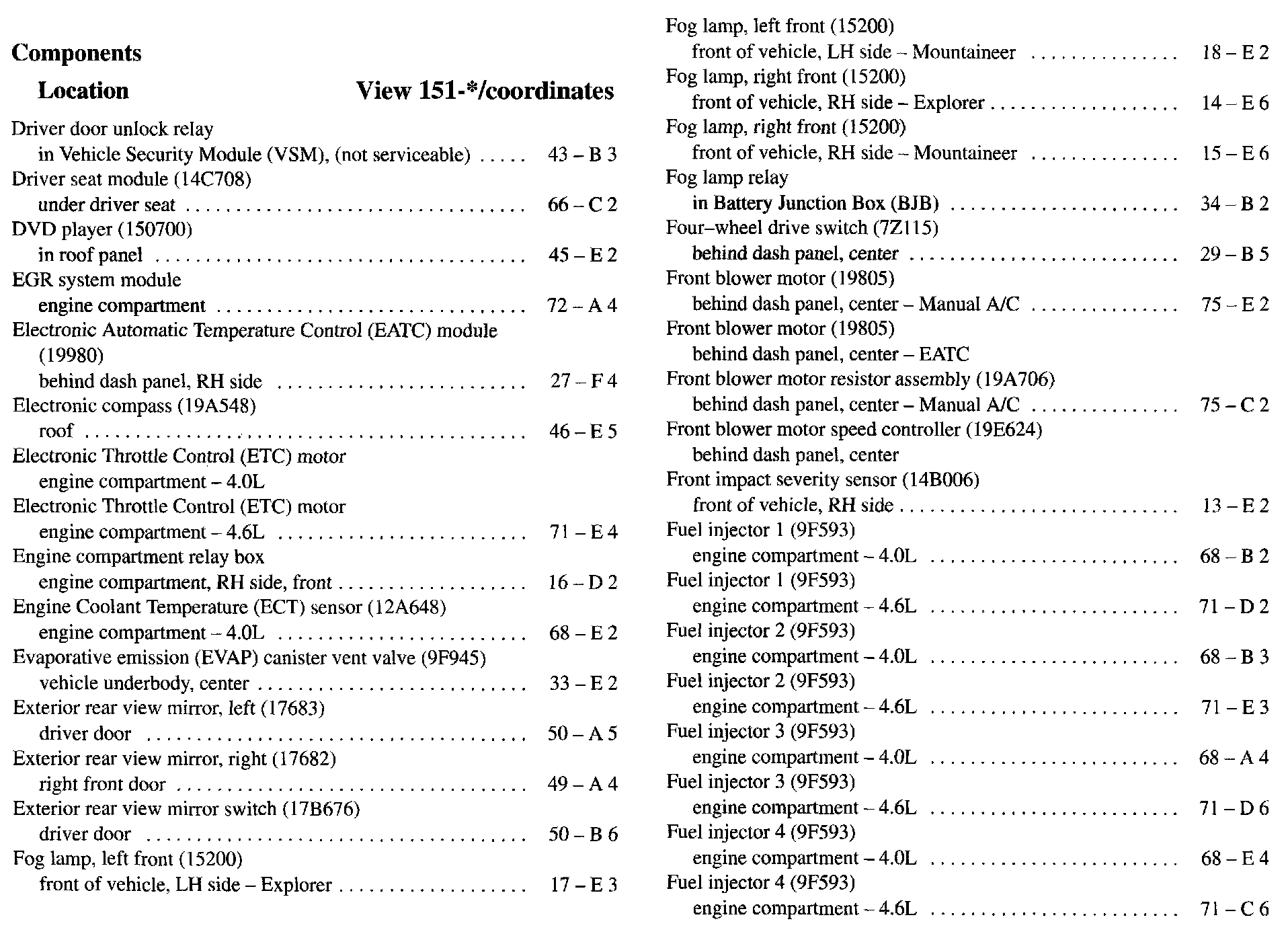

Dr-Fu:

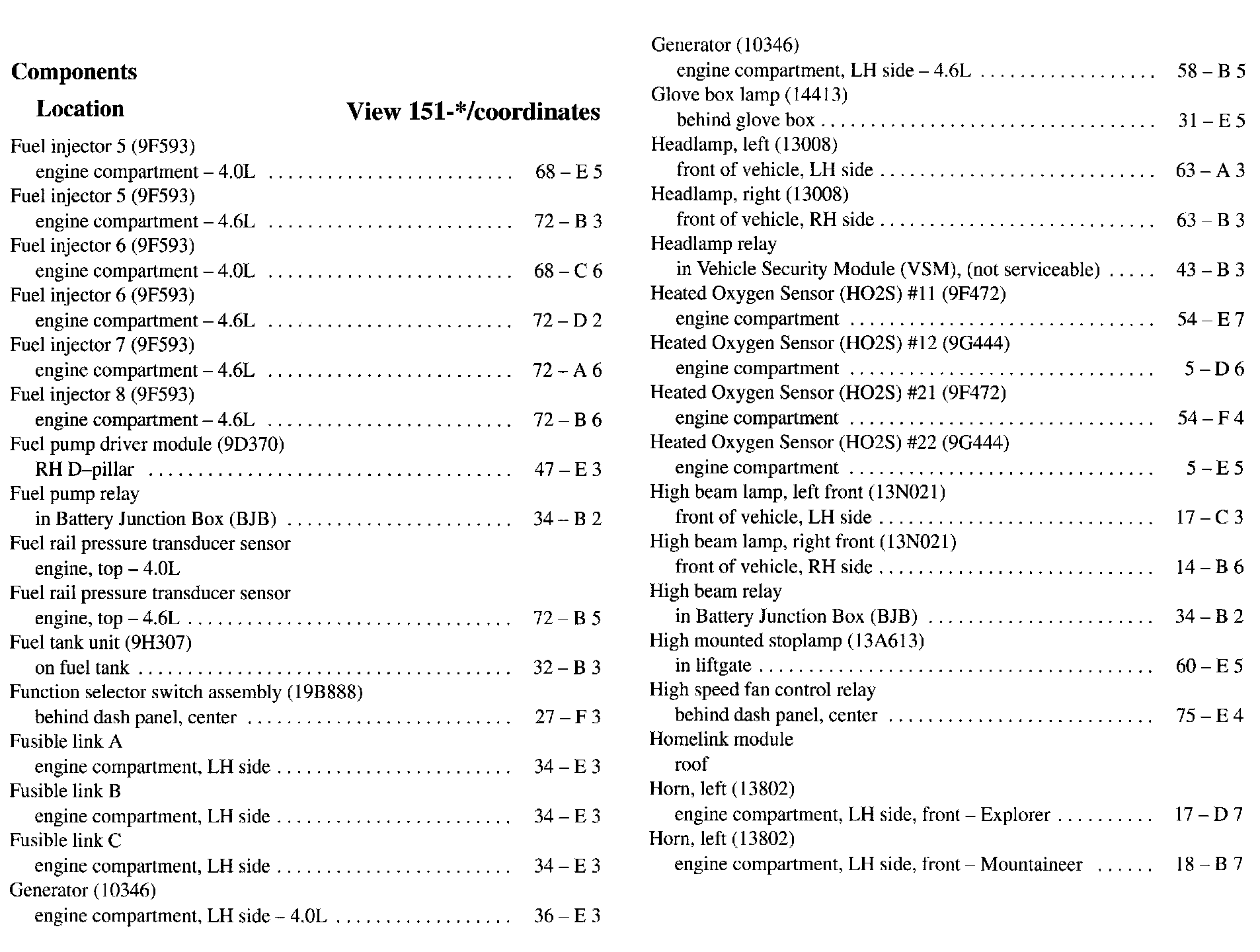

Fu-Ho:

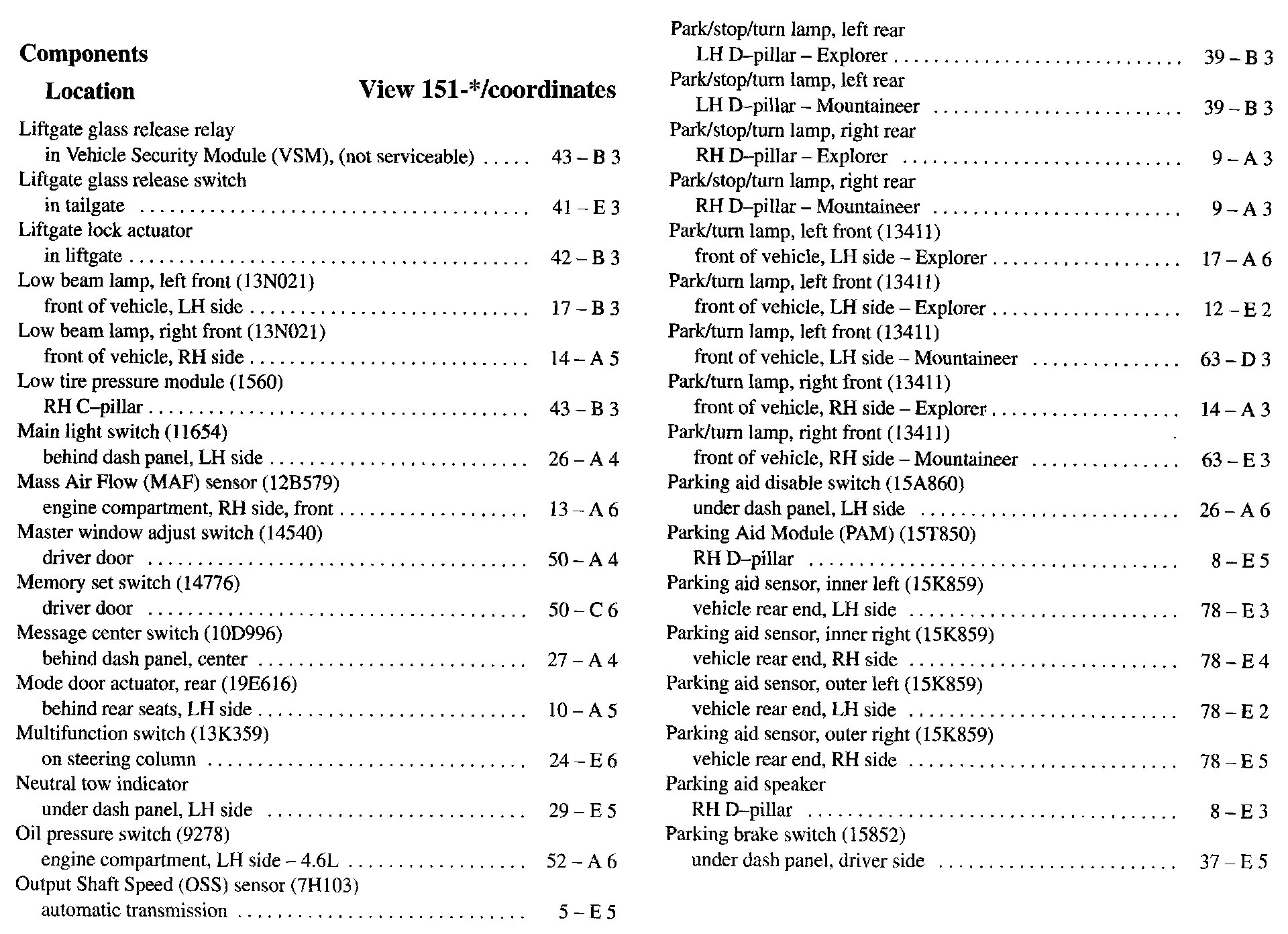

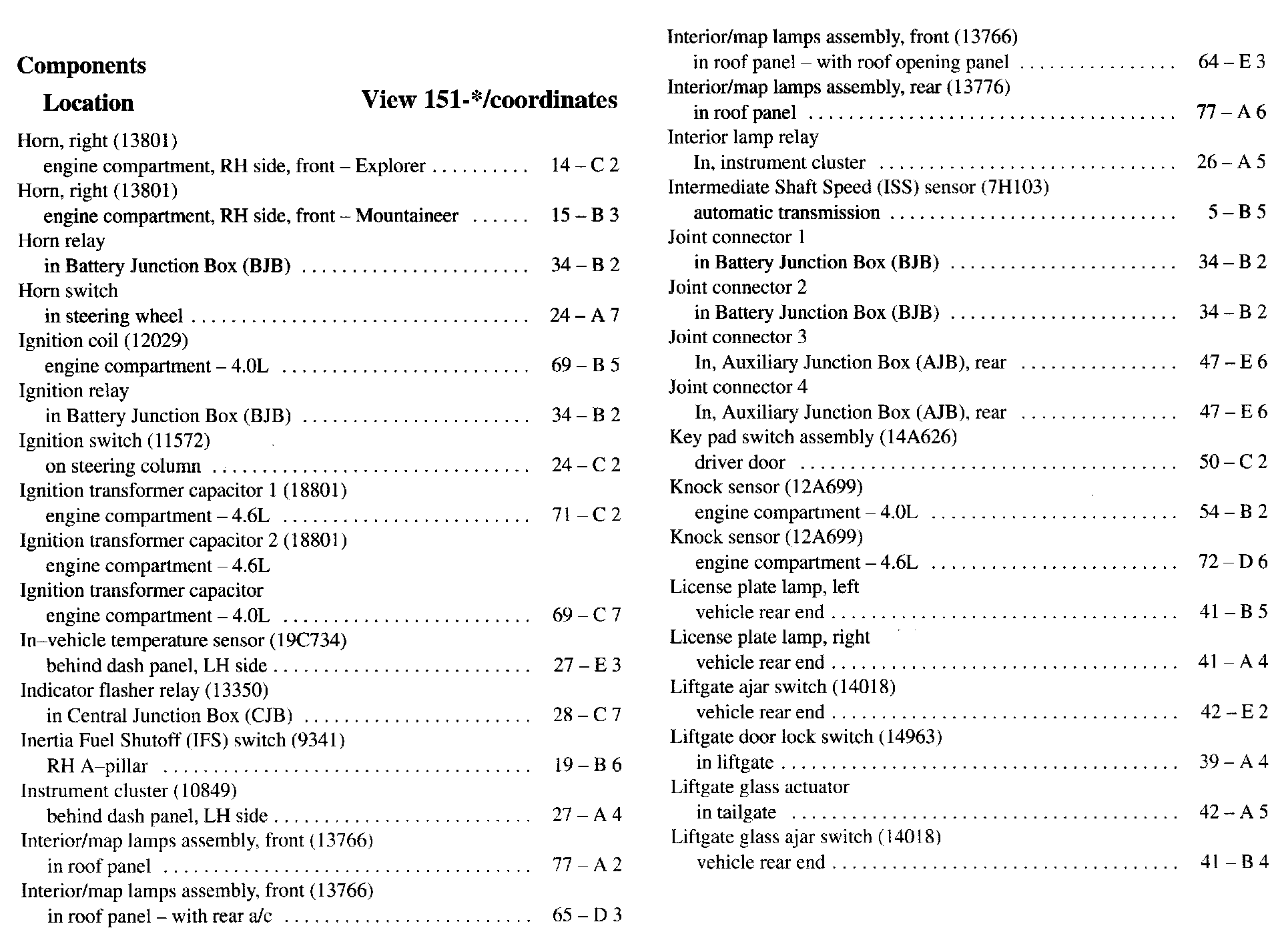

Ho-Li:

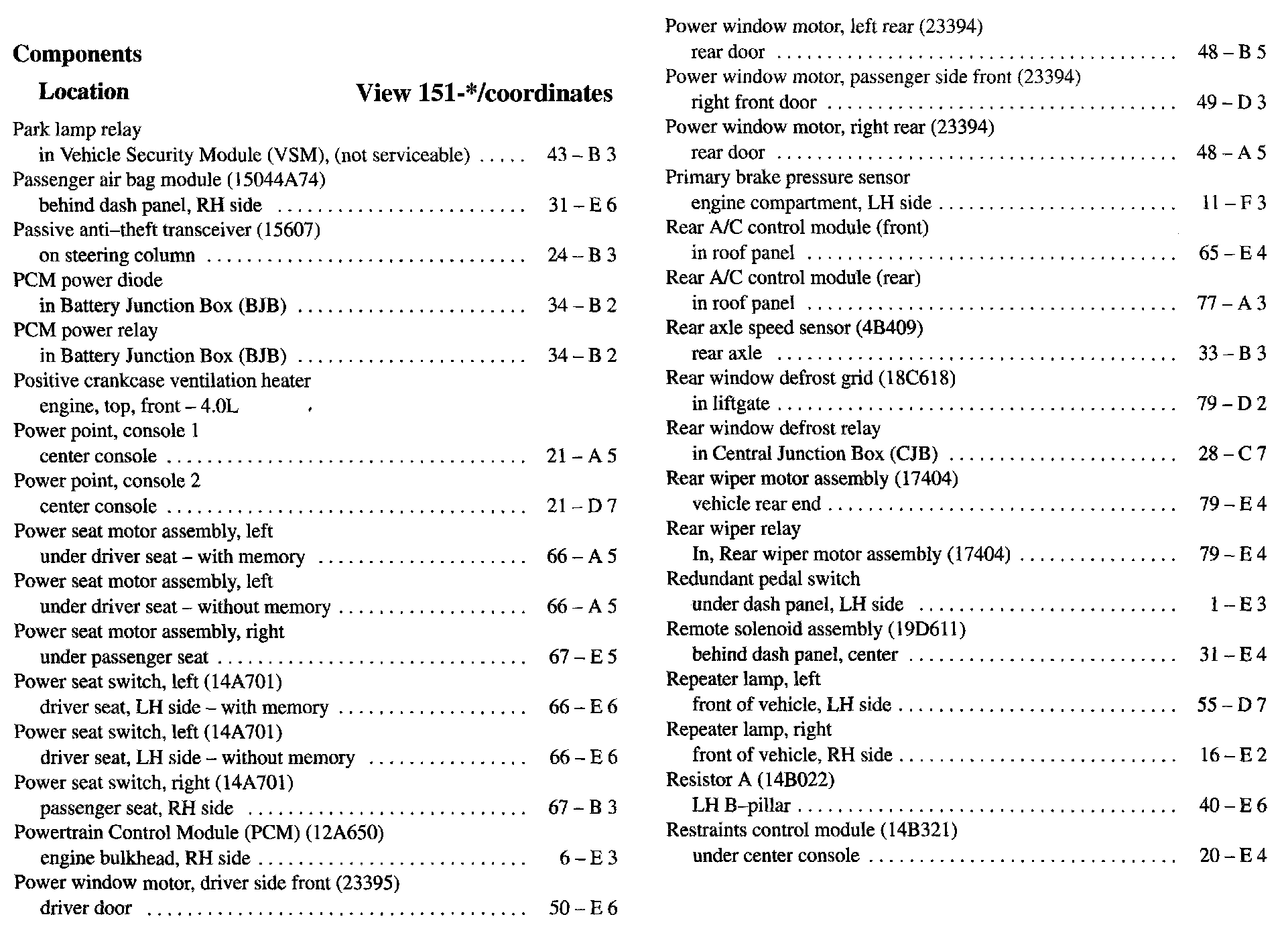

Li-Pa:

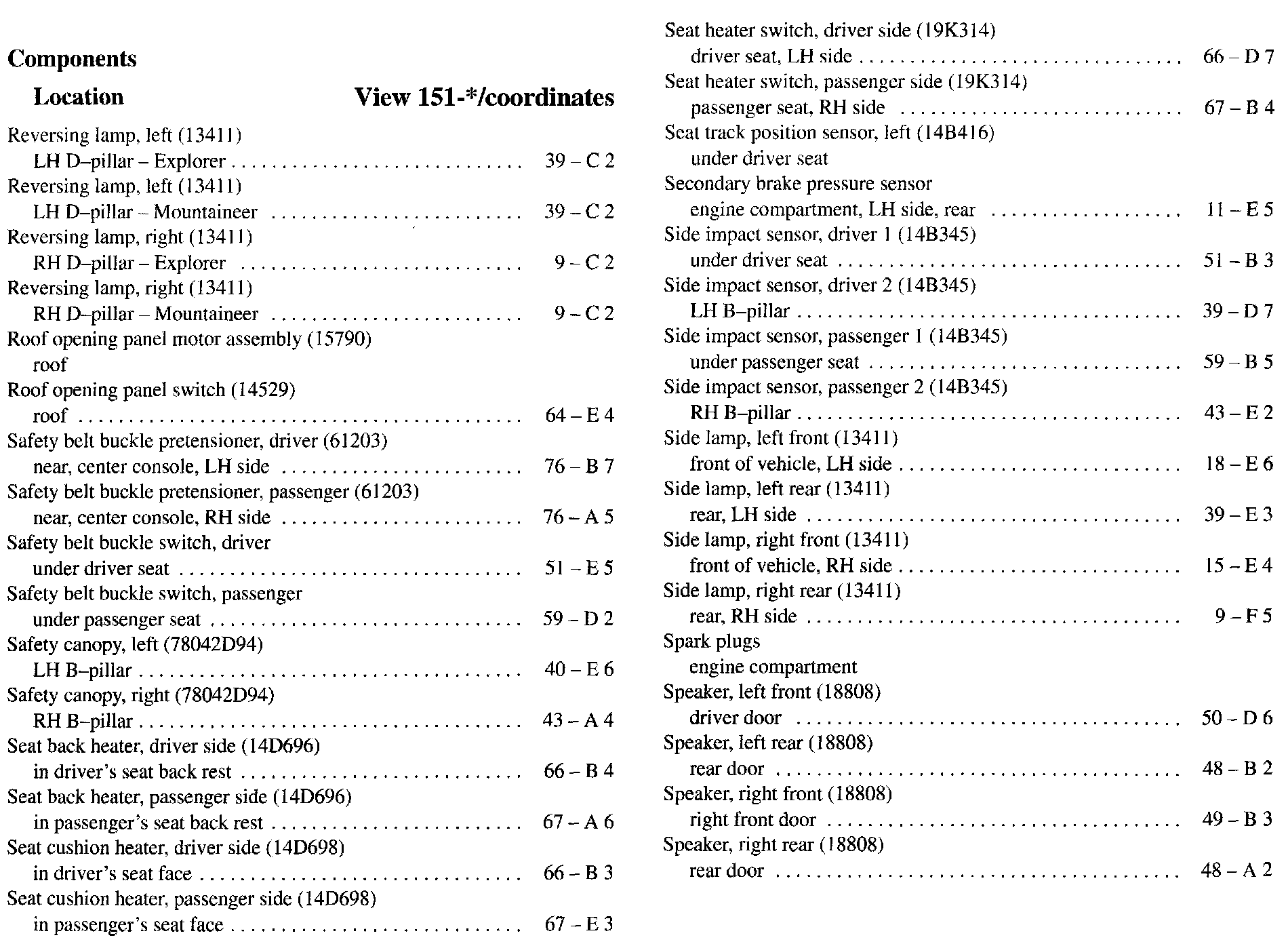

Pa-Re:

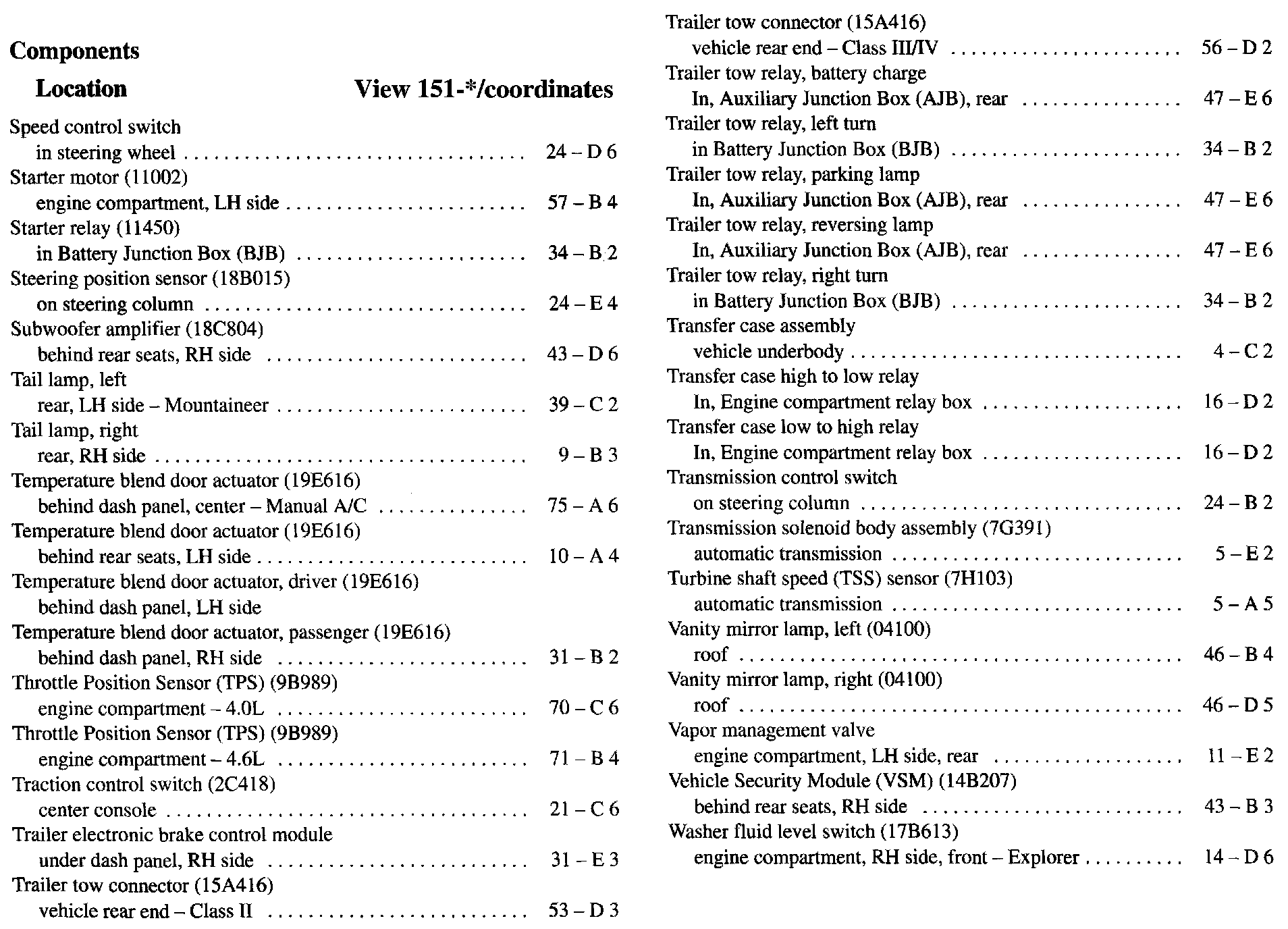

Re-Sp:

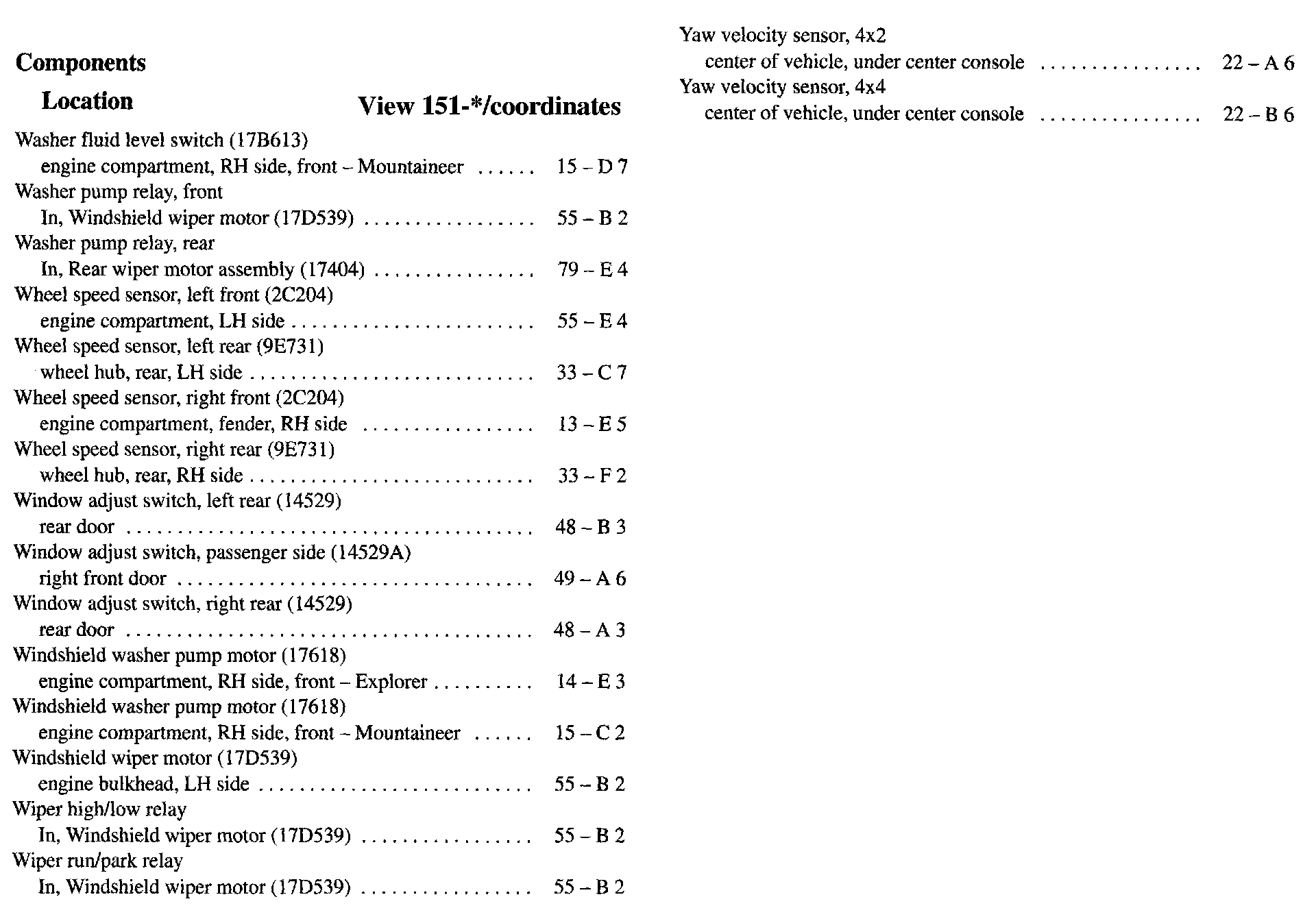

Sp-Wa:
Wa-Ya:
