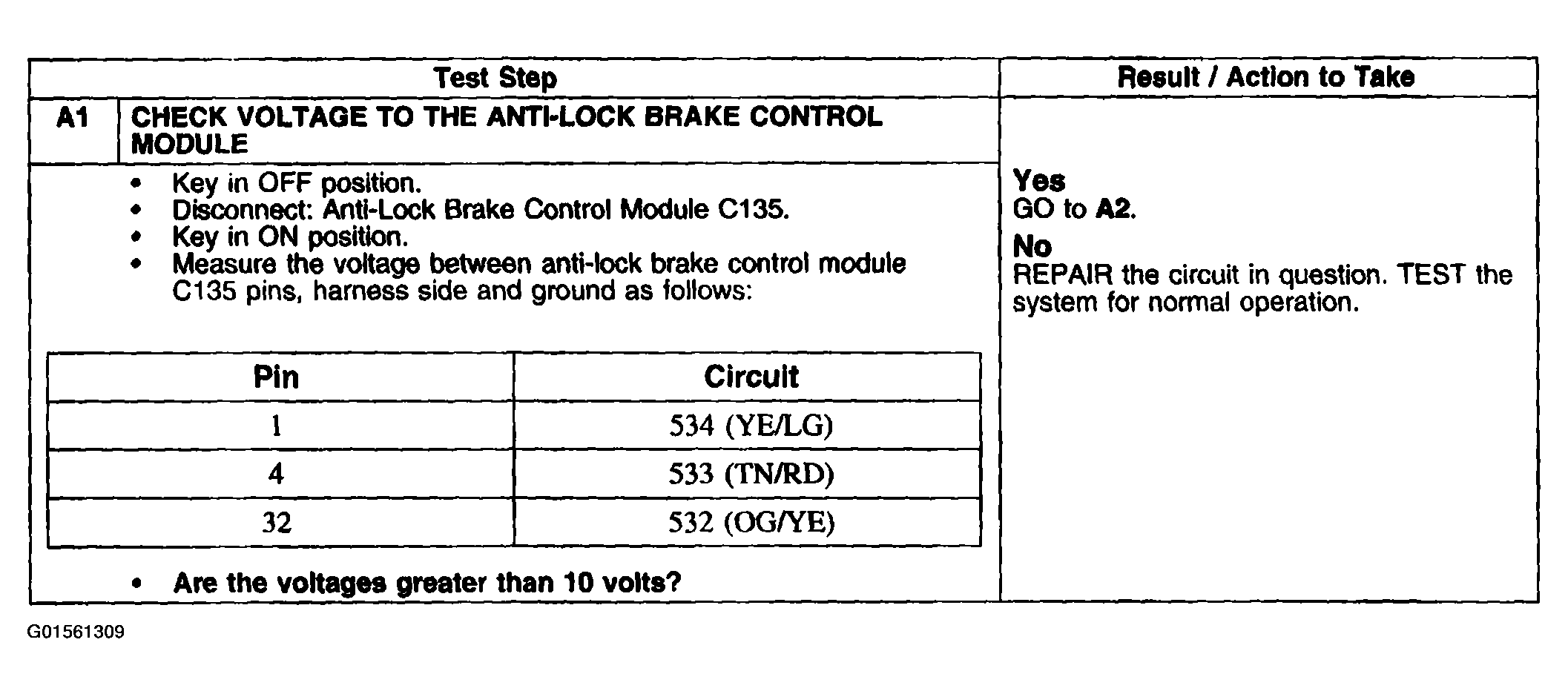

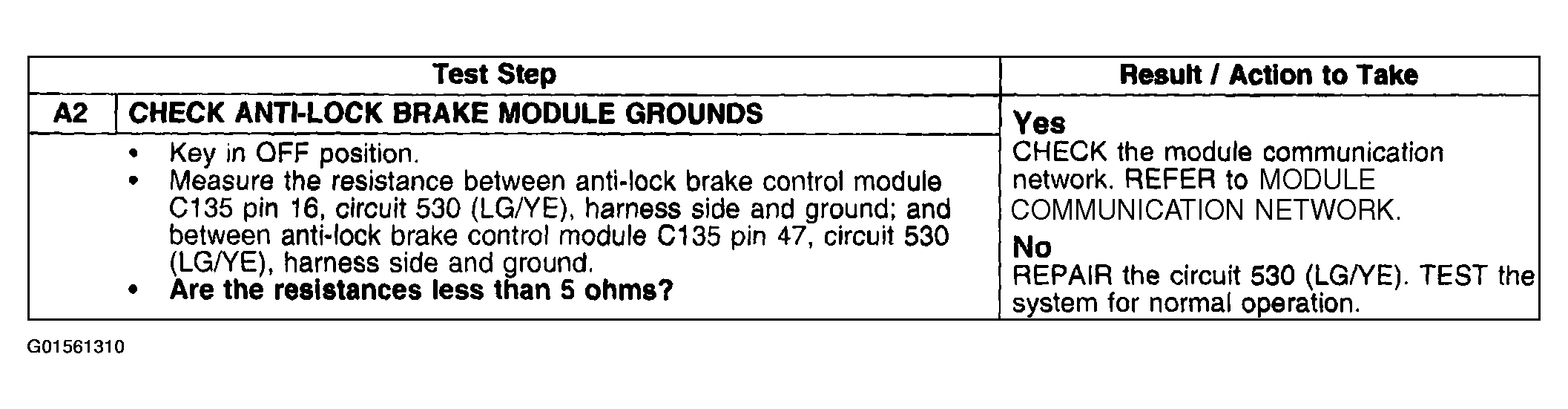

Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module/Unable To Enter Self-Test
WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
