Test D

PINPOINT TEST D: THE RF POWER WINDOW IS INOPERATIVE

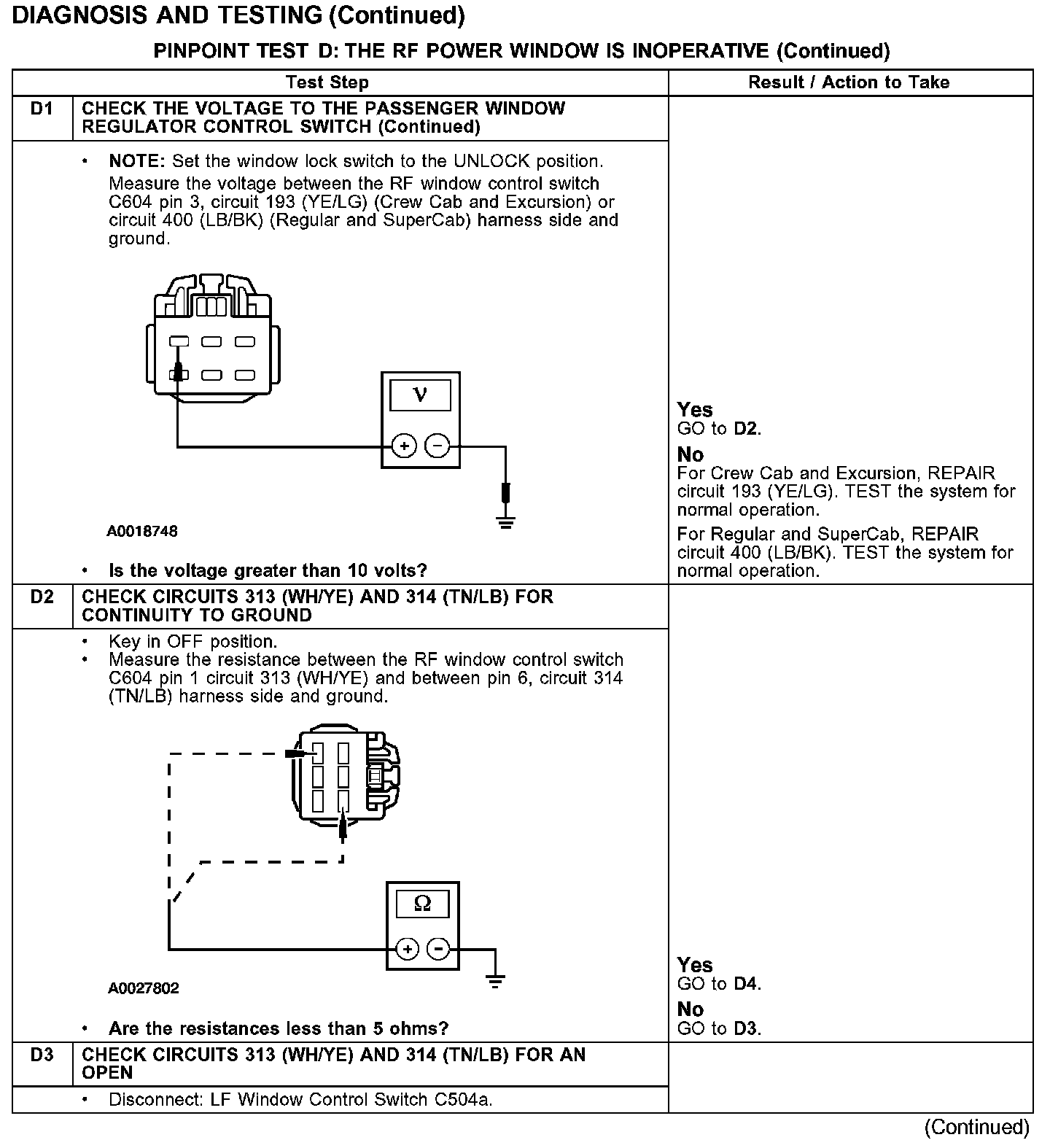

Test D1:

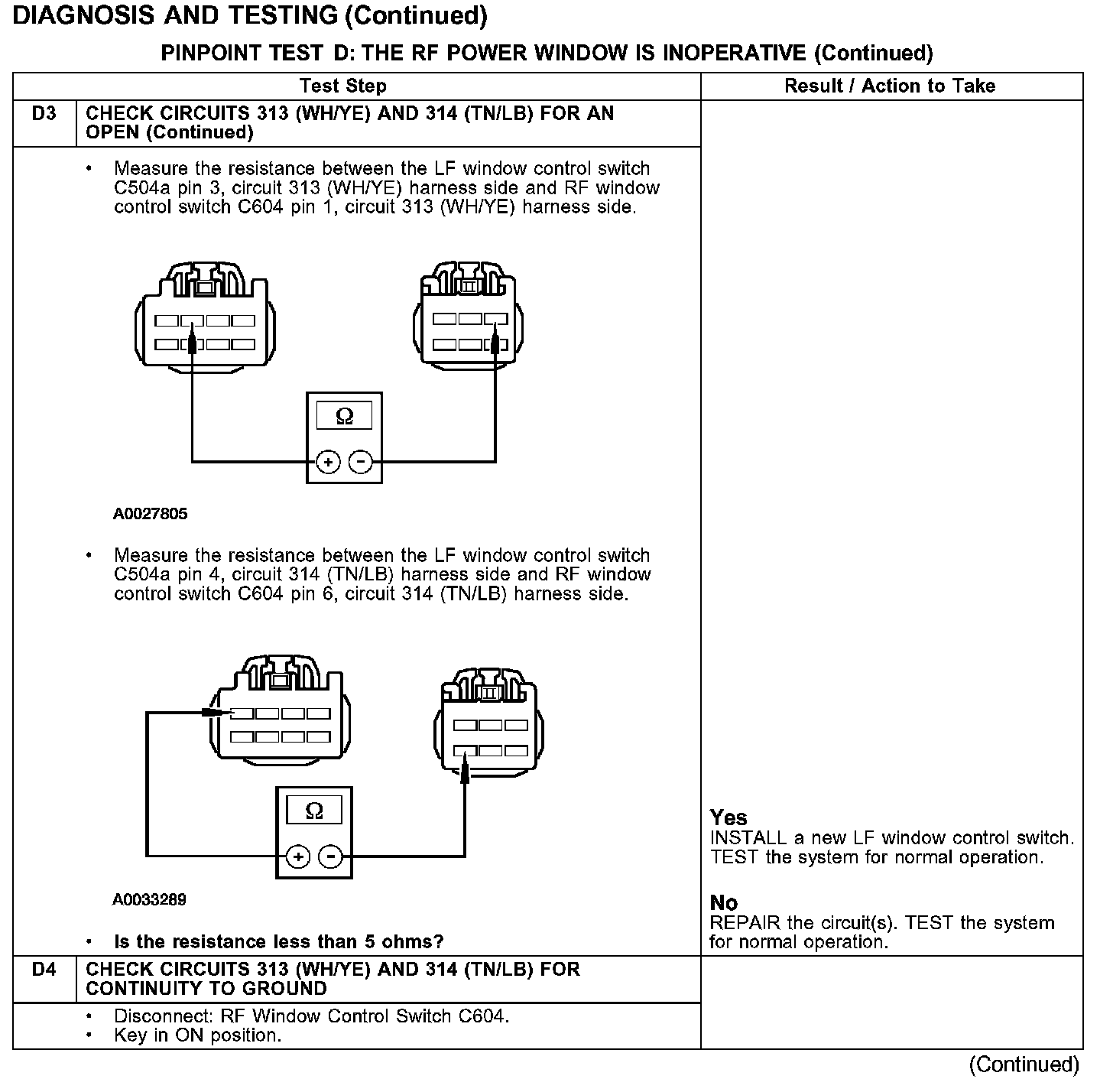

Test D1-D3:

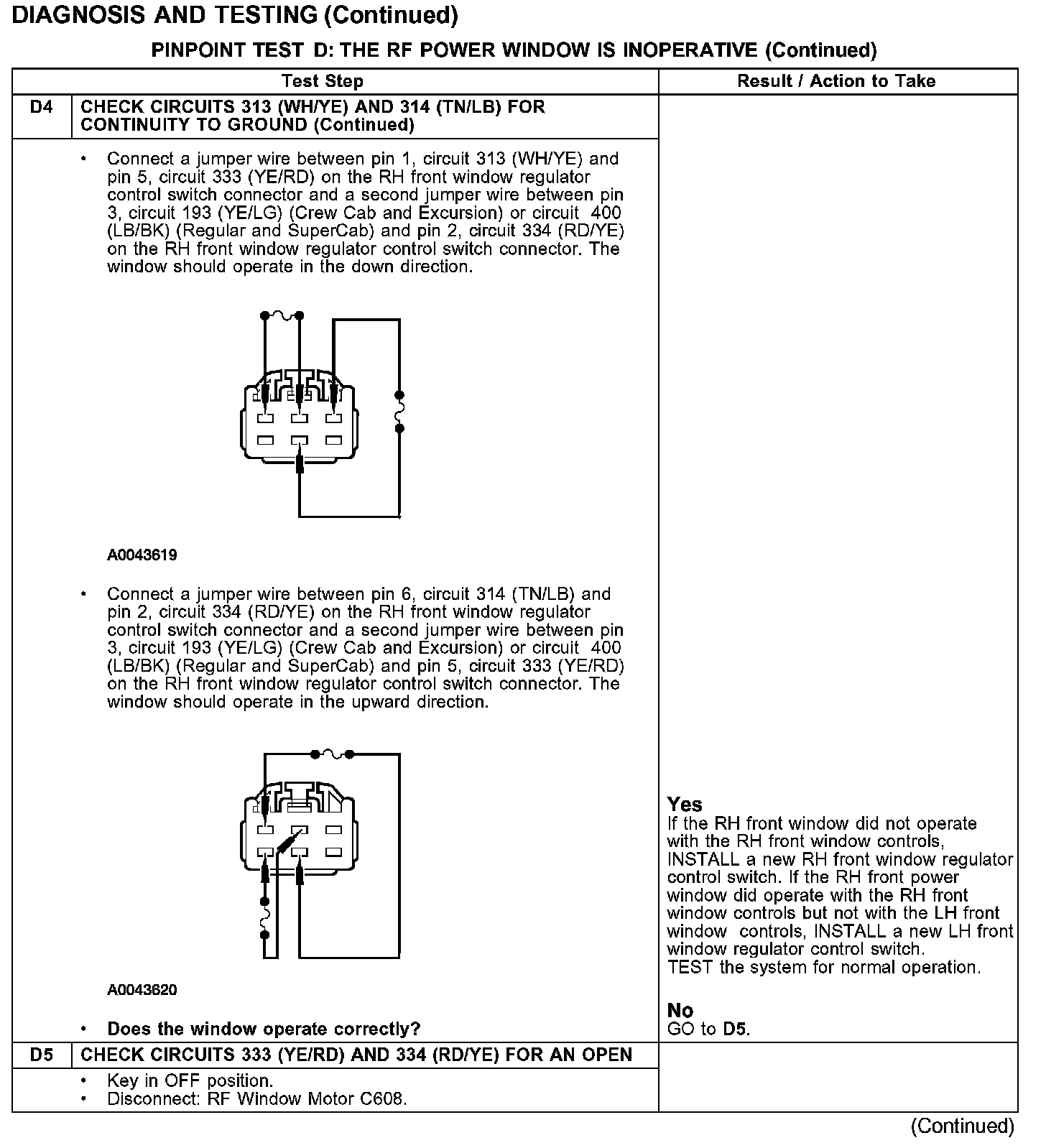

Test D3-D4:






Test D4-D5:

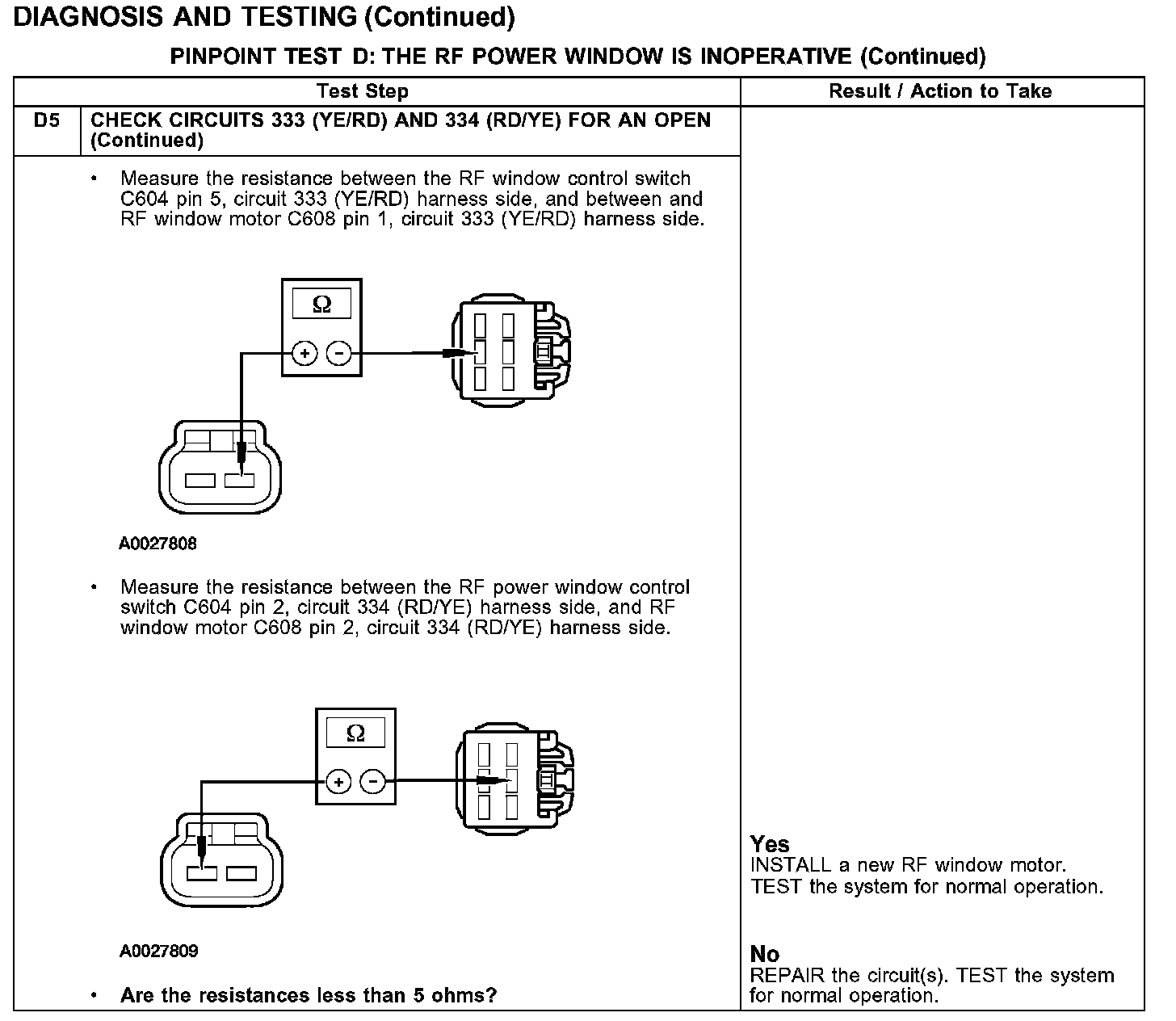

Test D5 Continued:
