Tests AT: FICM Circuit Fuel Delivery Error

PINPOINT TEST AT: FICM CIRCUIT FUEL DELIVERY ERROR

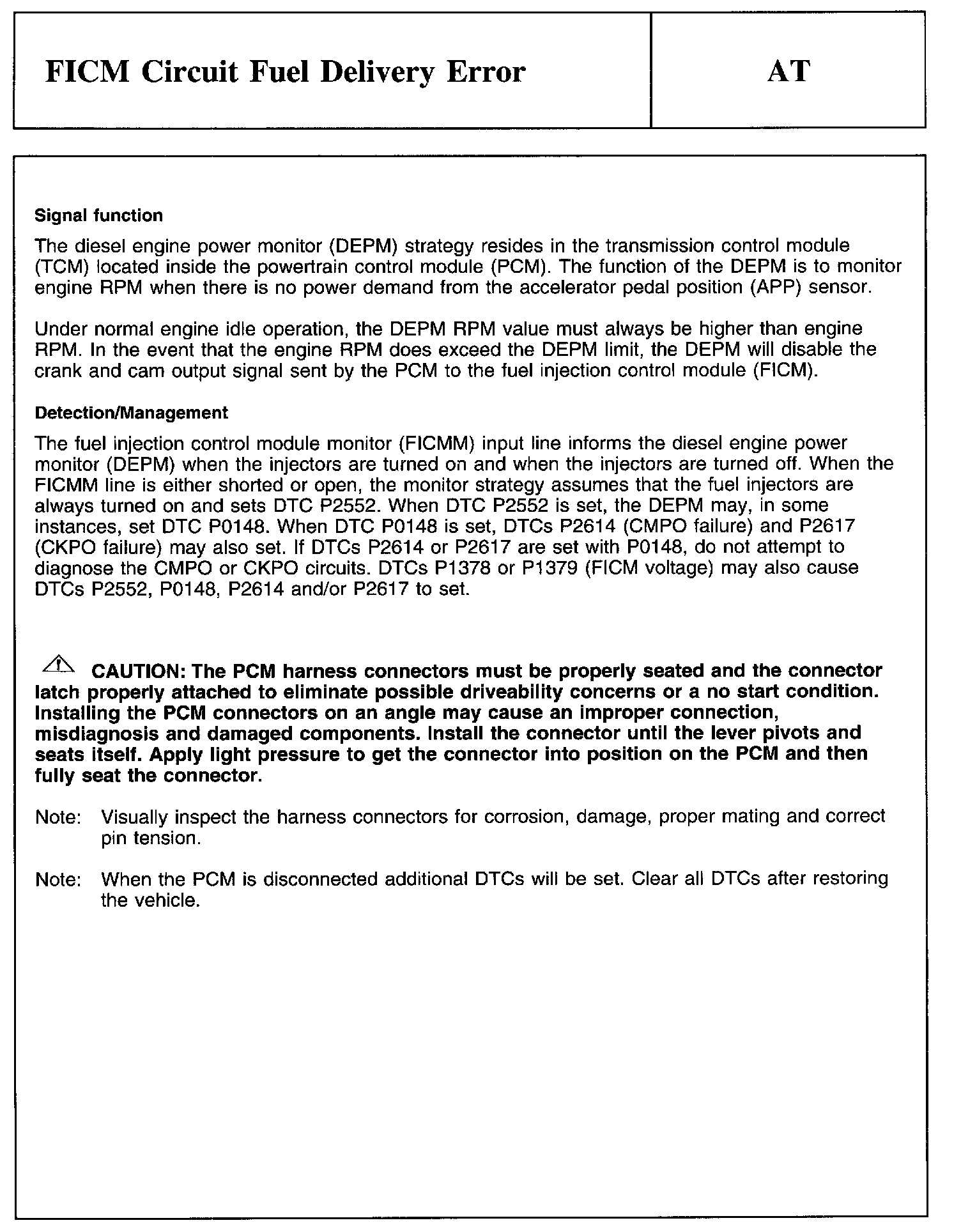

Description, Caution:

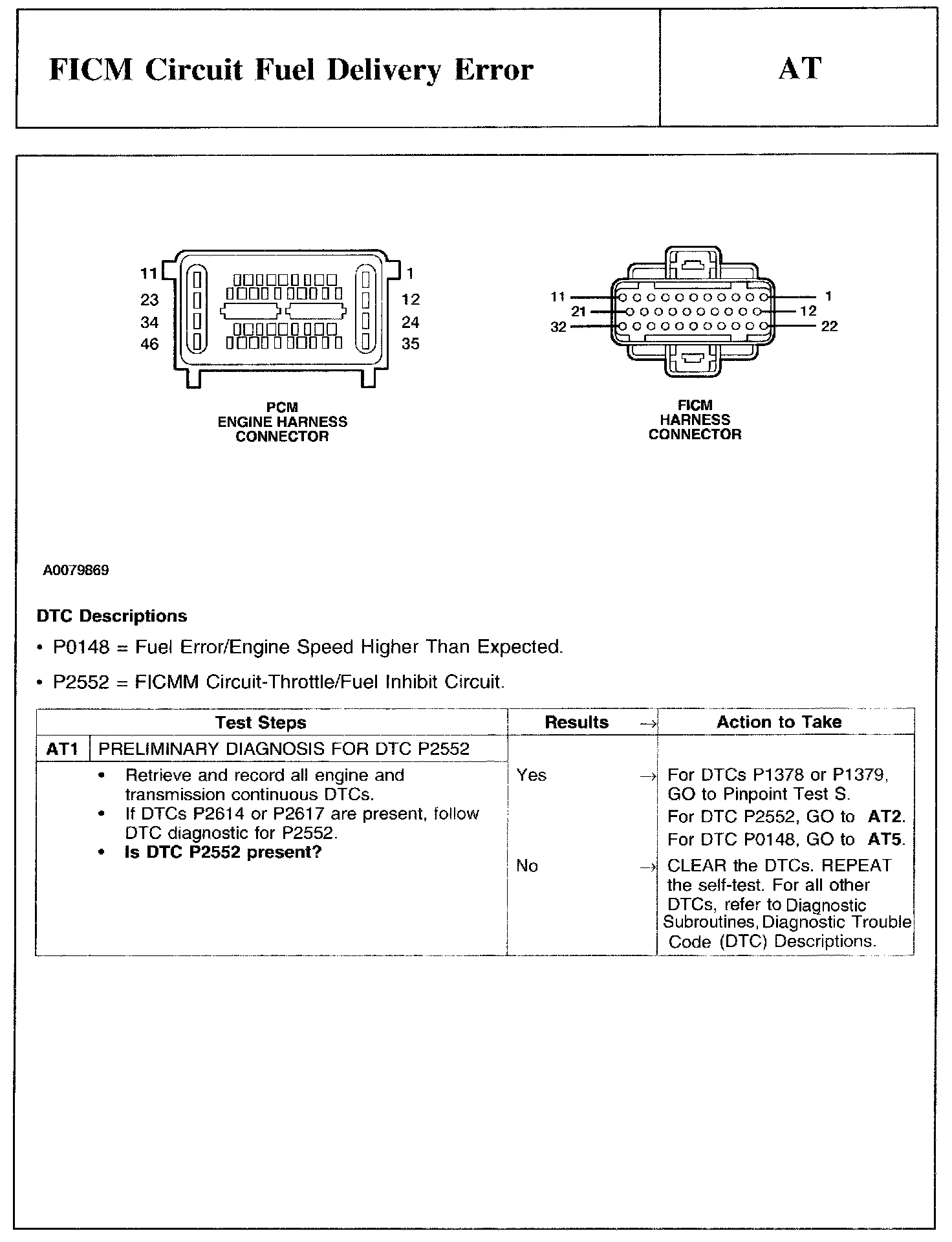

Schematic, Description And Test AT1:

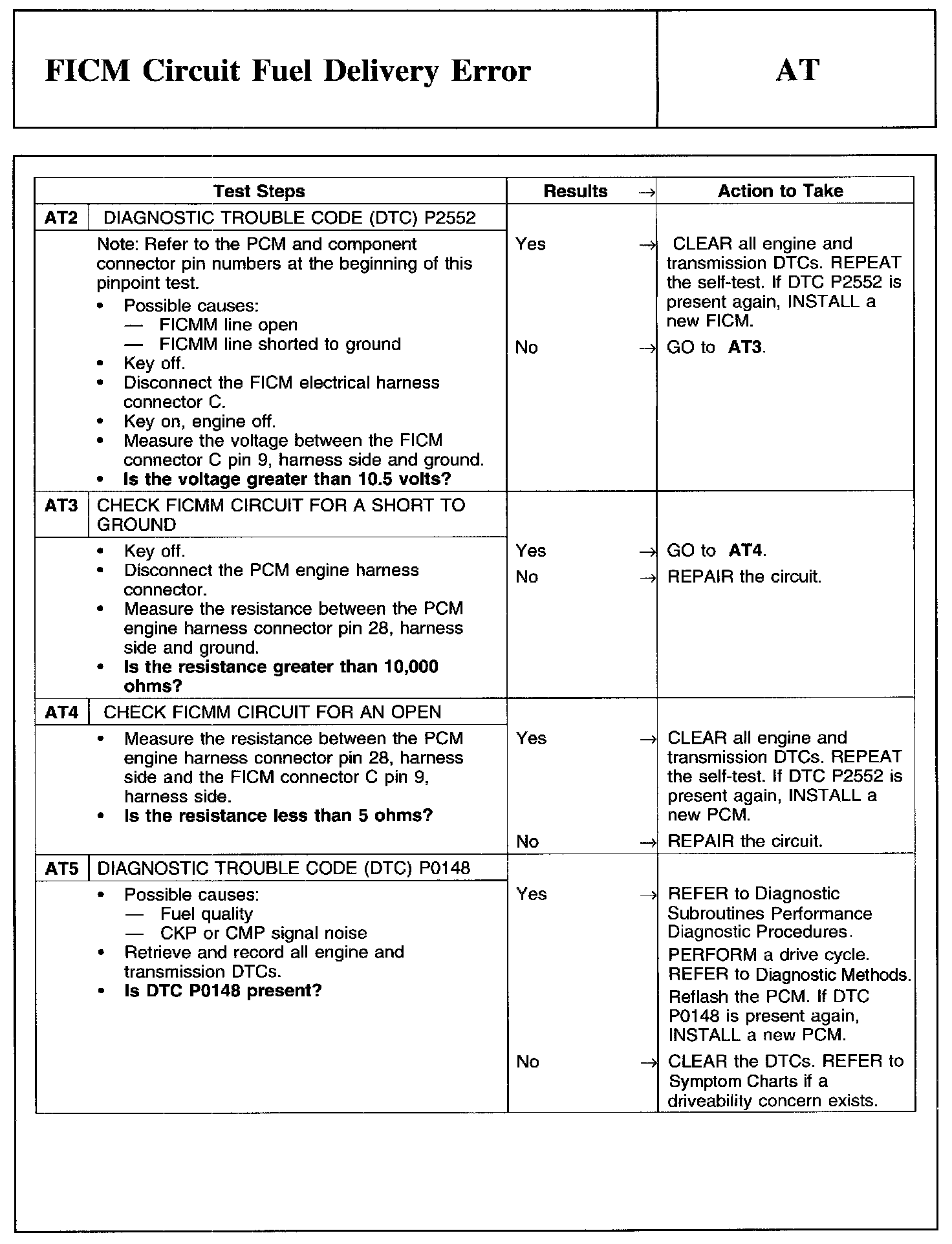

Test AT2-AT5:
