Tests AP: Injection Control Pressure Too High - Engine Off
PINPOINT TEST AP: INJECTION CONTROL PRESSURE TOO HIGH - ENGINE OFF

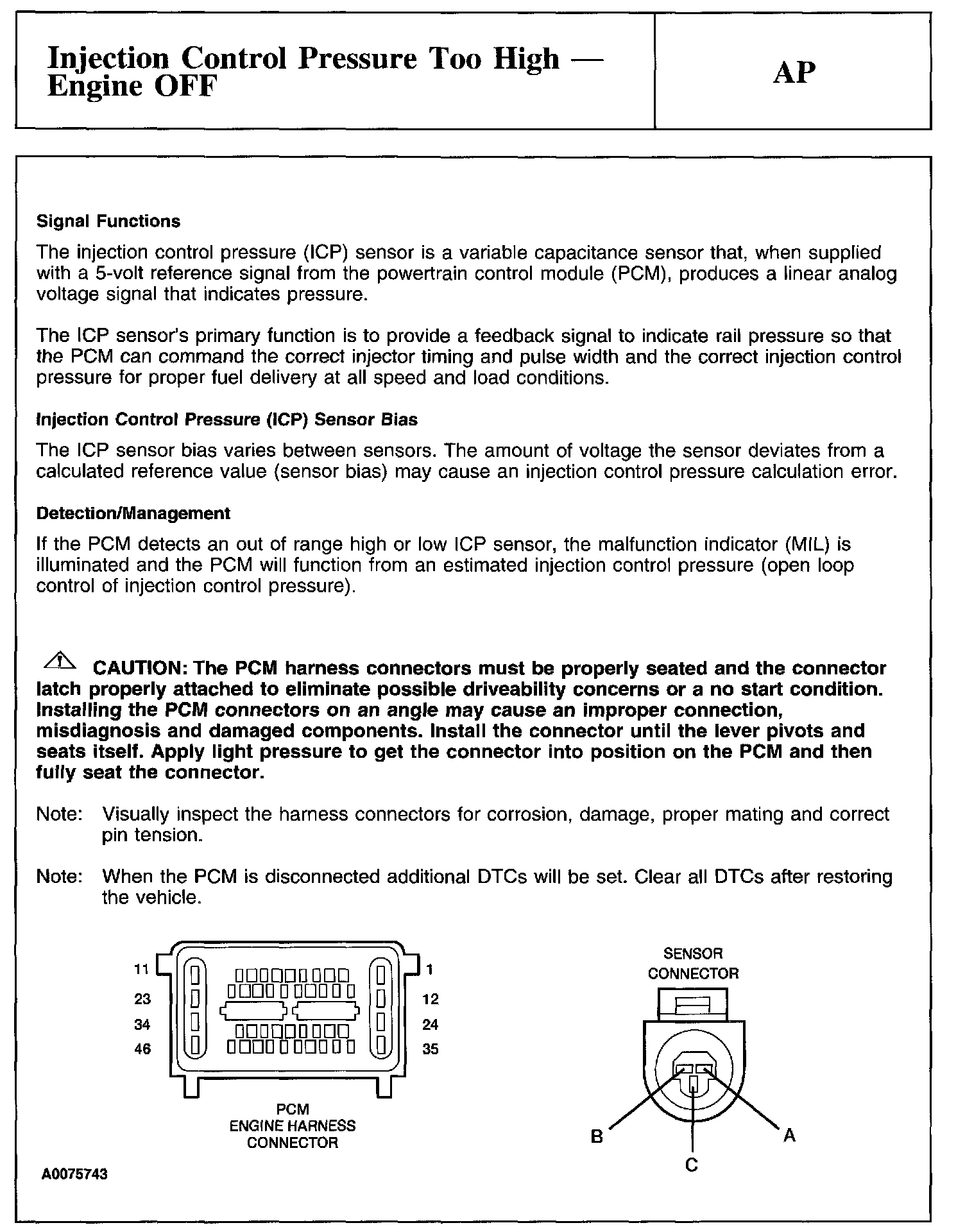

Description, Caution And Schematic:

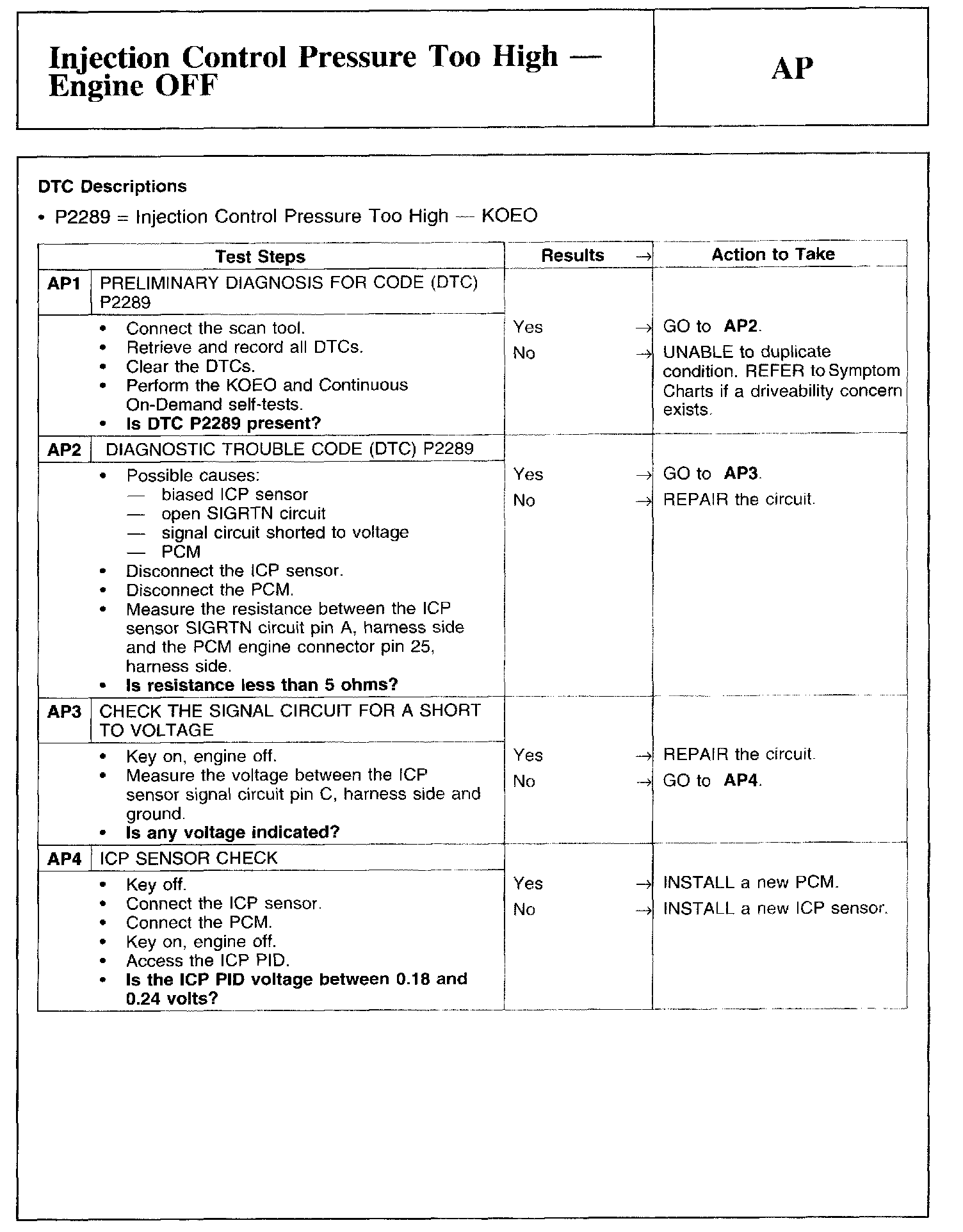

Description, Test AP1-AP4:
