Test K: Engine Coolant Temperature (ECT) Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test K: Engine Coolant Temperature (ECT) Sensor
PINPOINT TEST K: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

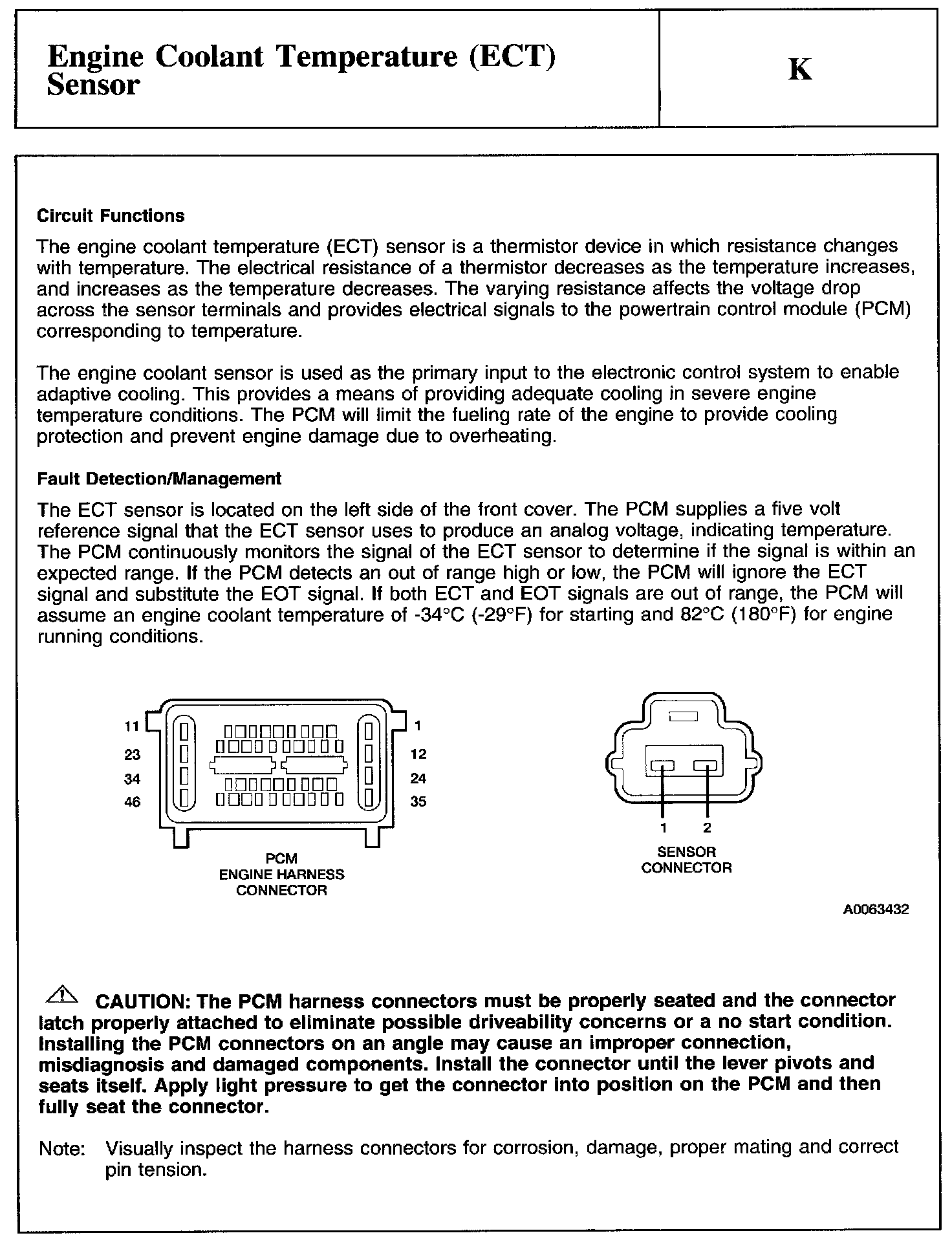

Description, Schematic And Caution:

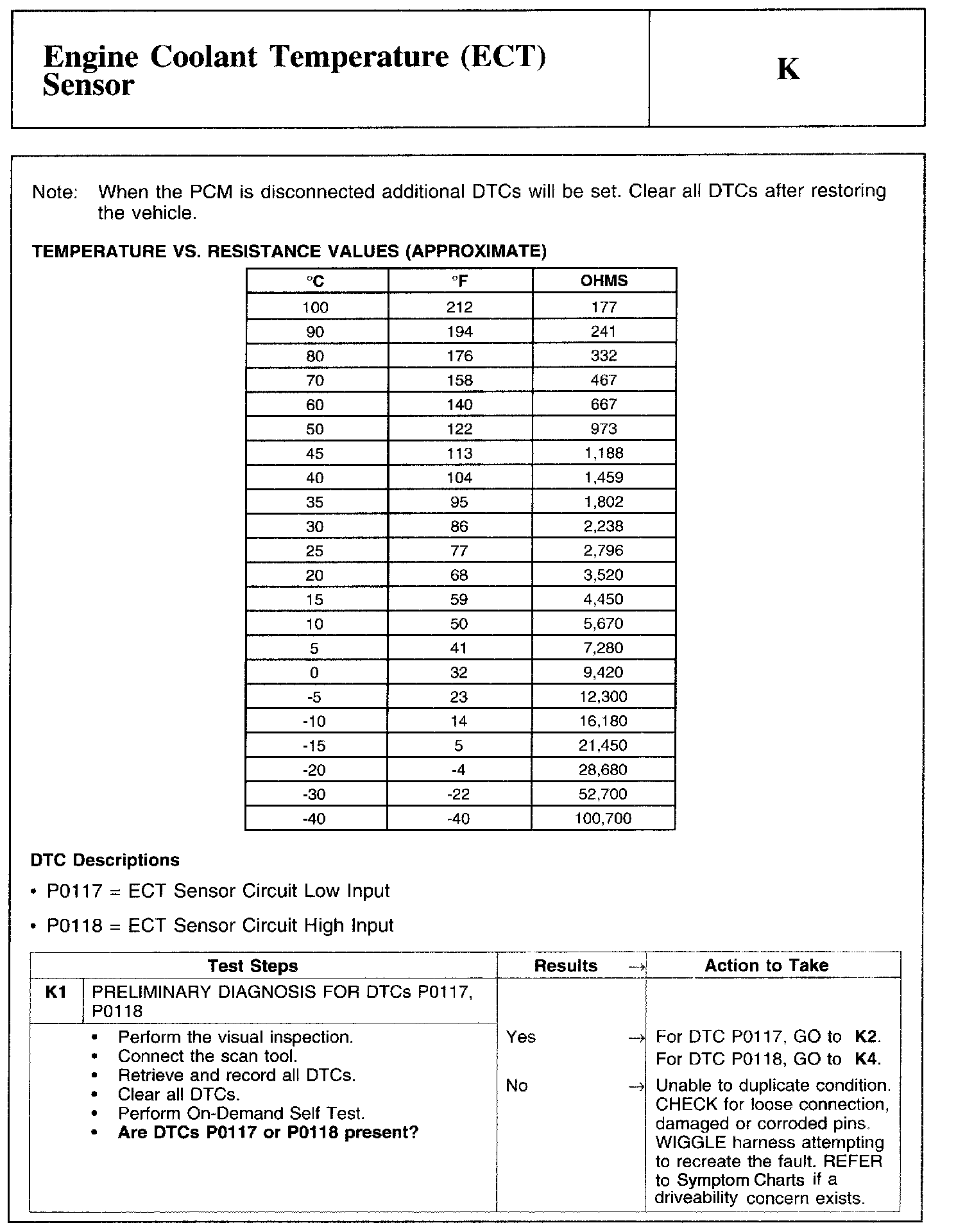

Table, Description And Test K1:

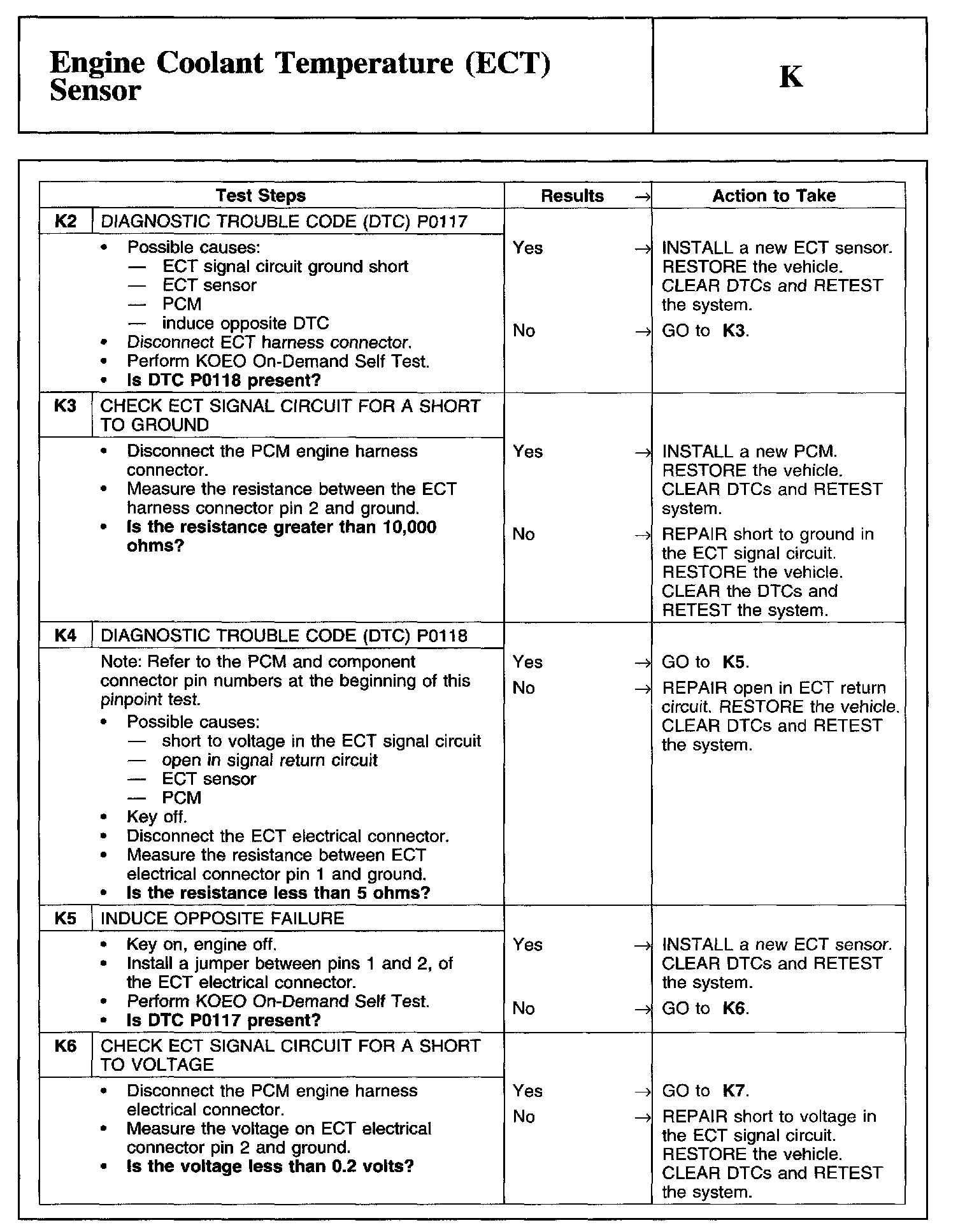

Test K2-K6:

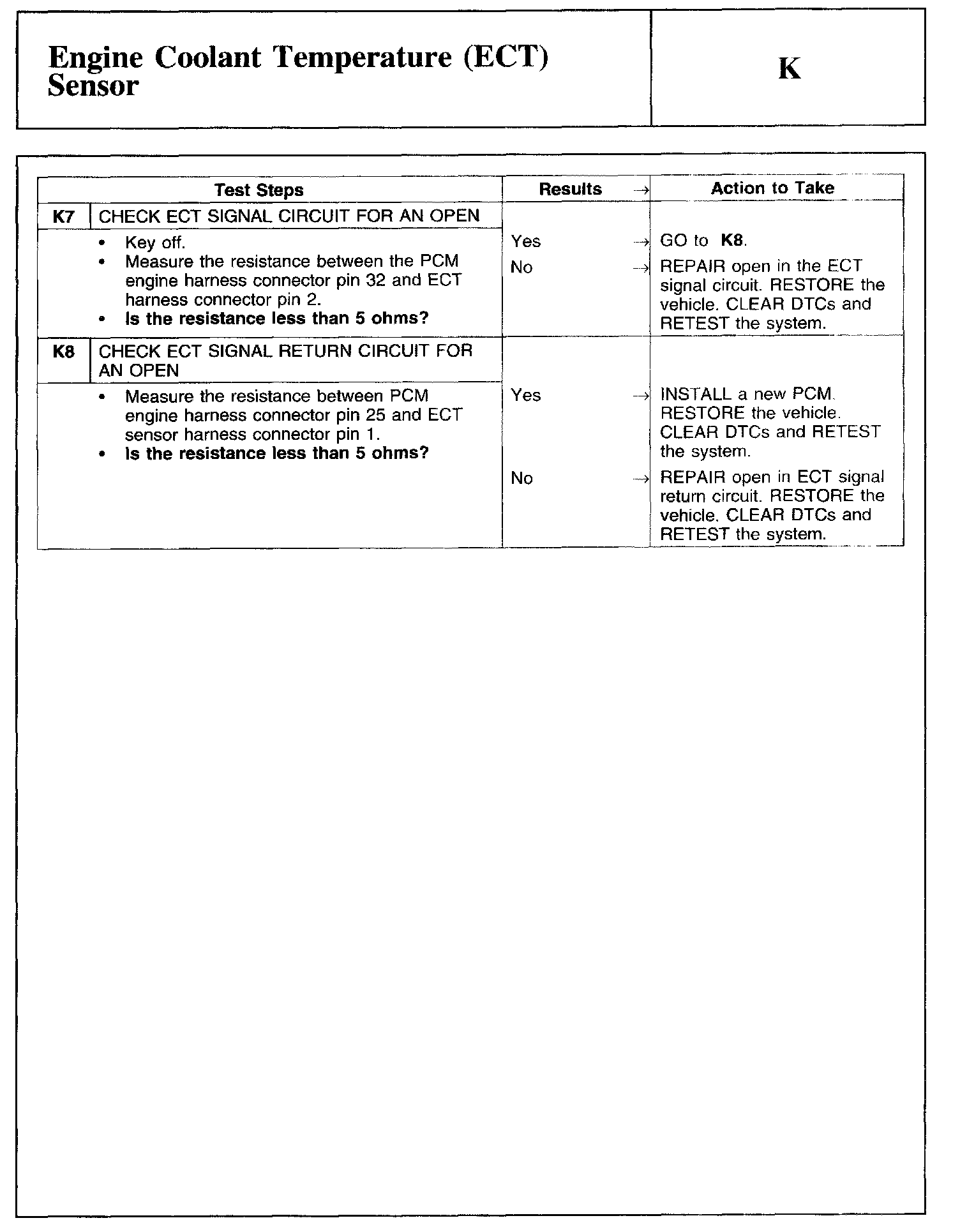

Test K7-K8:
