Test D

PINPOINT TEST D: THE 4-WHEEL DRIVE (4WD) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


Test D1:

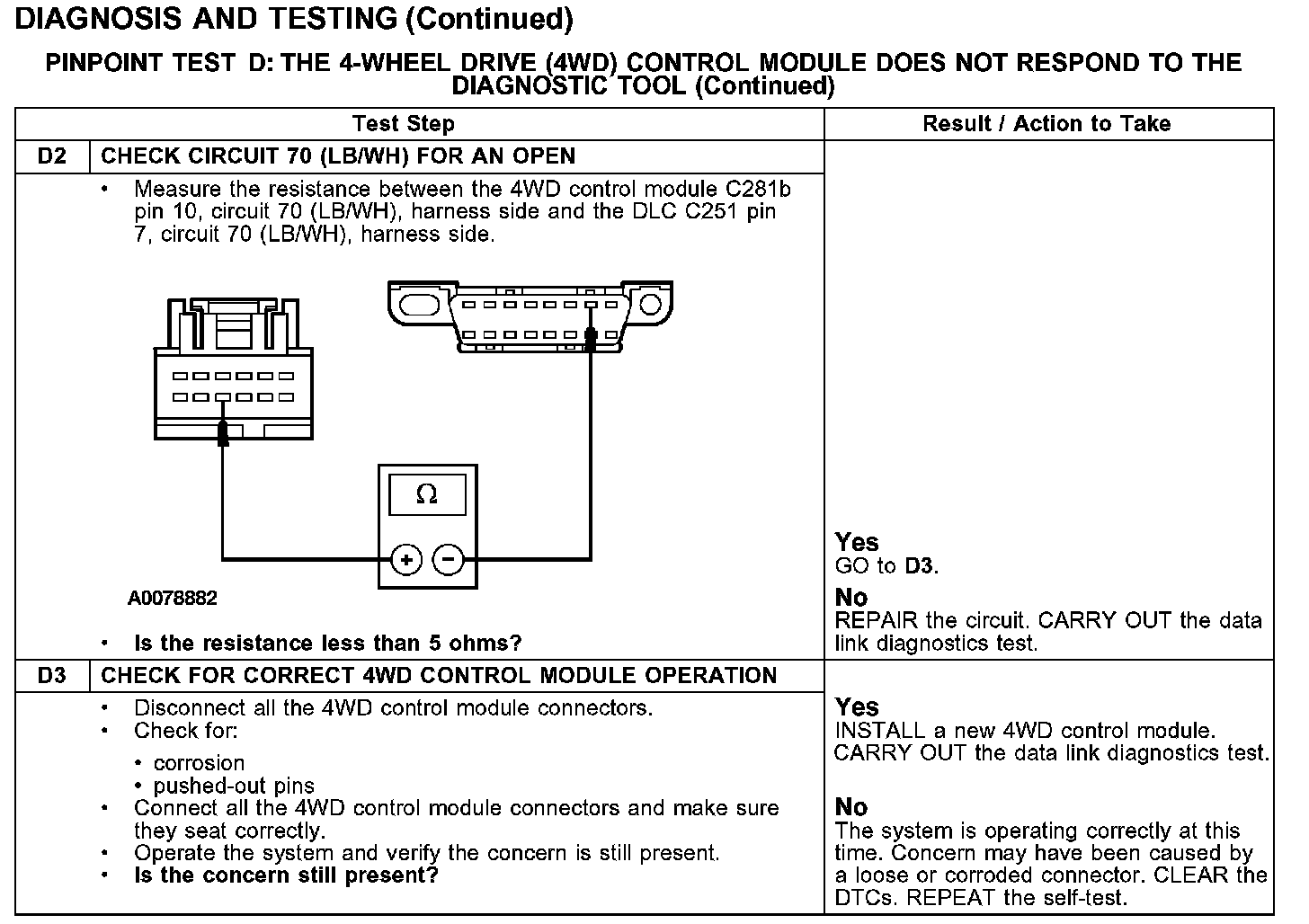

Test D2-D3:
