Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR

REMOVAL

1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.







2. NOTE: Fuel line disconnected for clarity.

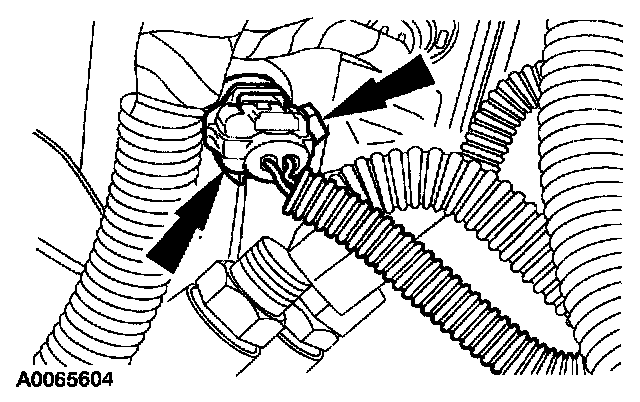

Disconnect the intake air temperature (IAT) electrical connector and wiring harness retainer.







3. Remove the IAT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
