Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Dual Generators
>>
Test T
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test T
PINPOINT TEST T: DUAL GENERATOR UPPER FAULT DETECTED (P1105)

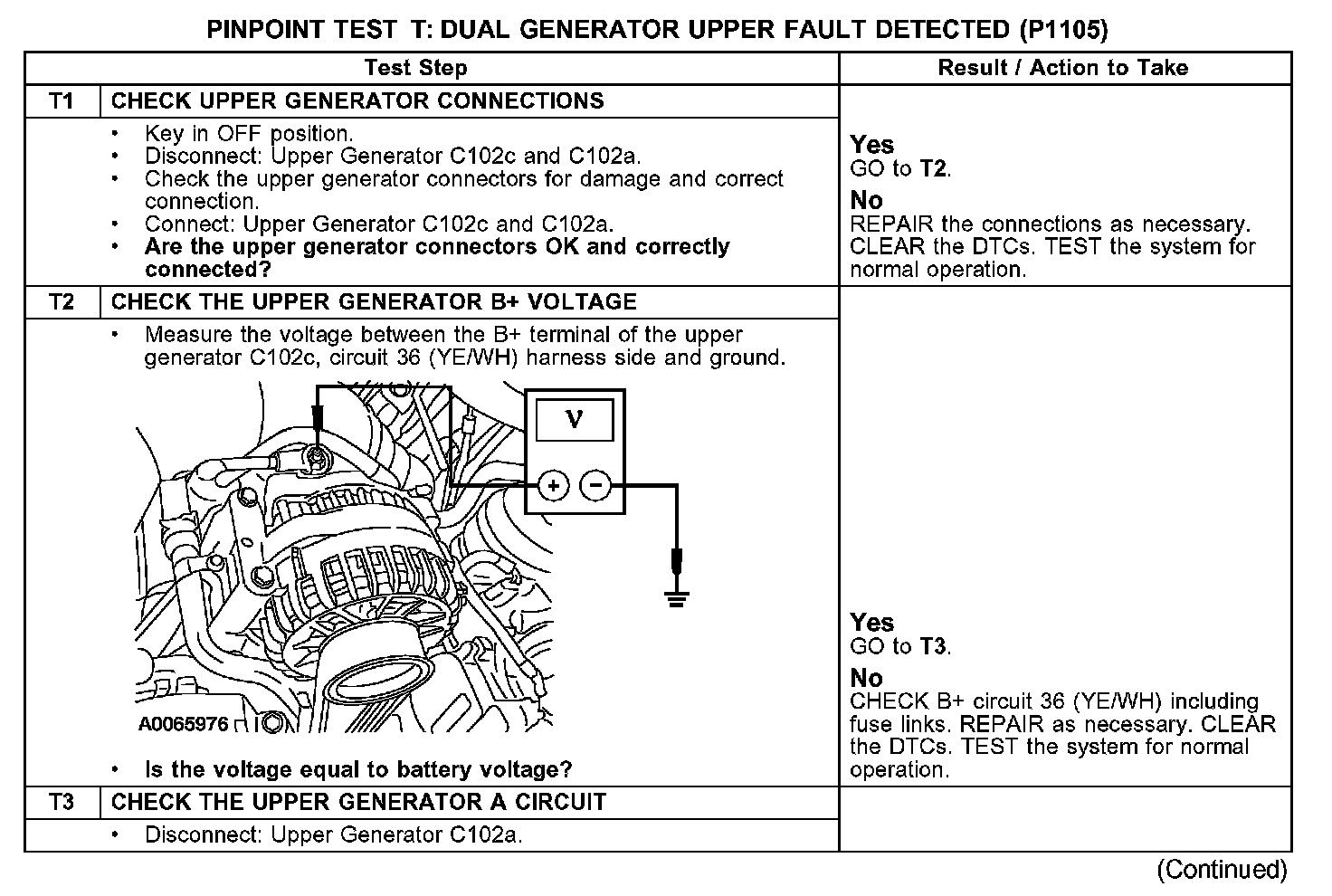

Test T1-T3:

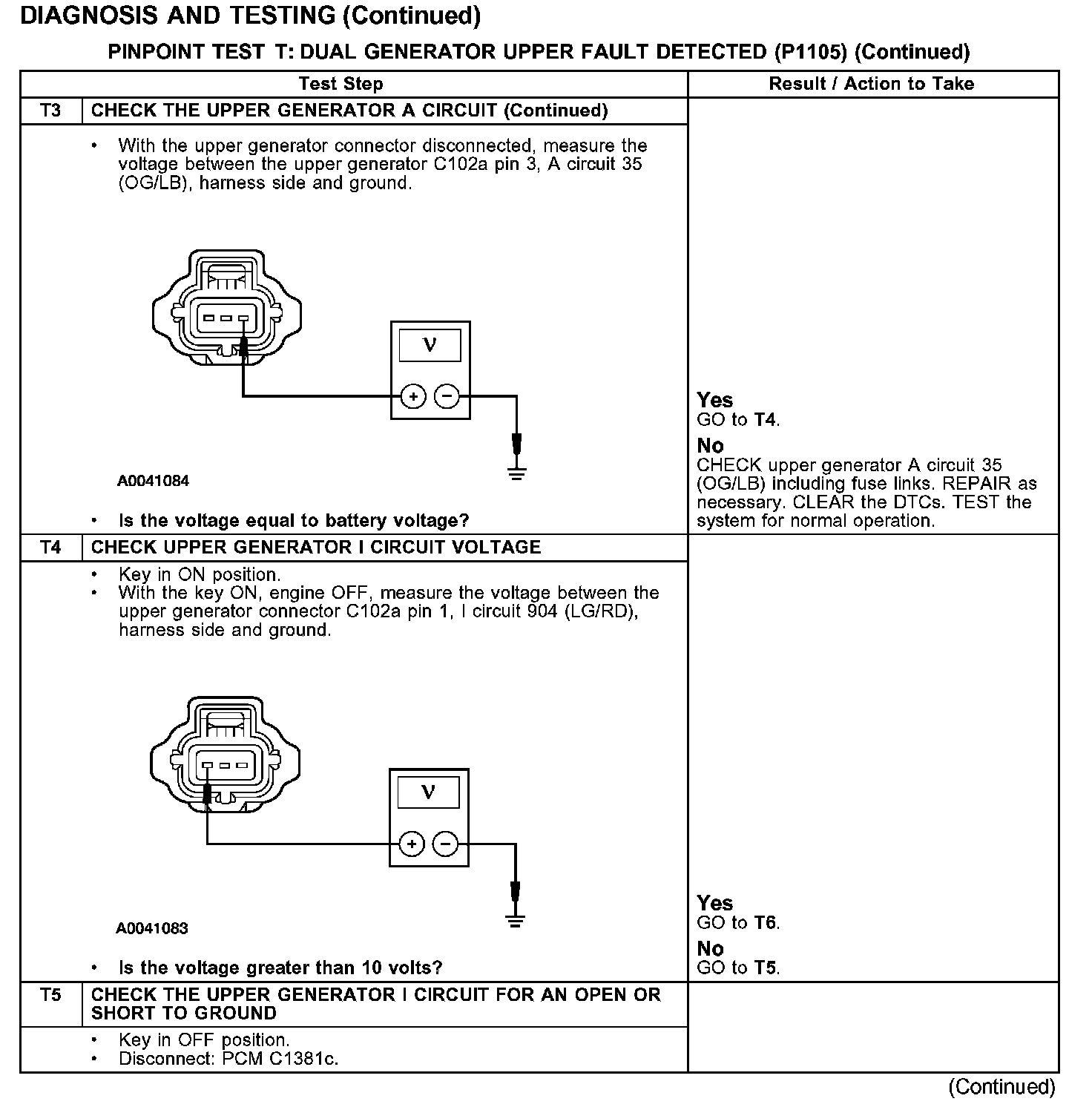

Test T3-T5:

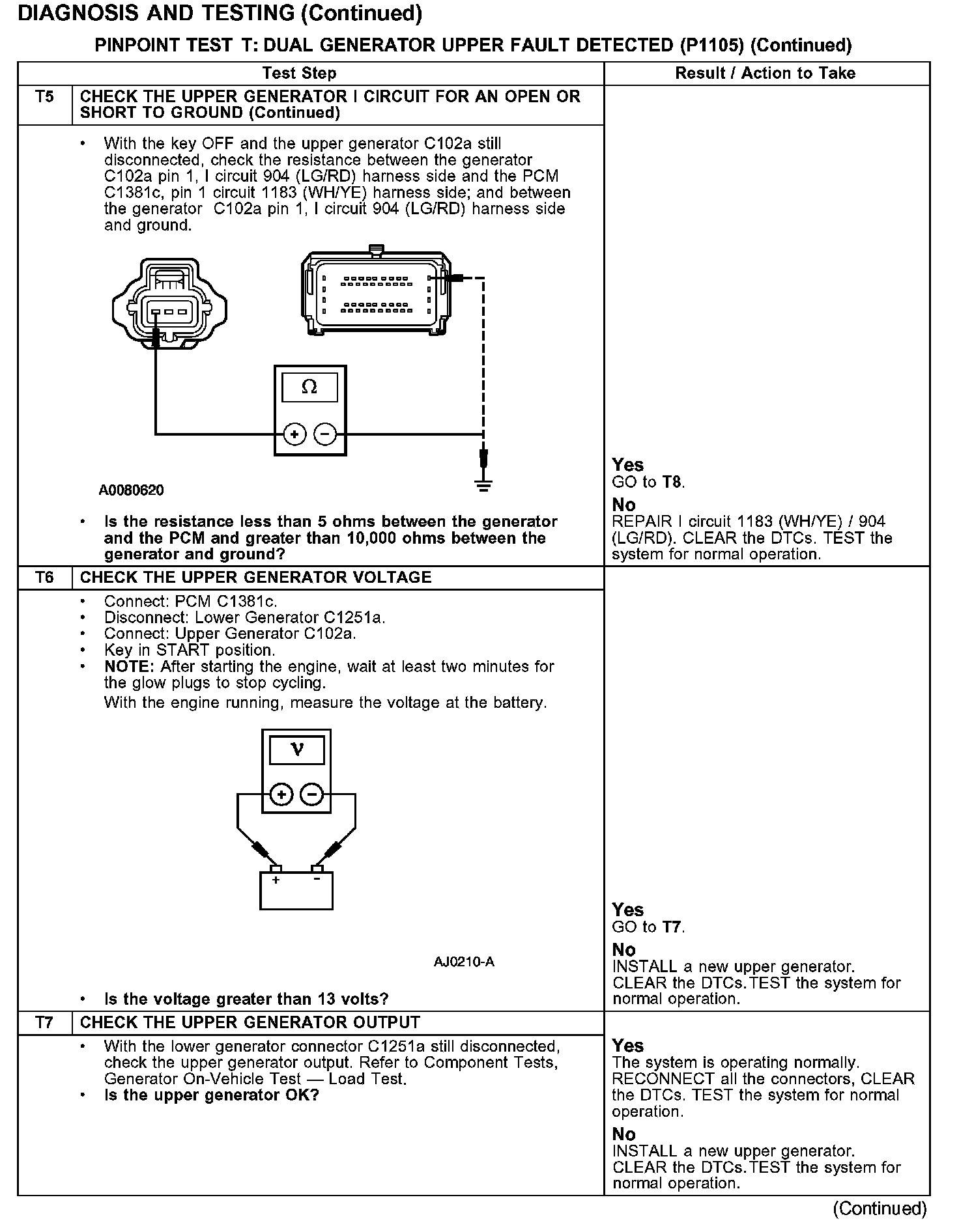

Test T5-T7:
Test T8:
