Test I

PINPOINT TEST I: THE CHARGING SYSTEM WARNING INDICATOR IS ON WITH THE ENGINE RUNNING (THE CHARGING SYSTEM VOLTAGE DOES NOT INCREASE)


Test I1-I2:

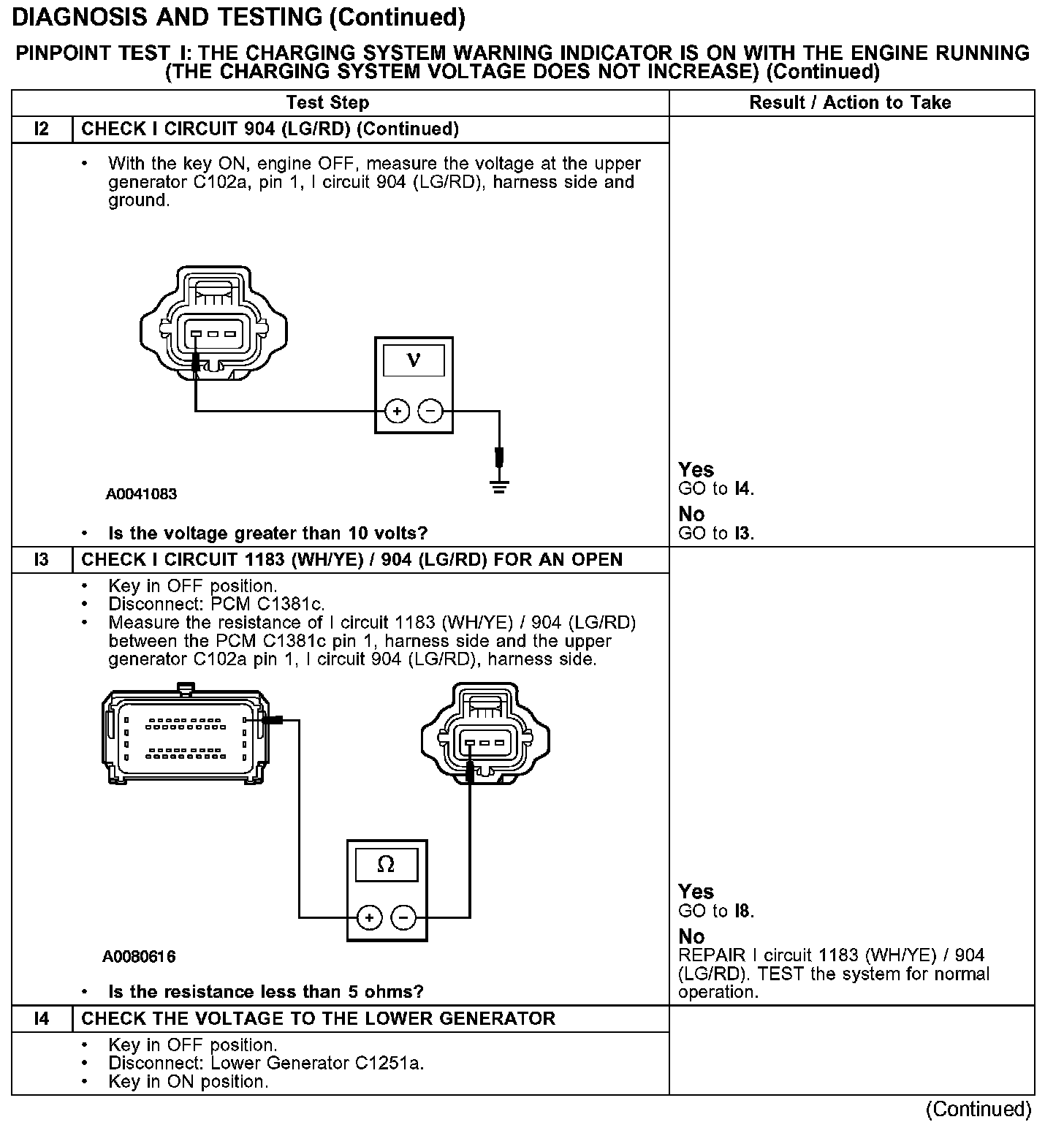

Test I2-I4:

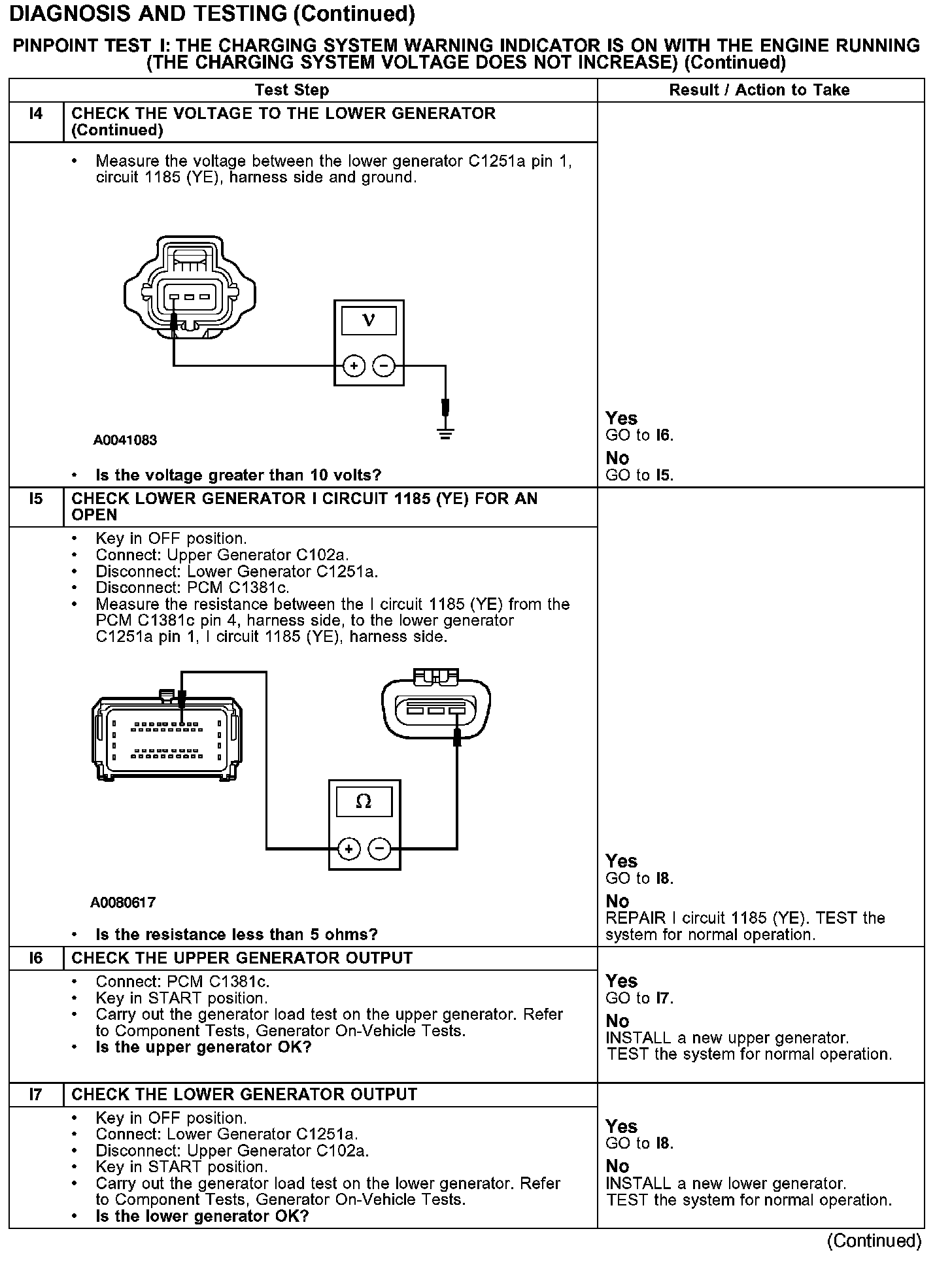

Test I4-I7:

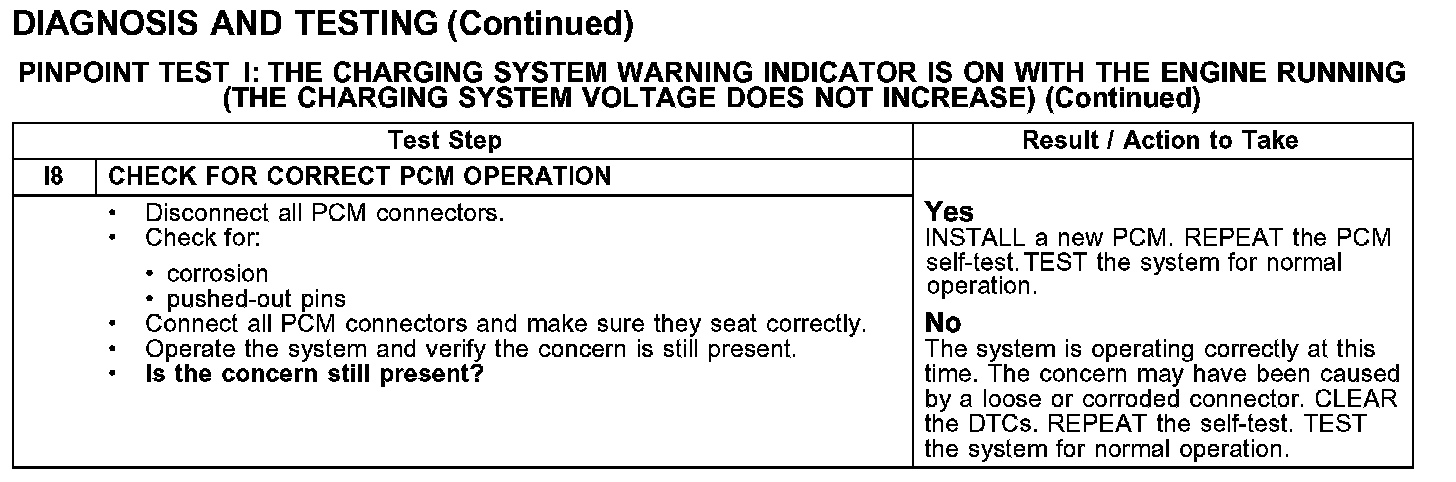

Test I8:
