Tests DX: Engine Coolant Temperature (ECT) Sensor



PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

DX Introduction 1 Of 3:





DX Introduction 2 Of 3:





DX Introduction 3 Of 3:

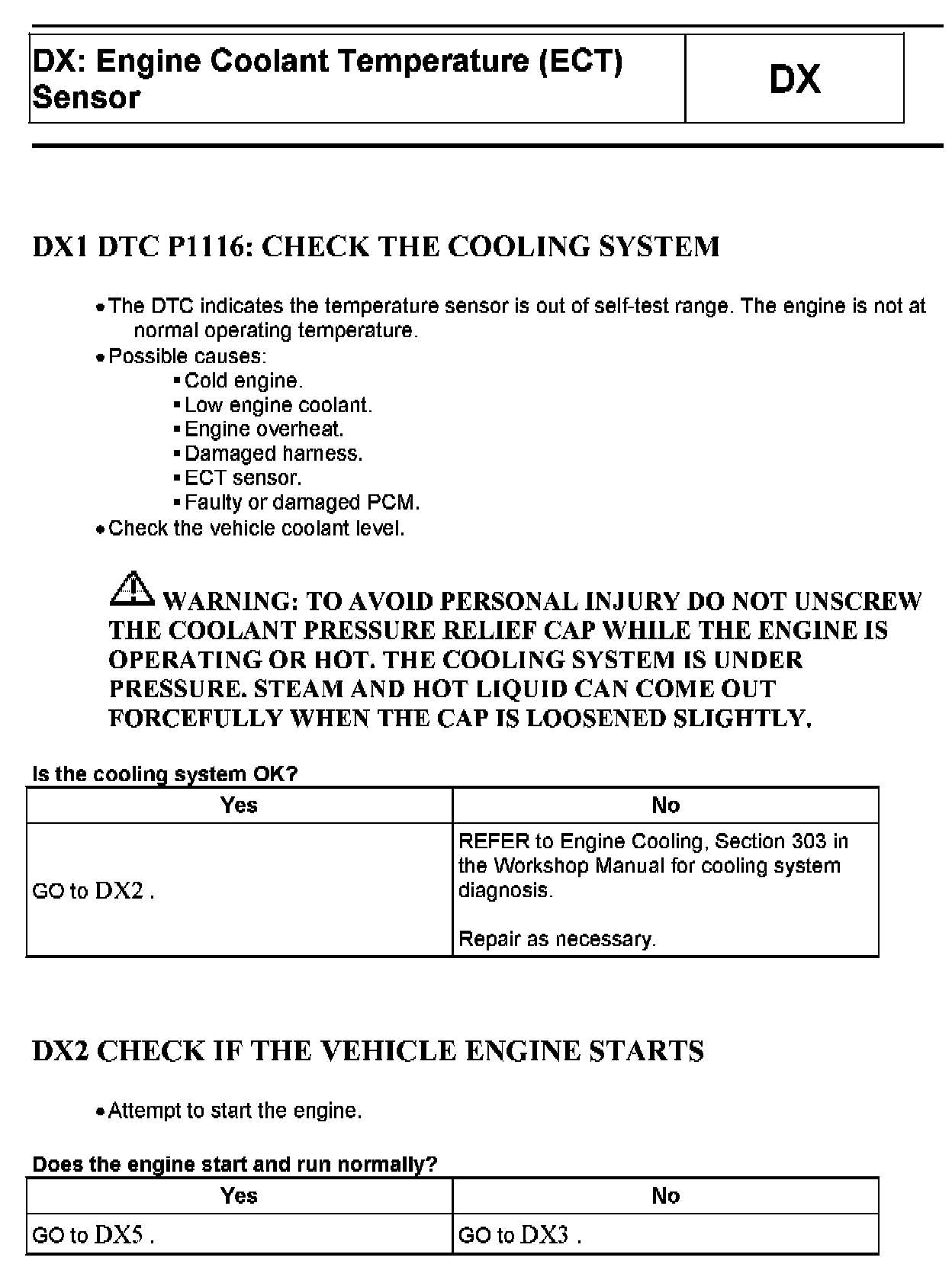

DX1 - DX2:

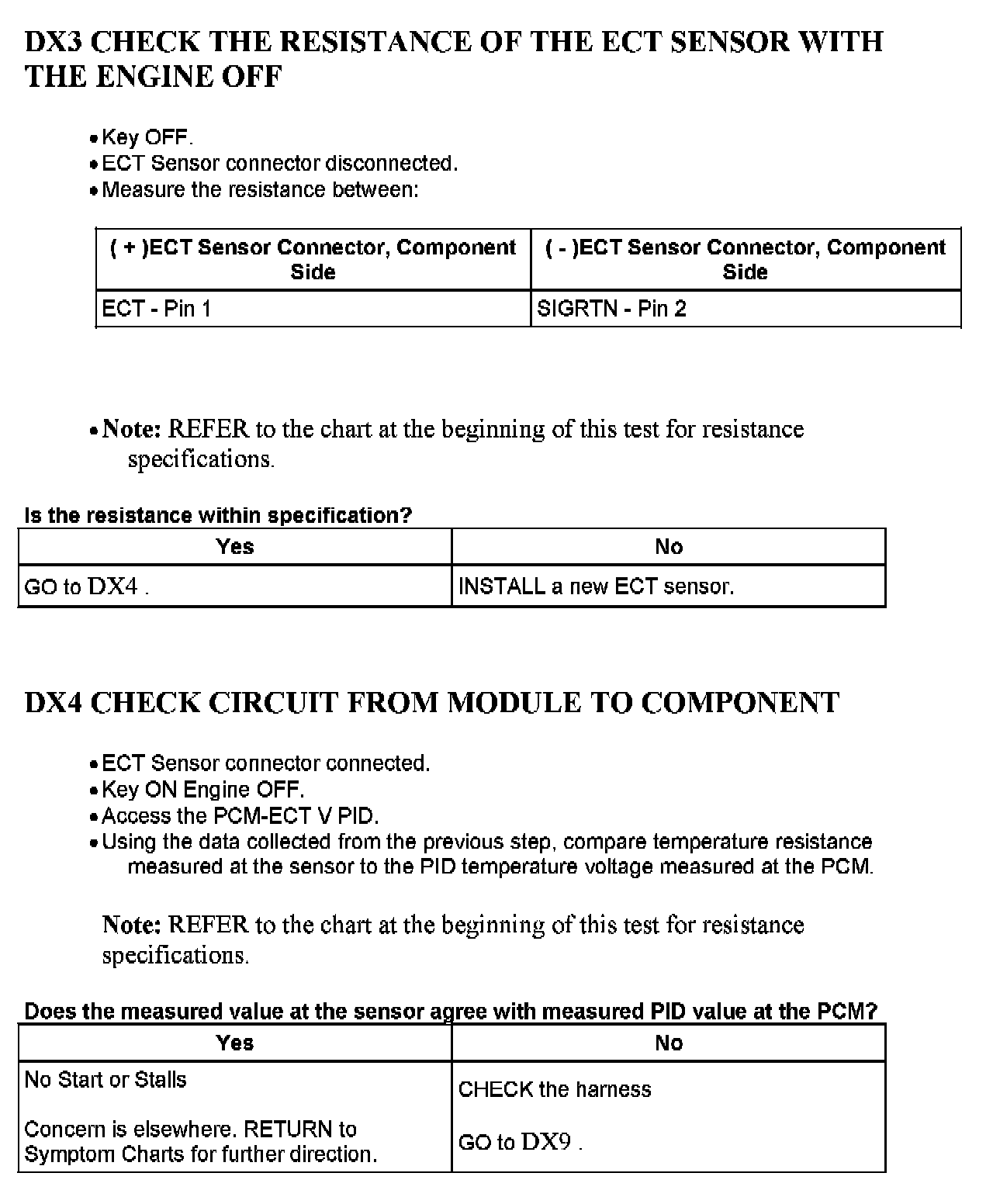

DX3 - DX4:

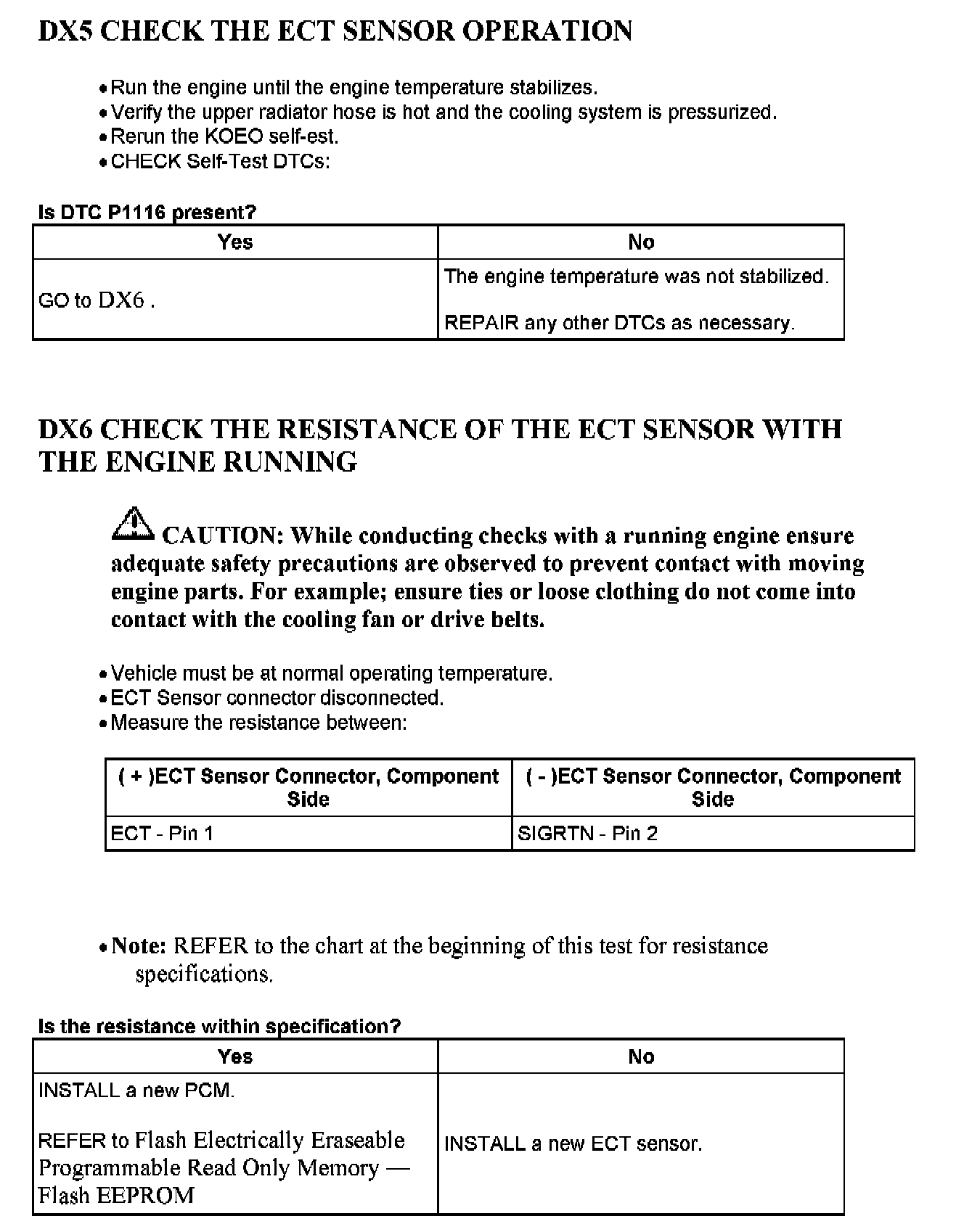

DX5 - DX6:





DX7 - DX8:





DX9 - DX10:

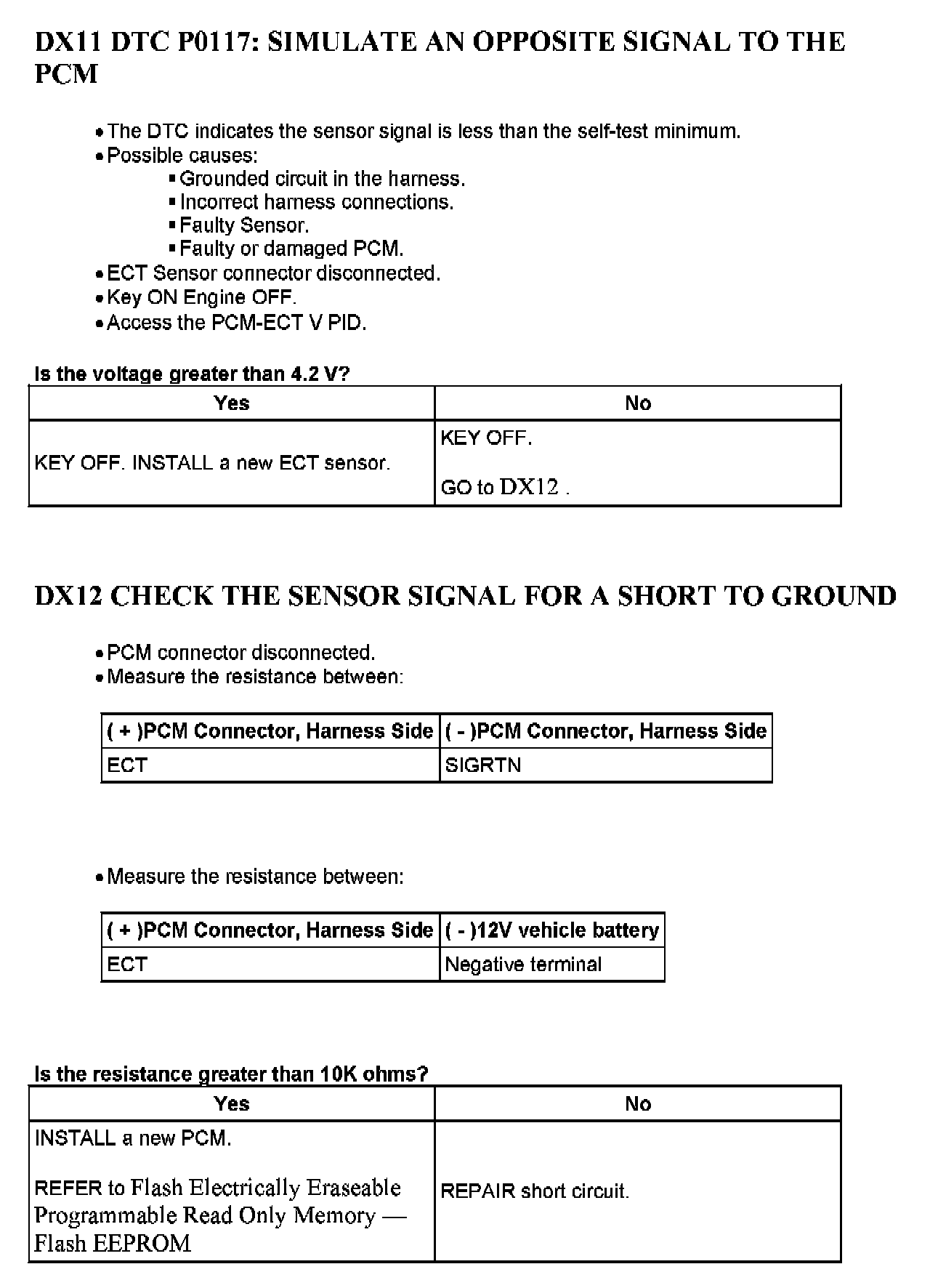

DX11 - DX12:





DX13:

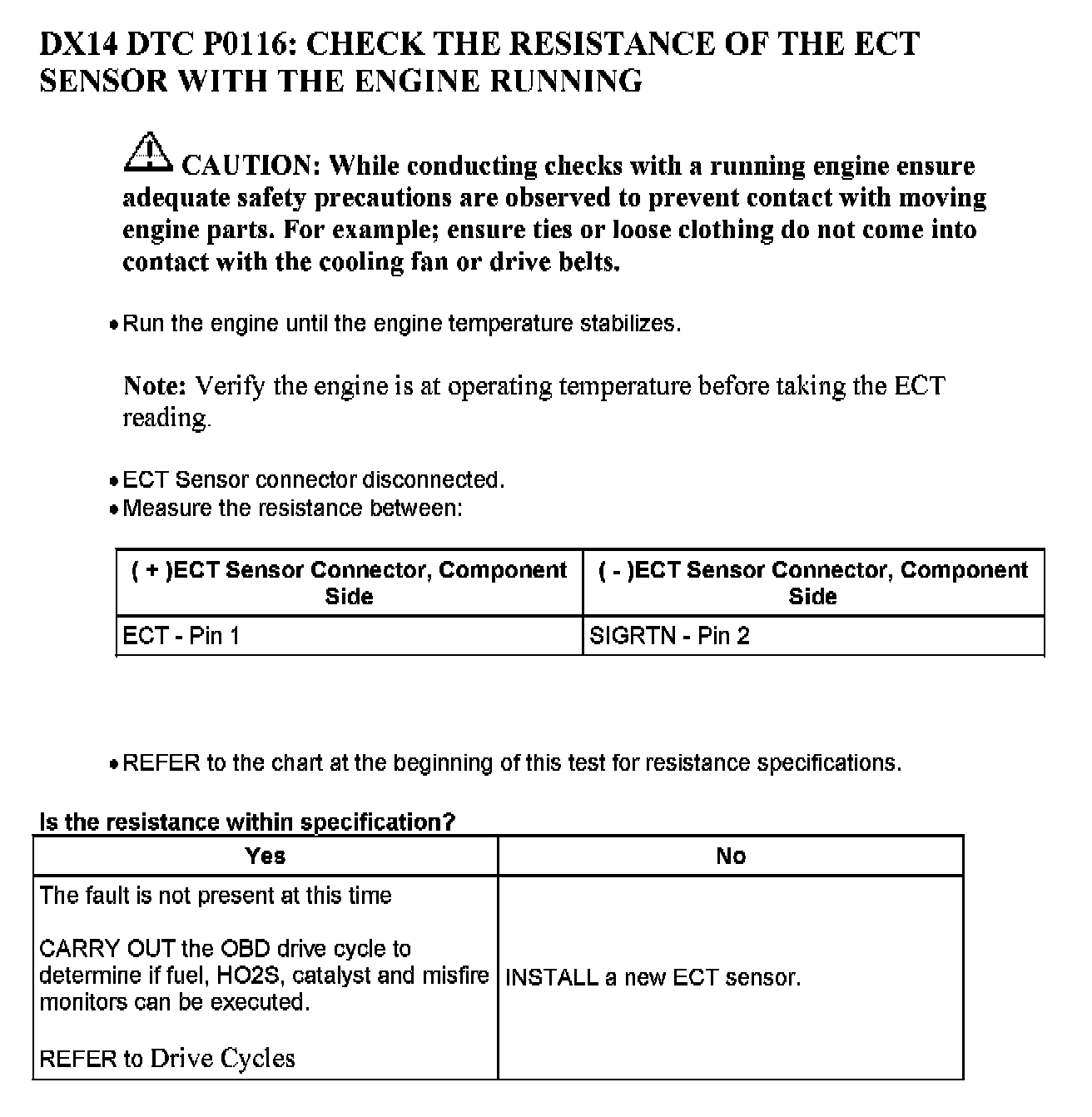

DX14:





DX15 - DX16:

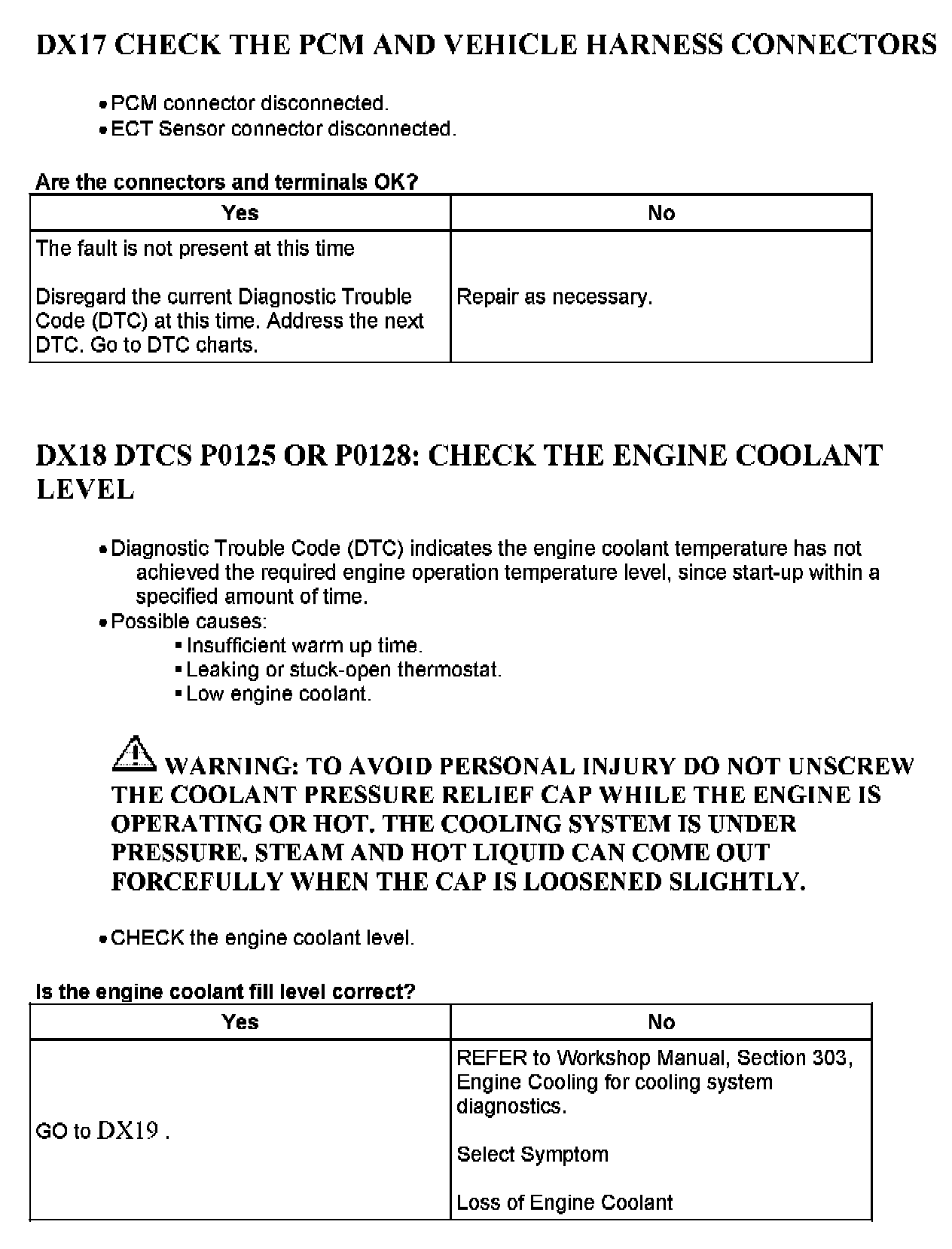

DX17 - DX18:

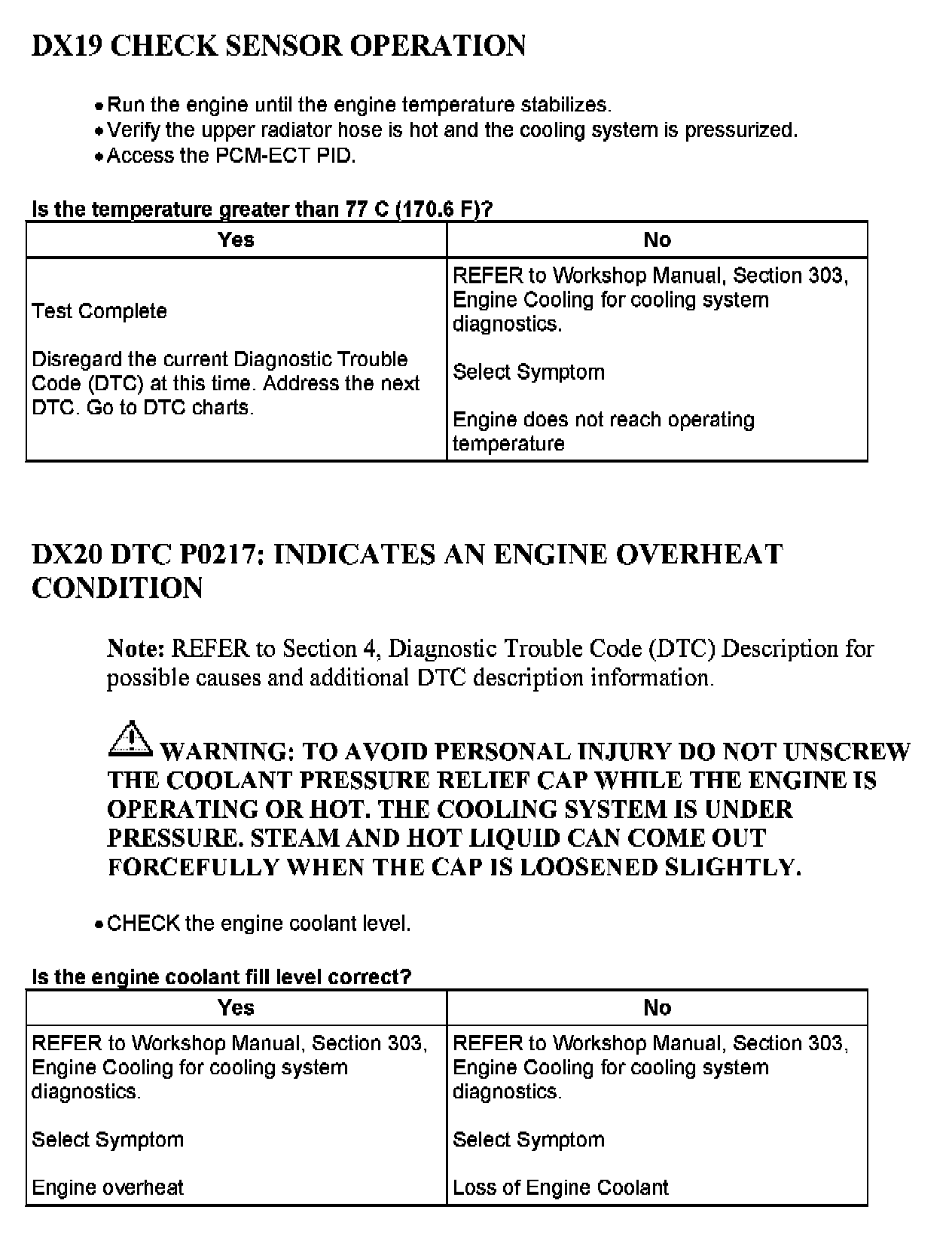

DX19 - DX20:

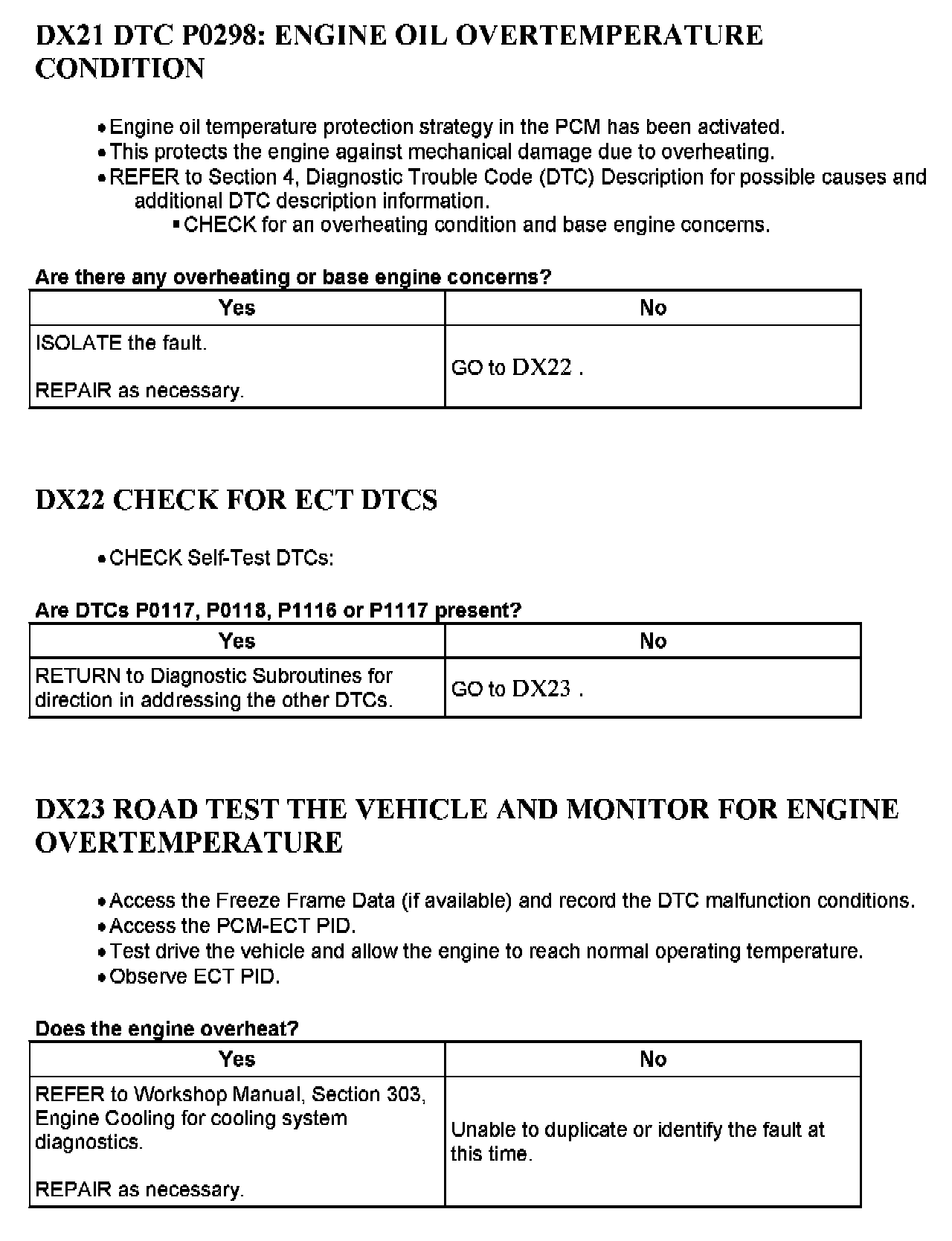

DX21 - DX23:
