Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

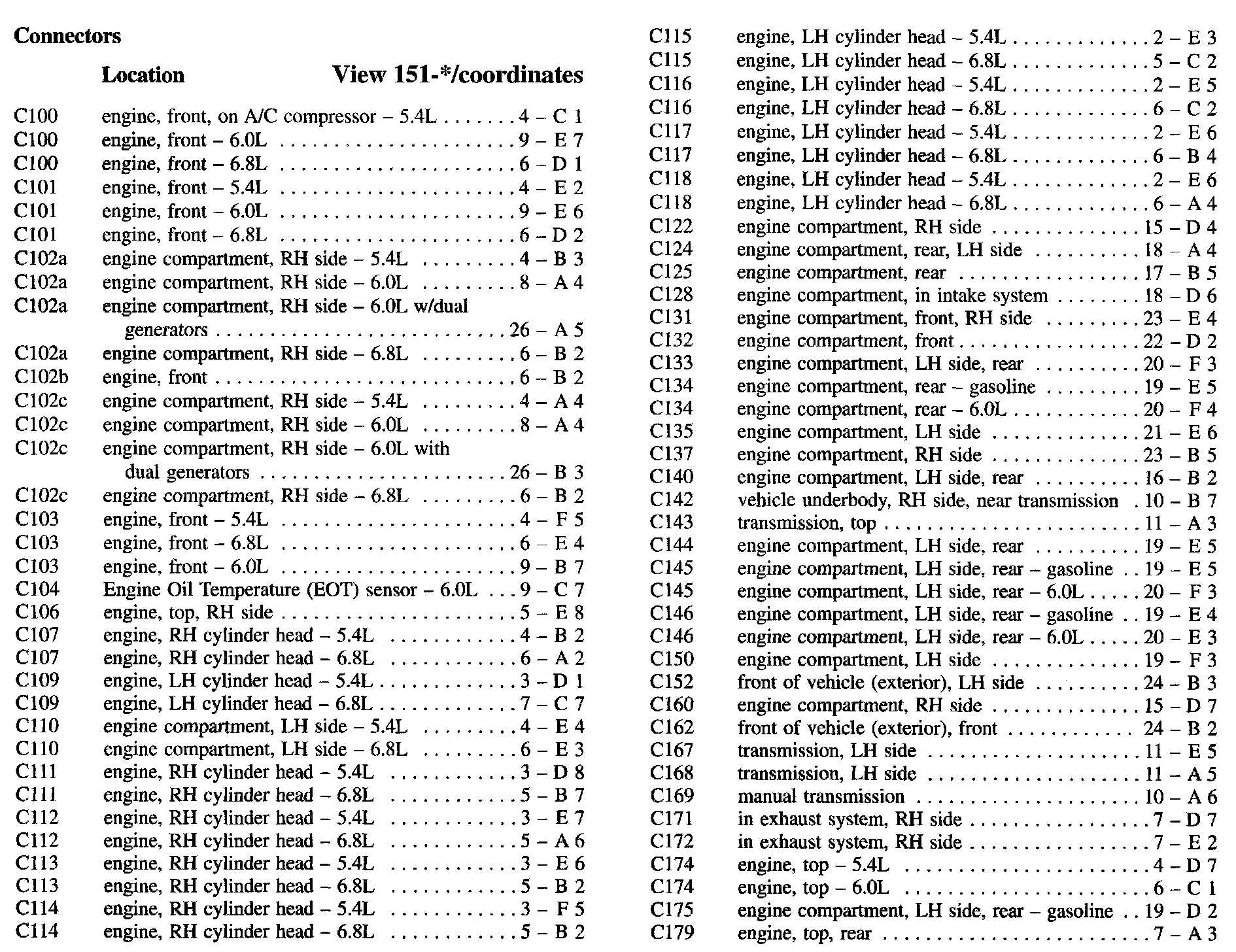

C100-C179:

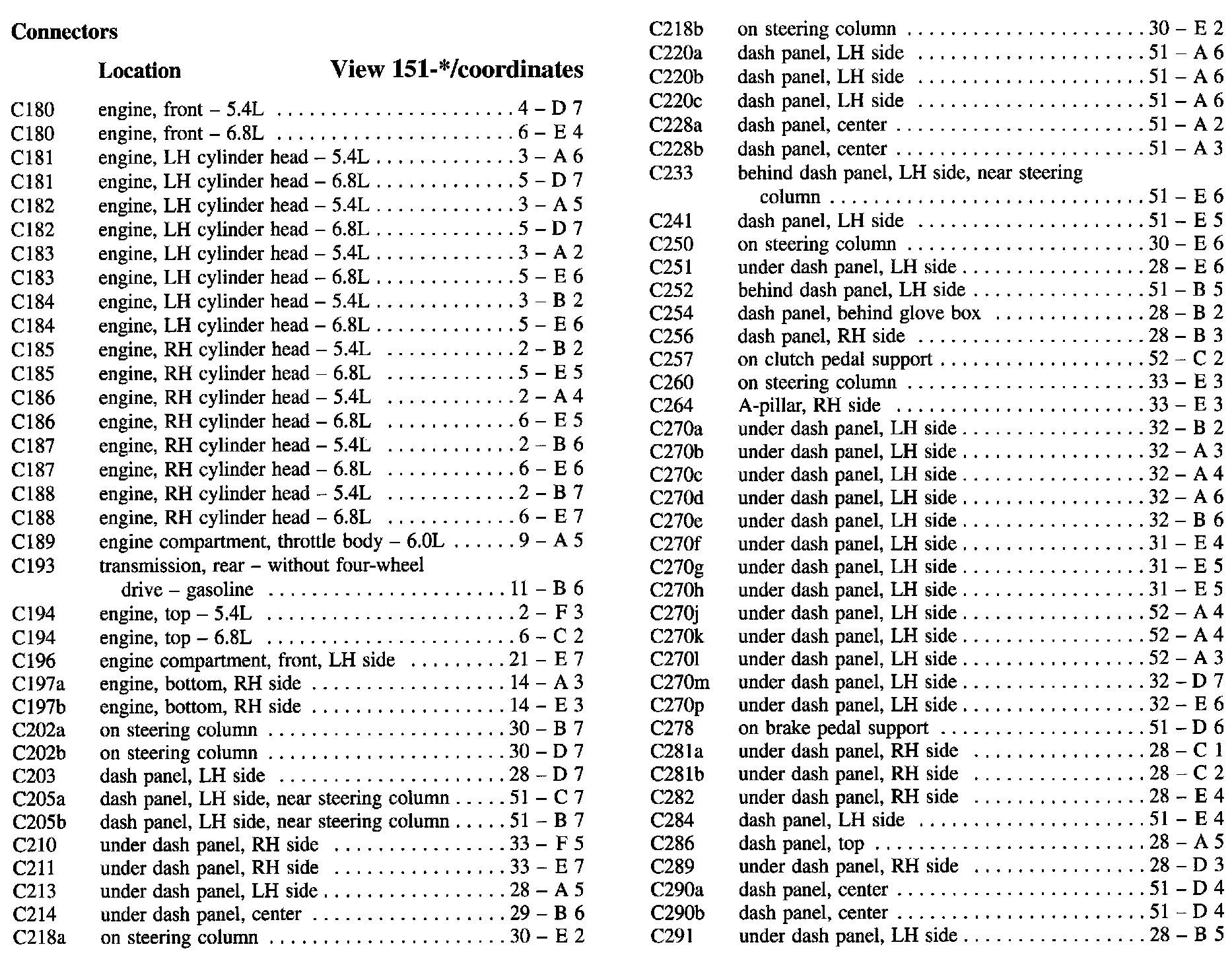

C180-C291:

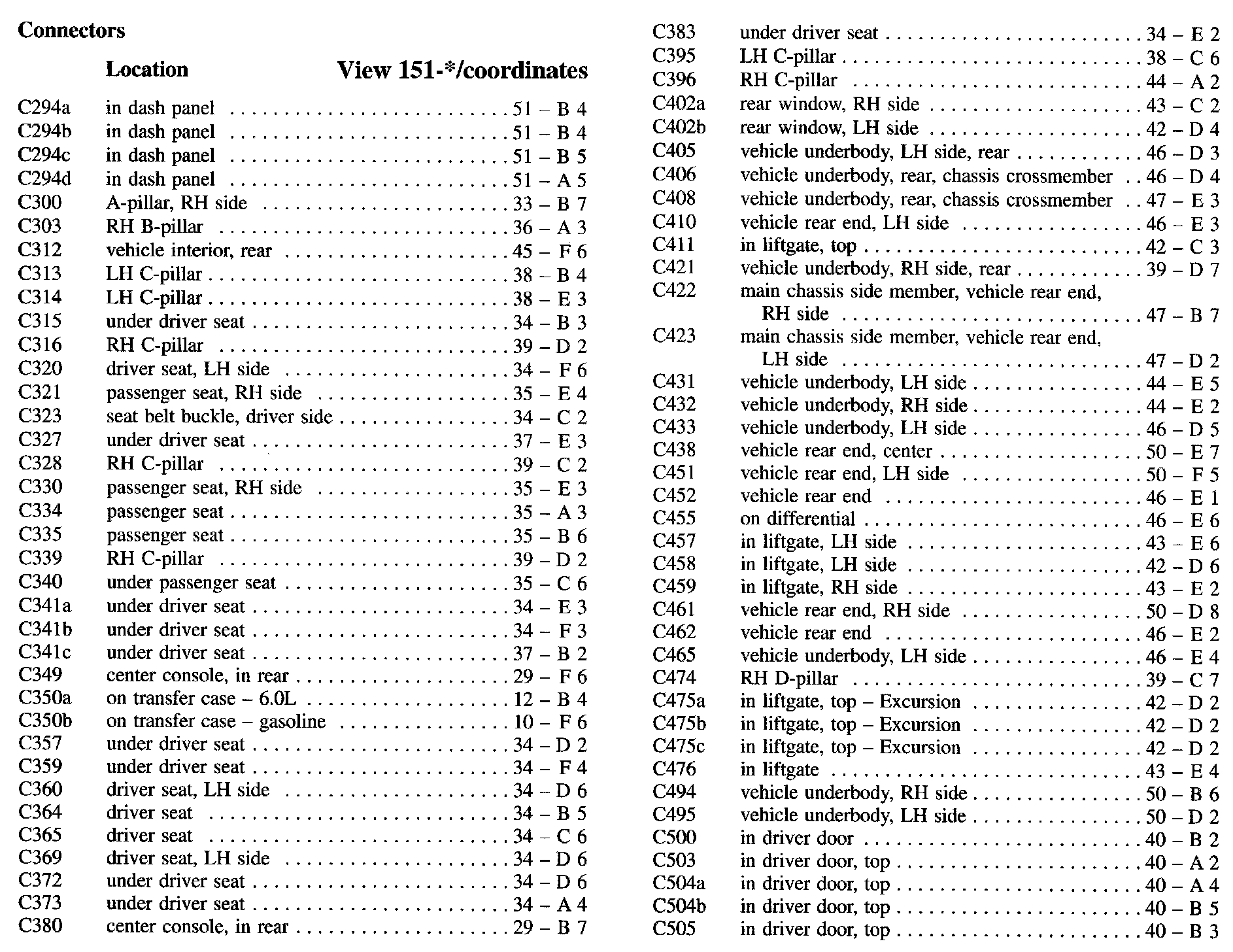

C294a-C505:

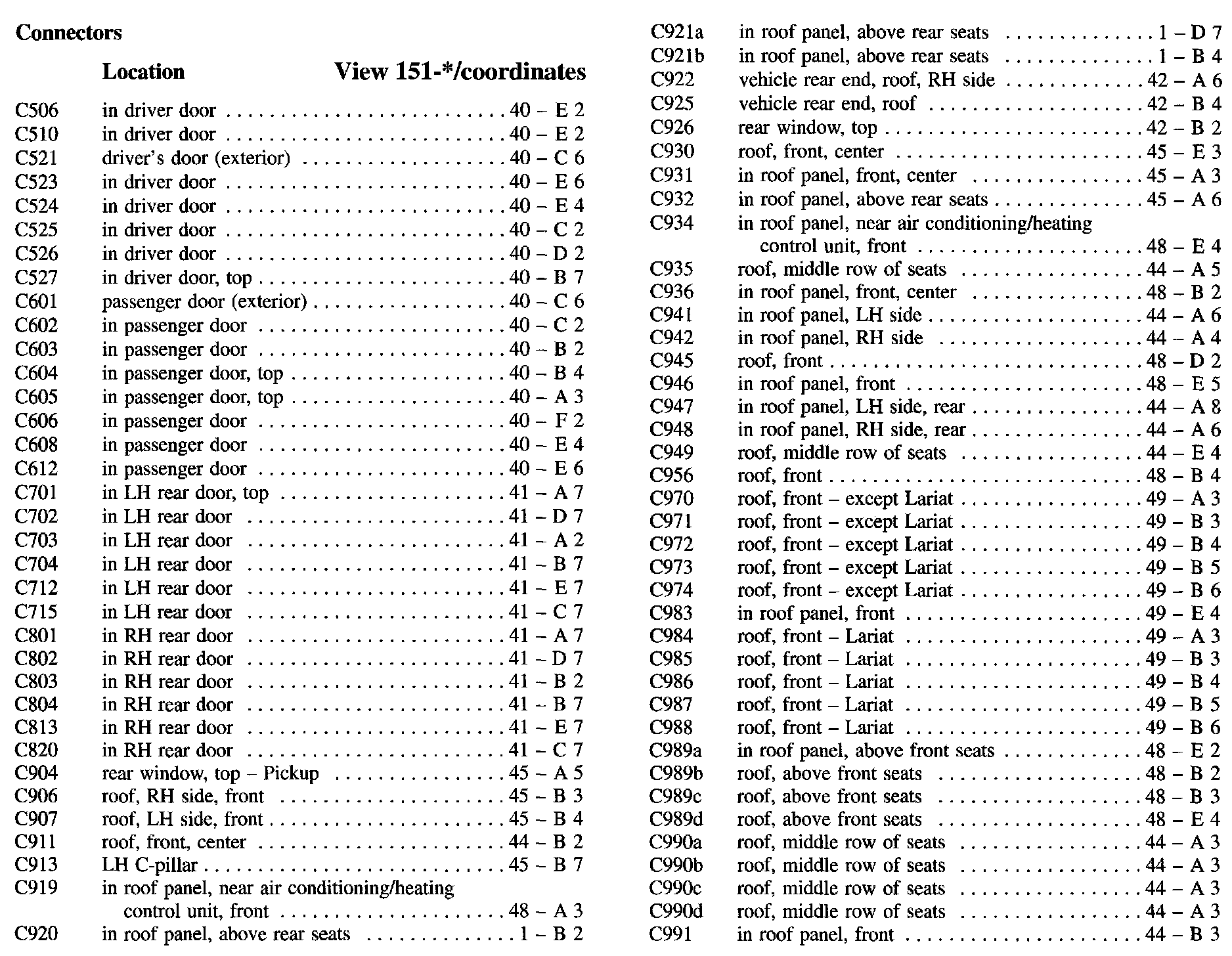

C506-C991:

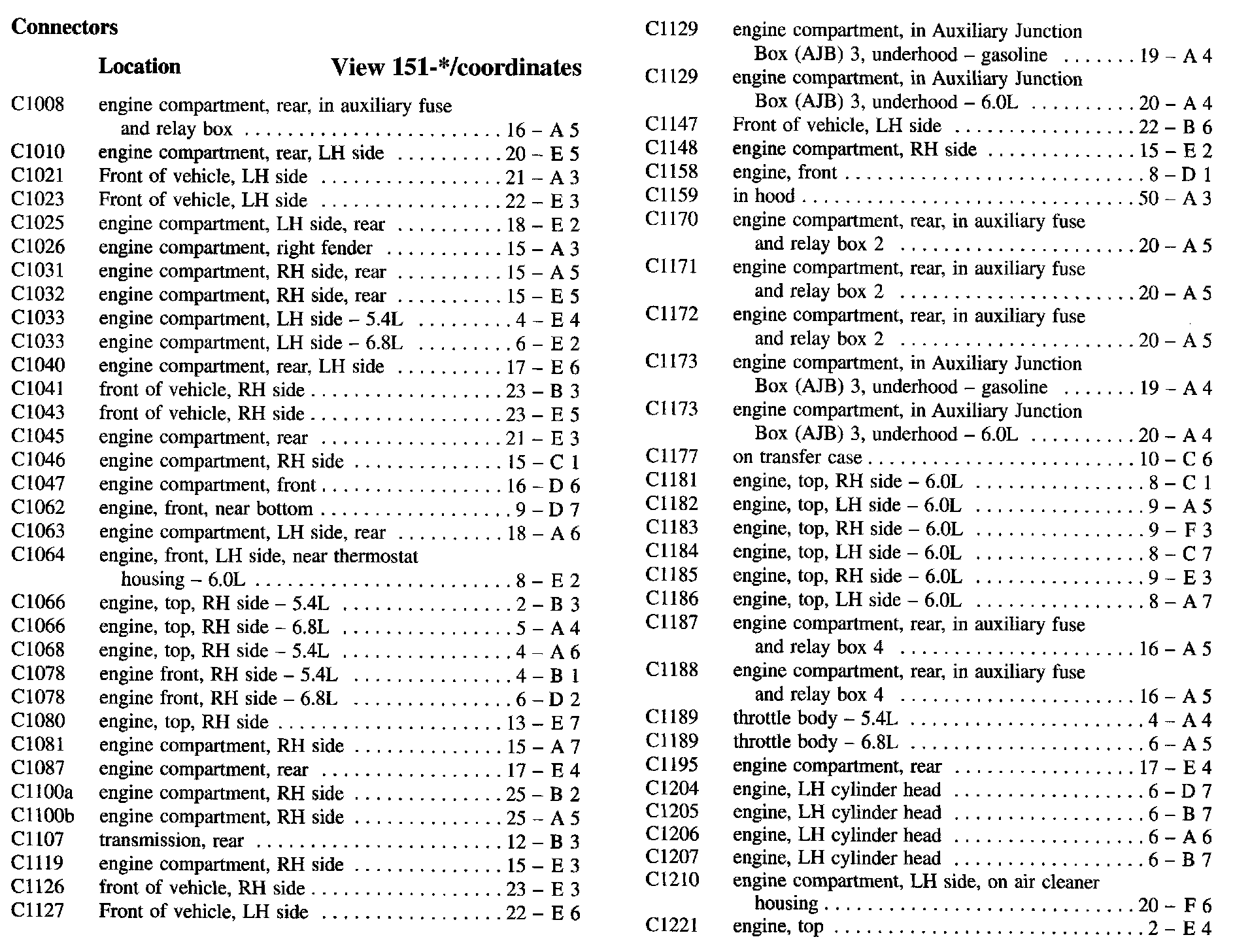

C1008-C1221:

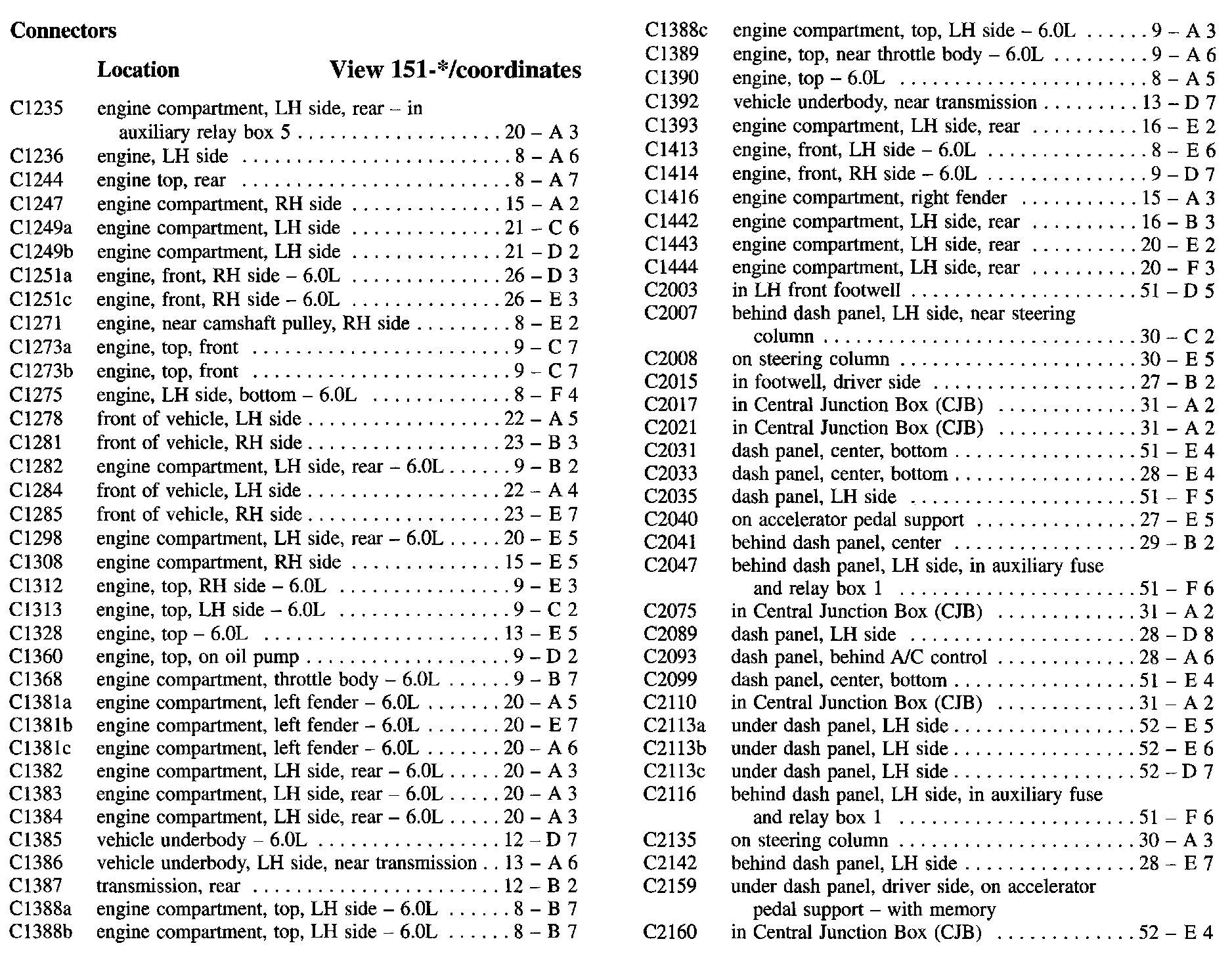

C1235-C2160:

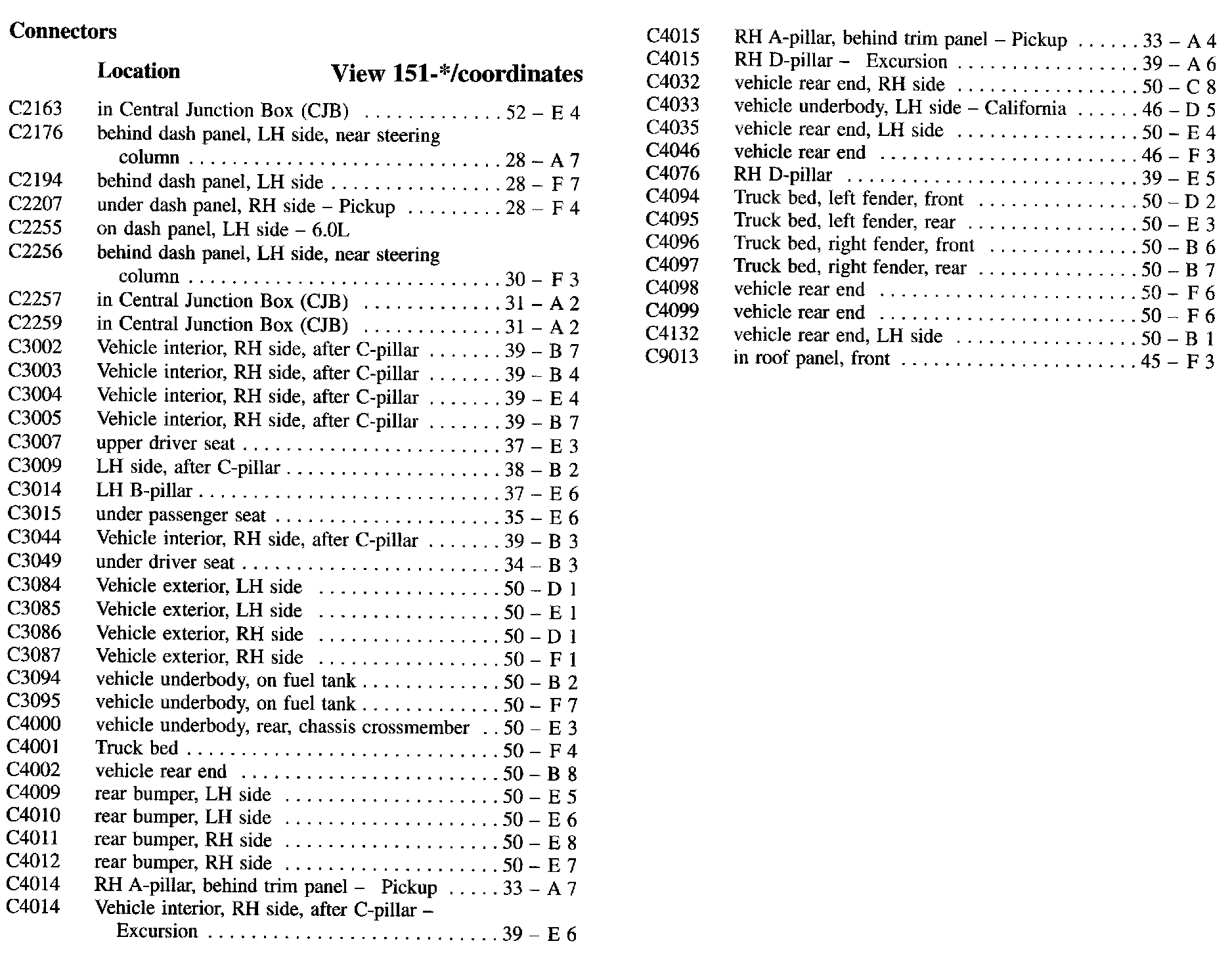

C2163-C9013:
