Test Z

PINPOINT TEST Z: THE FRONT/REAR AUXILIARY BLOWER MOTOR SWITCH DOES NOT OPERATE IN HI


Test Z1:

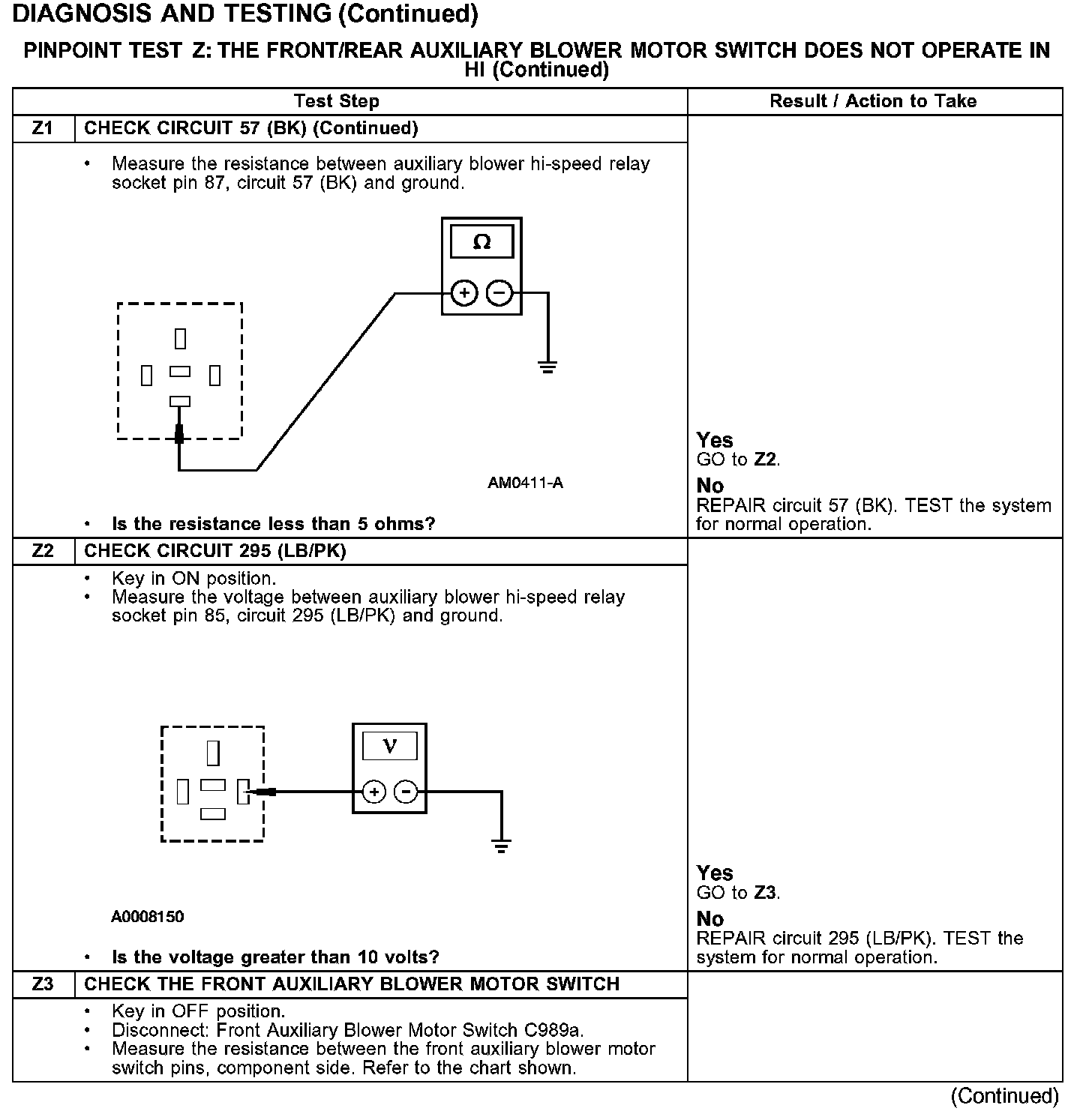

Test Z1-Z3:

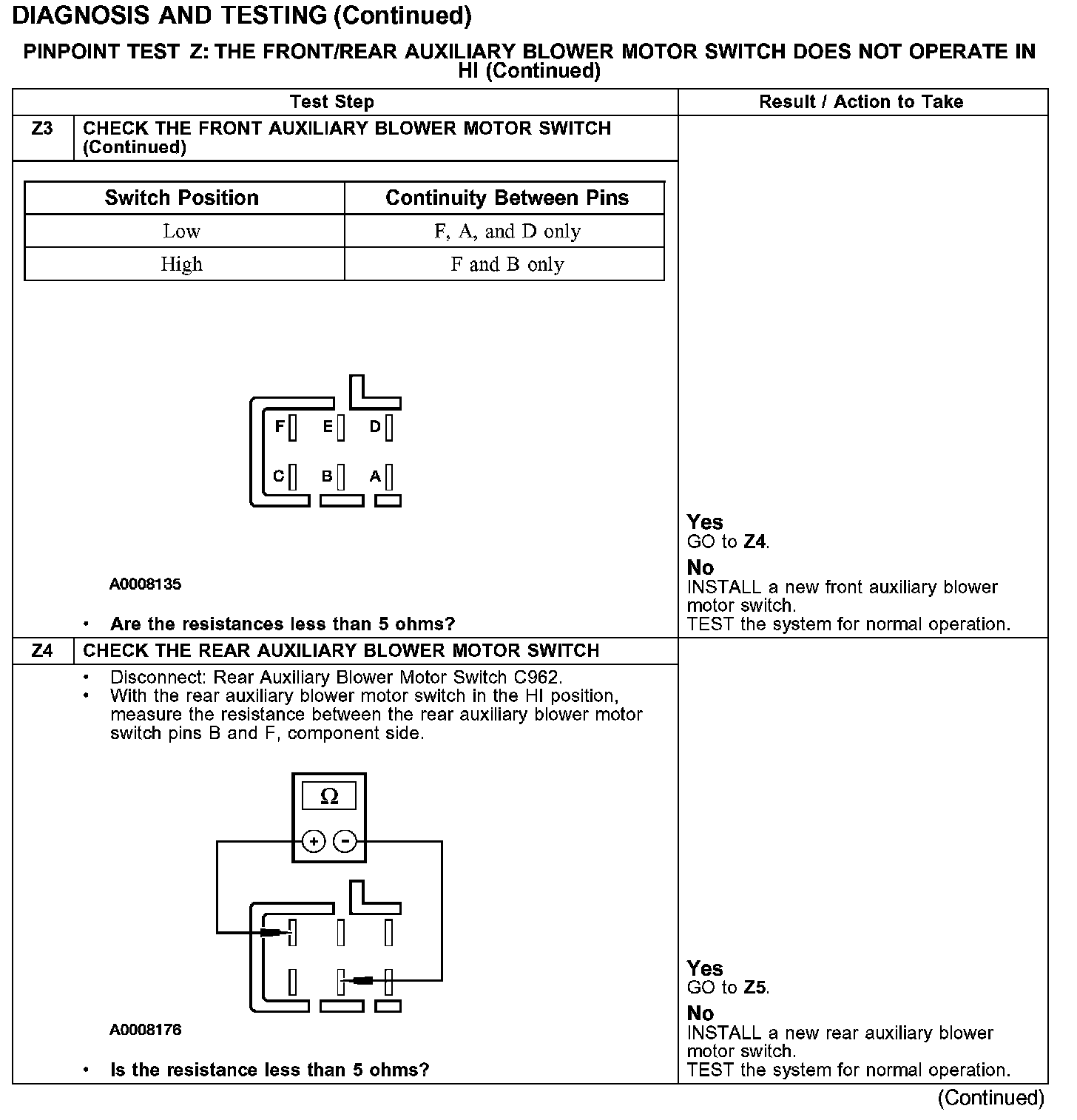

Test Z3-Z4:

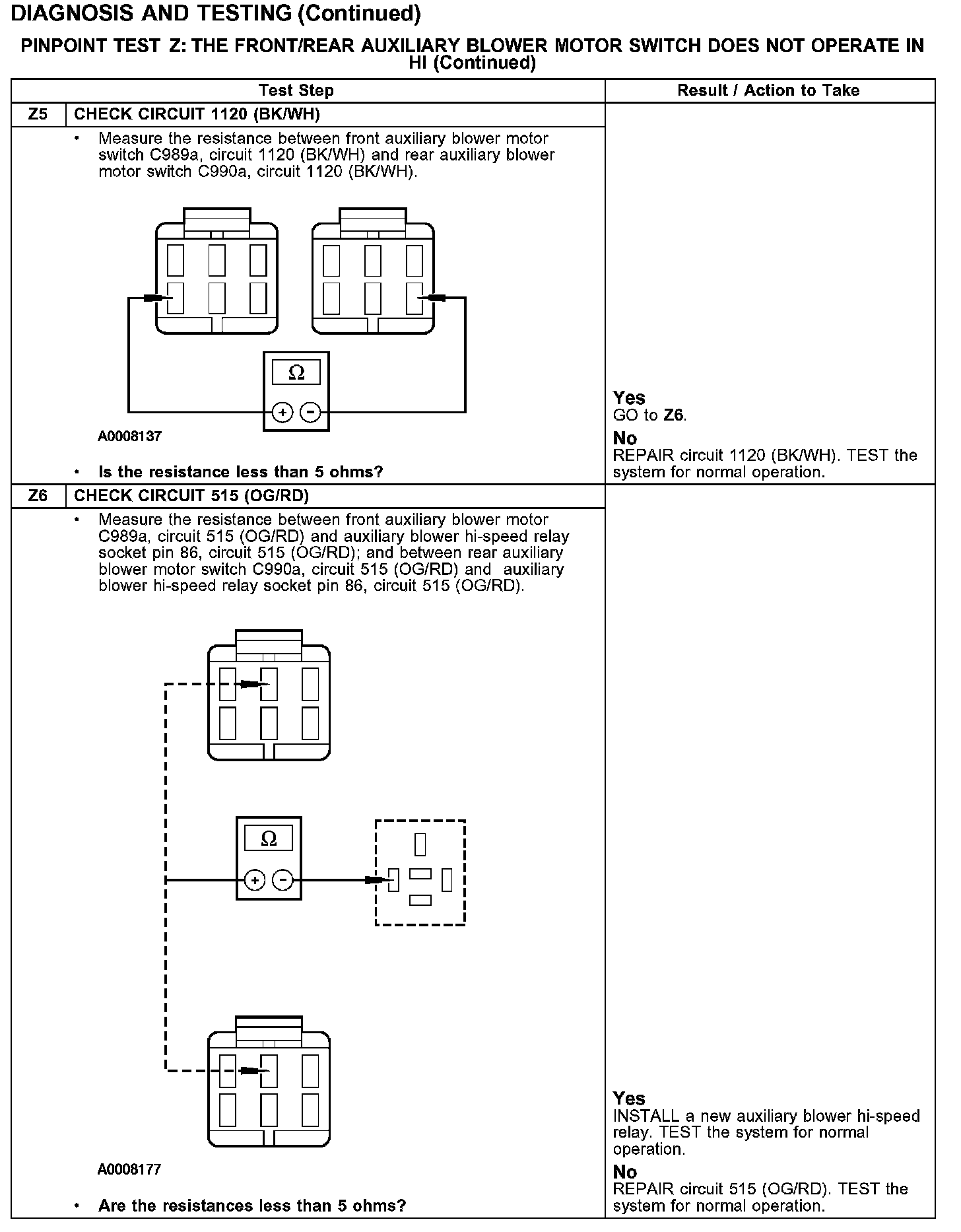

Test Z5-Z6:
