Test Y

PINPOINT TEST Y: THE FRONT/REAR AUXILIARY BLOWER MOTOR SWITCH OPERATES ONLY IN HI

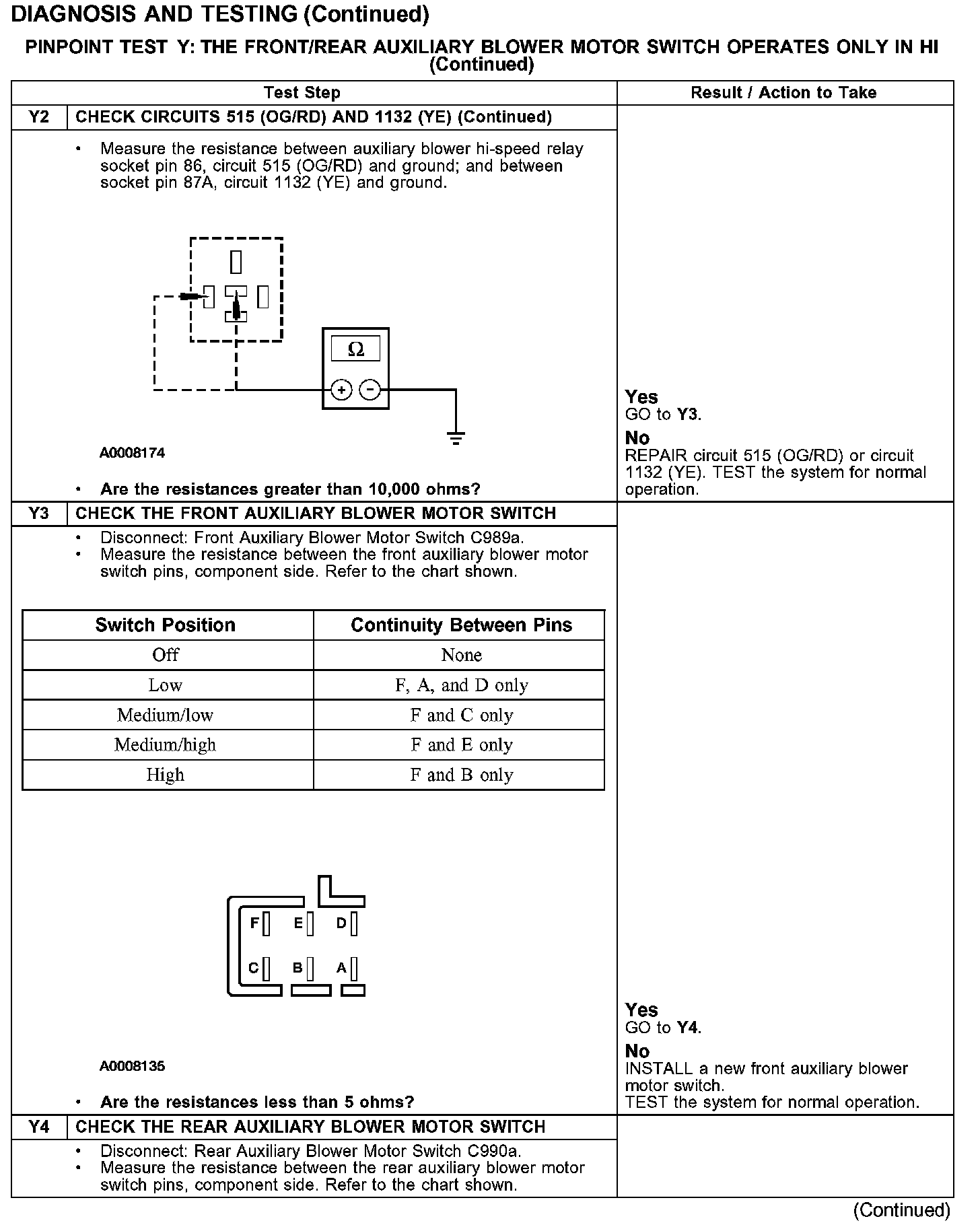

Test Y1-Y2:






Test Y2-Y4:

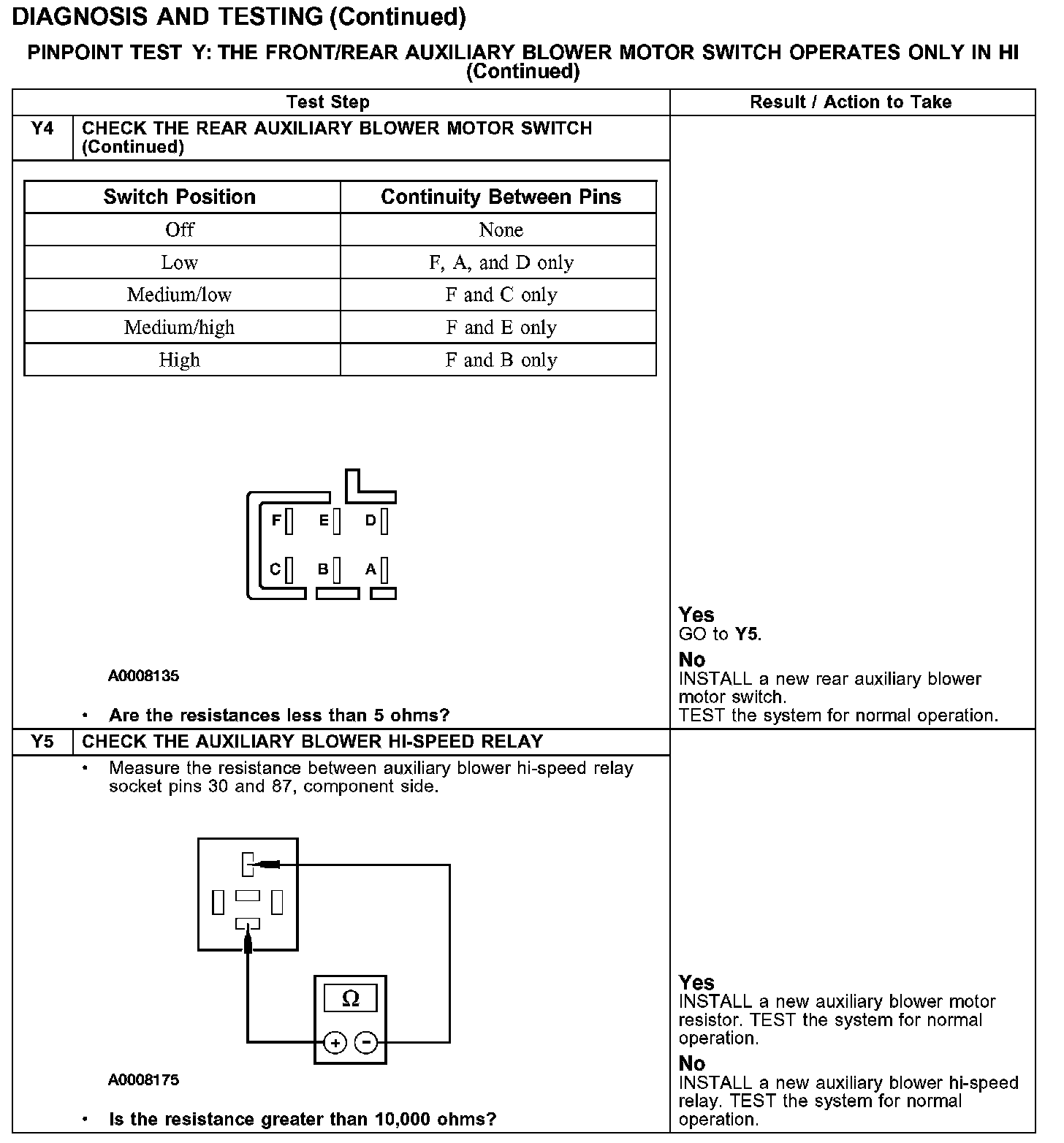

Test Y4-Y5:
