Test U

PINPOINT TEST U: THE AUXILIARY BLOWER MOTOR DOES NOT OPERATE CORRECTLY

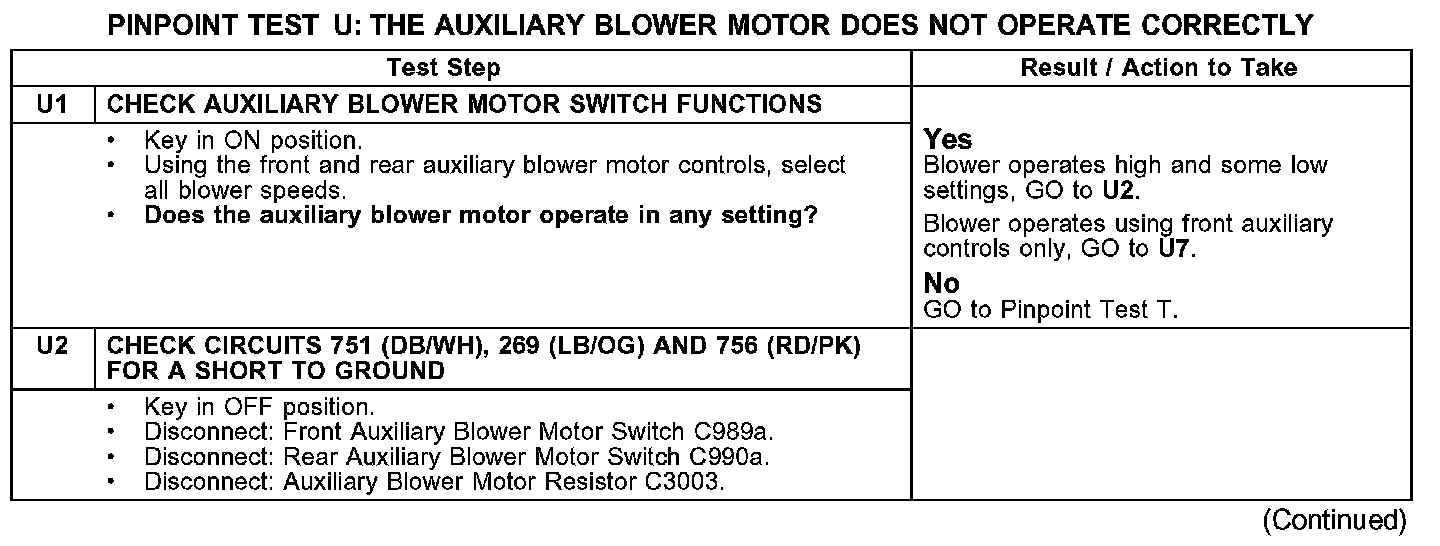

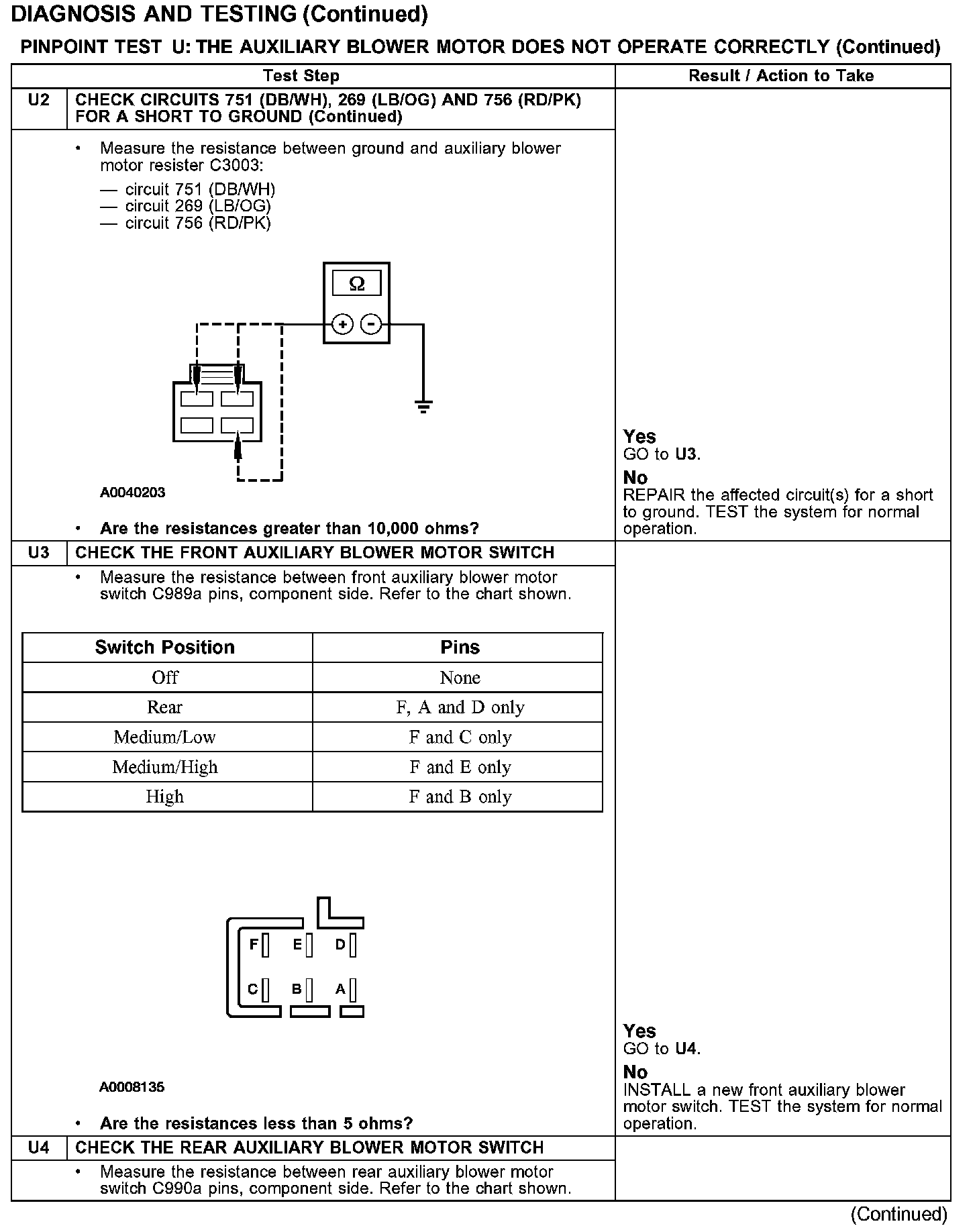

Test U1-U2:

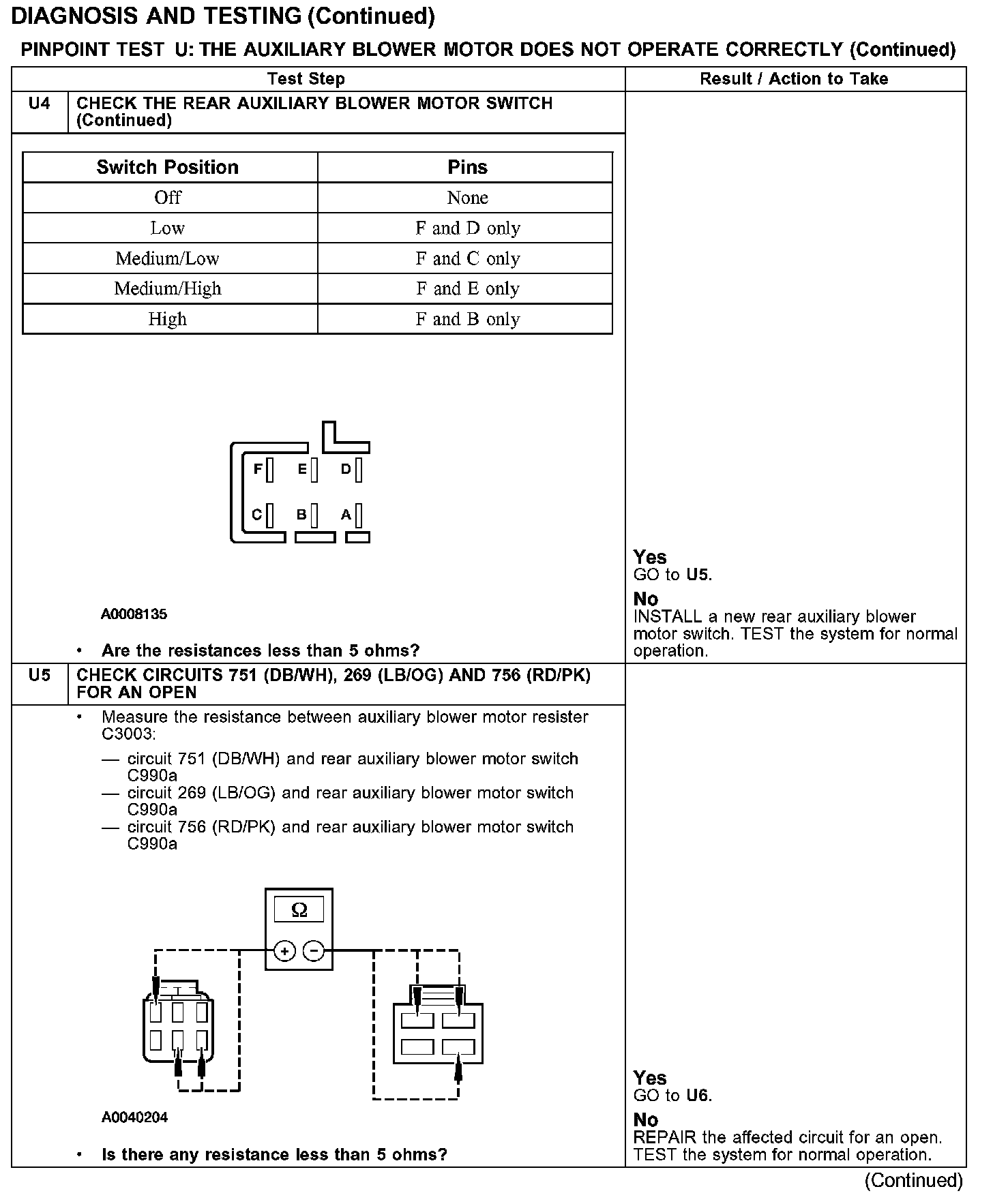

Test U2-U4:

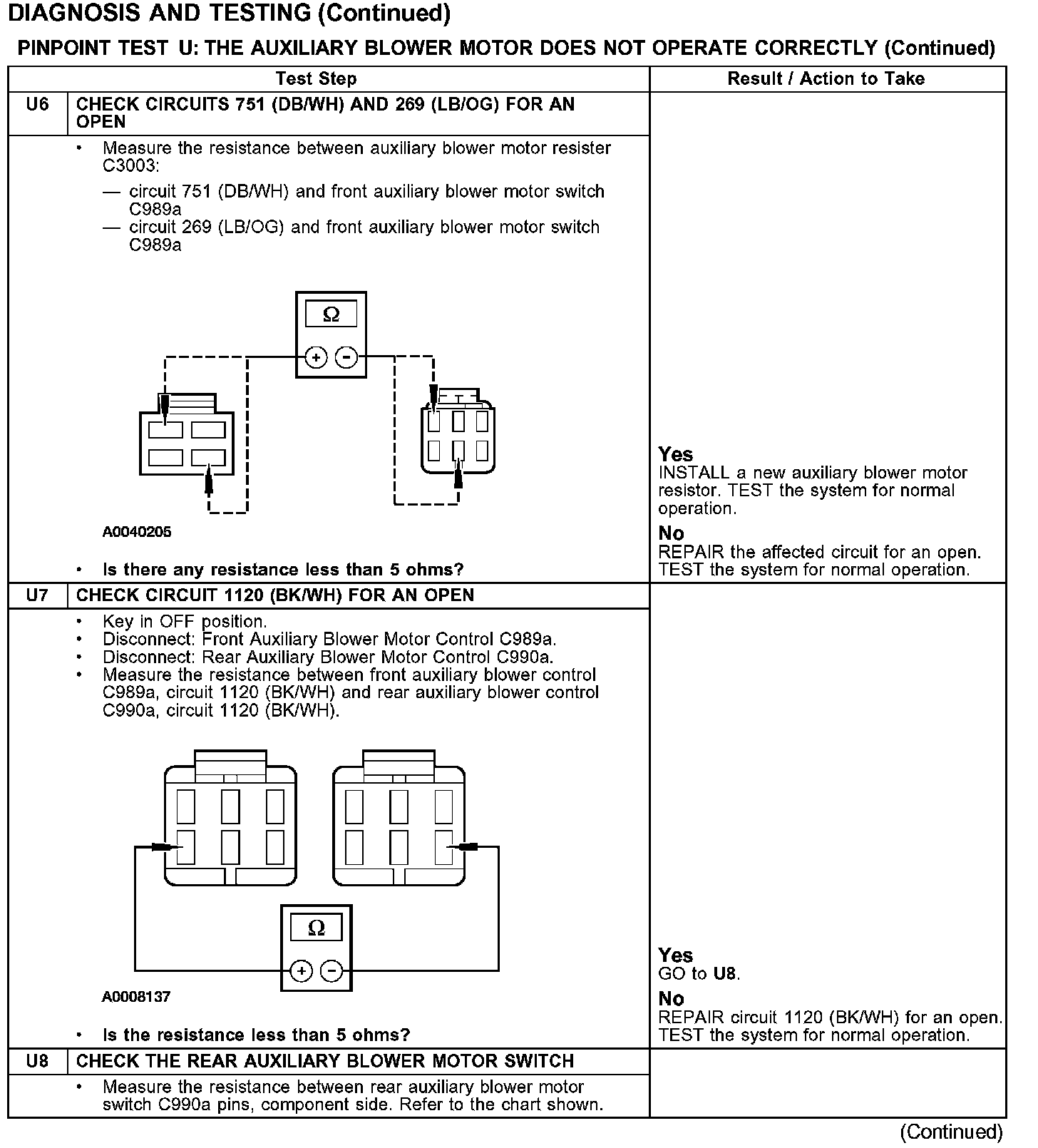

Test U4-U5:

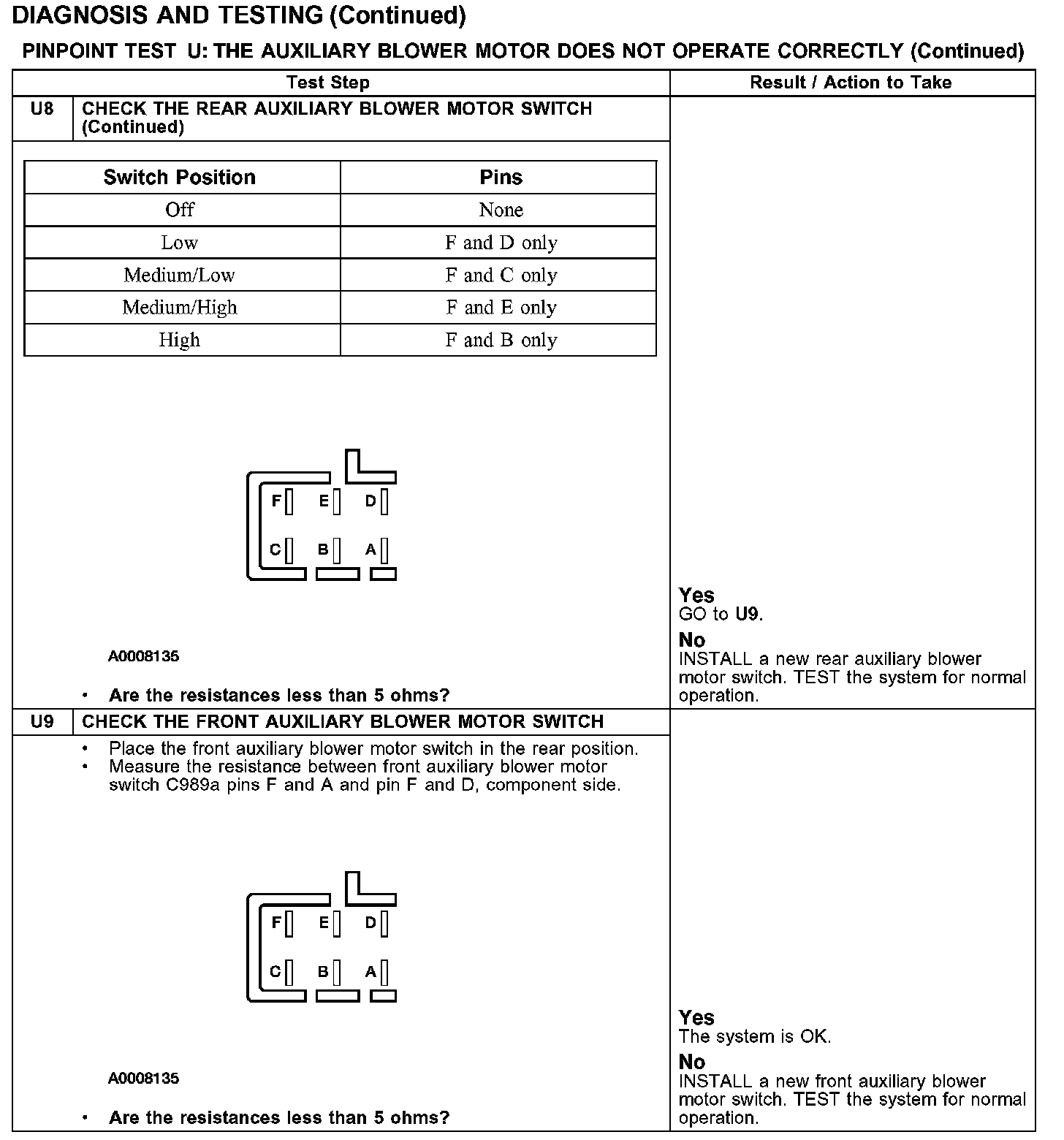

Test U6-U8:






Test U8-U9:
