Test T

PINPOINT TEST T: THE AUXILIARY BLOWER MOTOR DOES NOT OPERATE

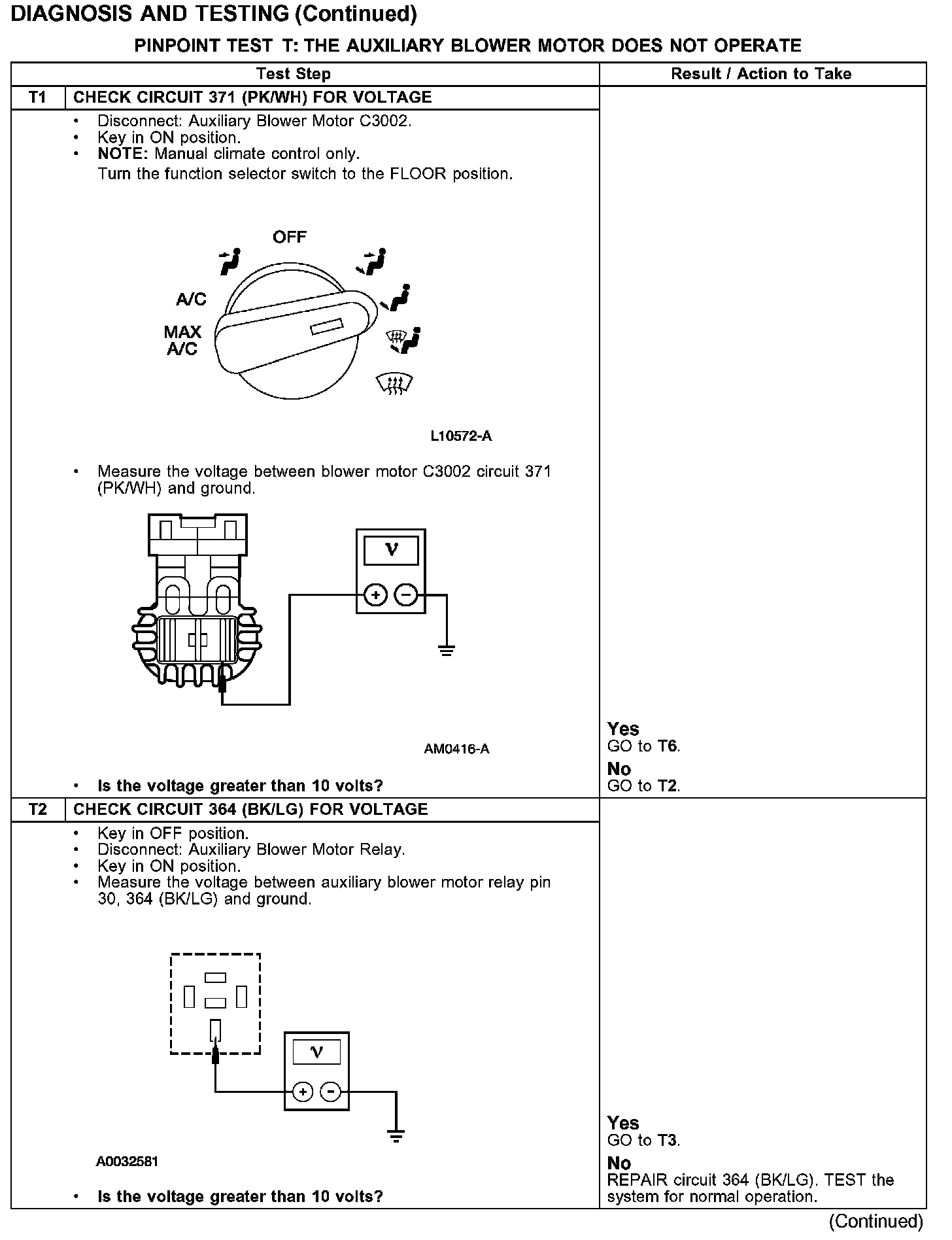

Test T1-T2:

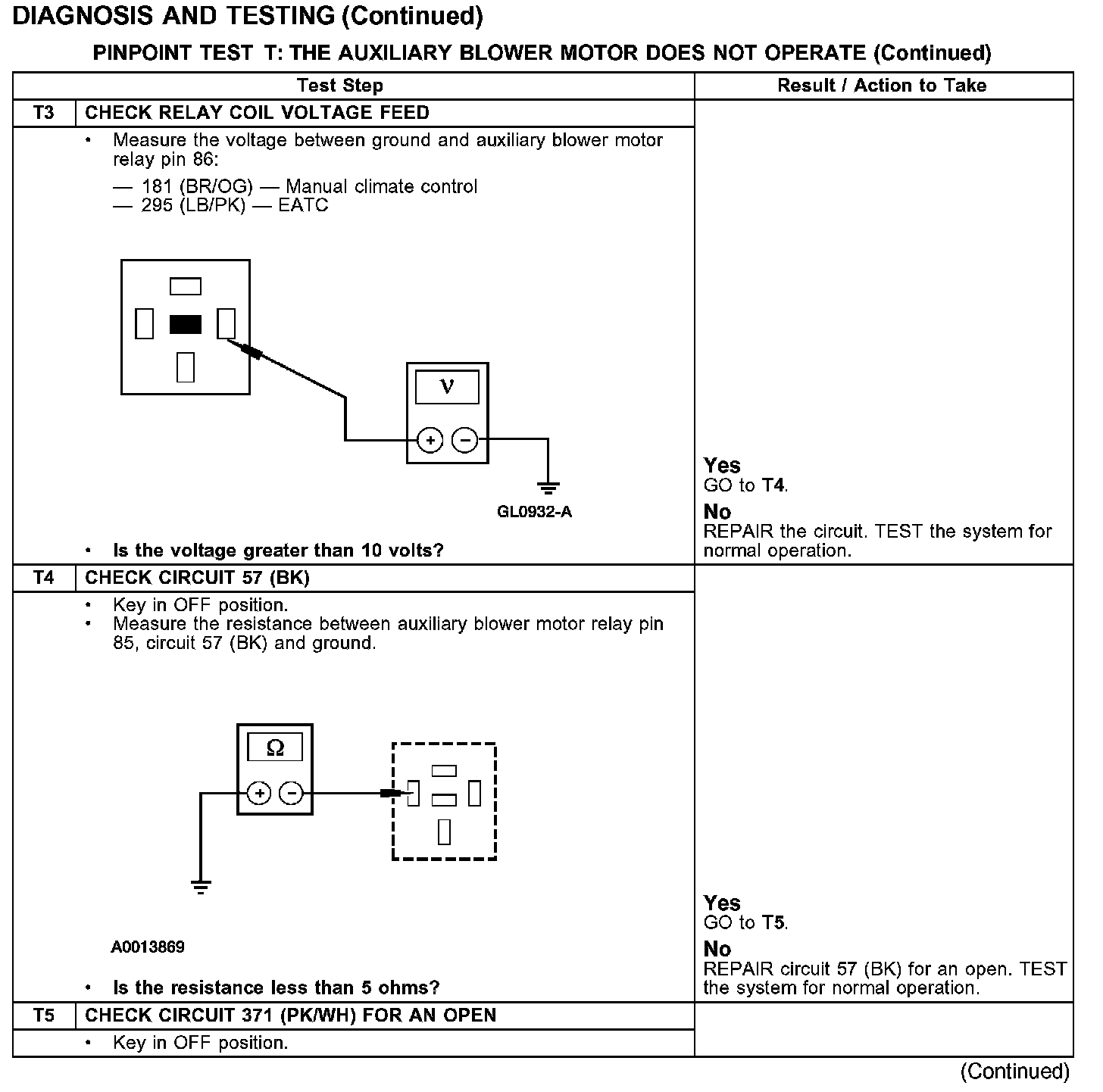

Test T3-T5:

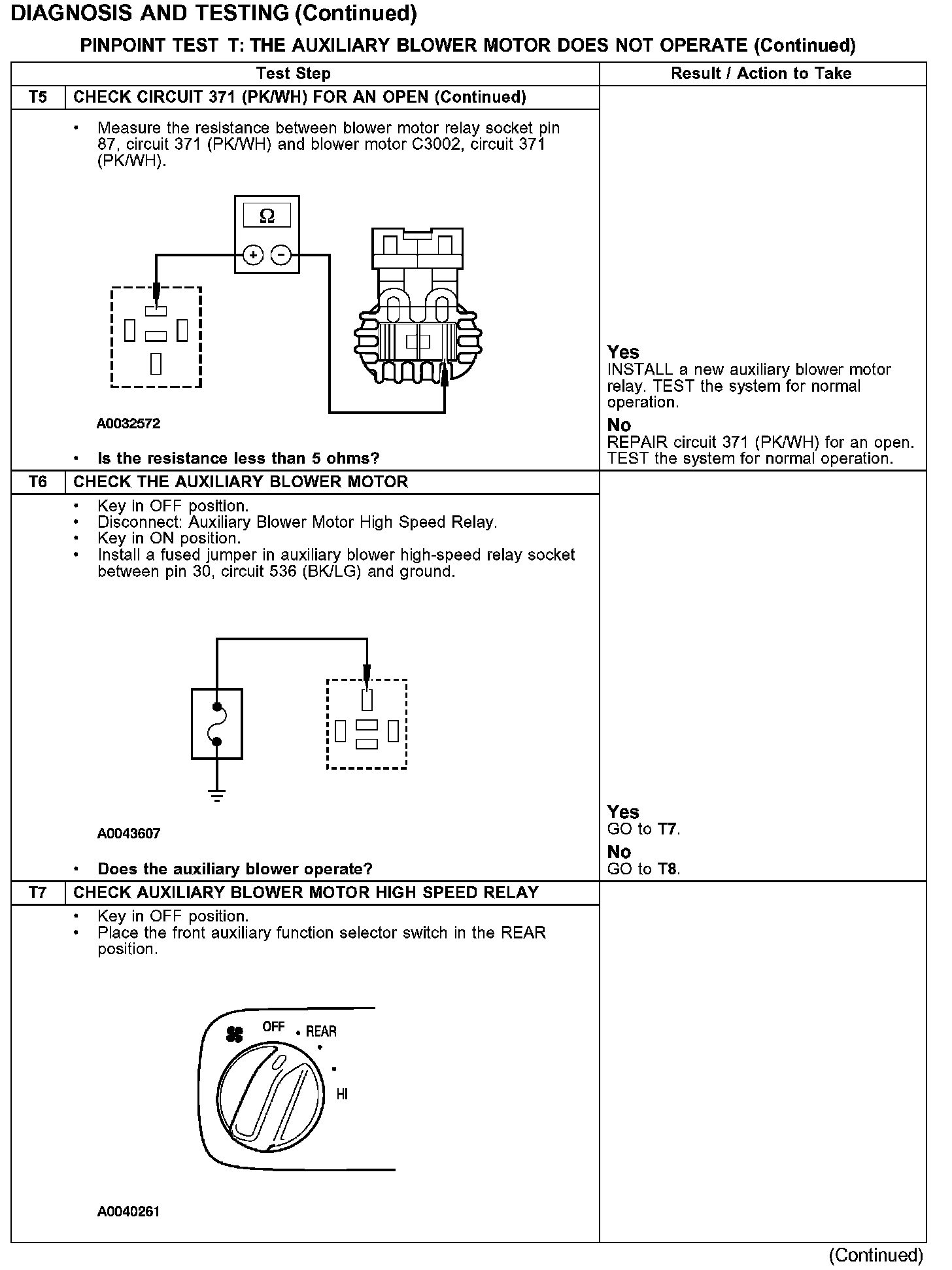

Test T5-T7:

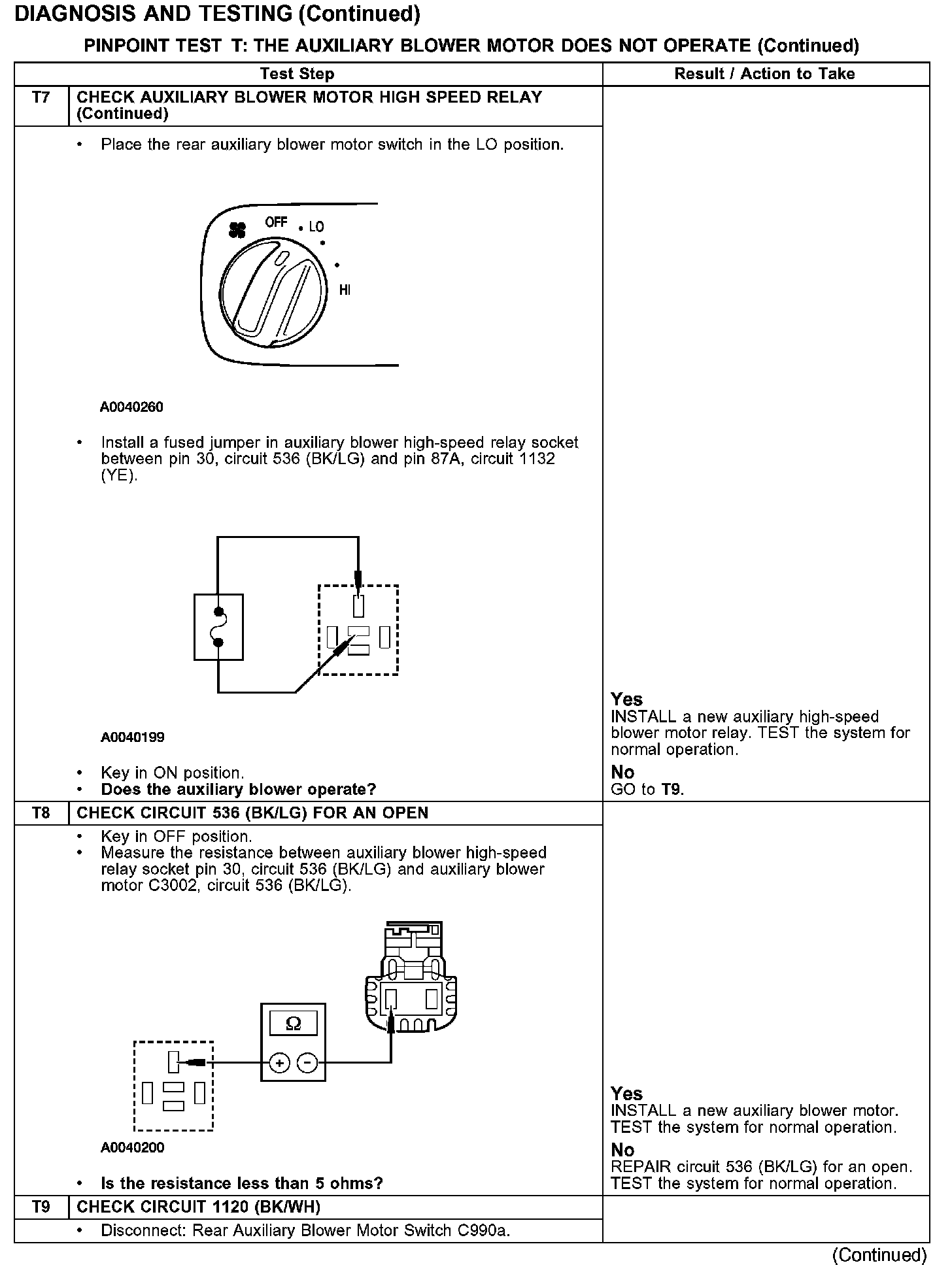

Test T7-T9:

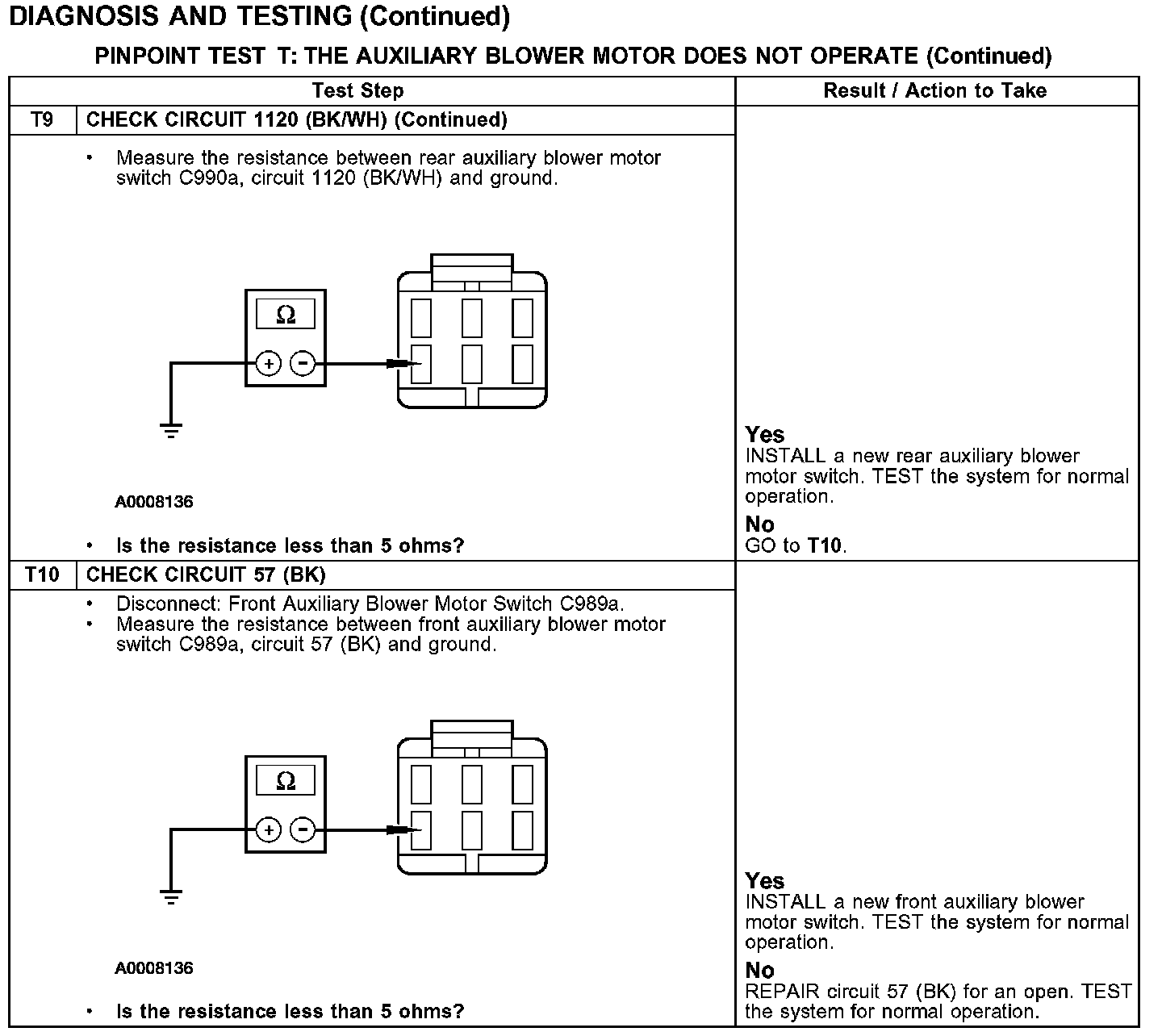

Test T9-T10:
