Test S

PINPOINT TEST S: THE STEERING WHEEL CONTROL SWITCH IS INOPERATIVE/DOES NOT OPERATE CORRECTLY


Test S1:

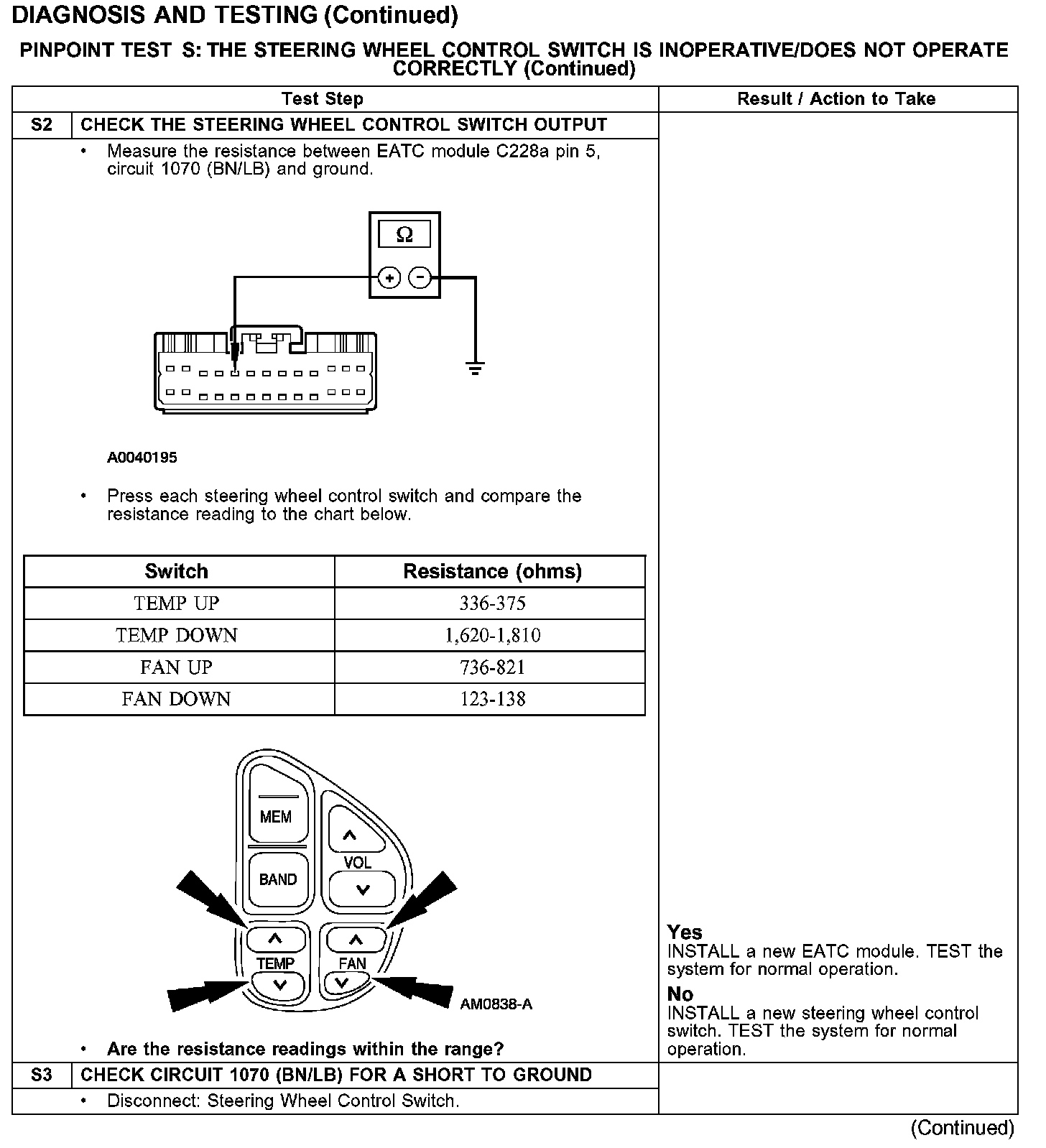

Test S2-S3:

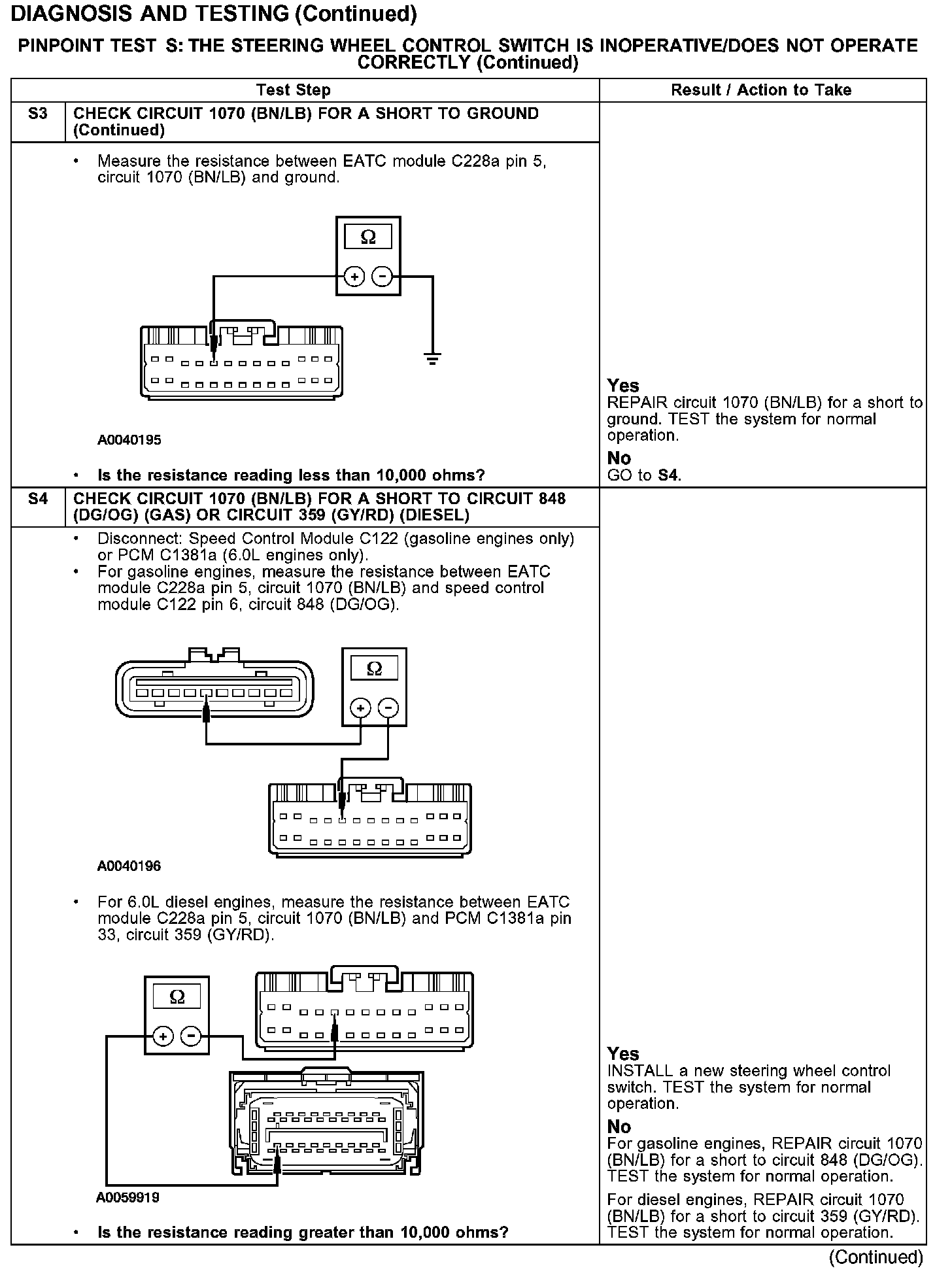

Test S3-S4:

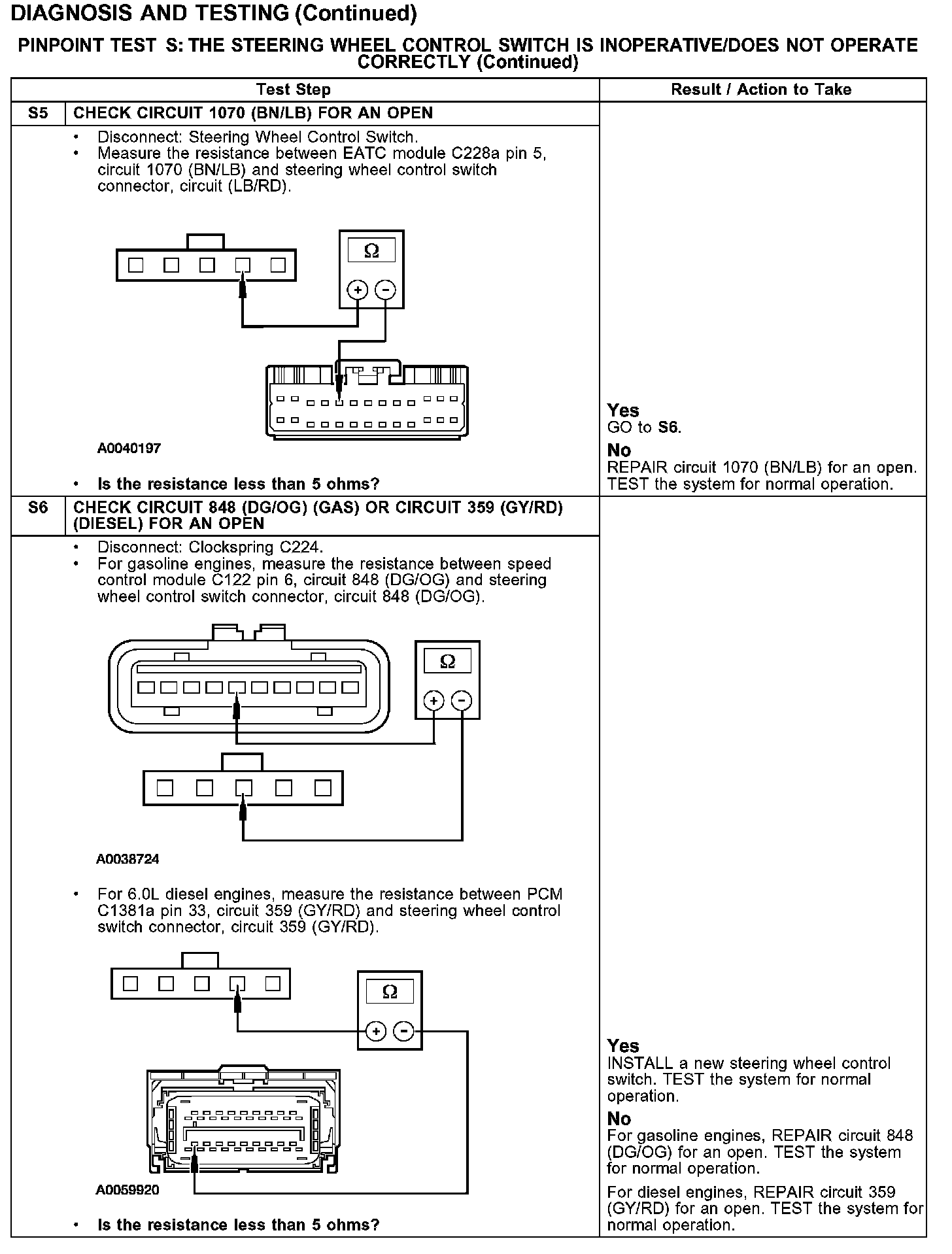

Test S5-S6:
