Test Q

PINPOINT TEST Q: NO OPERATION IN LOWER SPEEDS - MANUAL CLIMATE CONTROL

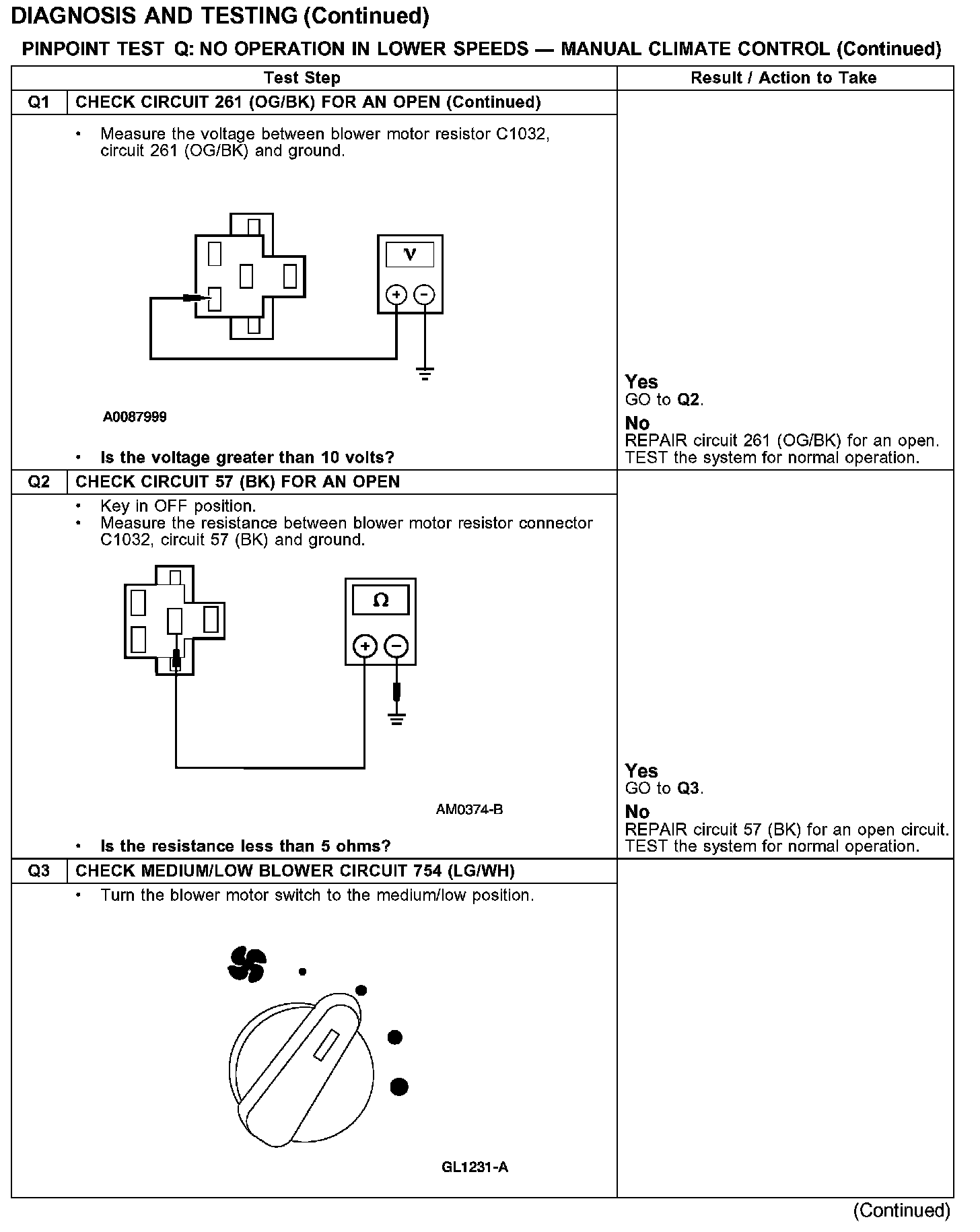

Test Q1:

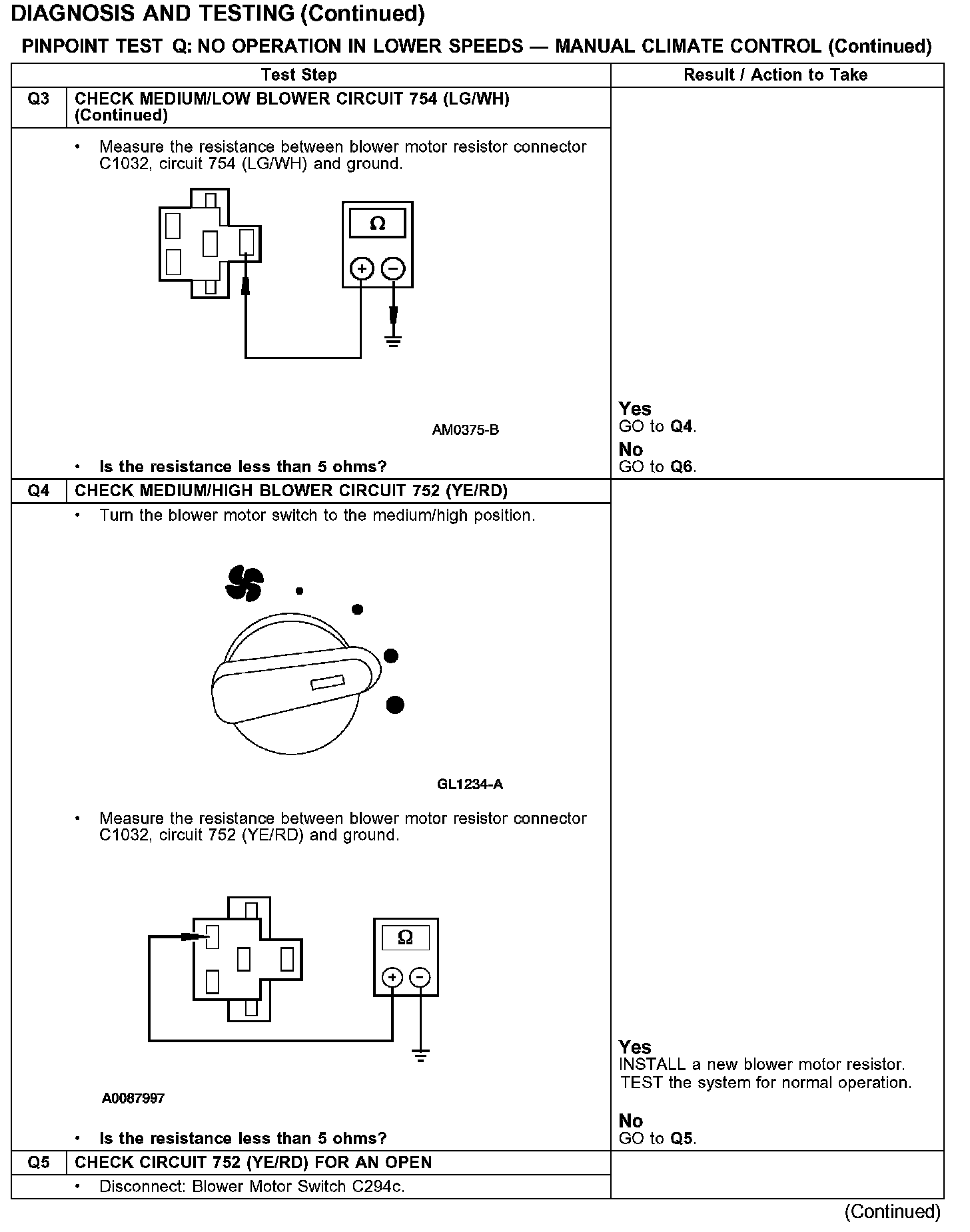

Test Q1-Q3:






Test Q3-Q5:

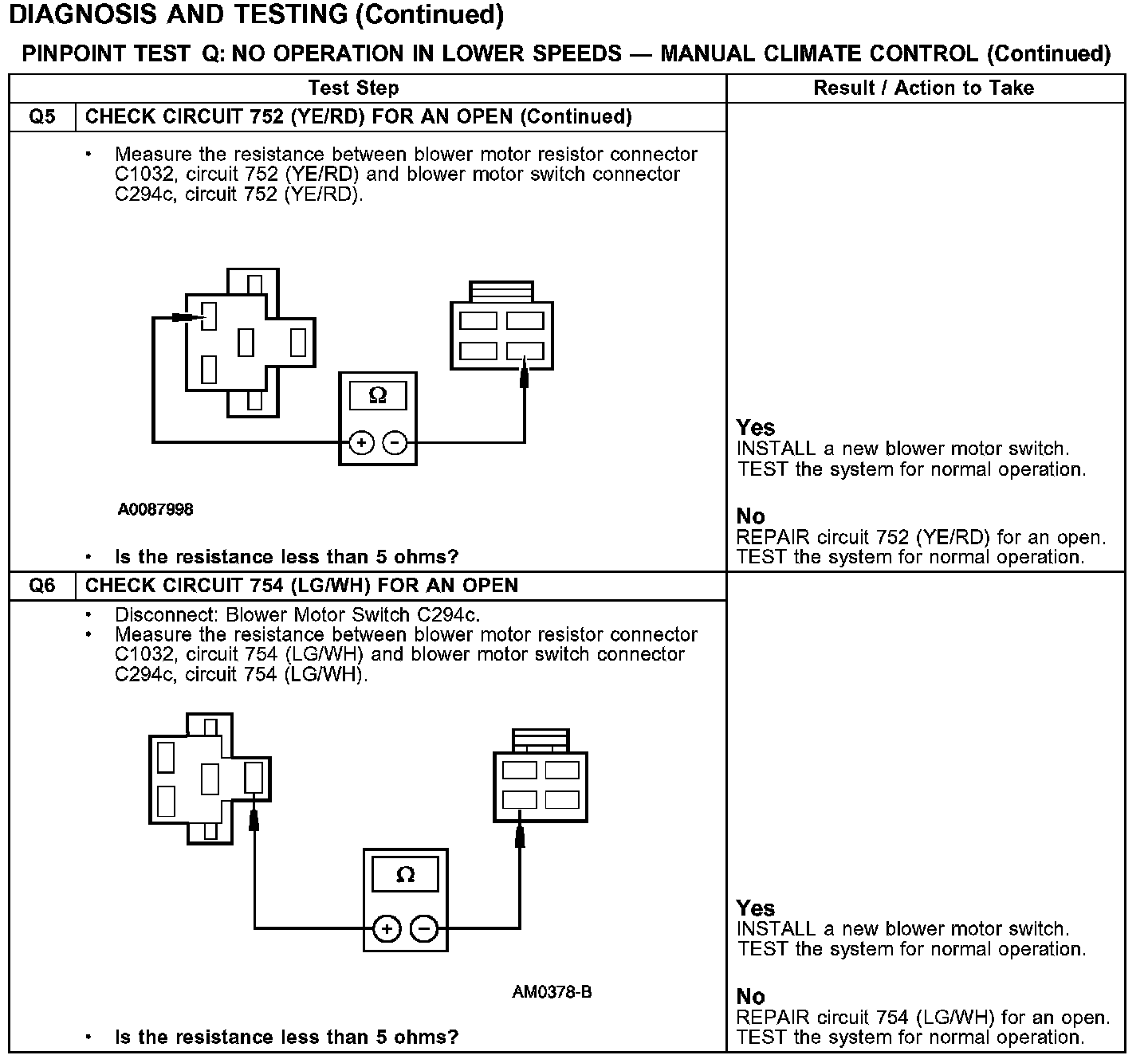

Test Q5-Q6:
