Test O

PINPOINT TEST O: THE BLOWER MOTOR OPERATES CONTINUOUSLY IN HIGH SPEED - MANUAL CLIMATE CONTROL

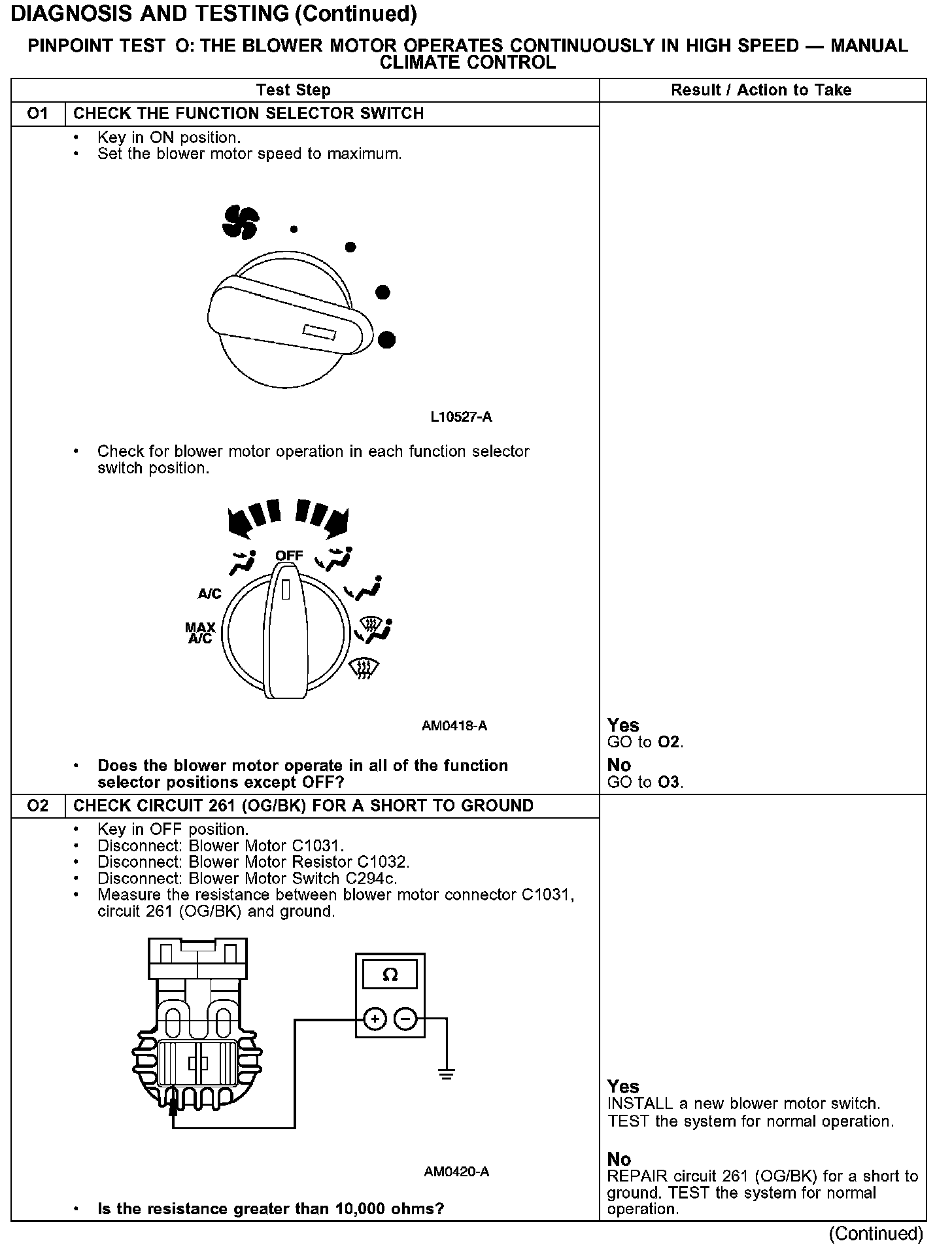

Test O1-O2:

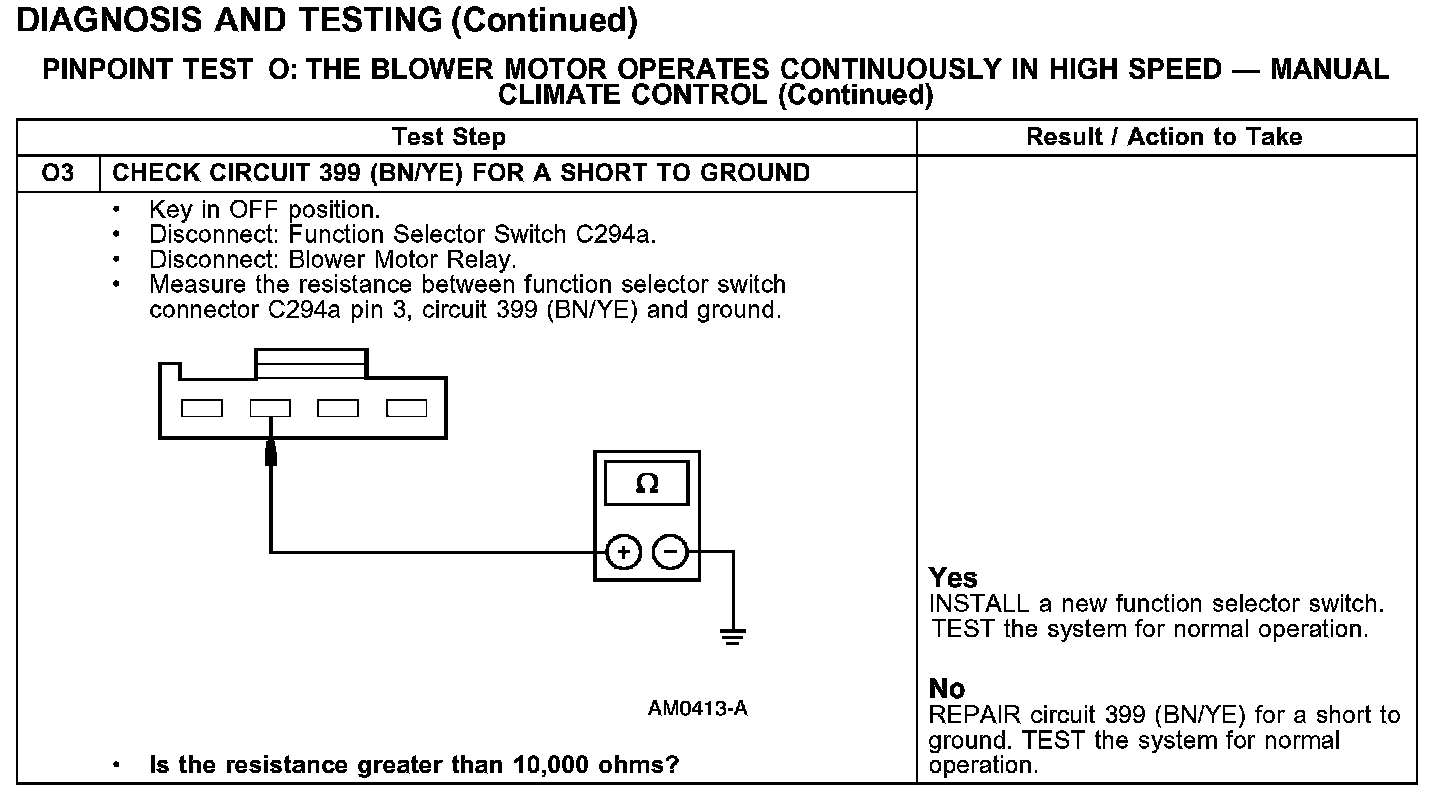

Test O3:
