Test N

PINPOINT TEST N: THE BLOWER MOTOR IS INOPERATIVE - EATC


Test N1-N2:

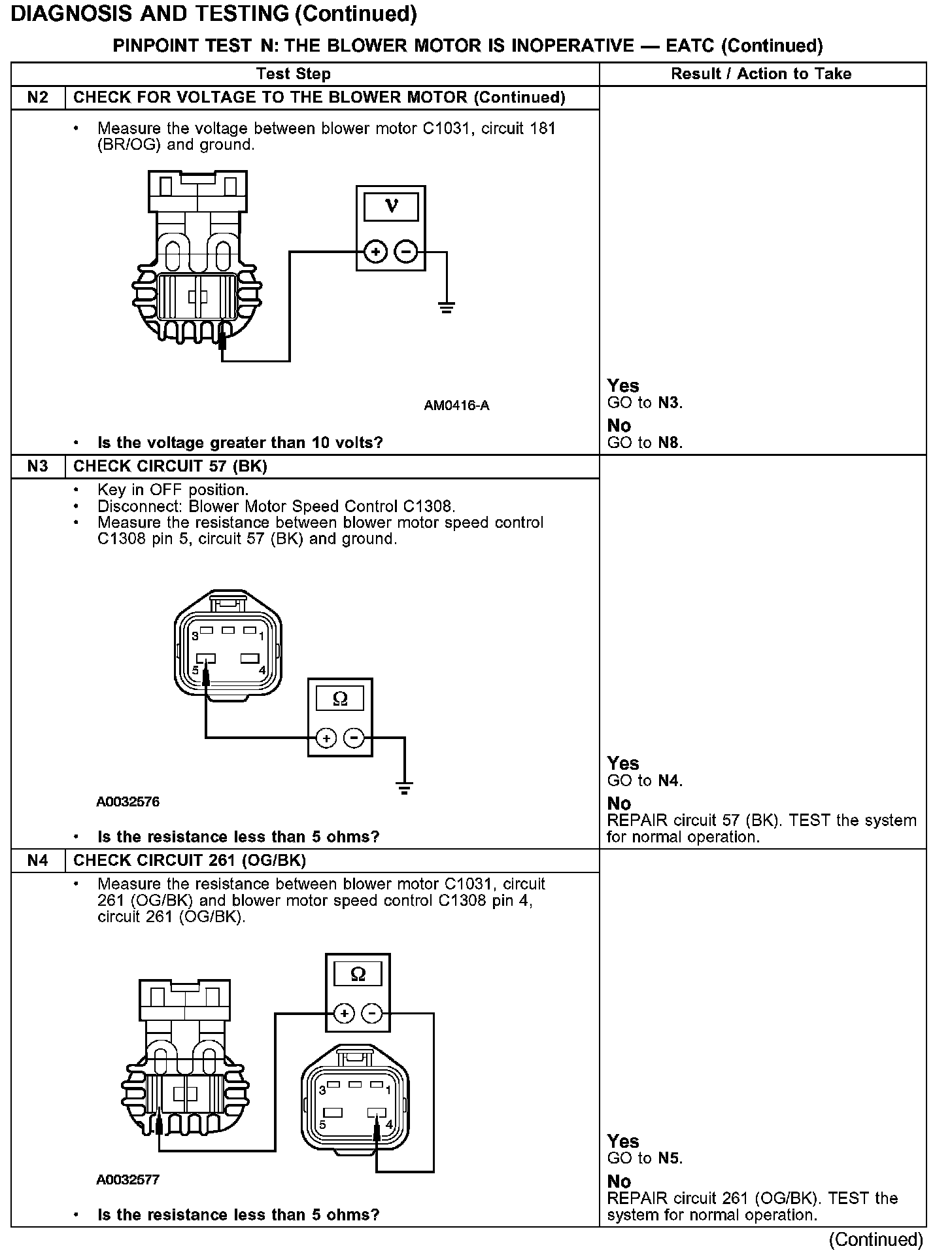

Test N2-N4:

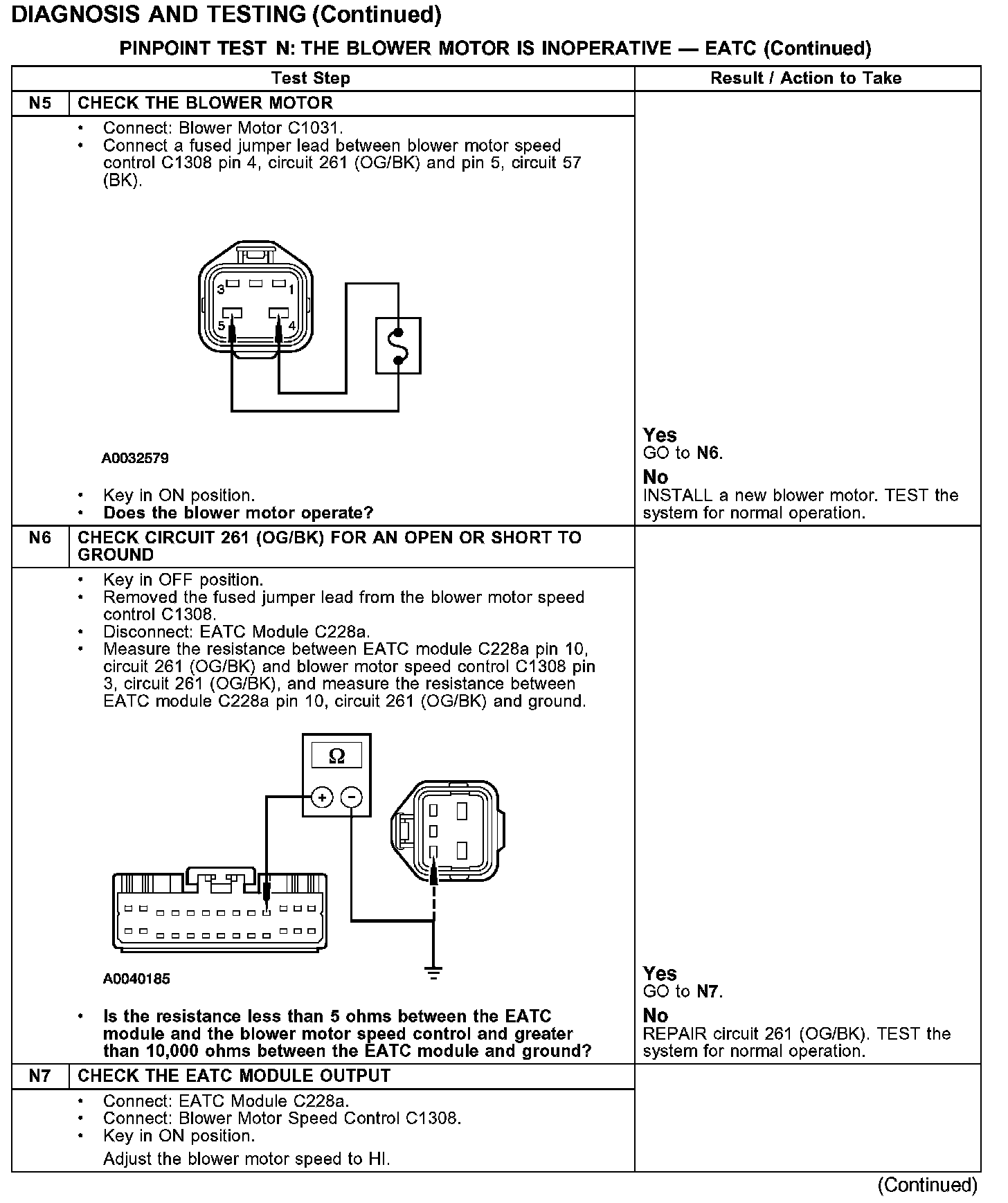

Test N5-N7:

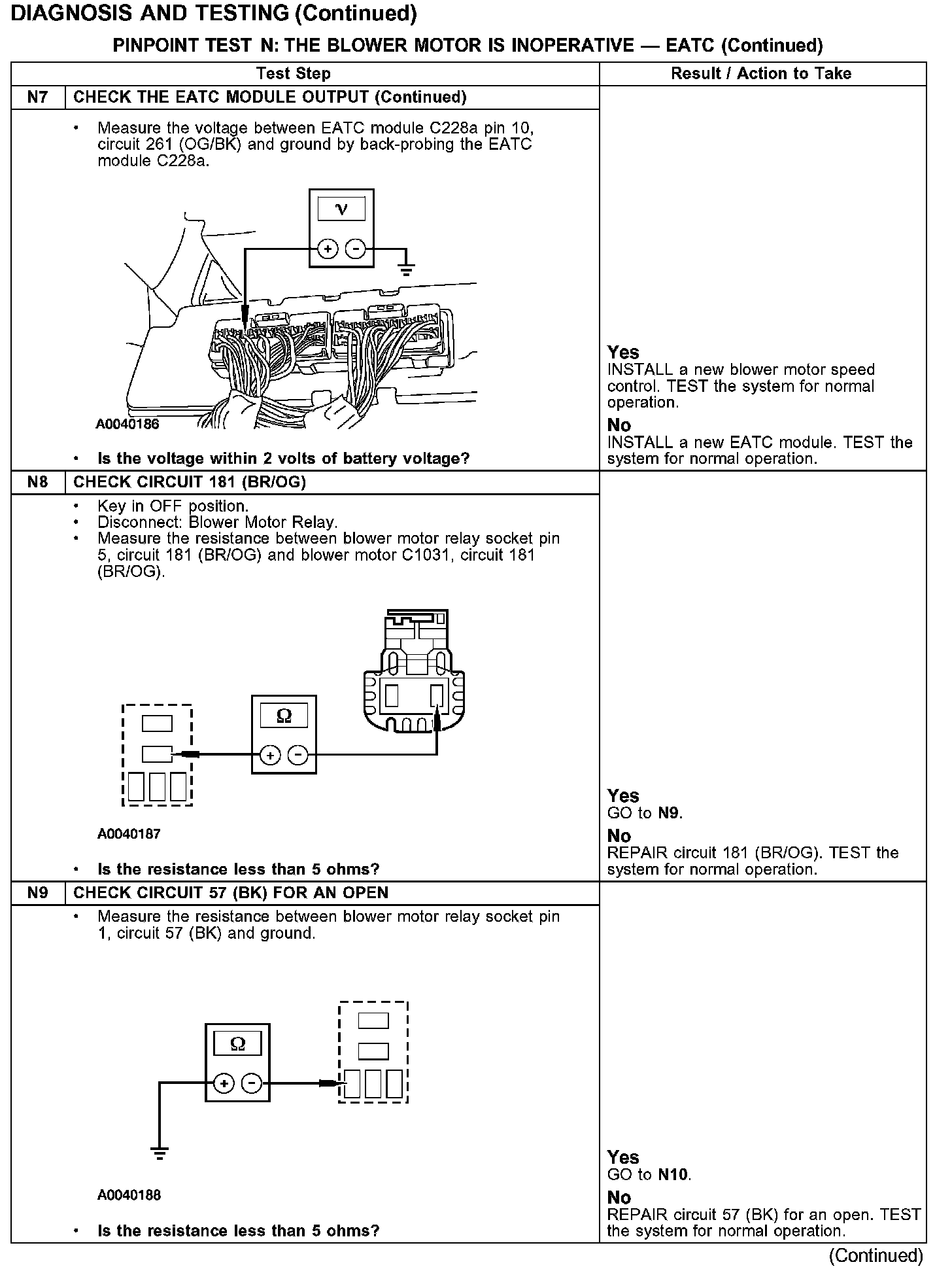

Test N7-N9:

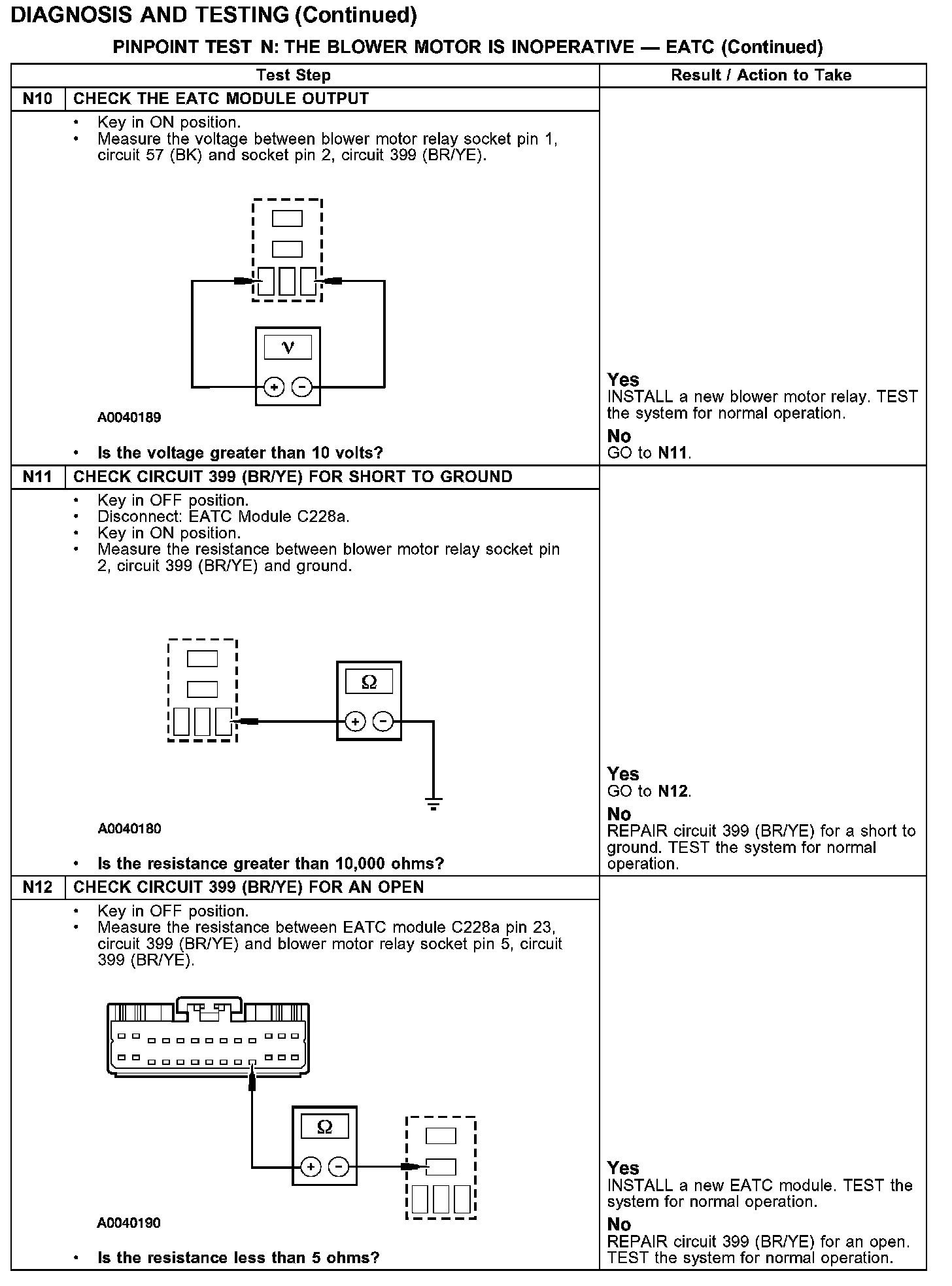

Test N10-N12:
