Test M

PINPOINT TEST M: THE BLOWER MOTOR IS INOPERATIVE - MANUAL CLIMATE CONTROL

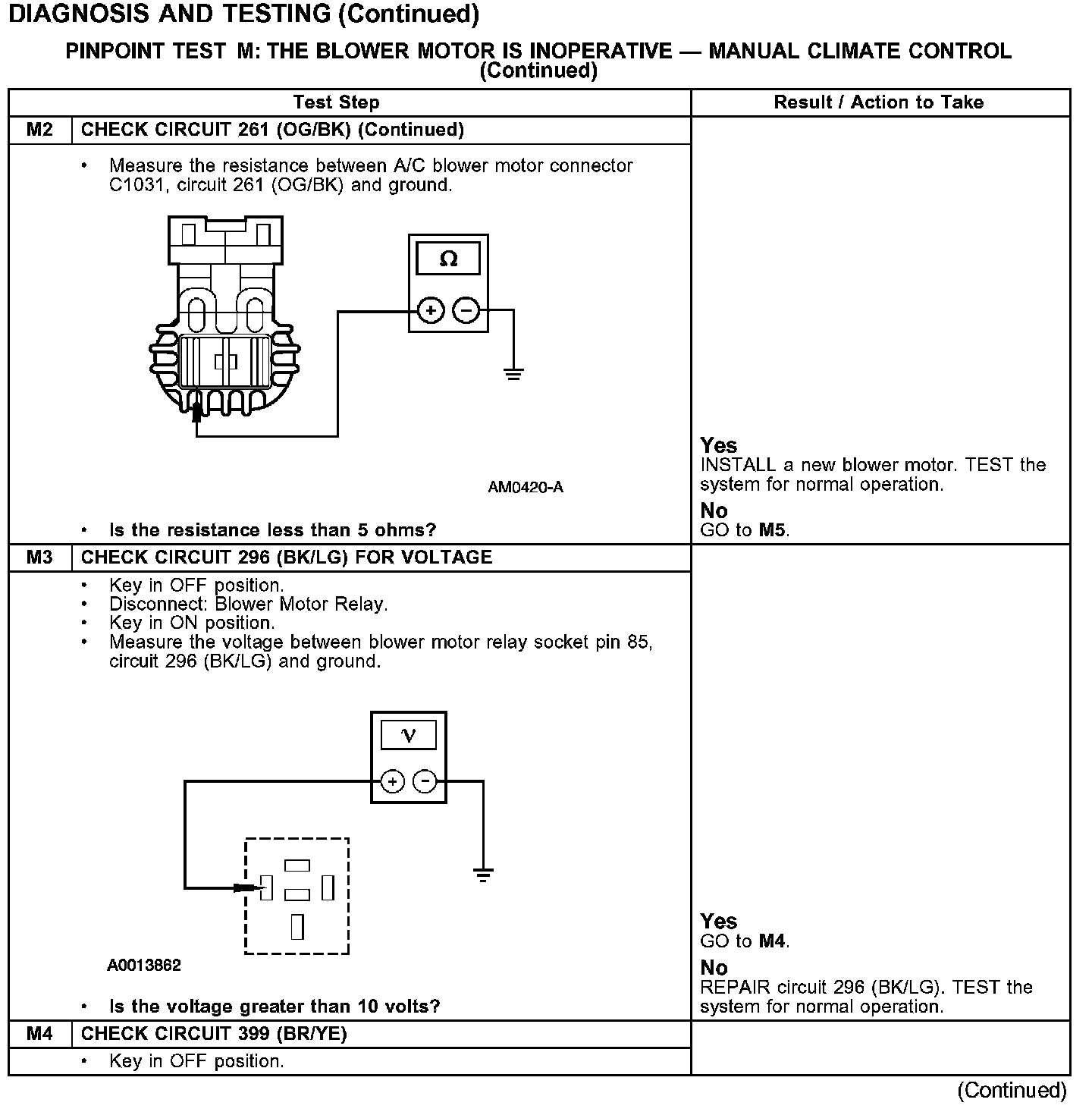

Test M1-M2:






Test M2-M4:

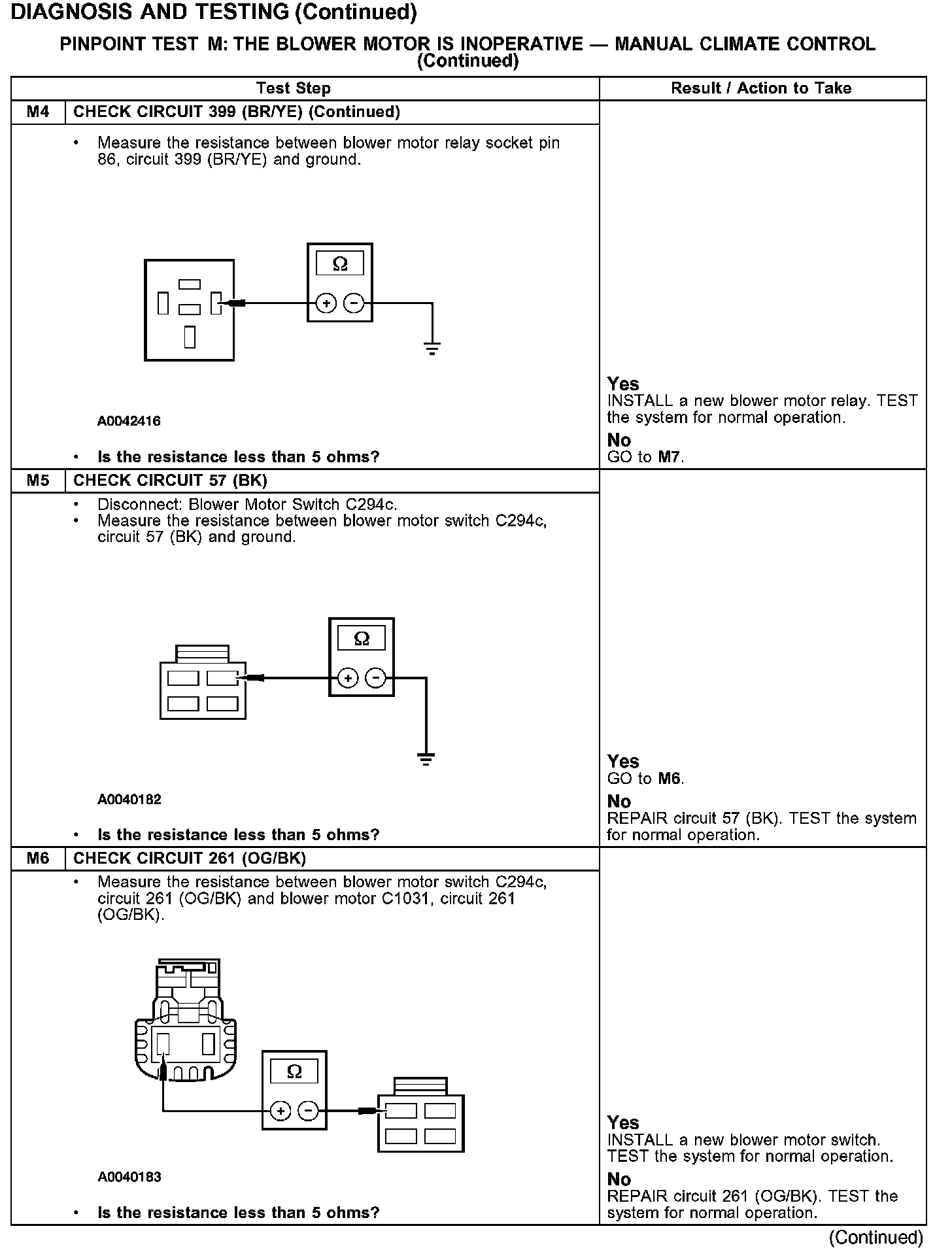

Test M4-M6:

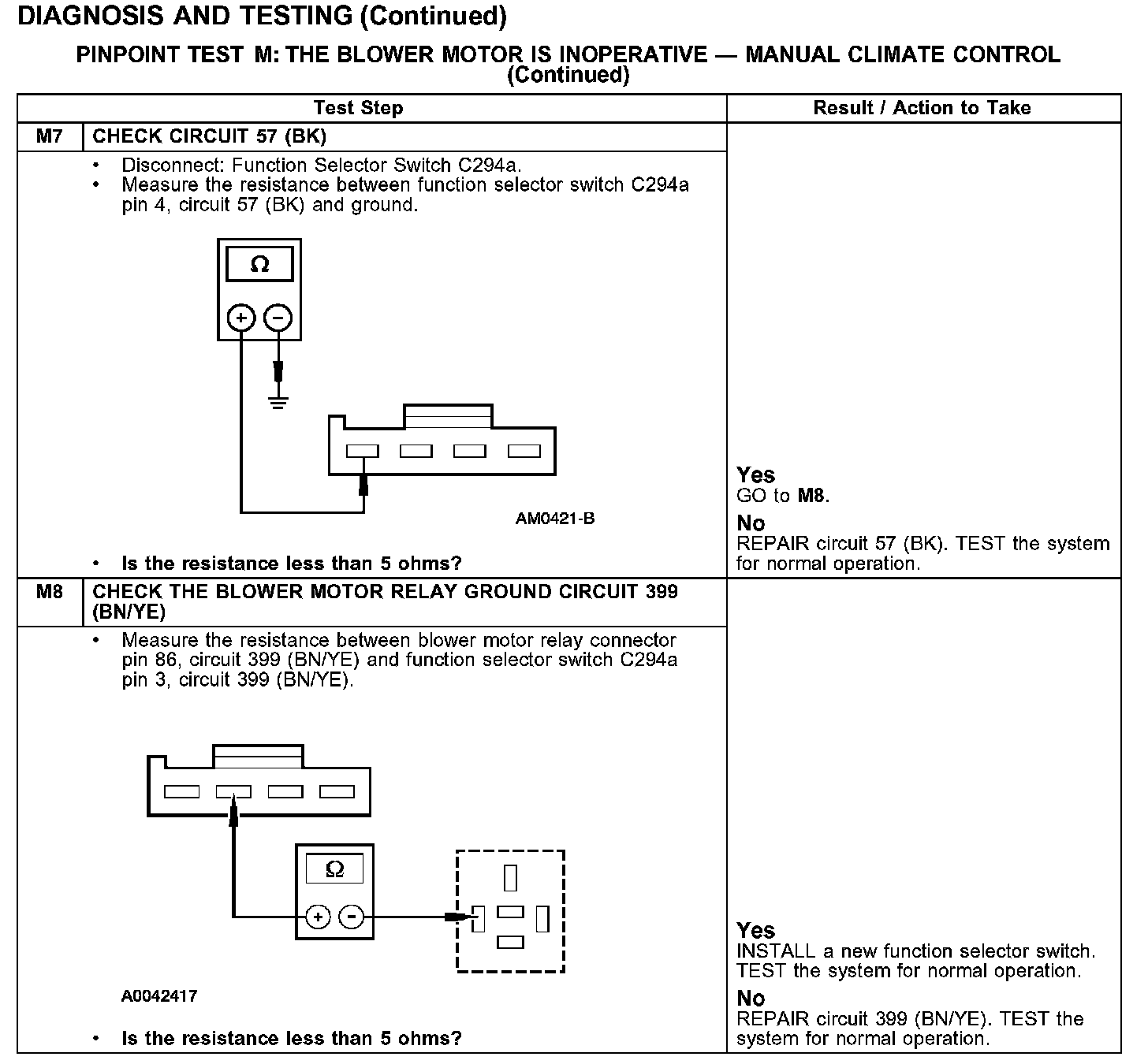

Test M7-M8:
