Test G

PINPOINT TEST G: INCORRECT/ERRATIC DIRECTION OF AIR FLOW FROM OUTLET(S) - MANUAL CLIMATE CONTROL

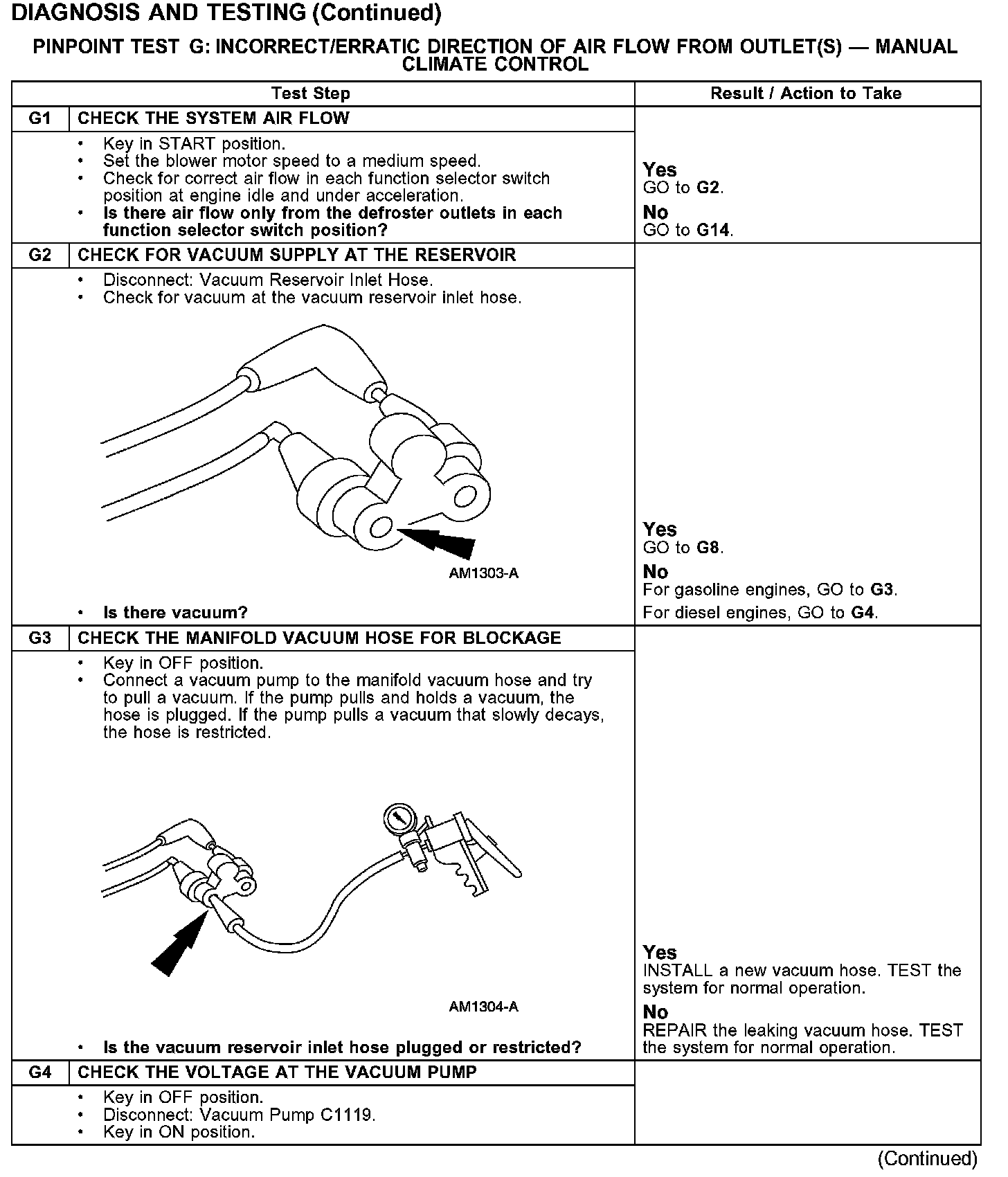

Test G1-G4:

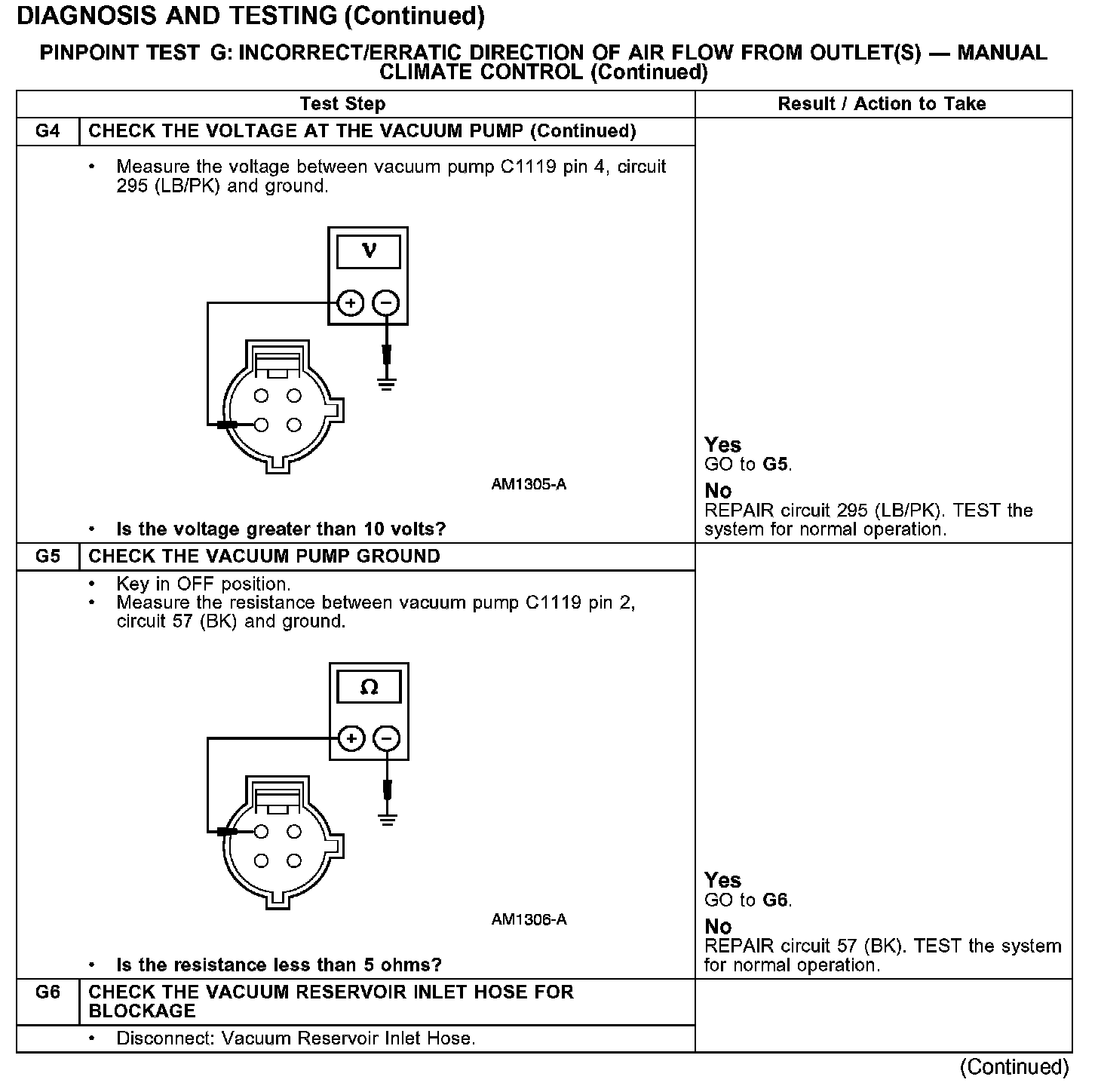

Test G4-G6:

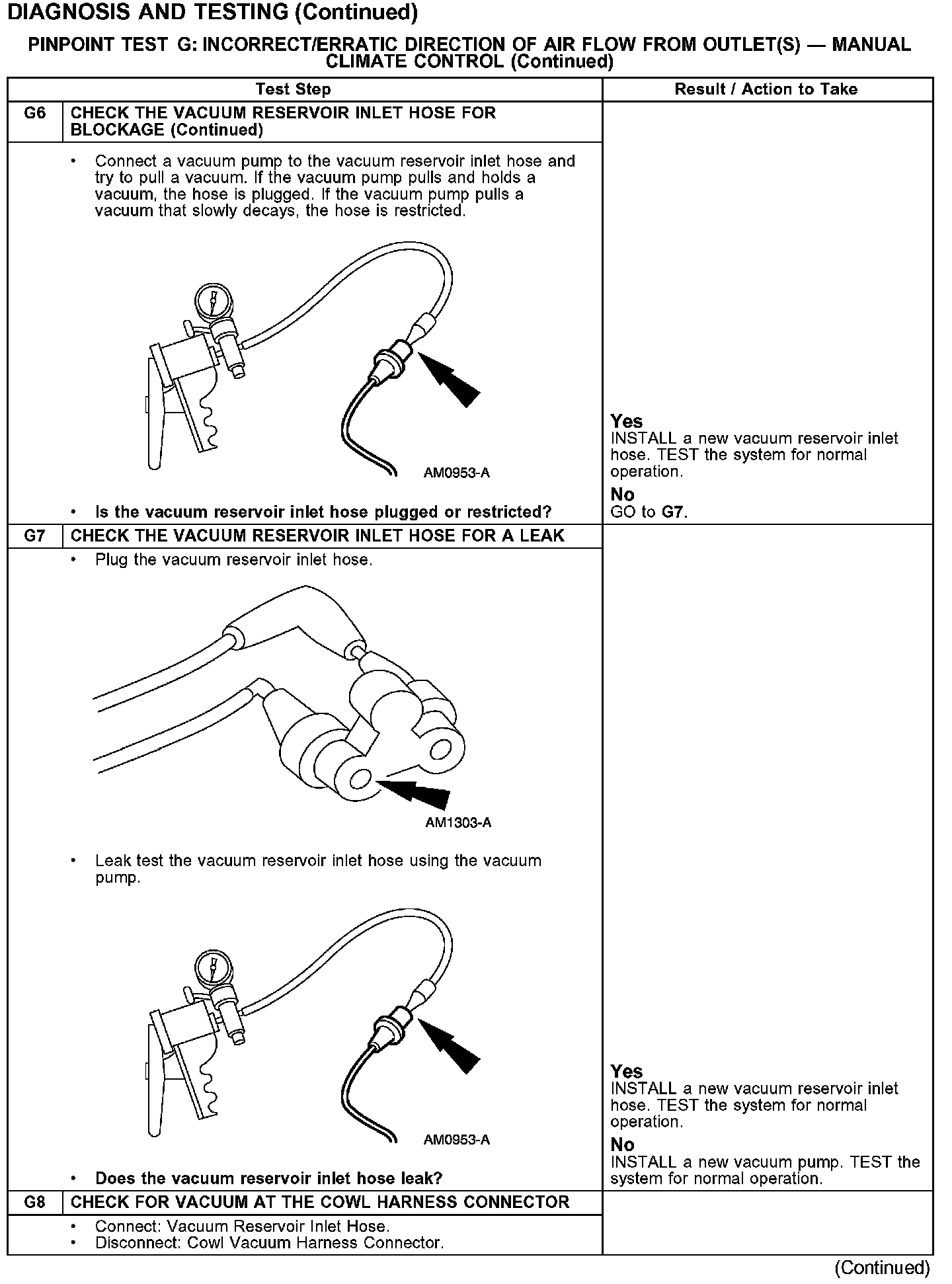

Test G6-G8:

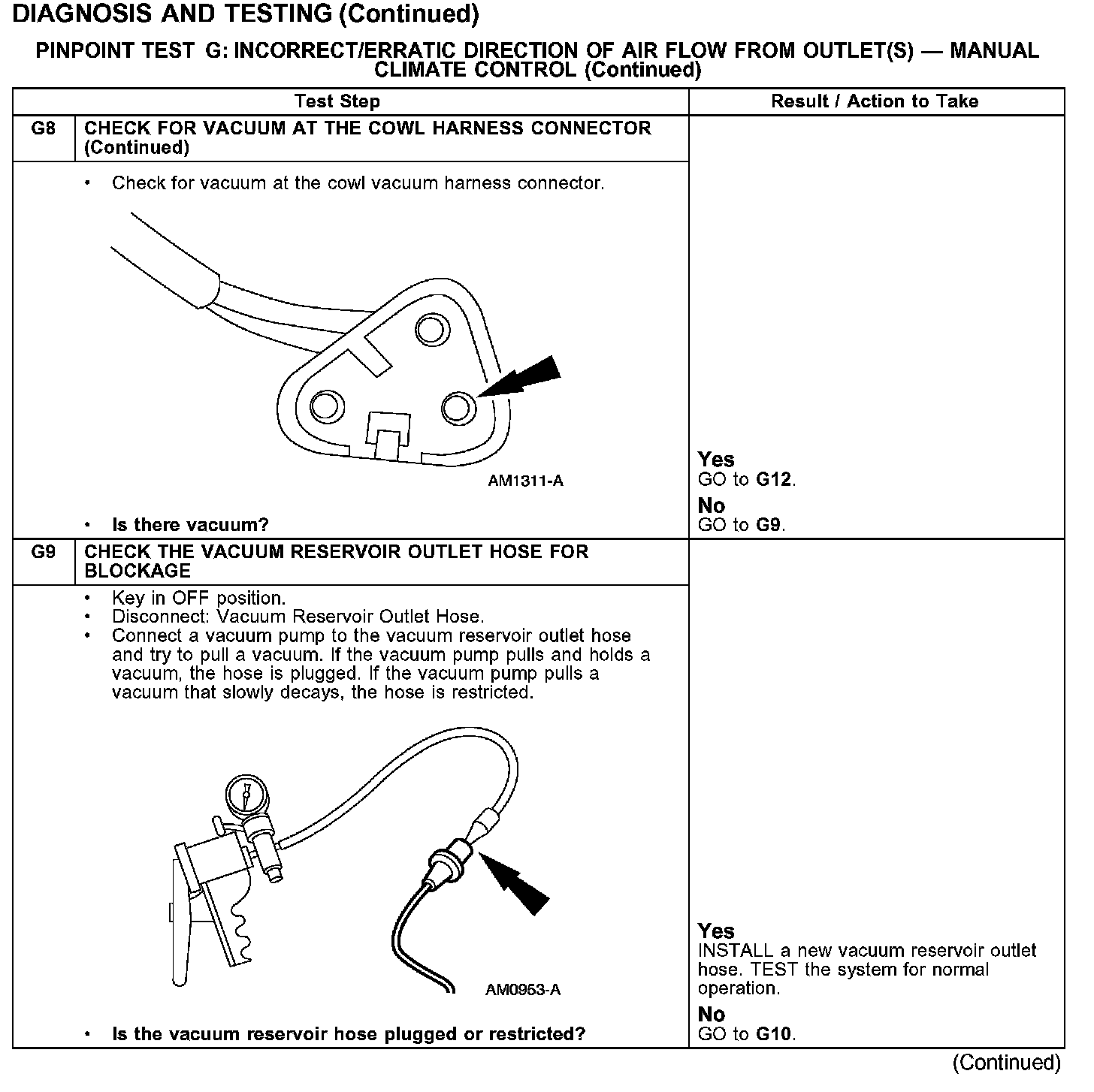

Test G8-G9:

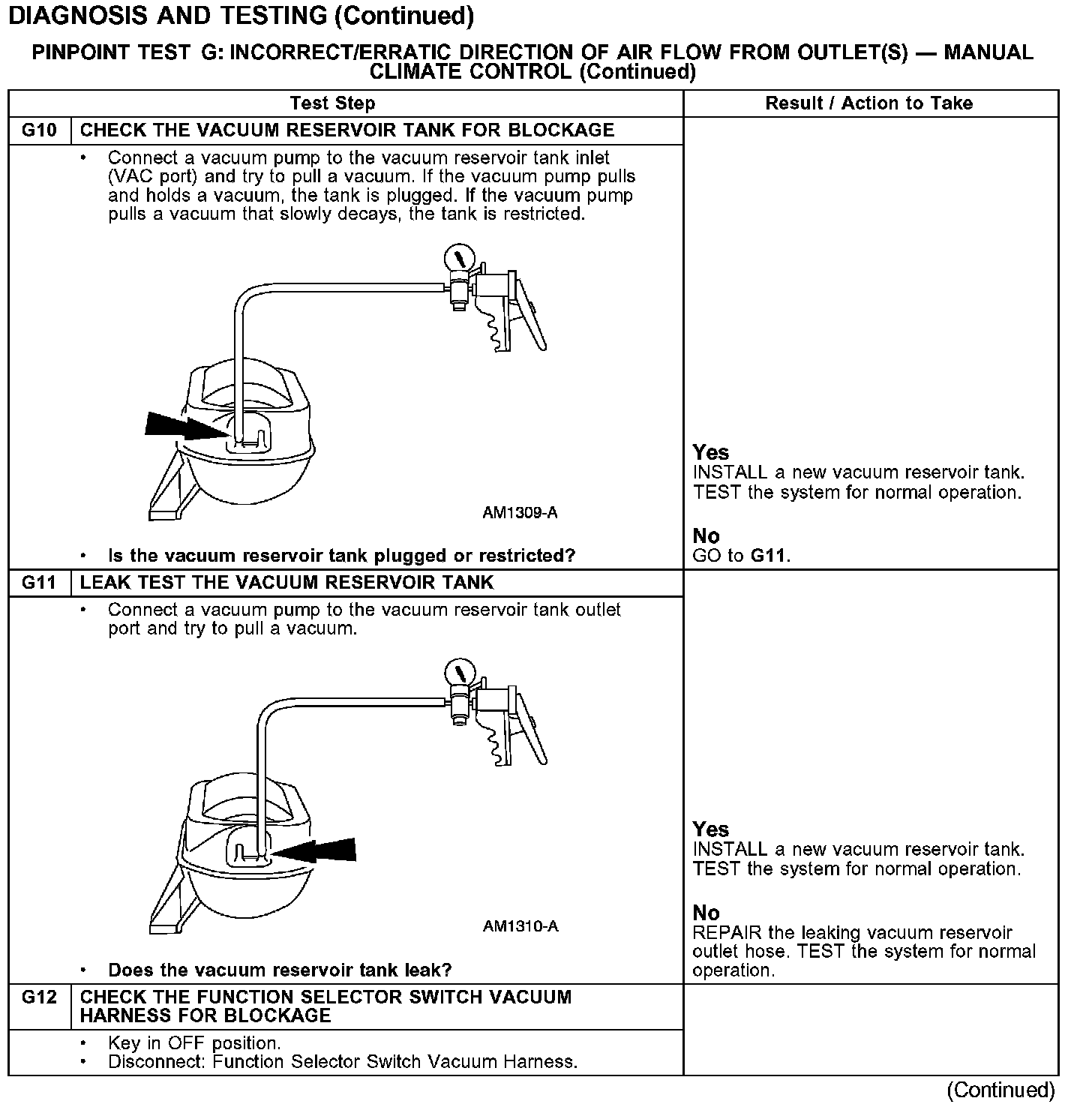

Test G10-G12:

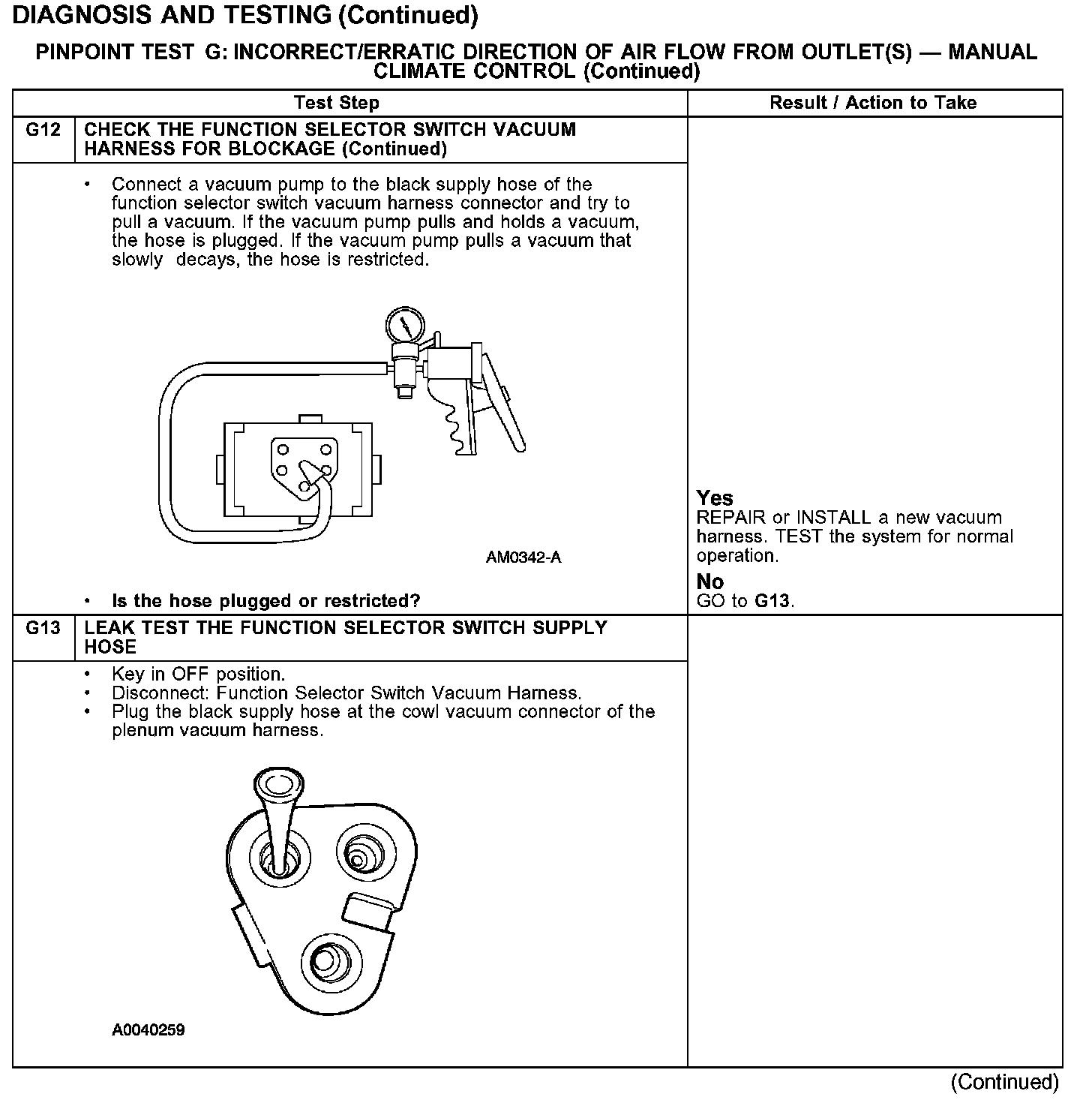

Test G12-G13:

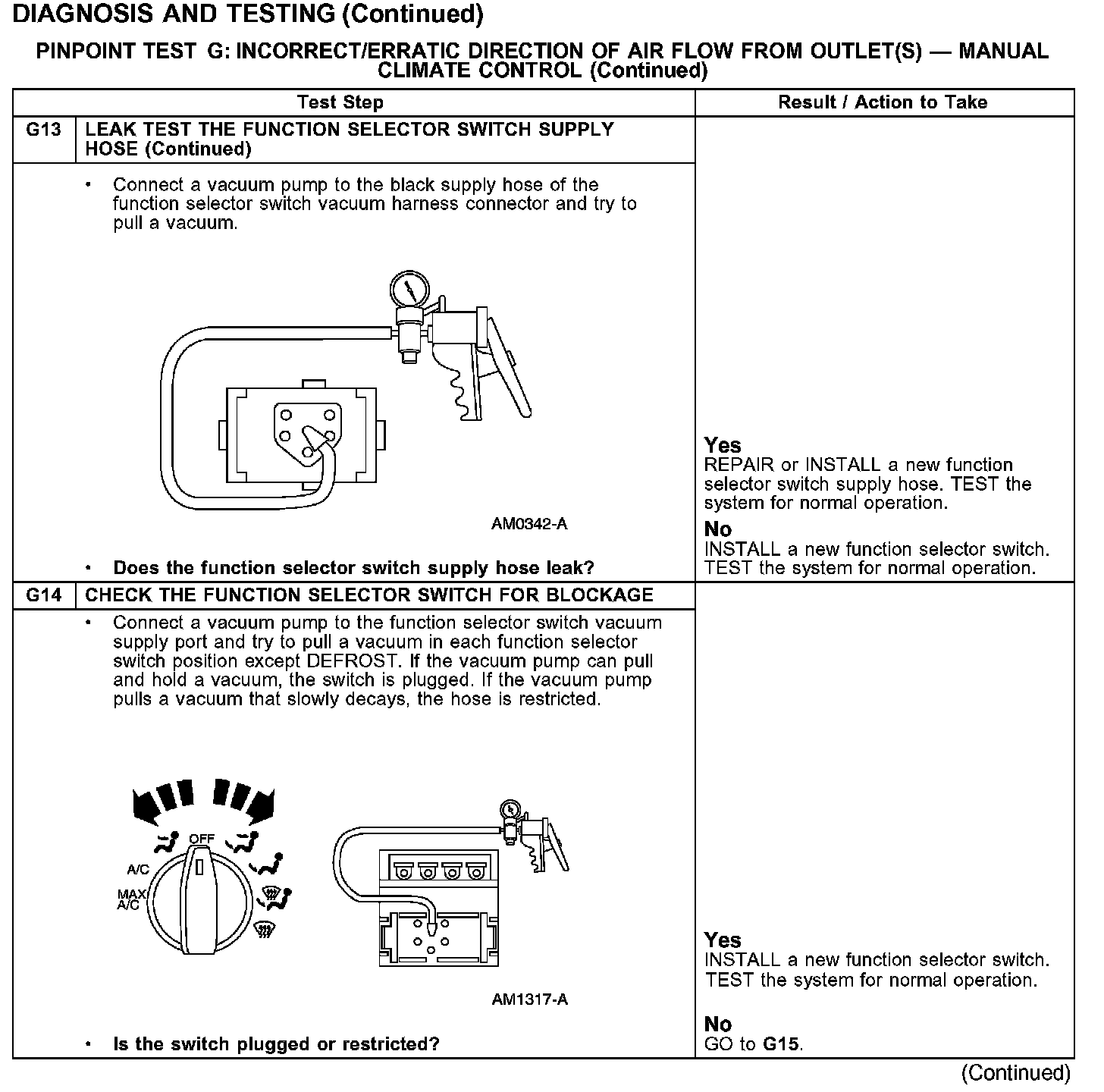

Test G13-G14:

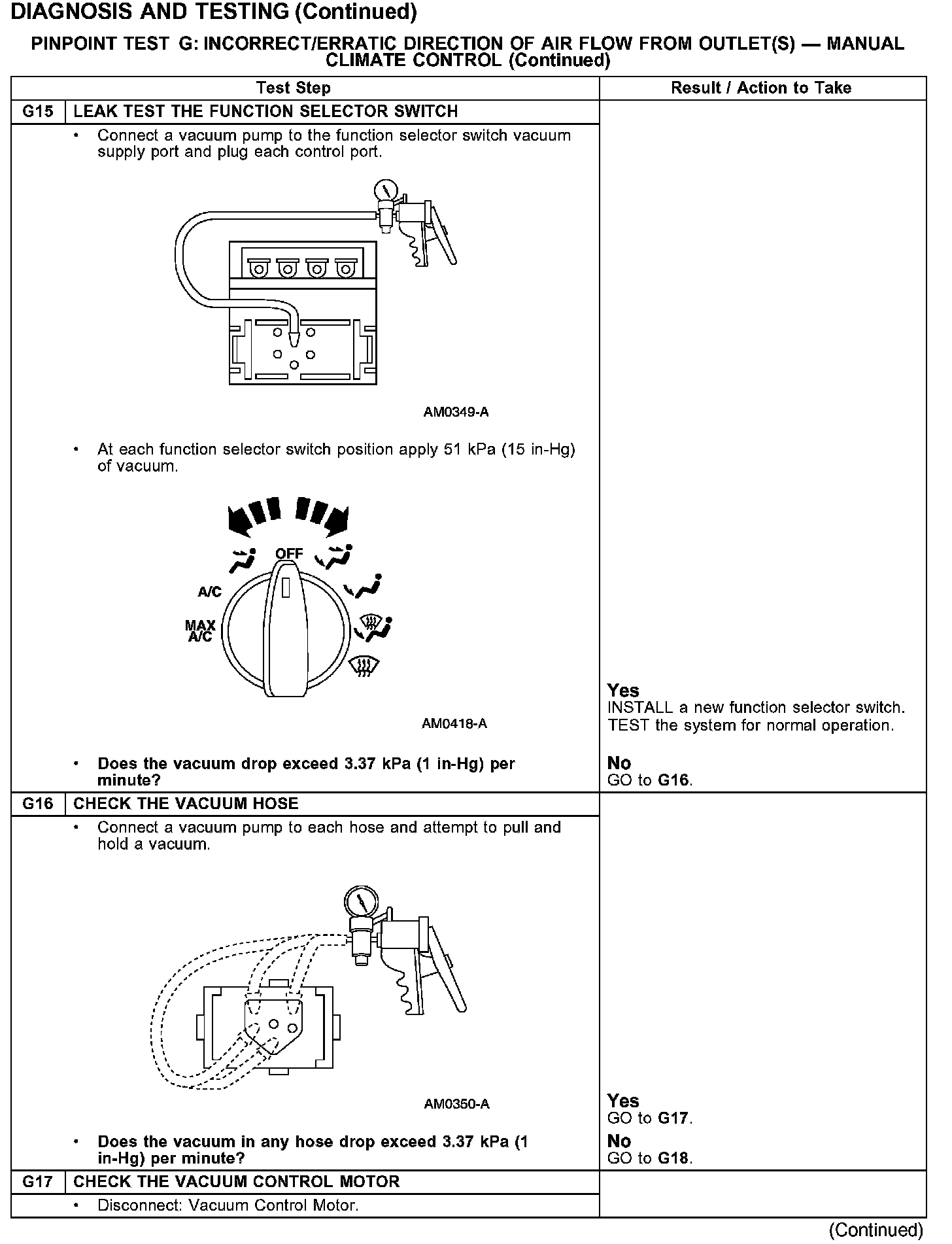

Test G15-G17:

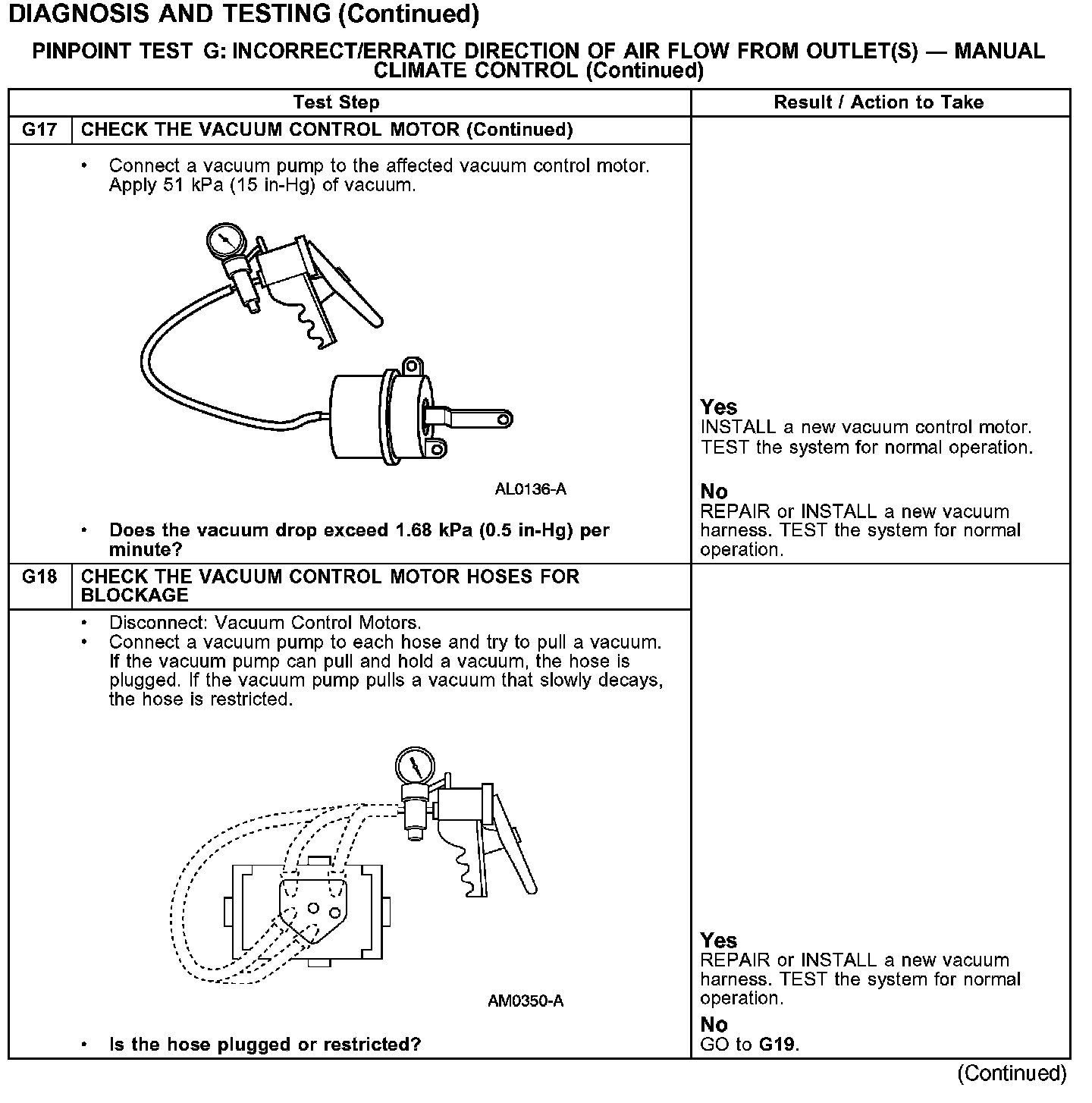

Test G17-G18:

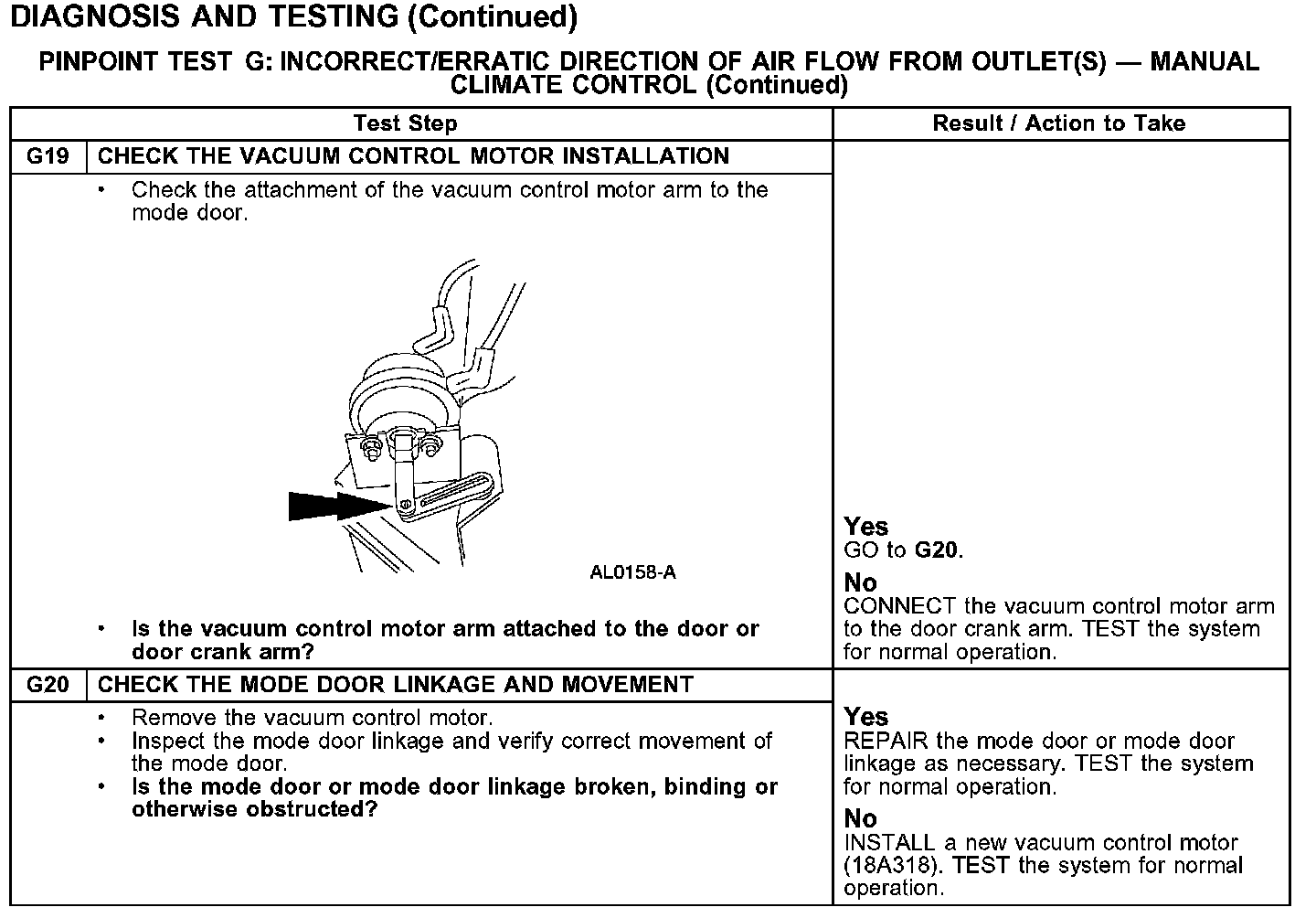

Test G19-G20:
