Test D

PINPOINT TEST D: DTC B1259 OR DTC B1261 - SOLAR RADIATION SENSOR OPEN CIRCUIT OR SHORT TO GROUND


Test D1:

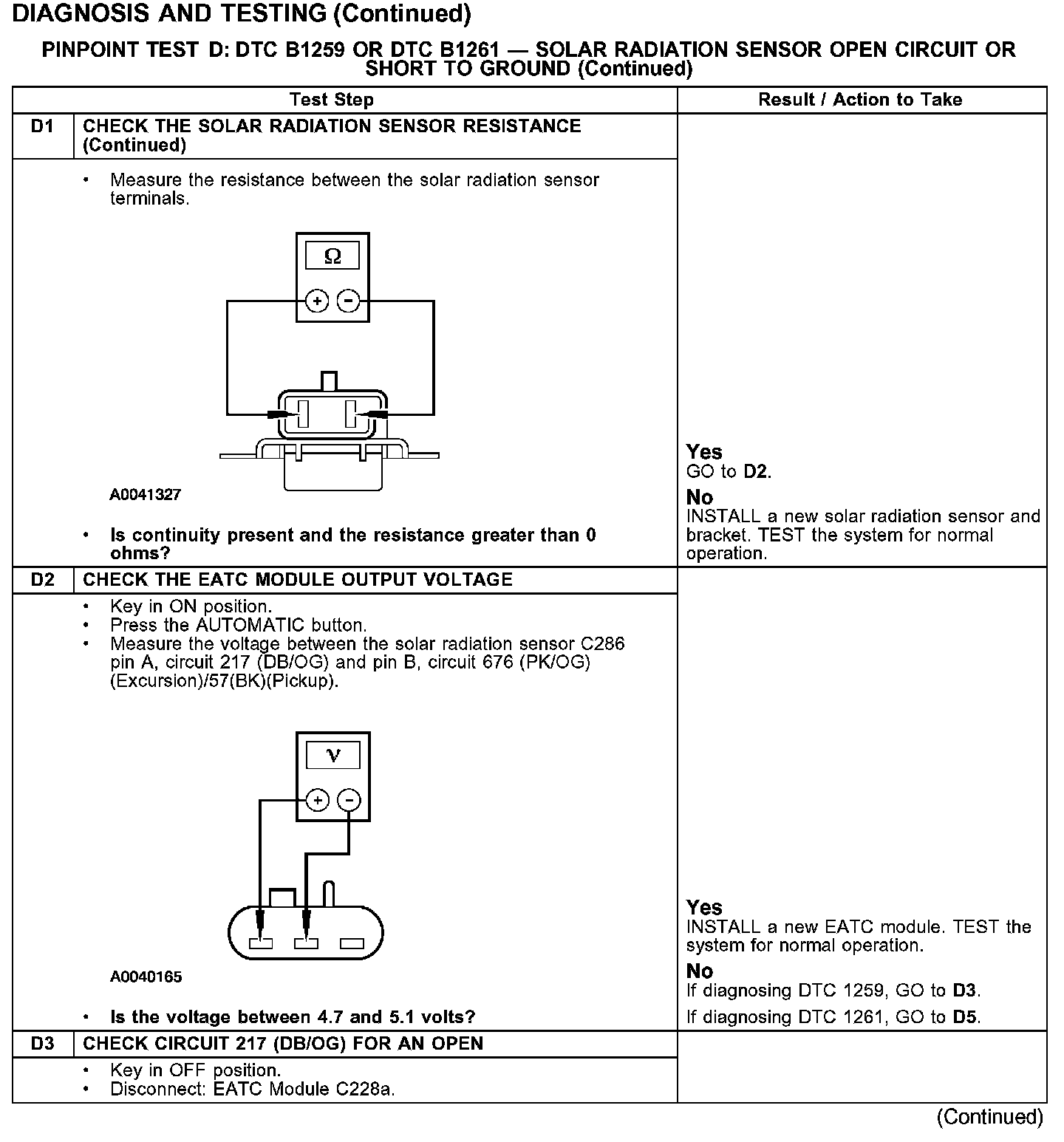

Test D1-D3:

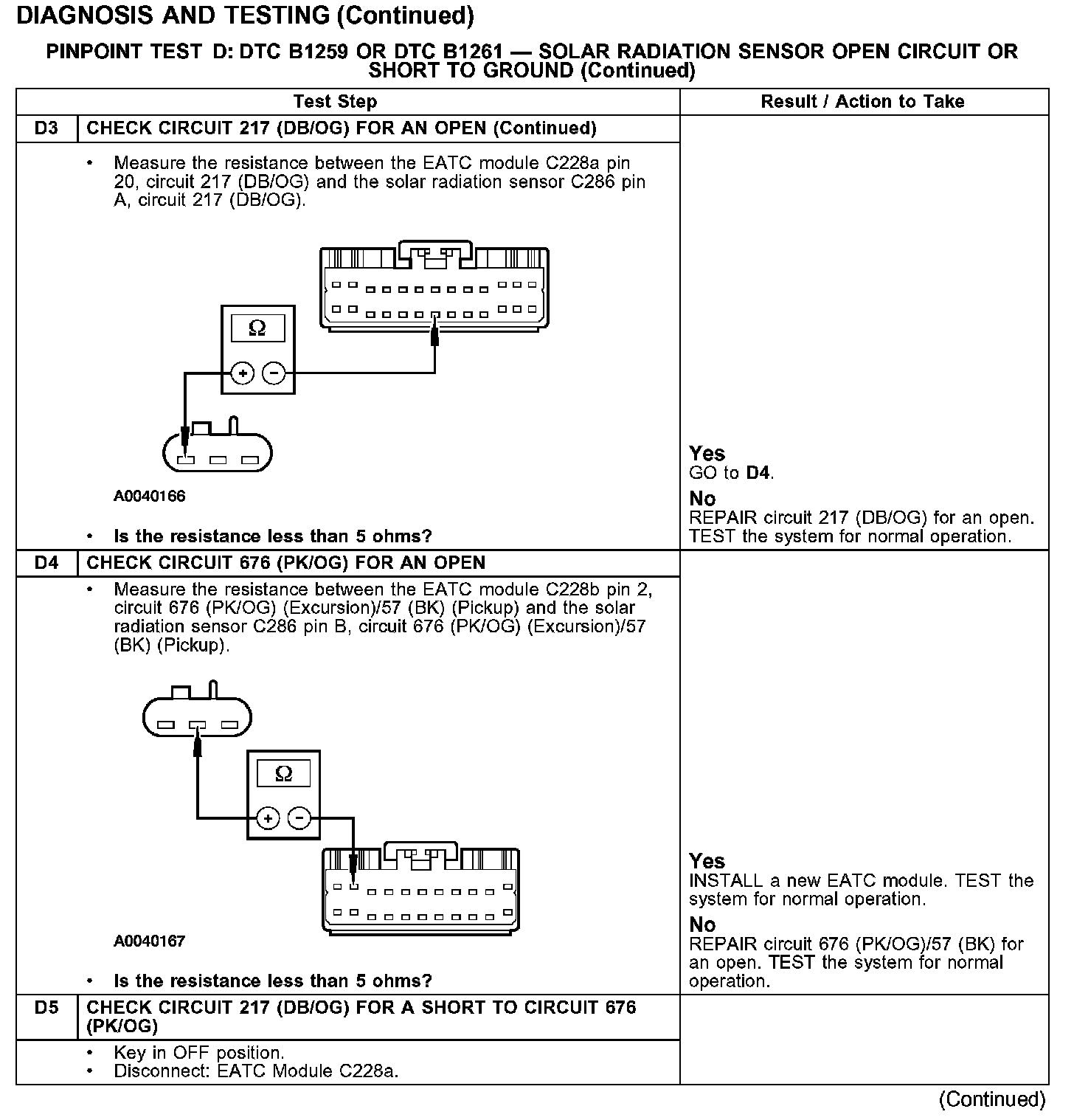

Test D3-D5:

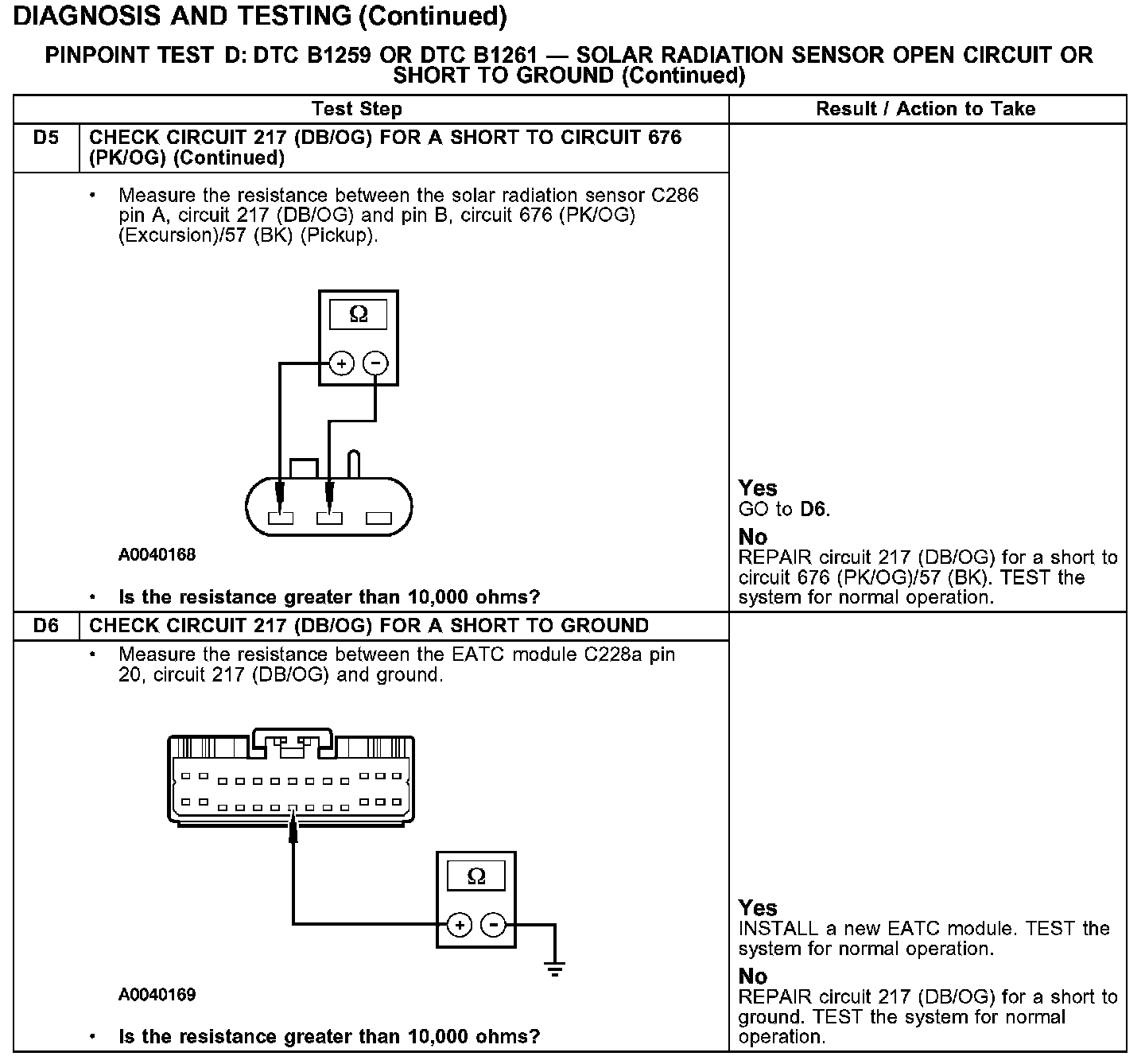

Test D5-D6:
