Test A

PINPOINT TEST A: DTC B2266 - BLEND DOOR FAILURE OR SHORT

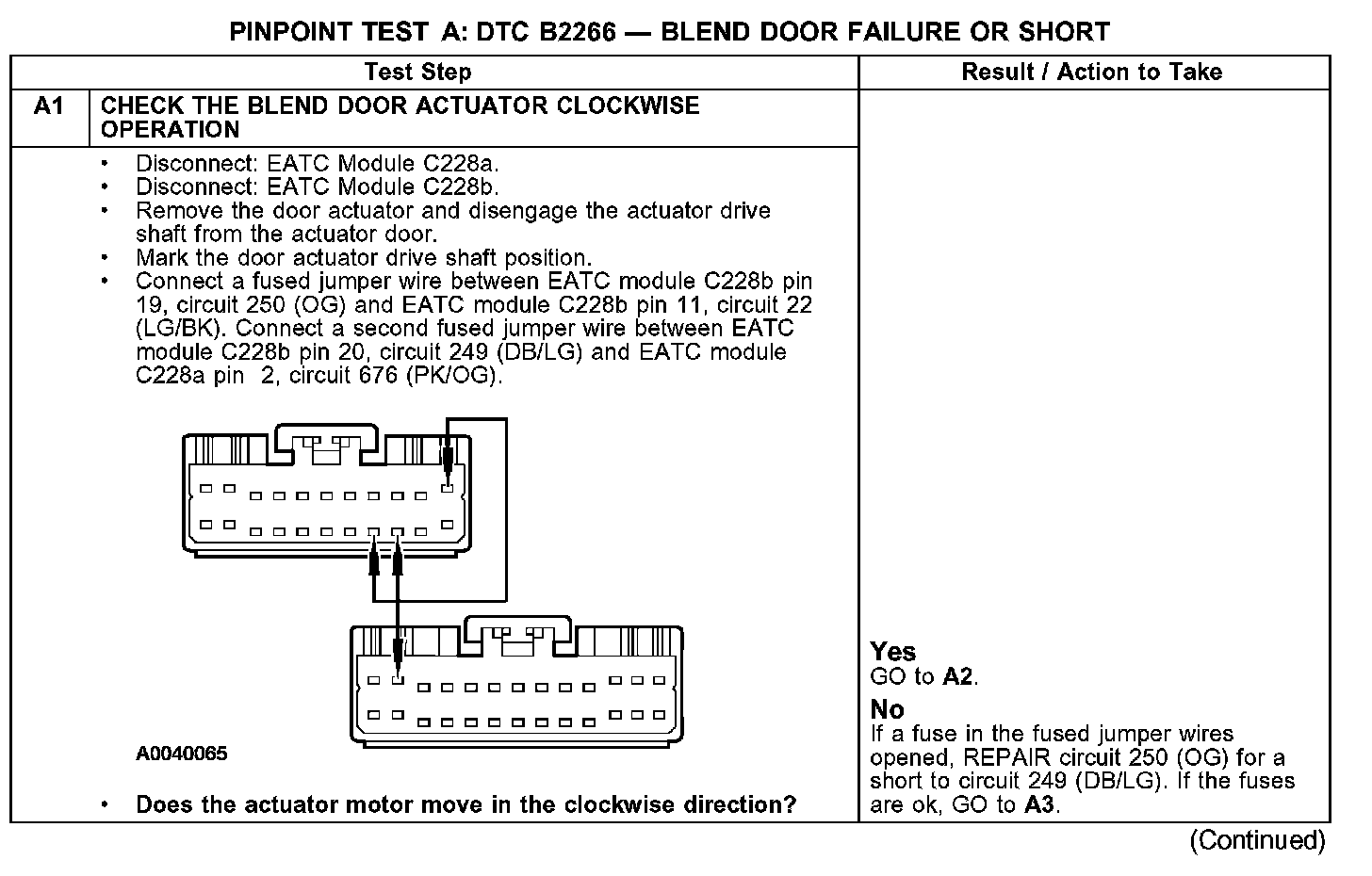

Test A1:

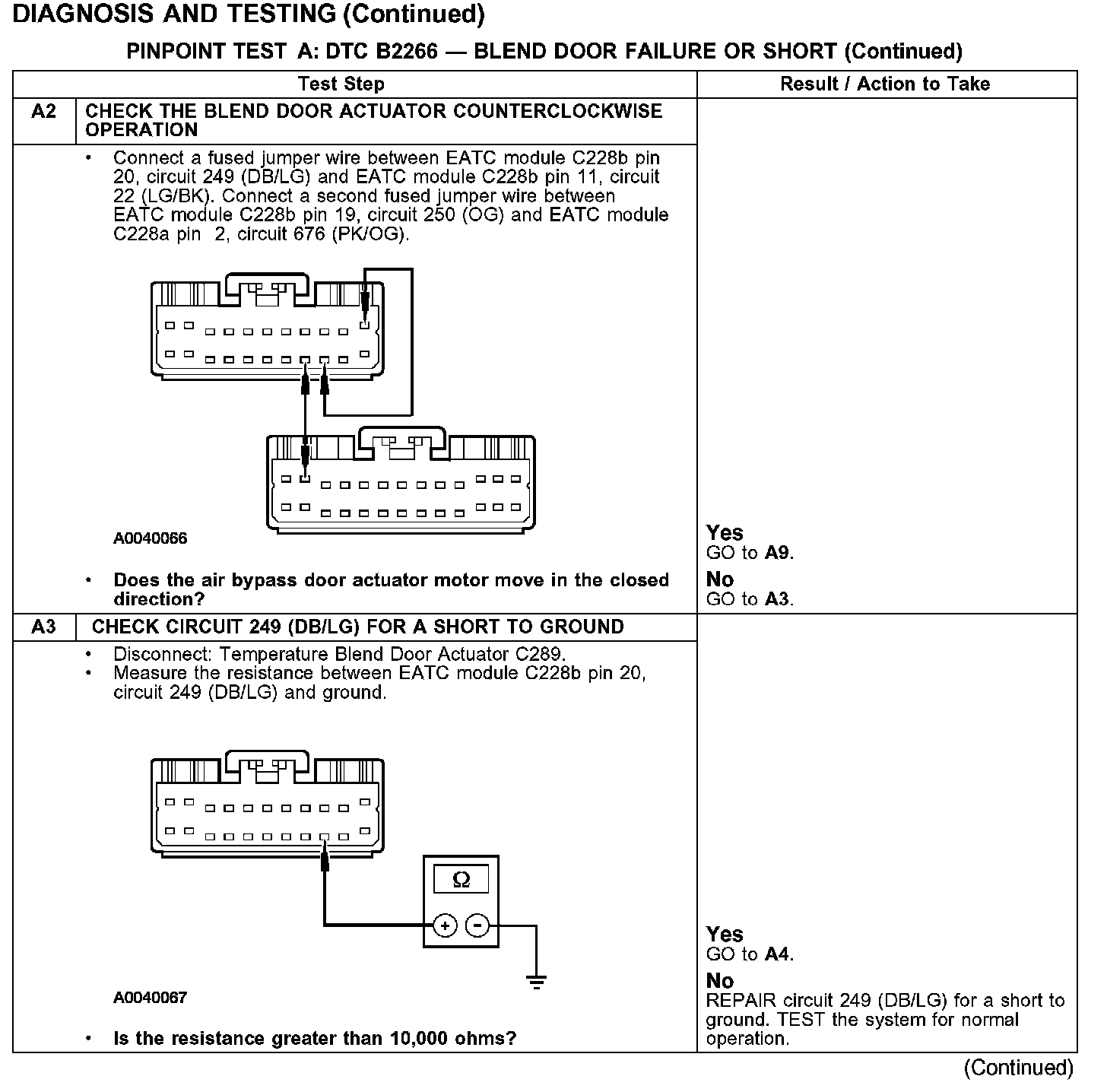

Test A2-A3:

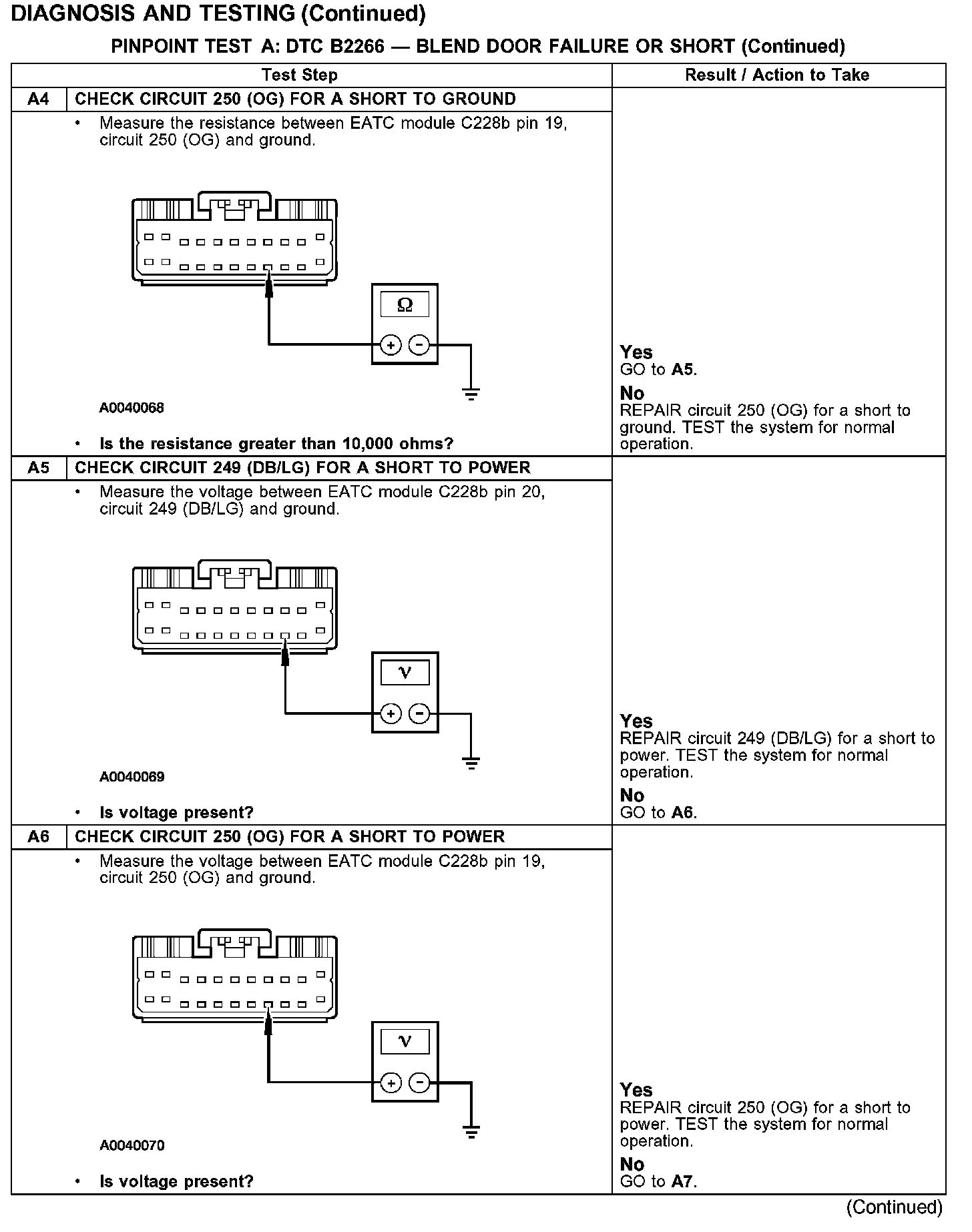

Test A4-A6:

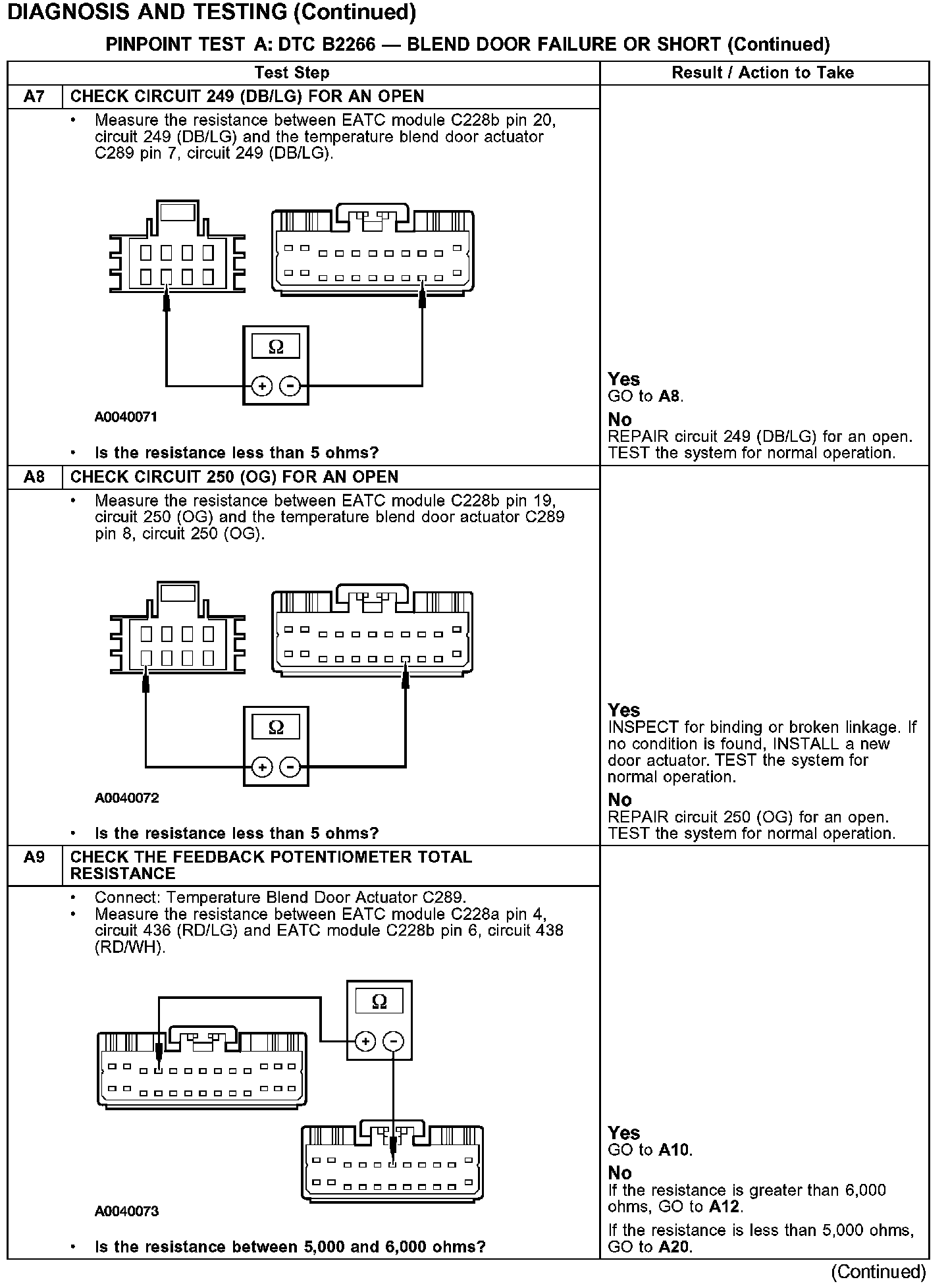

Test A7-A9:

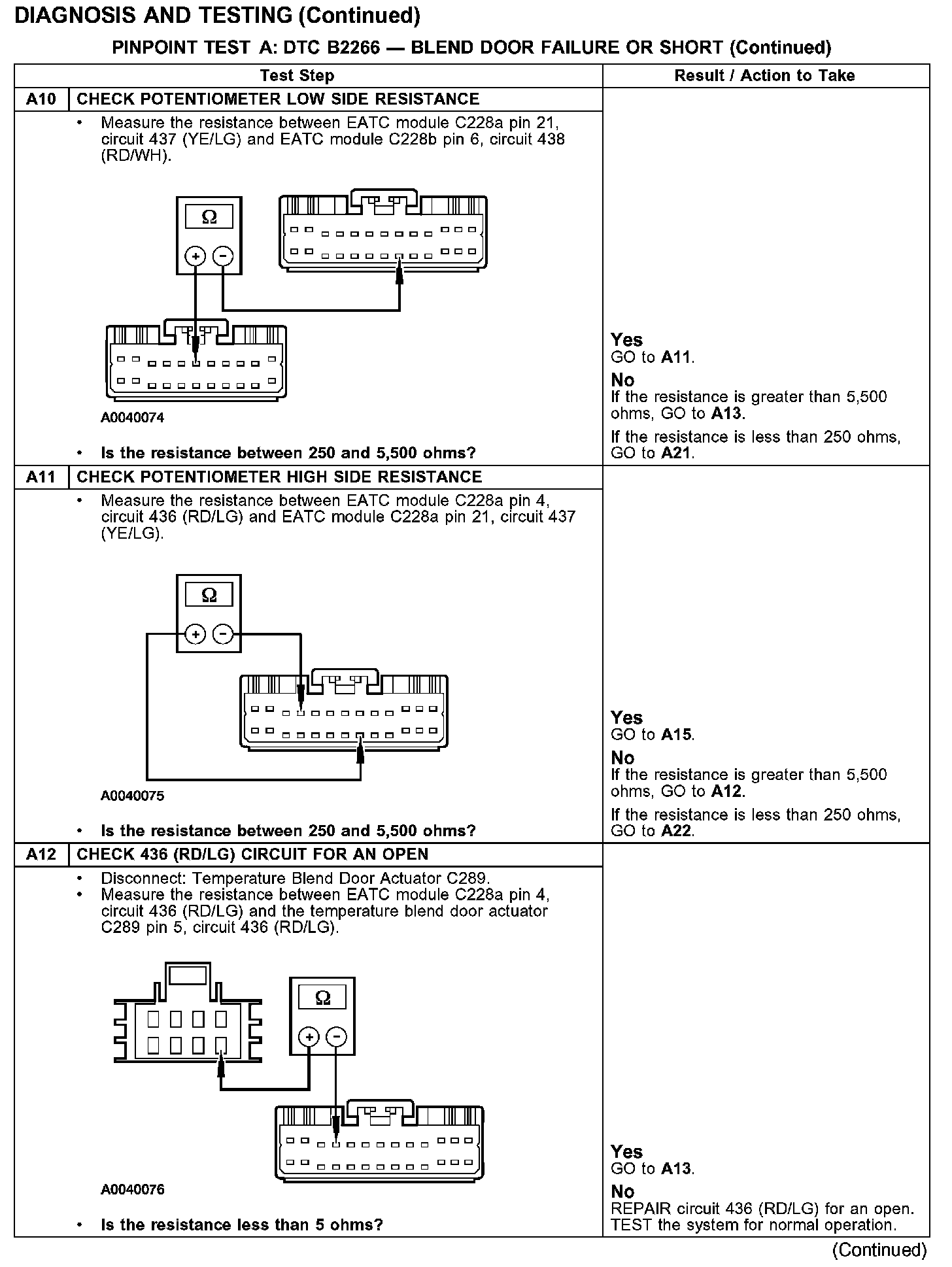

Test A10-A12:

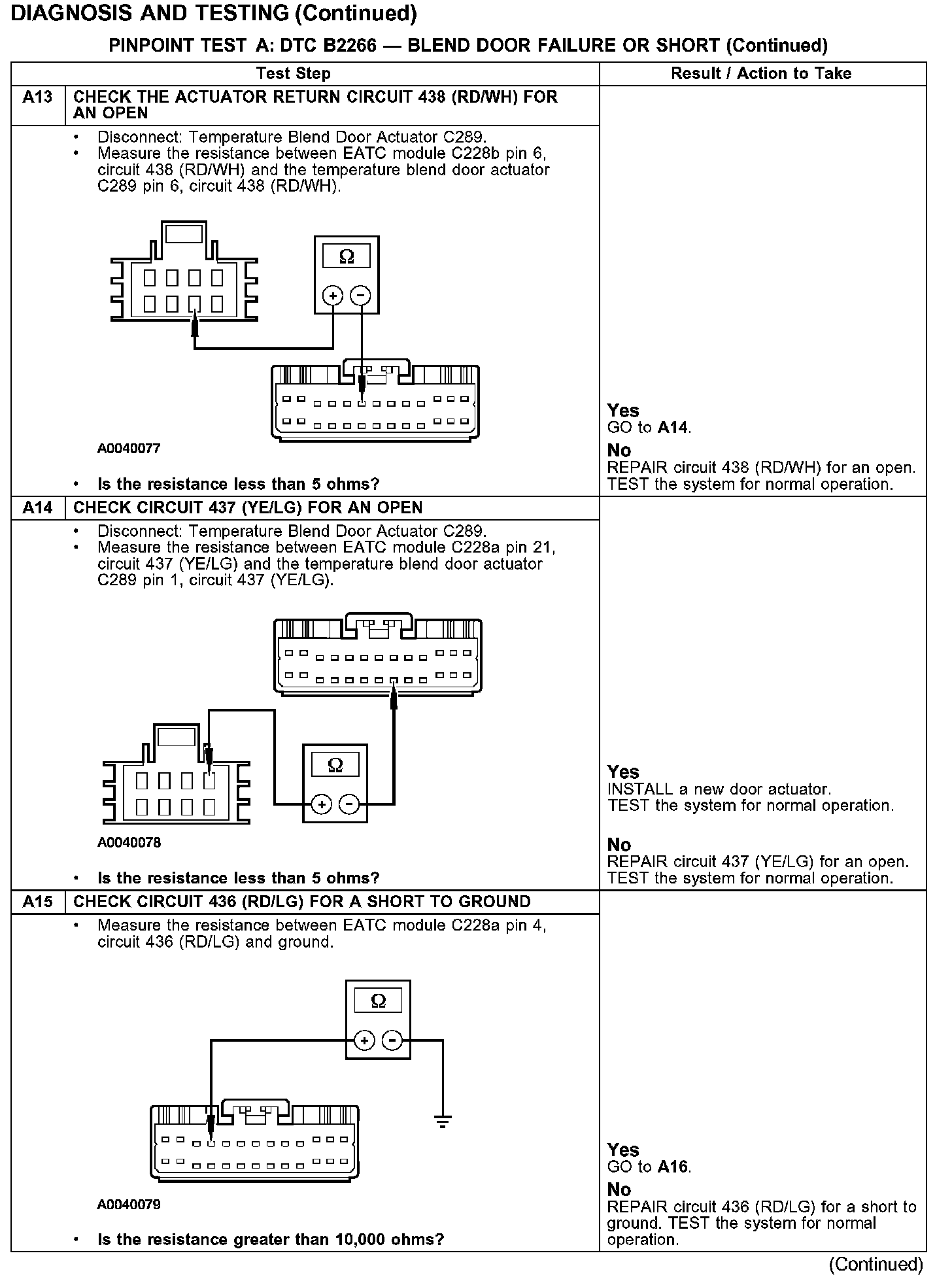

Test A13-A15:

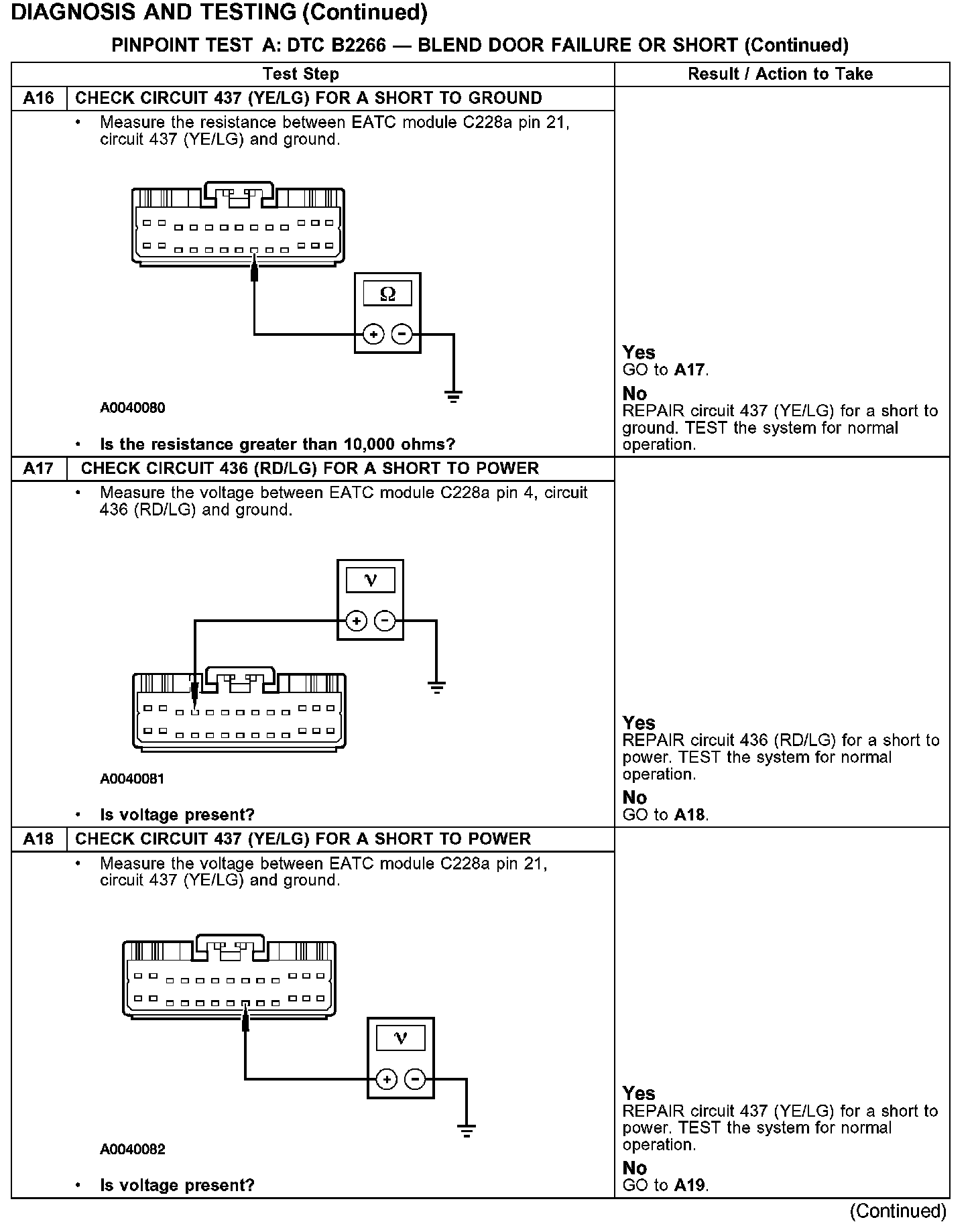

Test A16-A18:

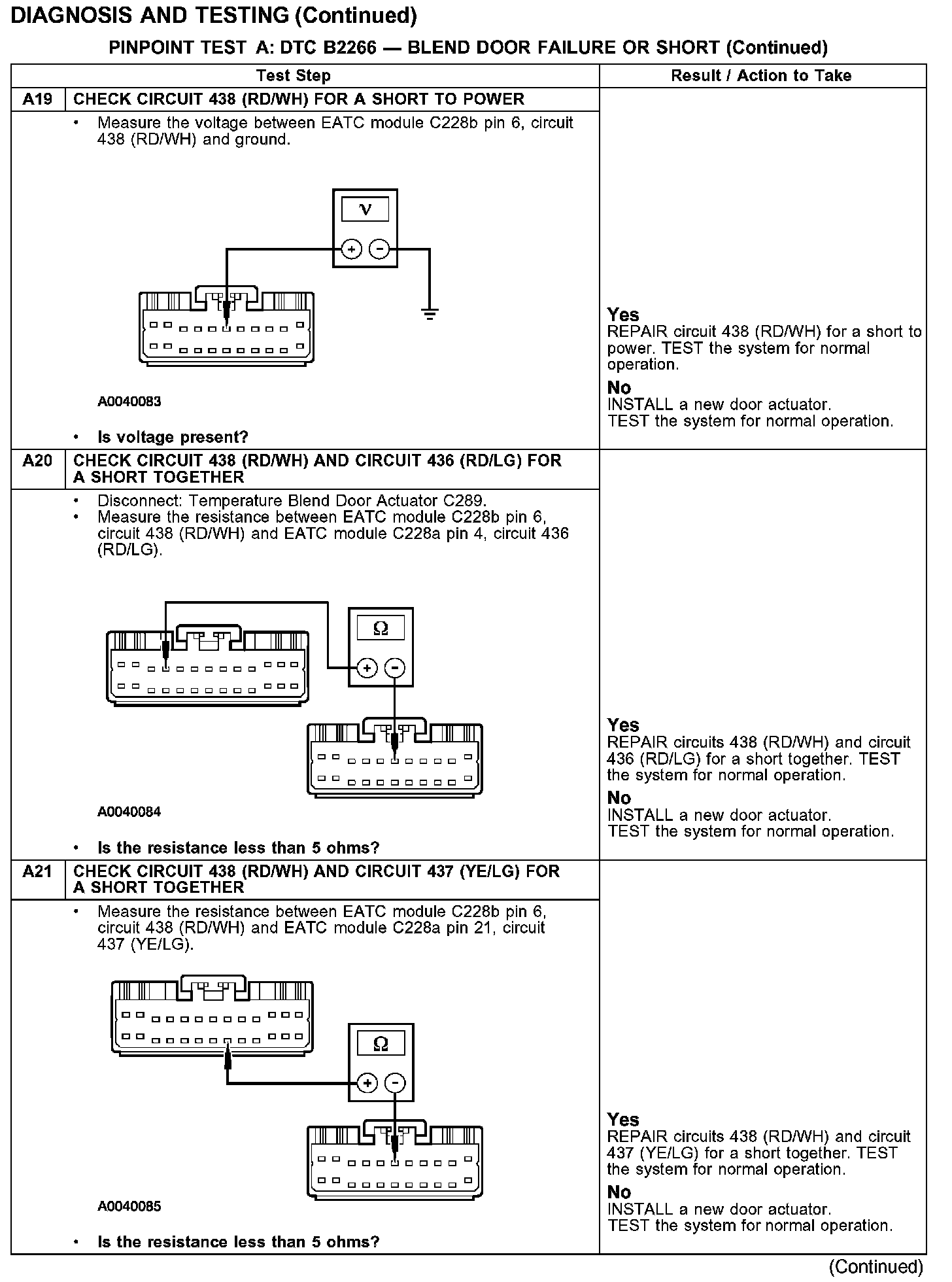

Test A19-A21:






Test A22:
