Dana S135
Exploded Views
Dana Model S135 Full-Floating Rear Drive Axle

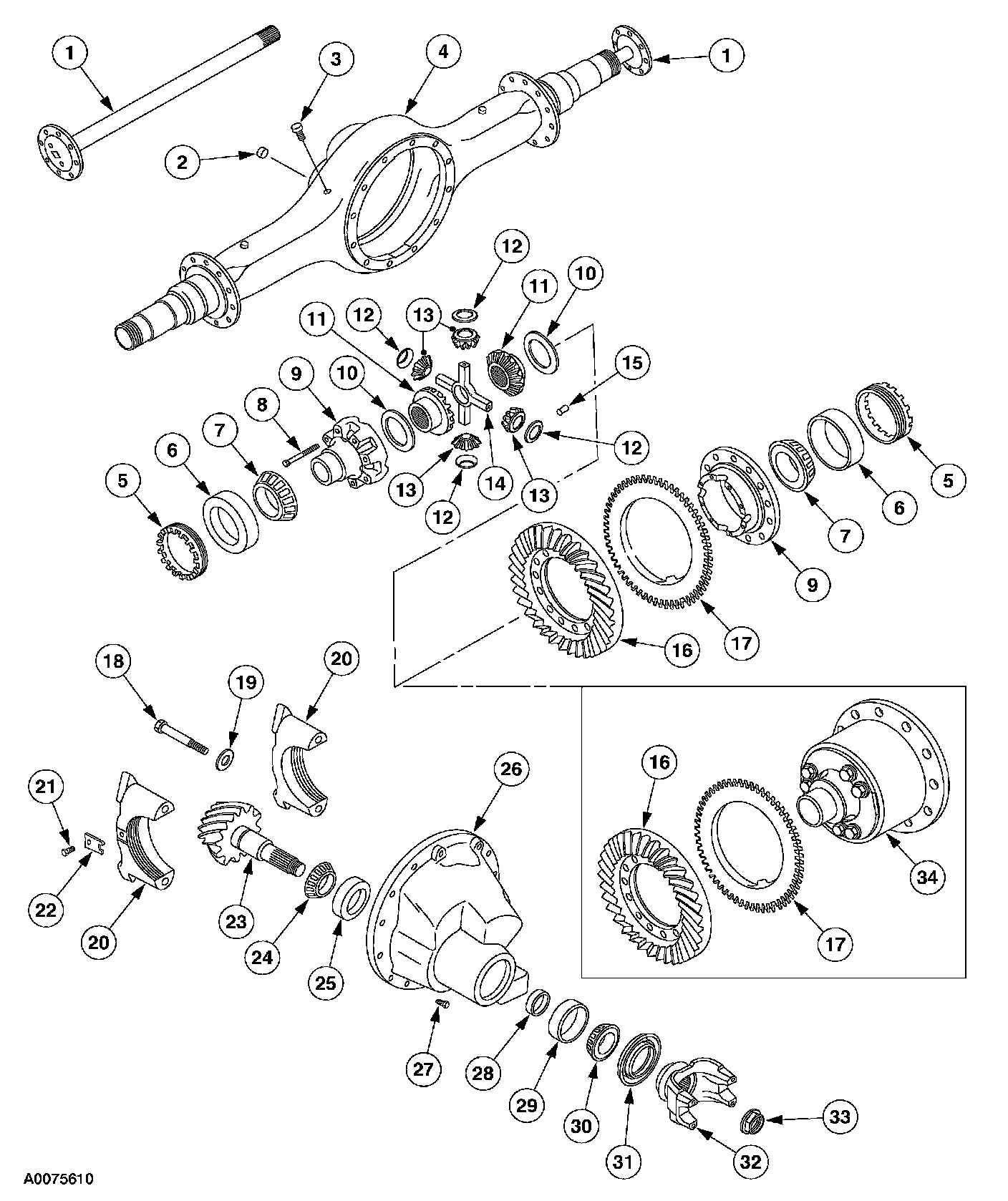

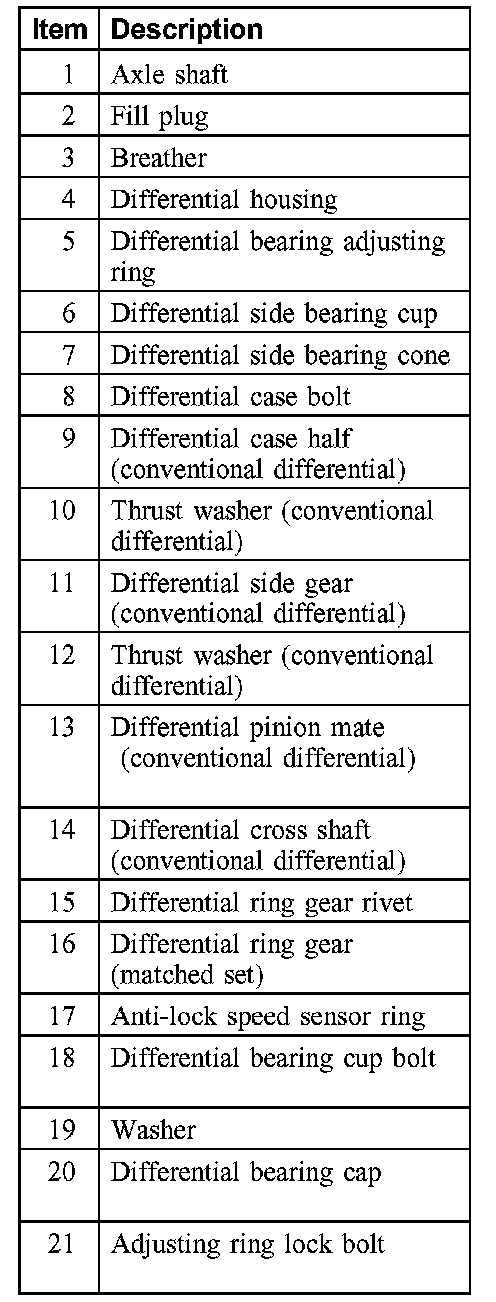

Dana Model S135 Full-Floating Rear Axle, Disassembled View
