Test C

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - FRONT PASSENGER

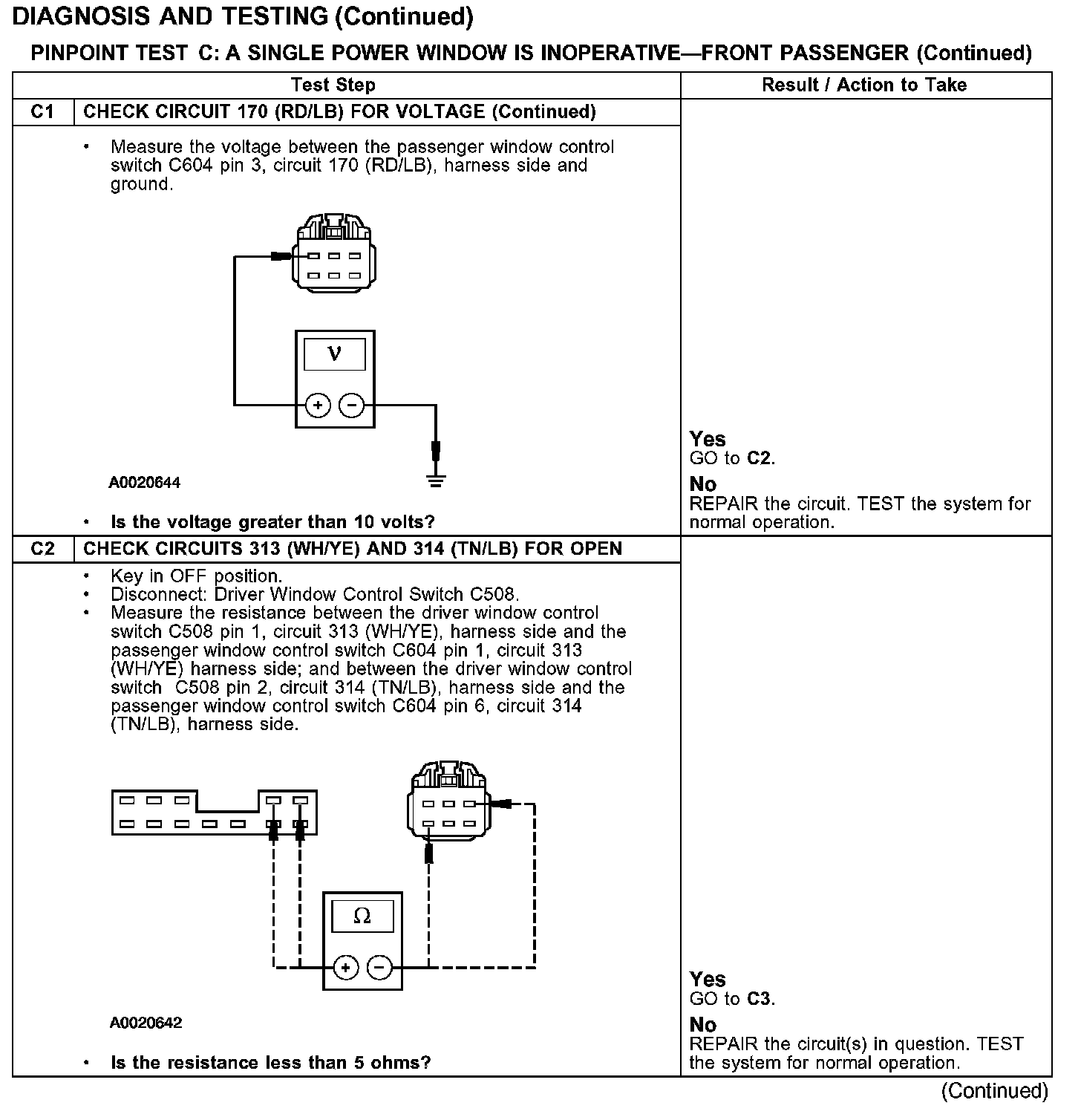

Test C1:






Test C1-C2:

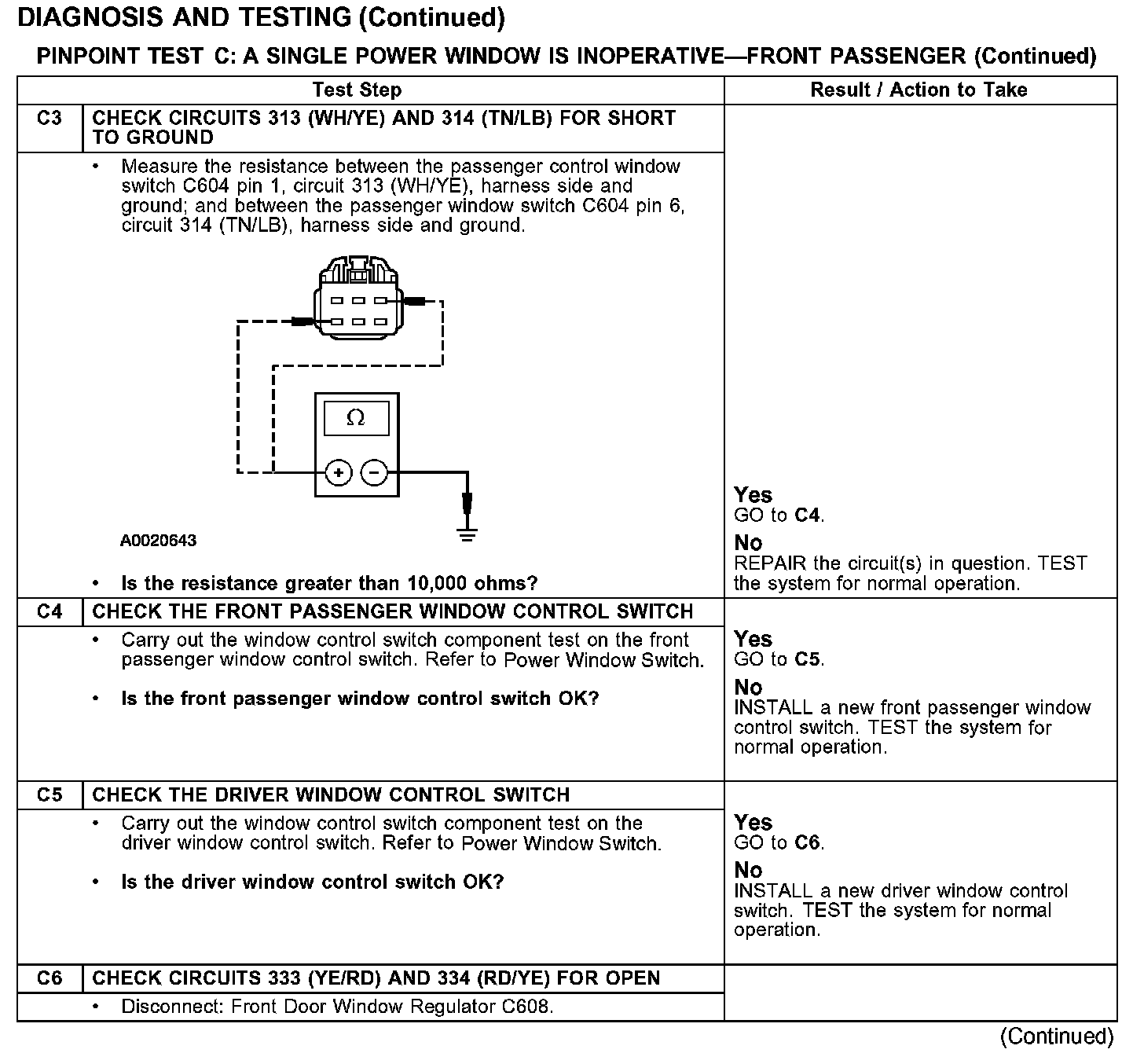

Test C3-C6:

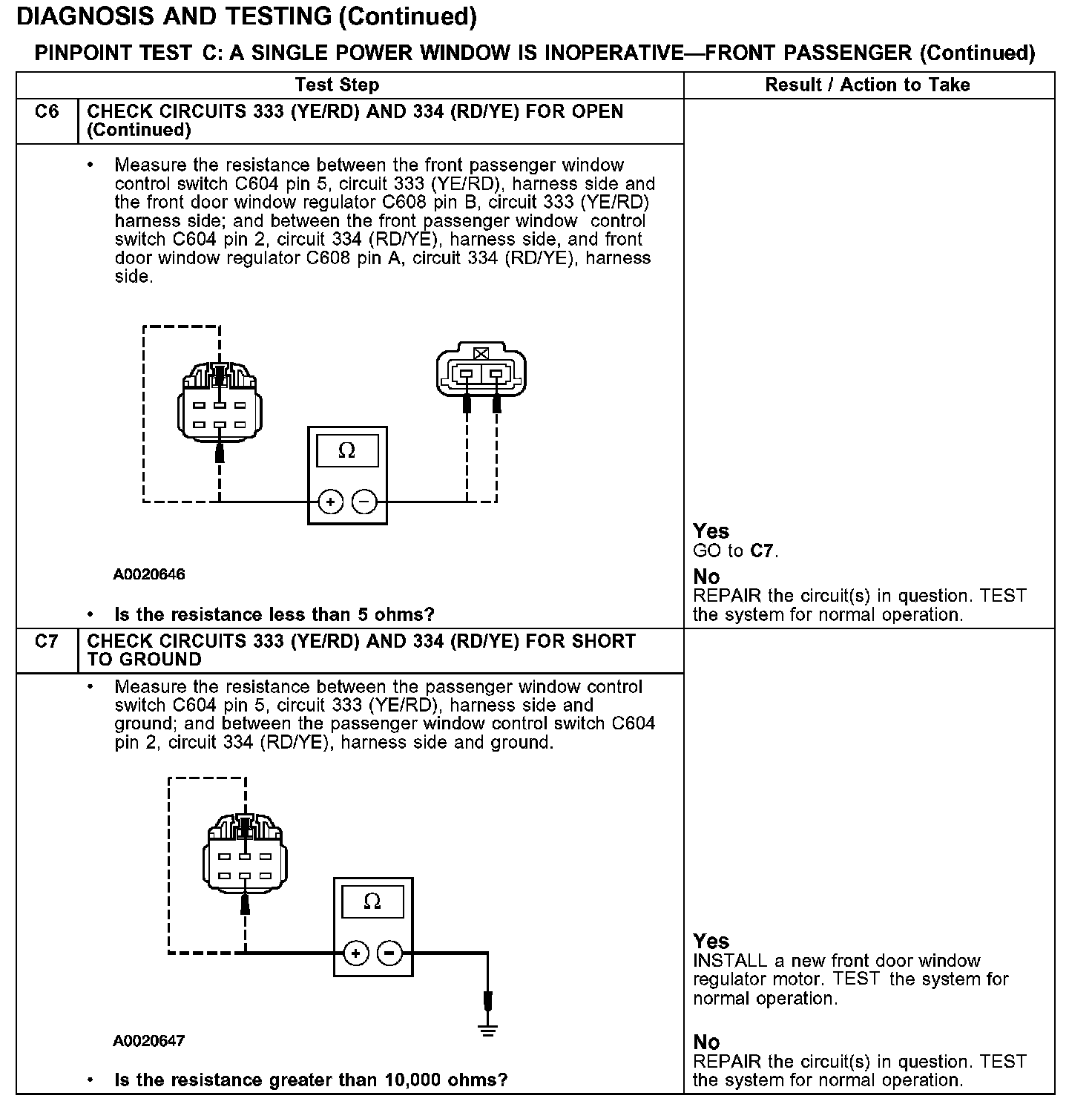

Test C6-C7:
