Test K

PINPOINT TEST K: THE CHARGING SYSTEM WARNING INDICATOR LAMP FLICKERS OR IS INTERMITTENT - 2.0L ZETEC

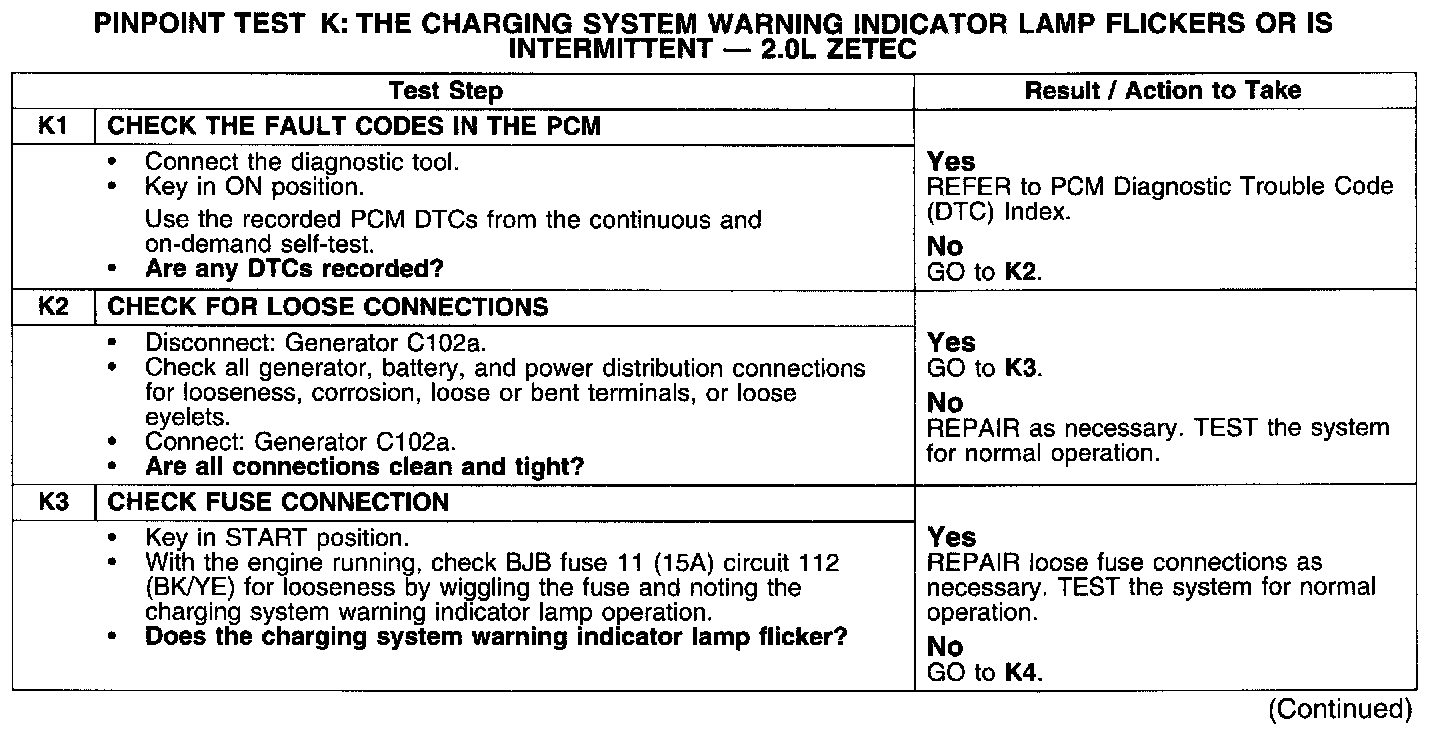

Test K1-K3:

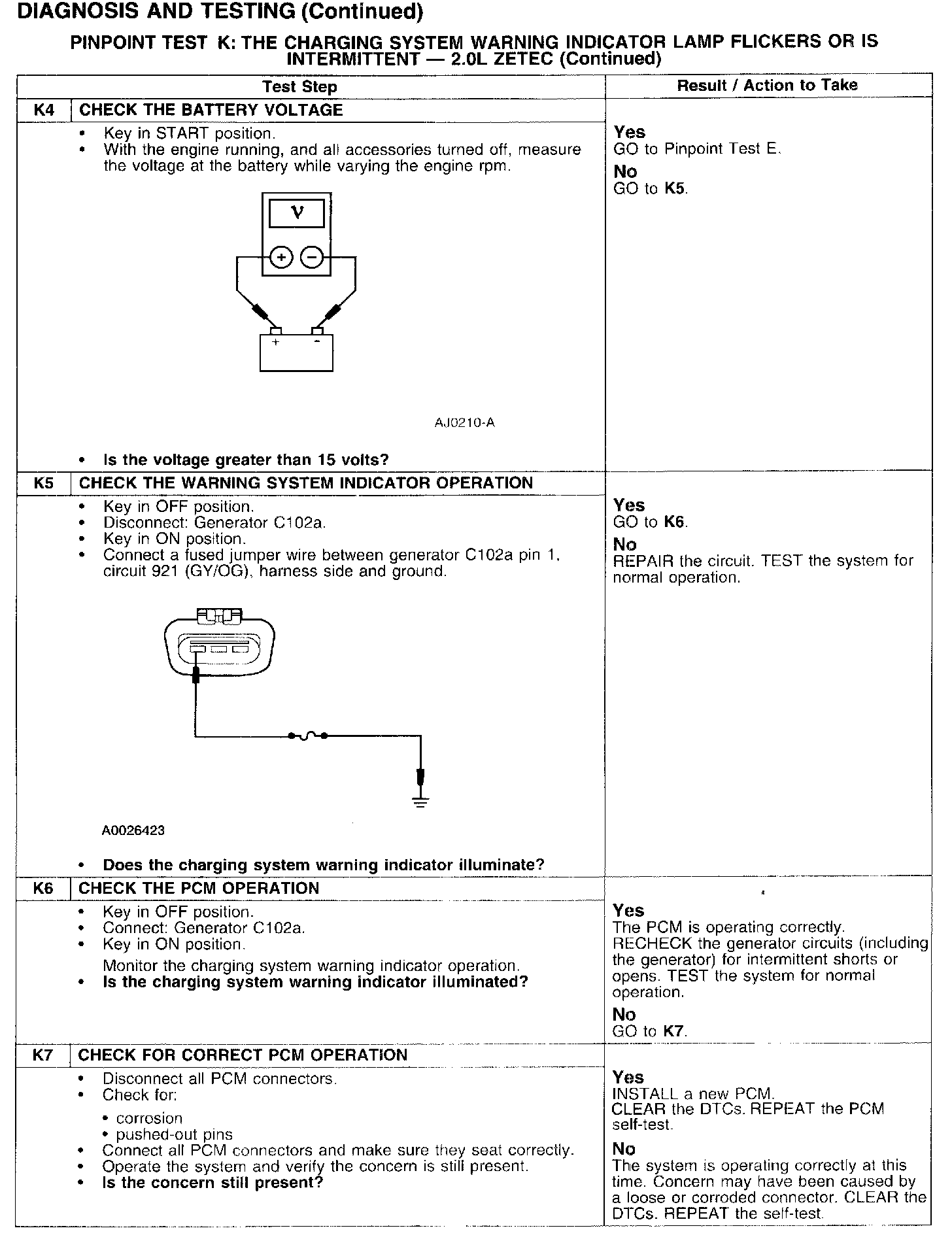

Test K4-K7:
