Test I

PINPOINT TEST I: THE CHARGING SYSTEM WARNING INDICATOR IS OFF WITH THE IGNITION SWITCH IN THE RUN POSITION AND THE ENGINE IS OFF - 2.0L ZETEC


Test I1:

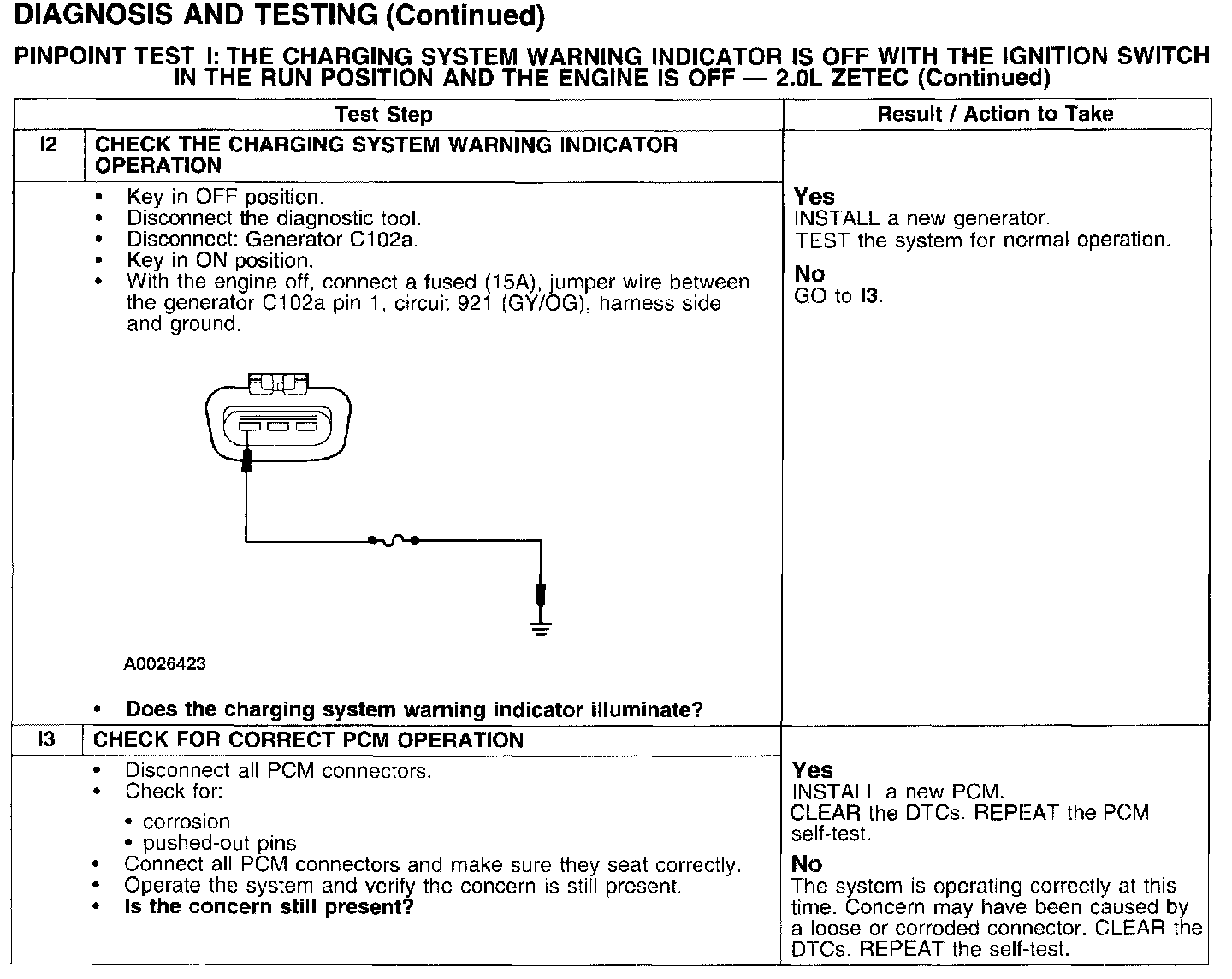

Test I2-I3:
