Test G

PINPOINT TEST G: THE CHARGING SYSTEM WARNING INDICATOR IS ON WITH THE ENGINE RUNNING THE SYSTEM INCREASES VOLTAGE - 2.0L ZETEC

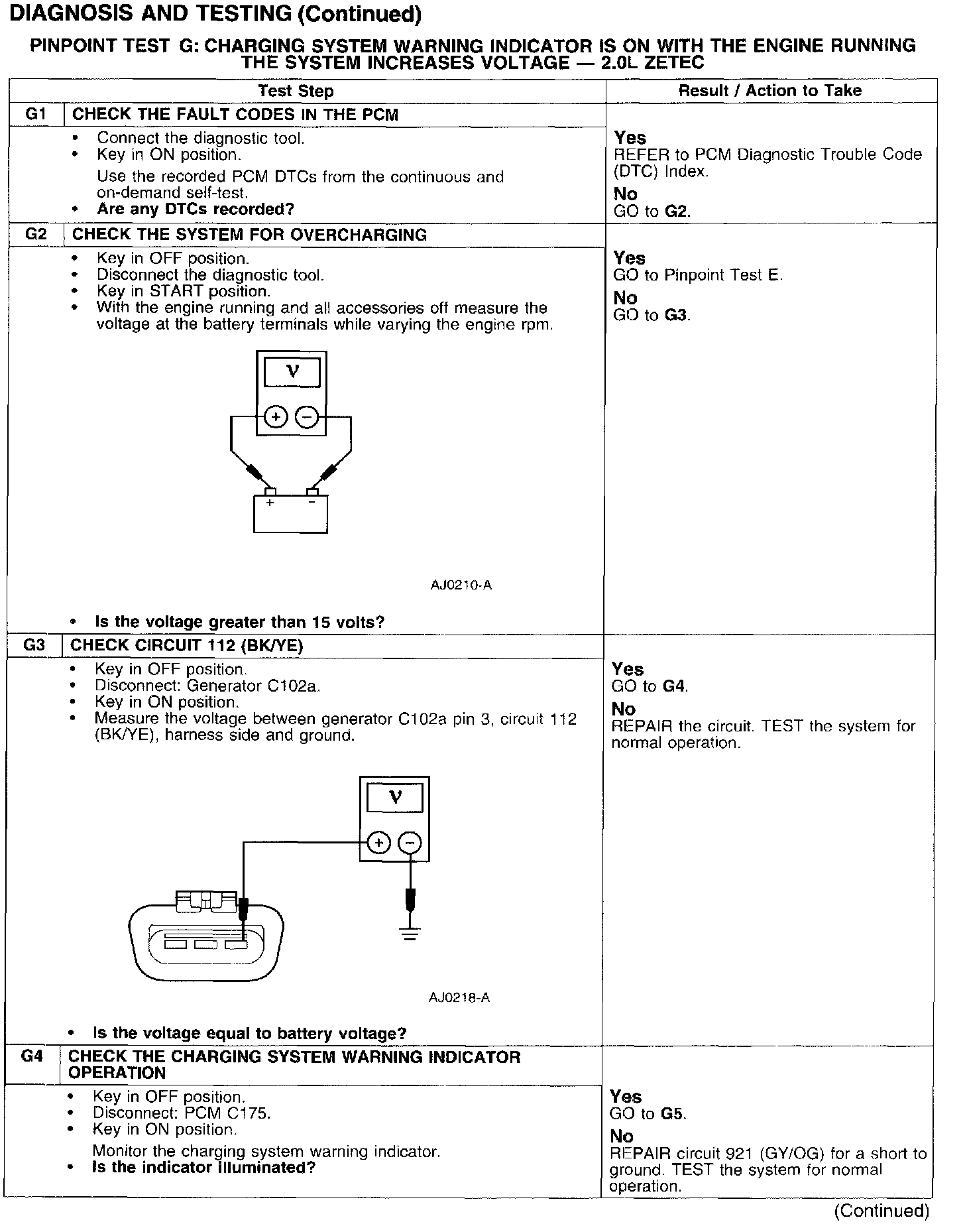

Test G1-G4:

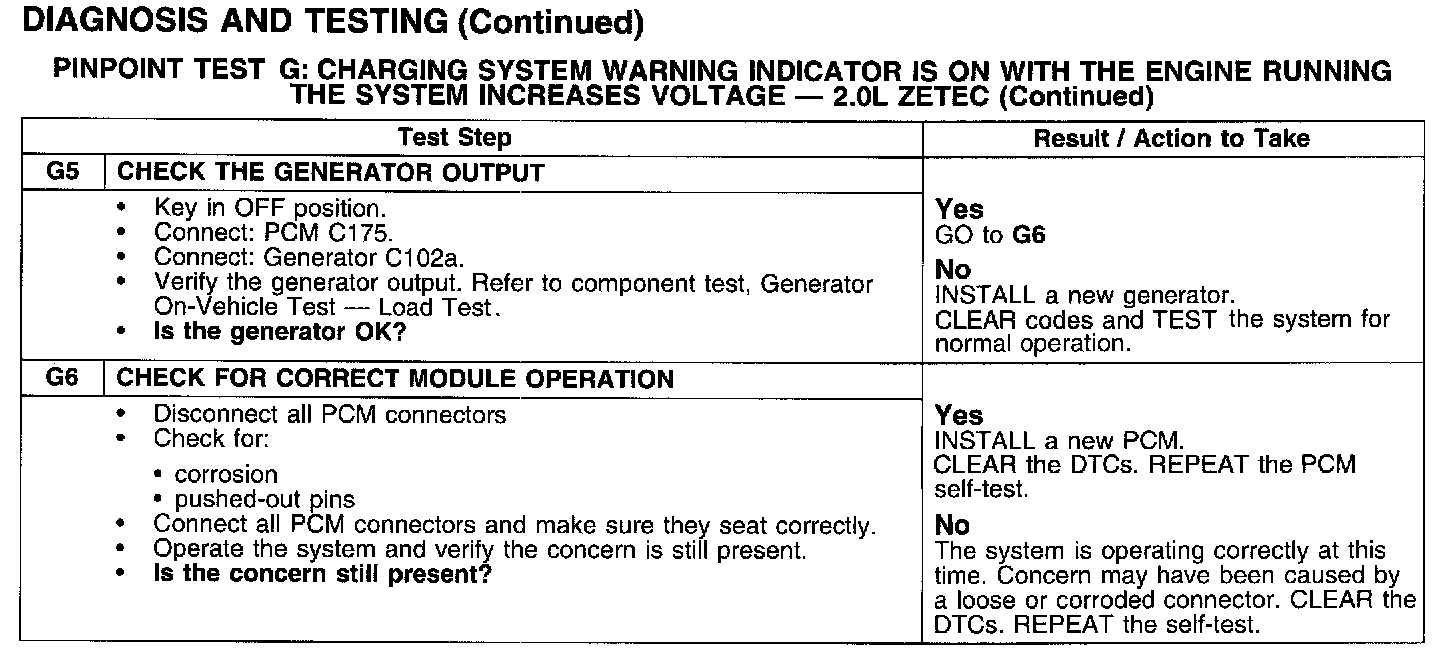

Test G5-G6:
