Test E

PINPOINT TEST E: THE SYSTEM OVERCHARGES (BATTERY VOLTAGE IS GREATER THAN 15.5 VOLTS) - 2.0L ZETEC


Test E1:

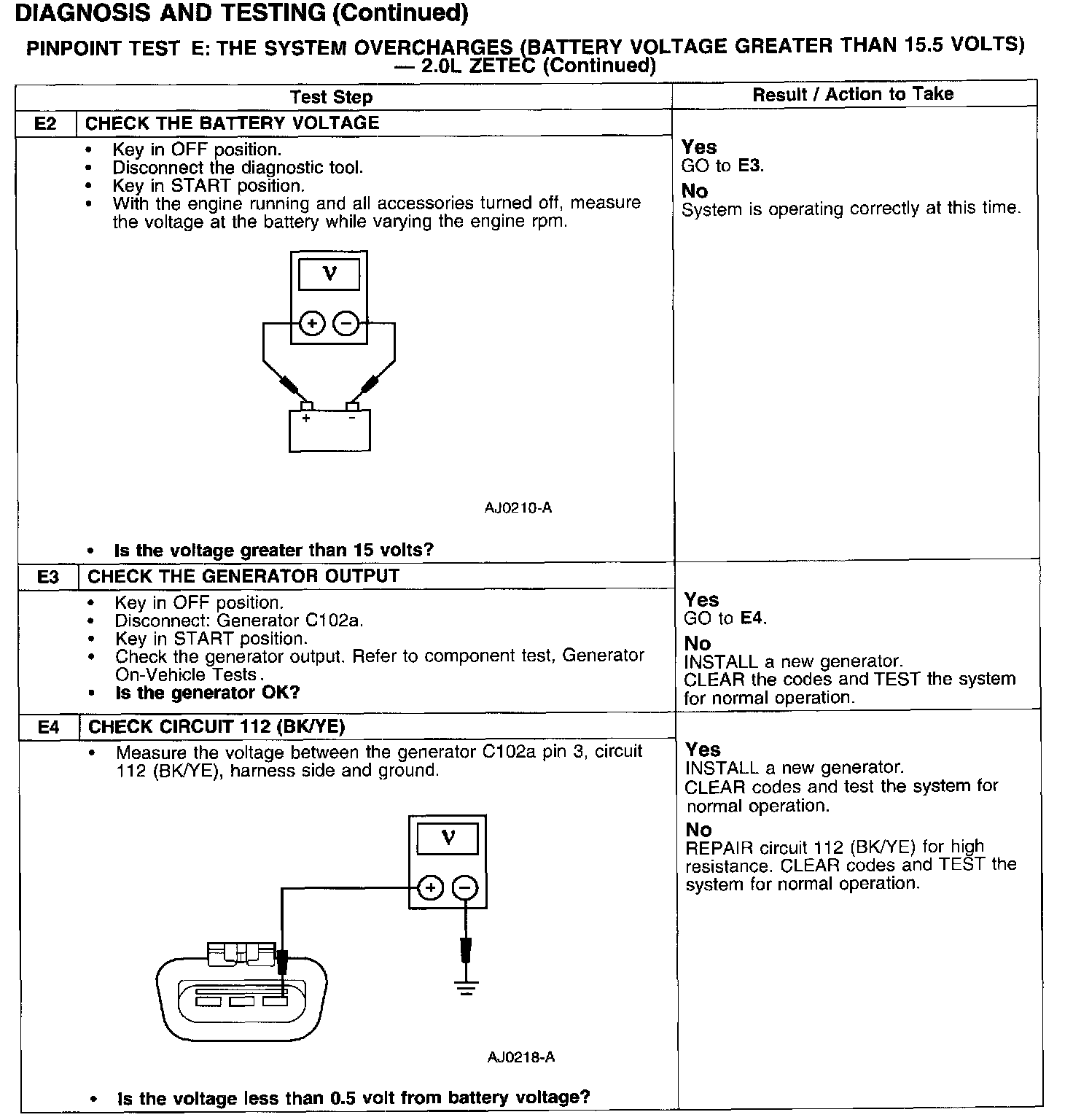

Test E2-E4:
