Test D

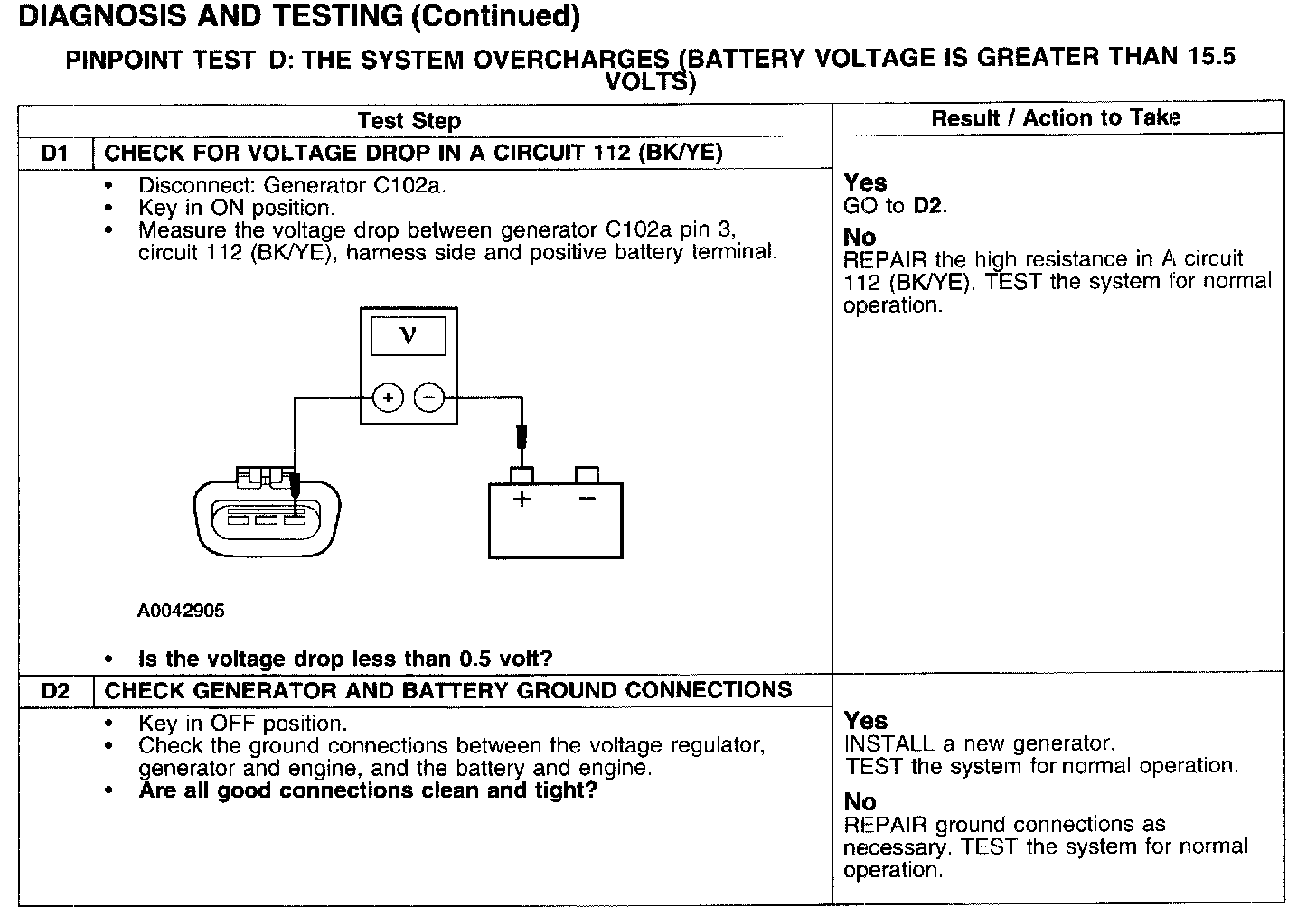

PINPOINT TEST D: THE SYSTEM OVERCHARGES (BATTERY VOLTAGE IS GREATER THAN 15.5 VOLTS)
Test D1-D2:
