Clutch Plate Usage and Clearance Specifications

Forward/Coast Clutch Pack:

Reverse Clutch Pack:

Direct Clutch Pack:

Low/Reverse Clutch Pack:

Intermediate and Overdrive Servo:

Intermediate/Overdrive Servo Apply Rod:

Reverse/Overdrive Carrier Assembly Pinion Gear:

Gear Ratios:

Pump Gear End:

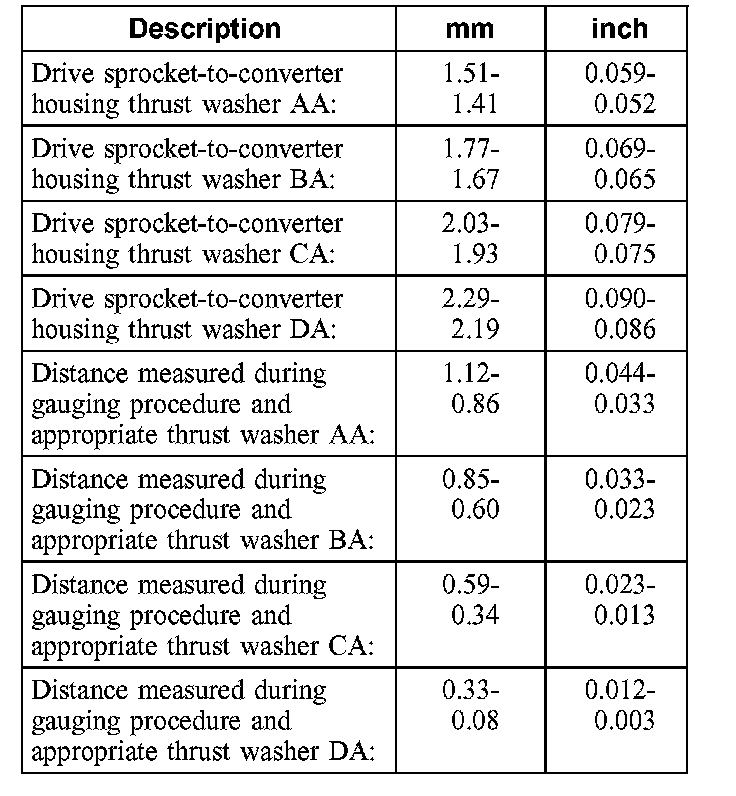

Drive Sprocket Alignment No. 10 Thrust Washer:

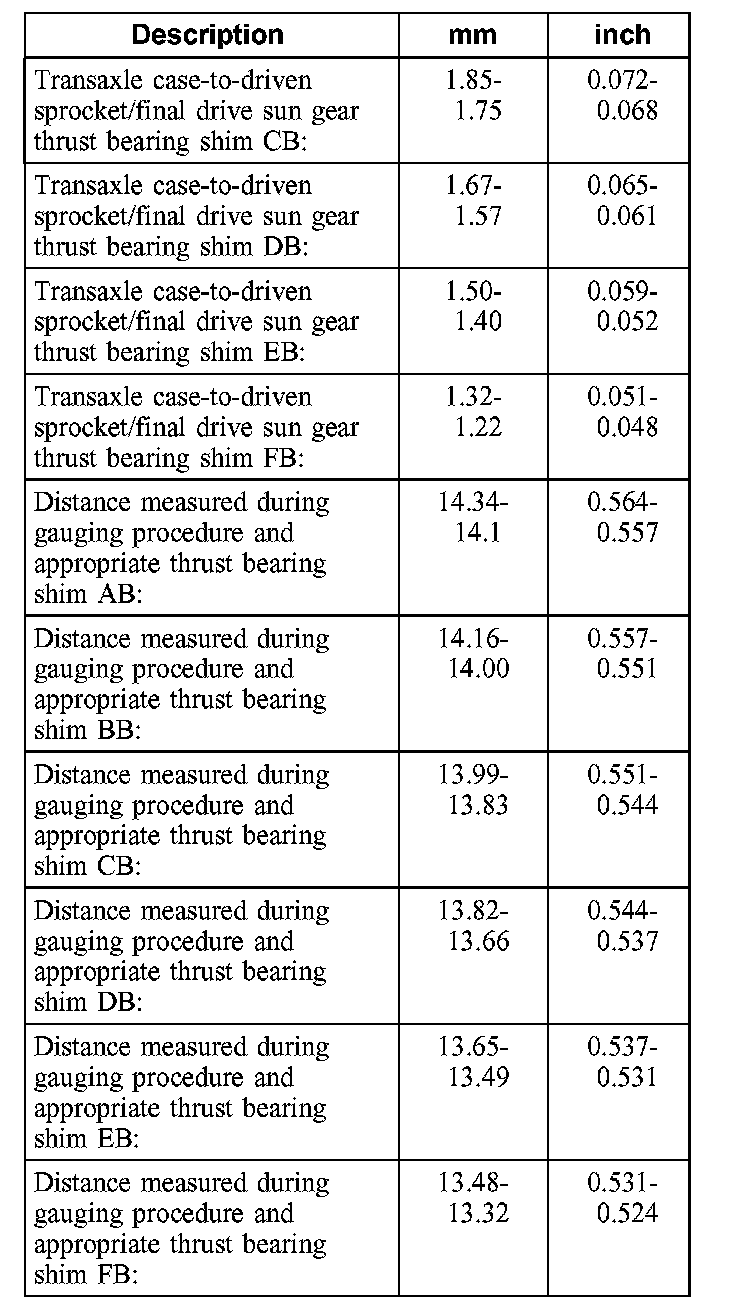

Driven Sprocket Alignment No. 11 Shim:

Driven Sprocket Alignment No. 11 Shim:

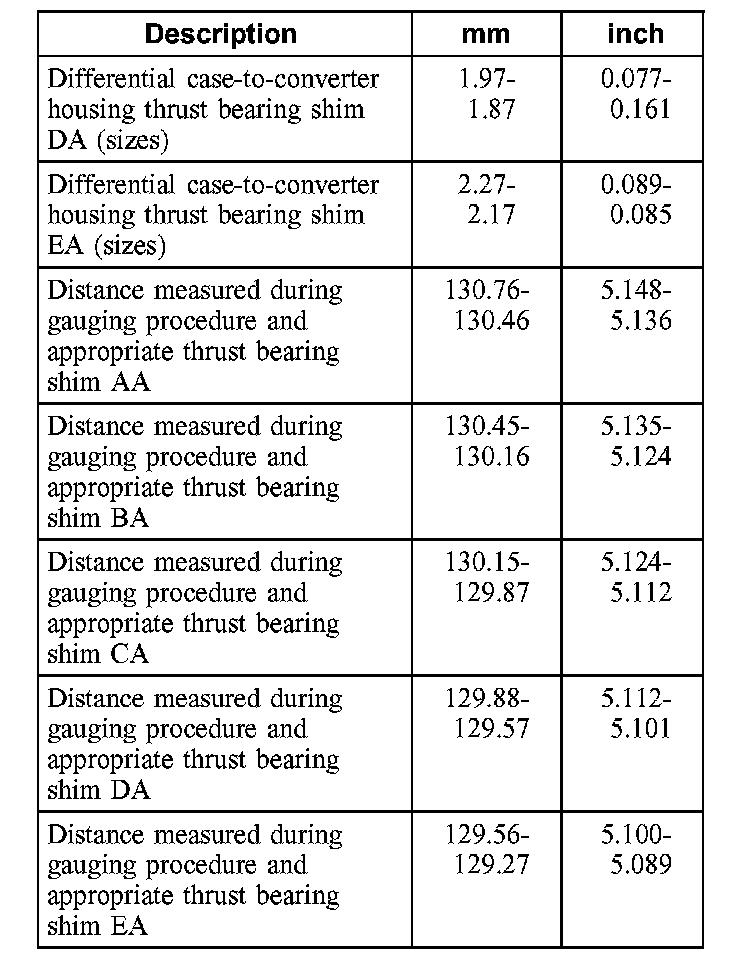

Differential End Play No. 14 Shim:

Differential End Play No. 14 Shim:
