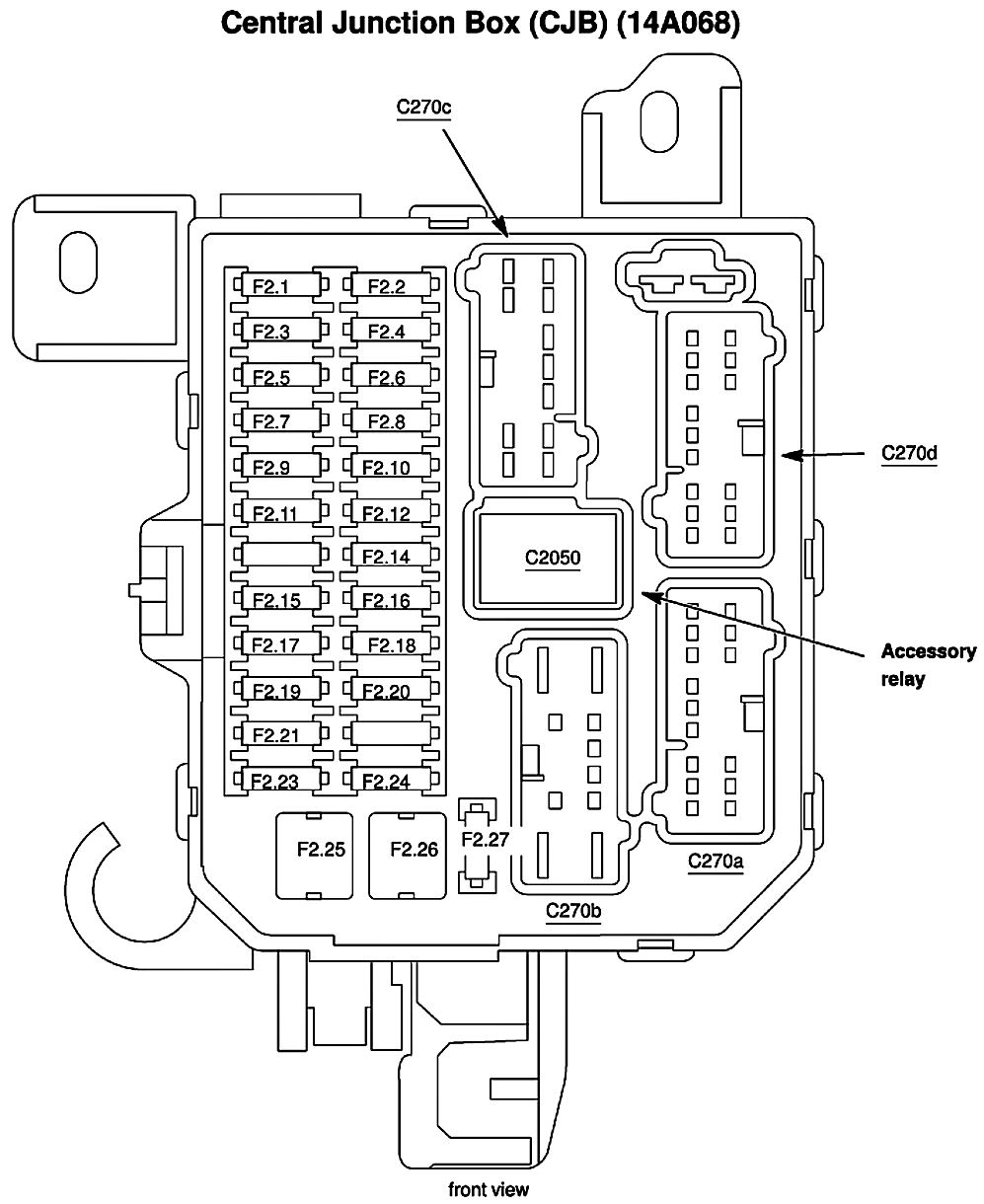

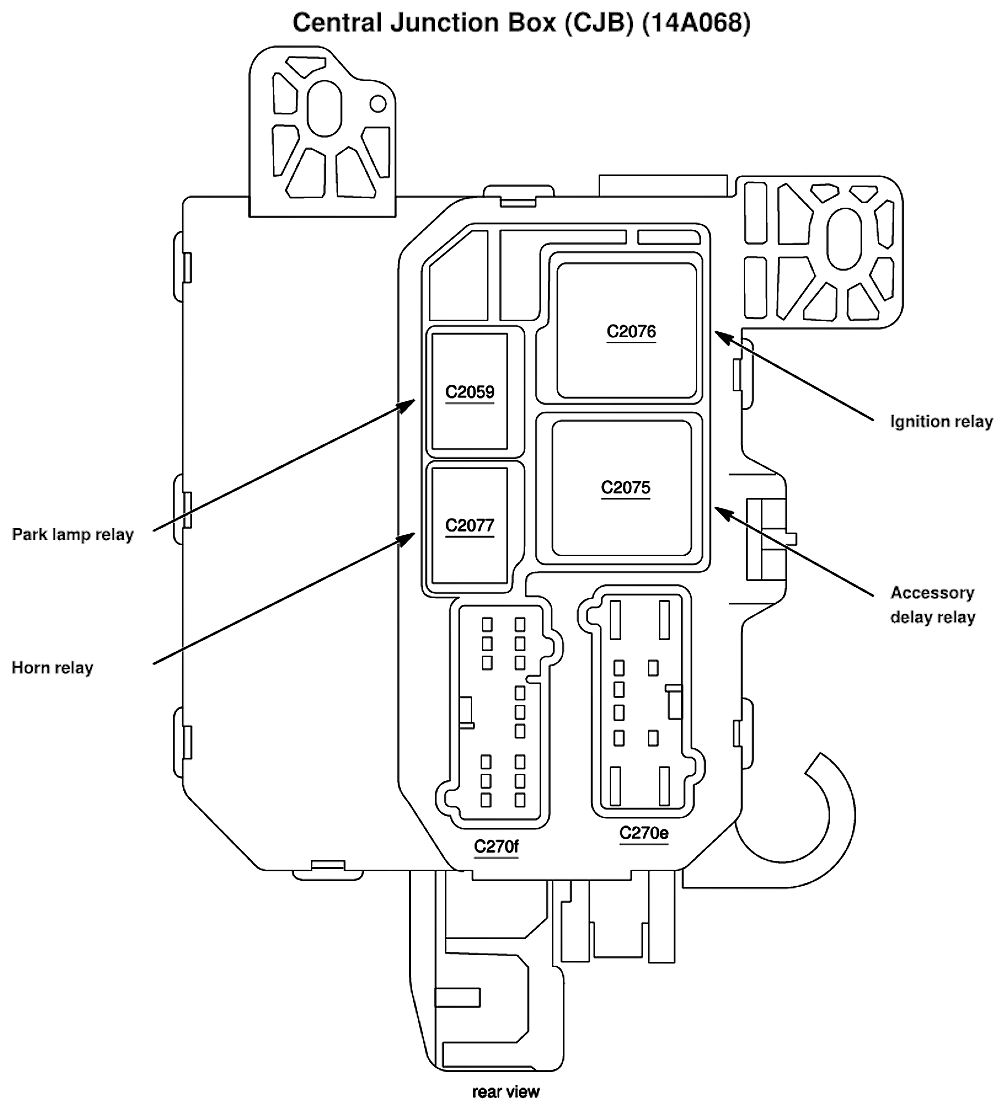

Central Junction Box

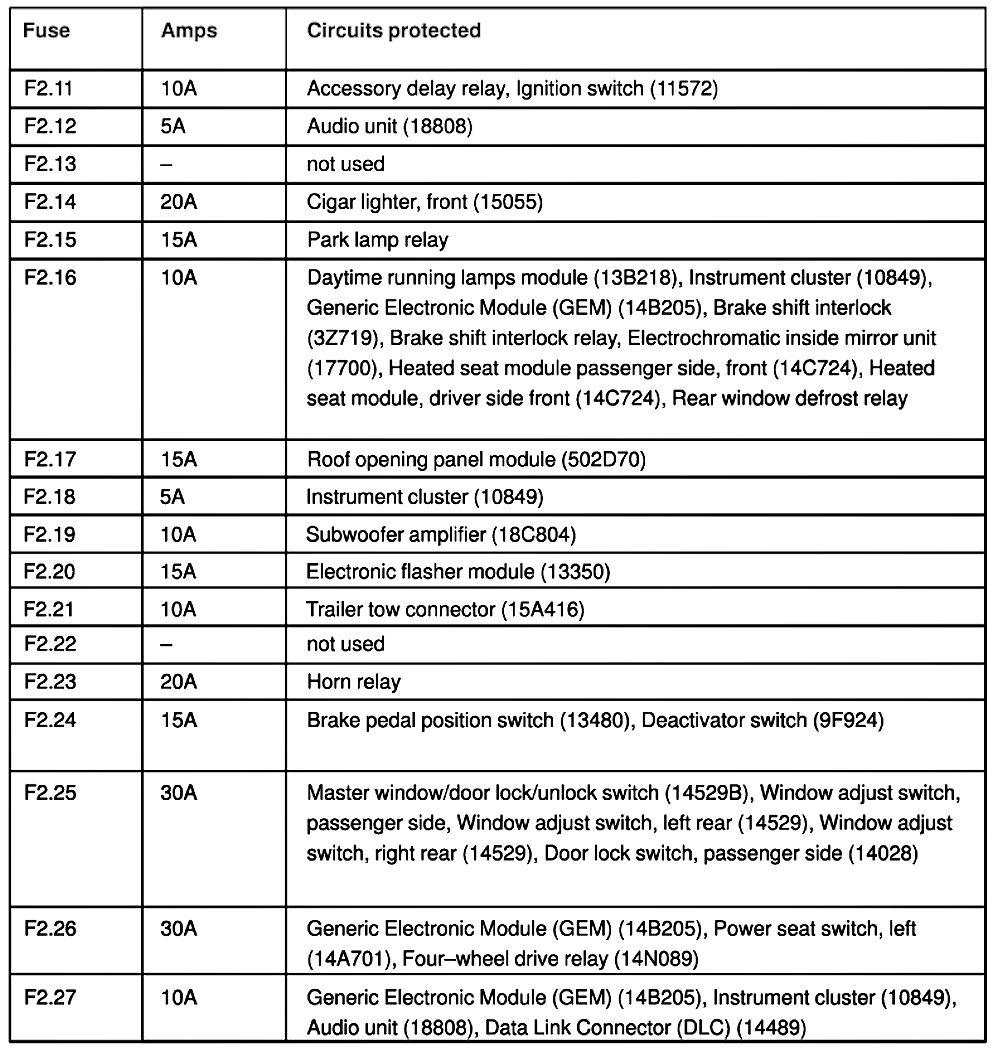

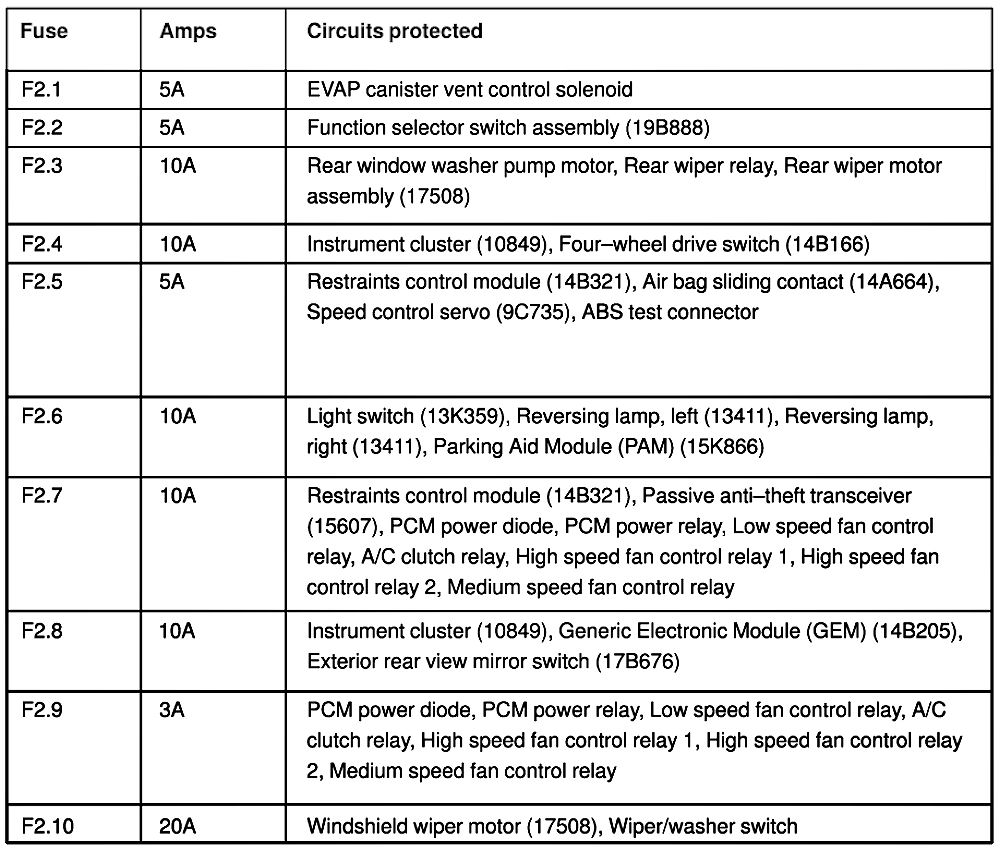

Note: The fuse panel is located on the left hand side kick panel. Remove the panel cover to access the fuses.
