Pinpoint Test C: The Transmission Control Switch Is Inoperative

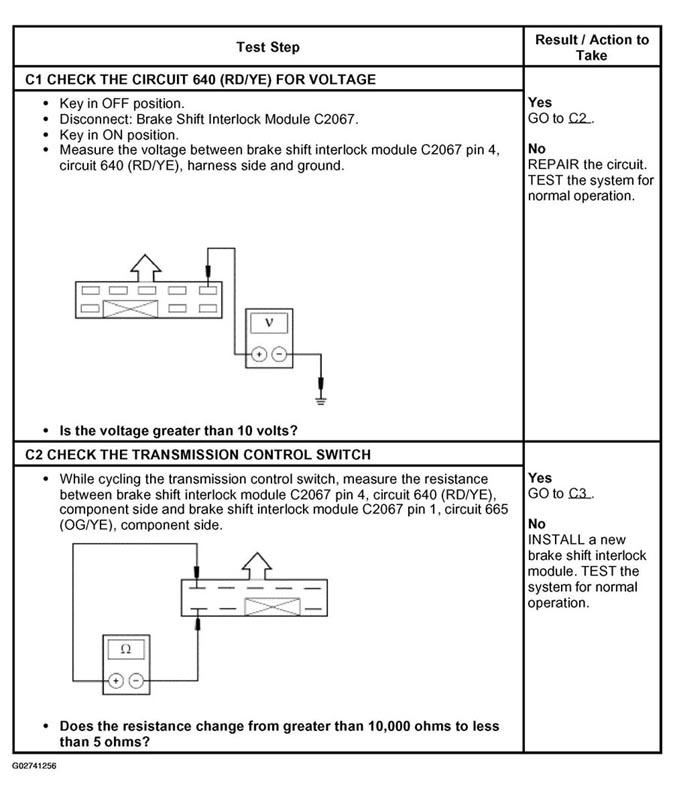

Fig 1: Pinpoint Test C: Transmission Control Switch Is Inoperative (C1-C2)
Courtesy of FORD MOTOR CO.

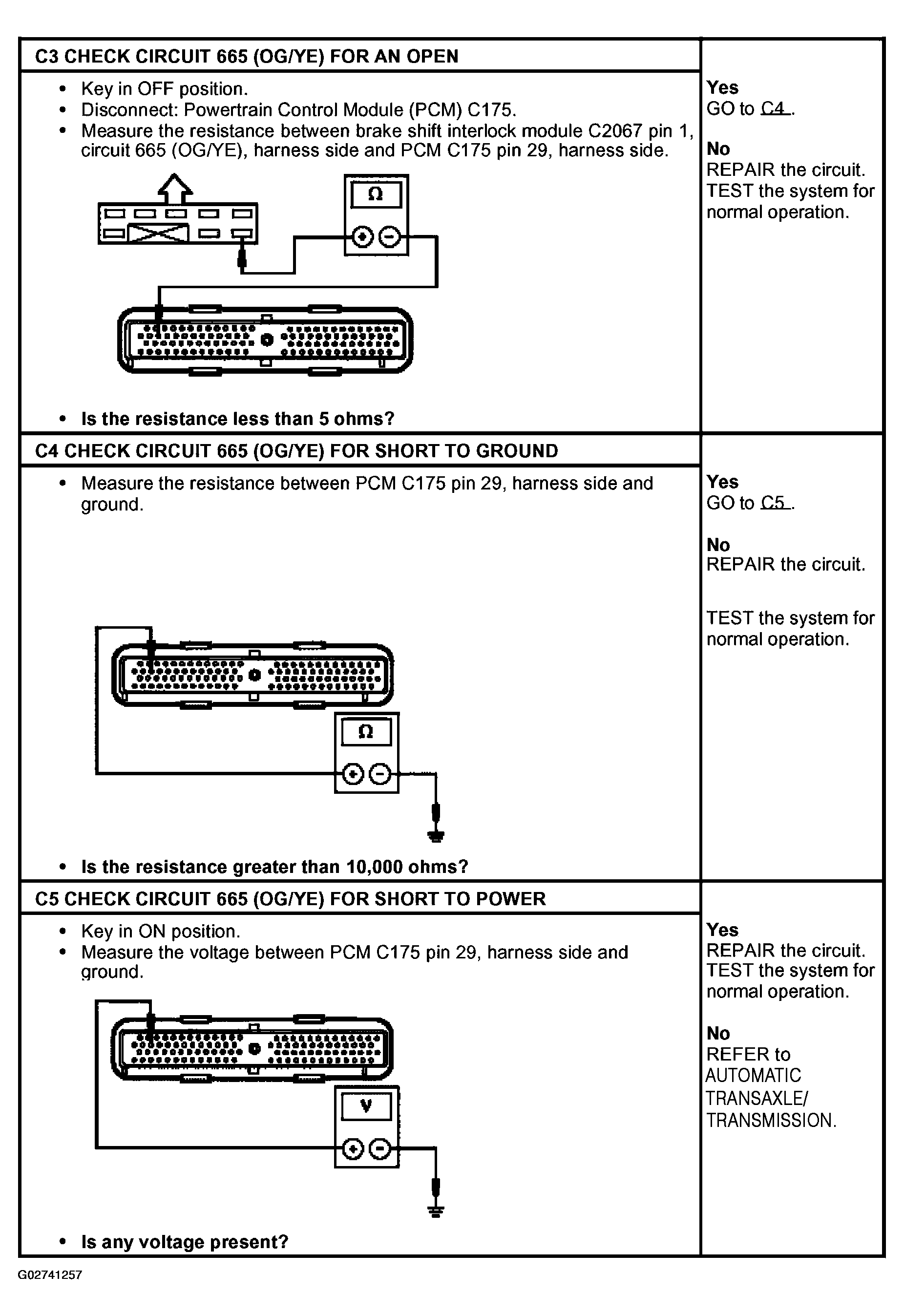

Fig 2: Pinpoint Test C: Transmission Control Switch Is Inoperative (C3-C5)
Courtesy of FORD MOTOR CO.
