Input Shaft: Notes

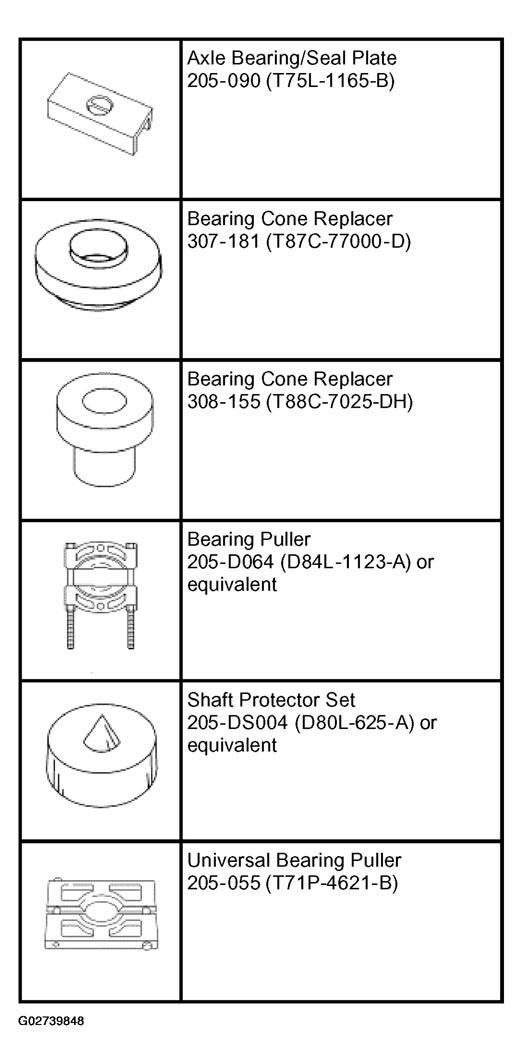

Fig 1: Identifying Special Tools
G02739848Courtesy of FORD MOTOR CO.

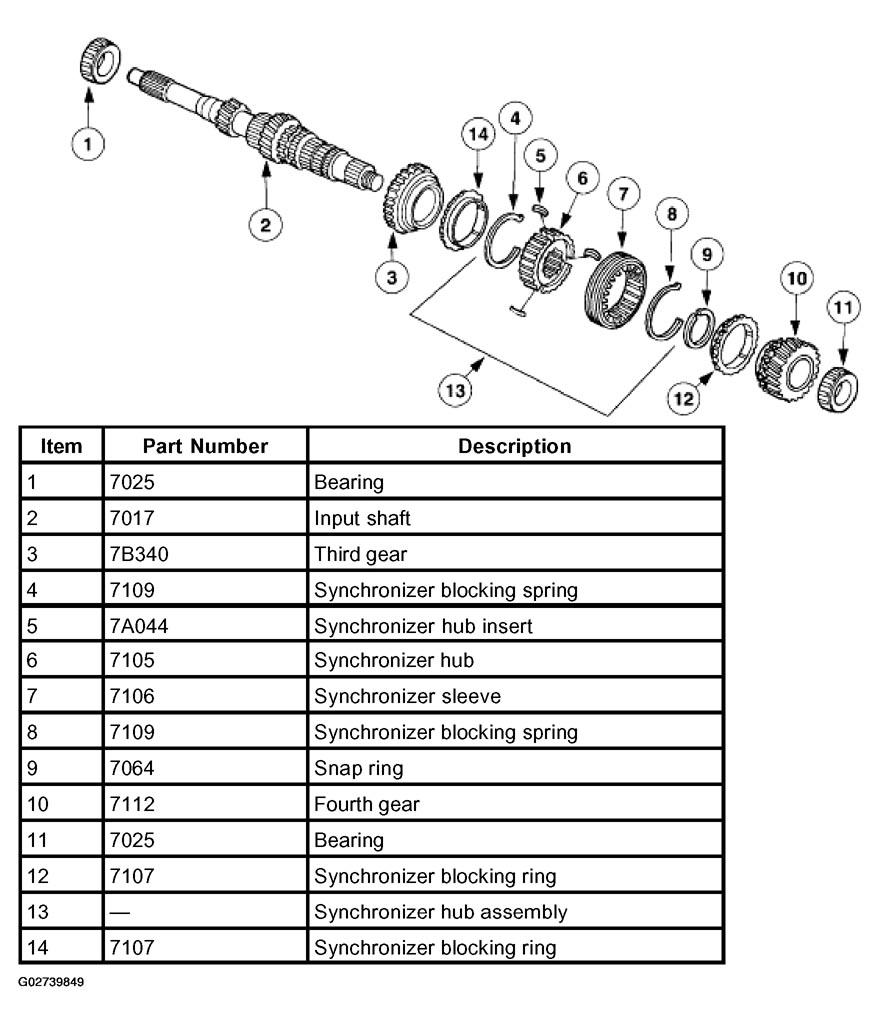

Fig 2: Exploded View Of Input Shaft
G02739849Courtesy of FORD MOTOR CO.
