Symptom Chart

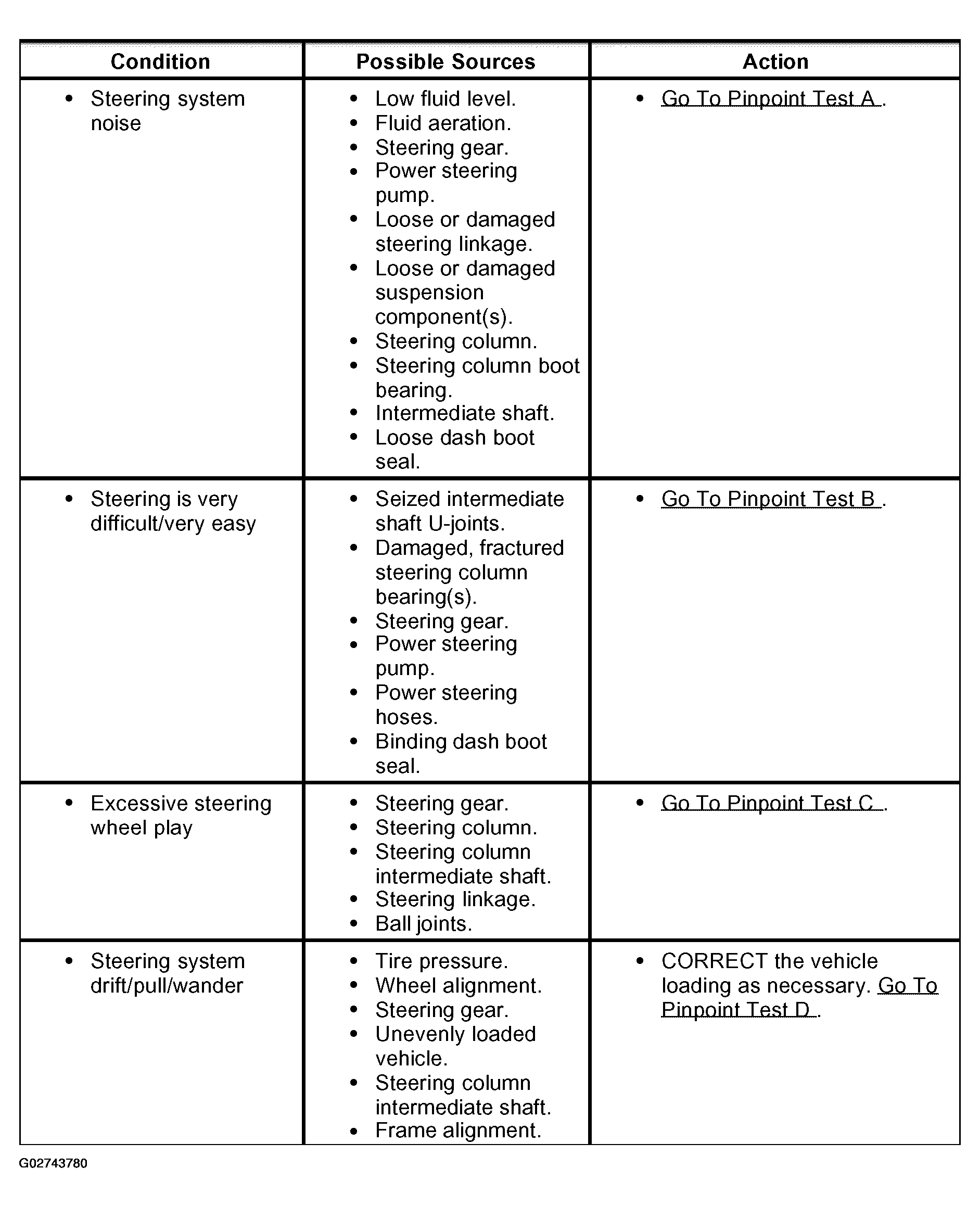

Fig 1: Identifying Symptom Specification Chart (1 Of 2)
G02743780Courtesy of FORD MOTOR CO.

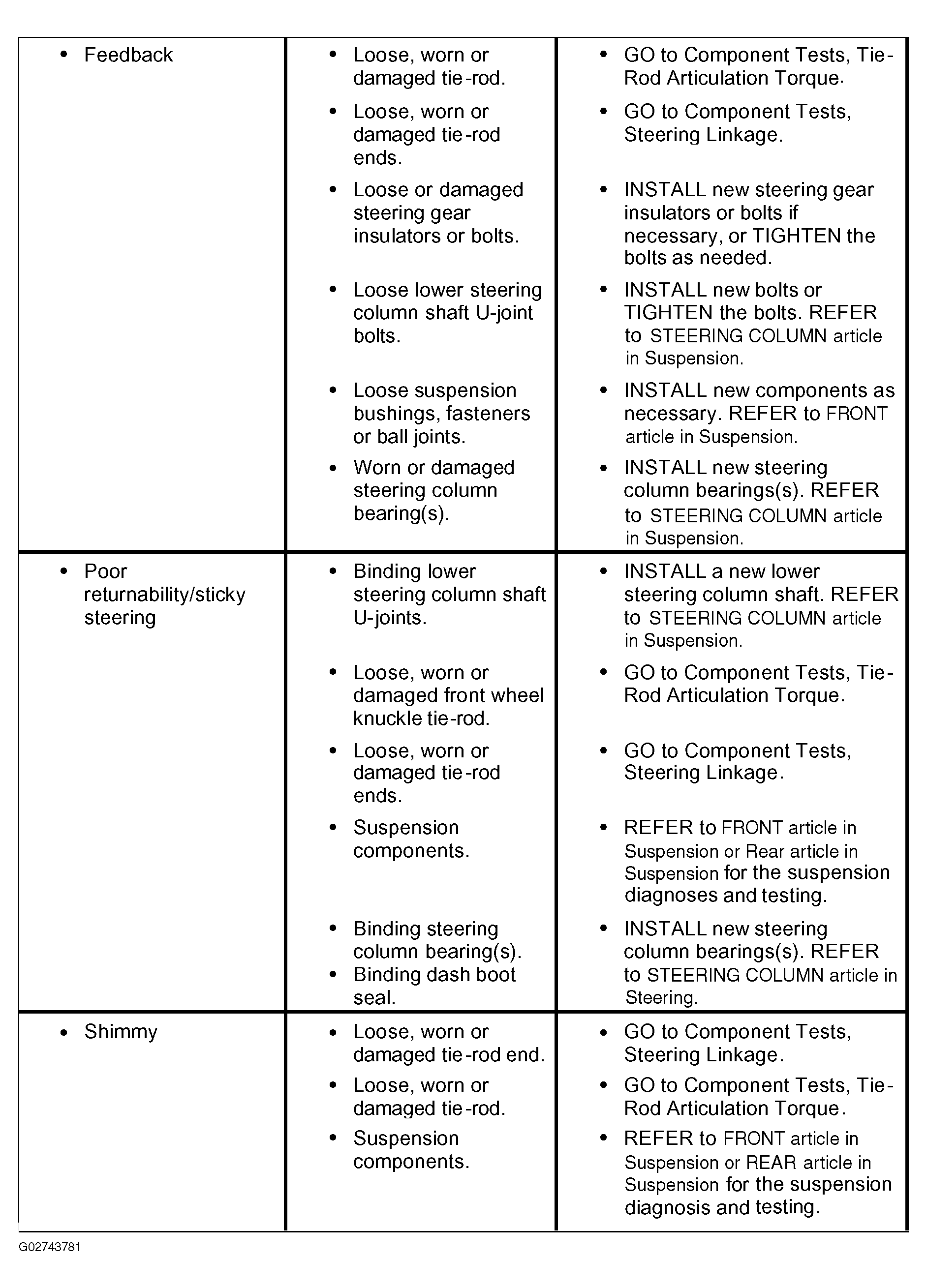

Fig 2: Identifying Symptom Specification Chart (2 Of 2)
G02743781Courtesy of FORD MOTOR CO.
