Keyless Entry Keypad

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
Remove the components in the order indicated in the illustration and table.

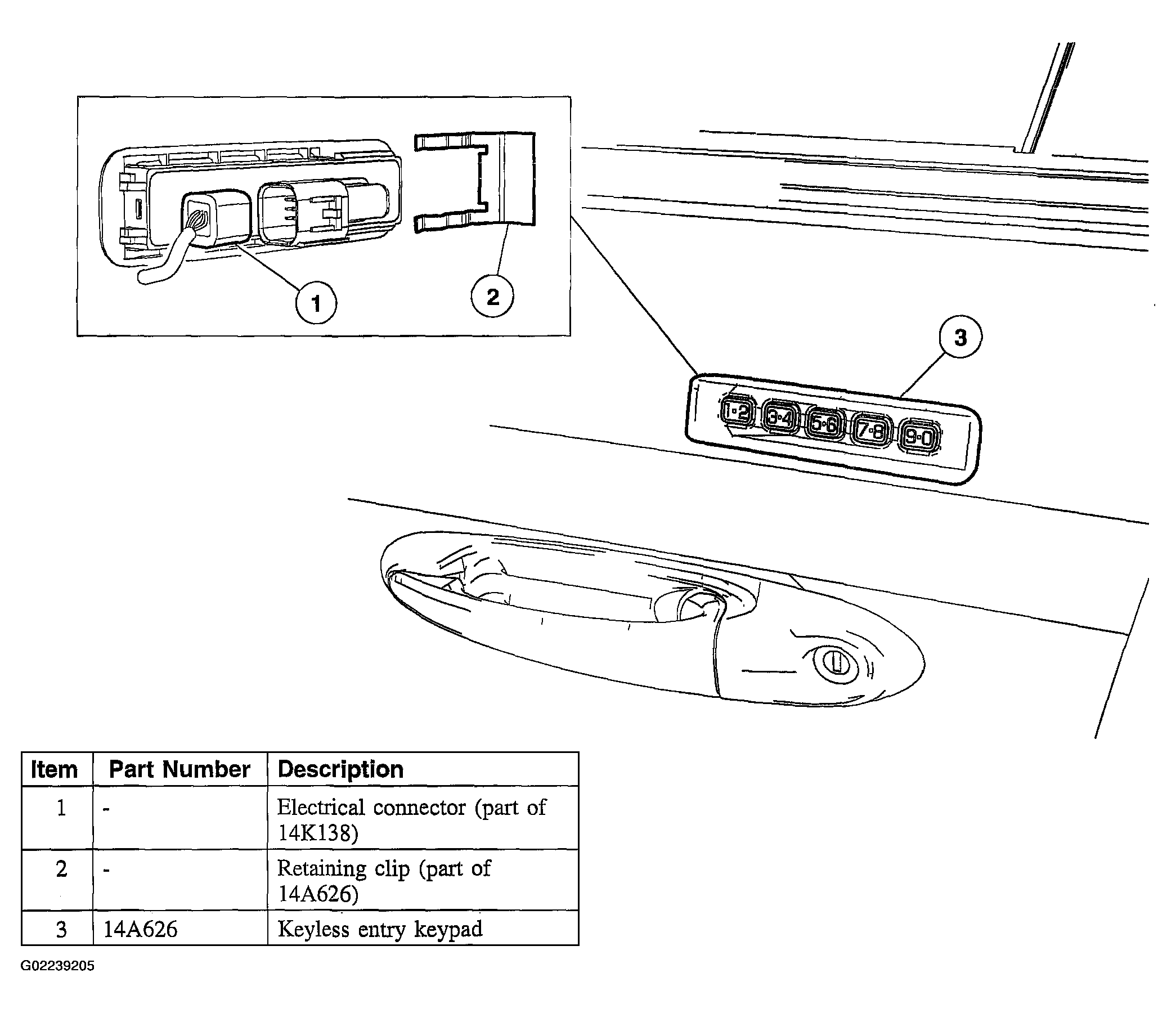

Fig 1: Identifying Keyless Entry Keypad Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
