Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in the illustration and table.

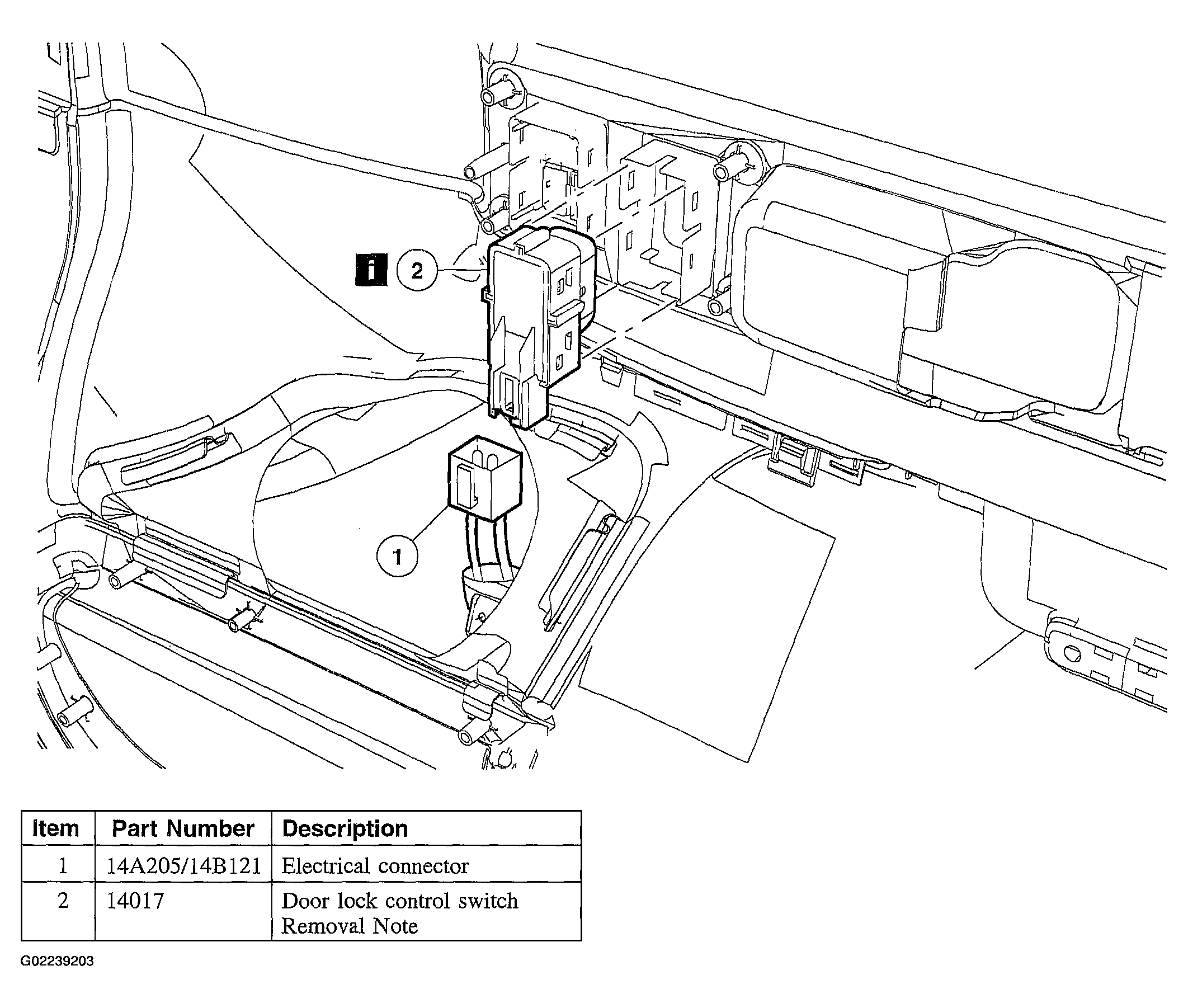

    Fig 1: Identifying Door Lock Control Switch Components
    G02239203Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
