Item 5: Engine and Transmission Assembly Installation Note
WARNING:
This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Using a floor crane and the special tool, install the engine onto the subframe.

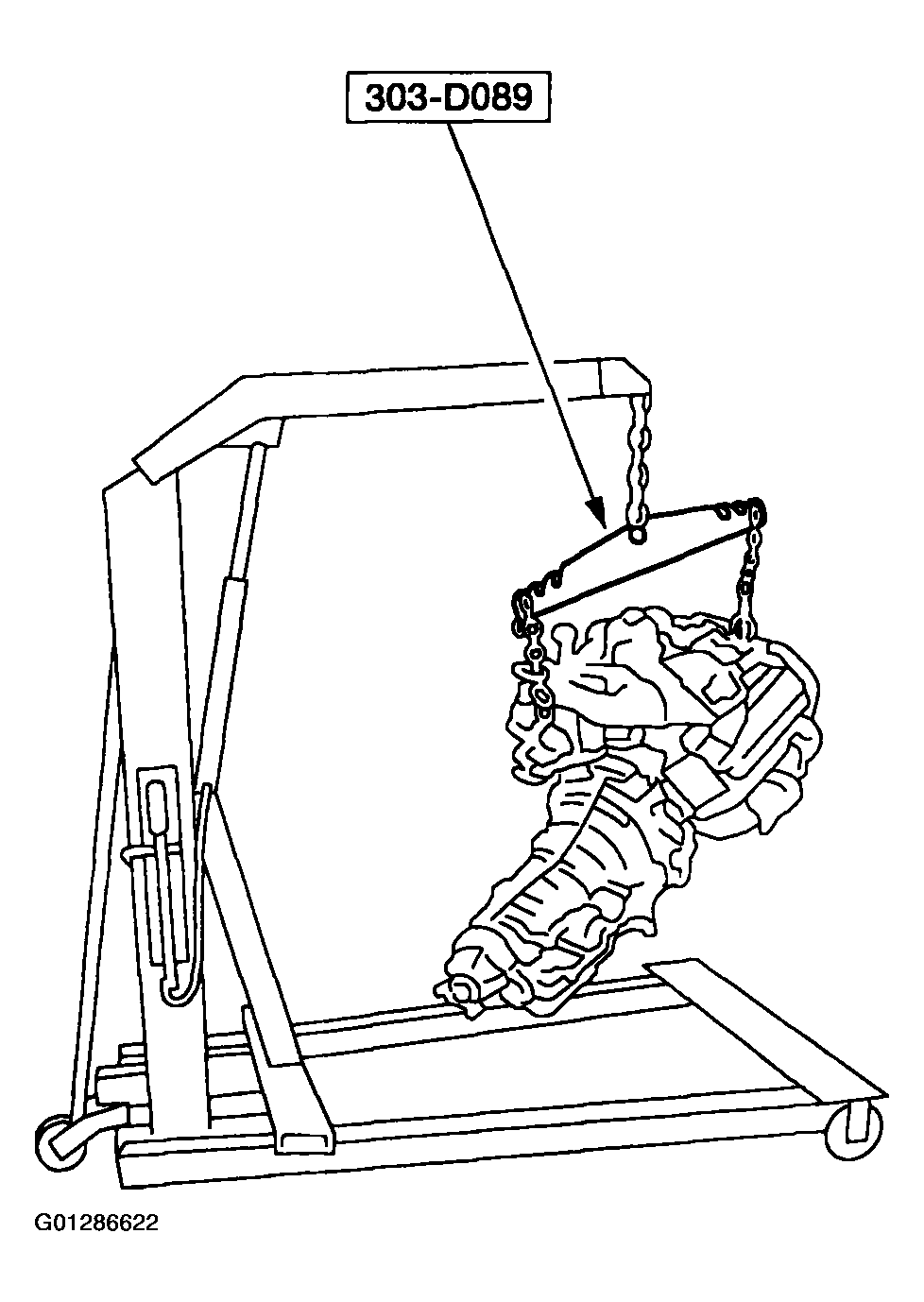

Fig 1: Installing Engine Onto Subframe Using Floor Crane And Special Tool
Courtesy of FORD MOTOR CO.
