Disassembly and Assembly
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

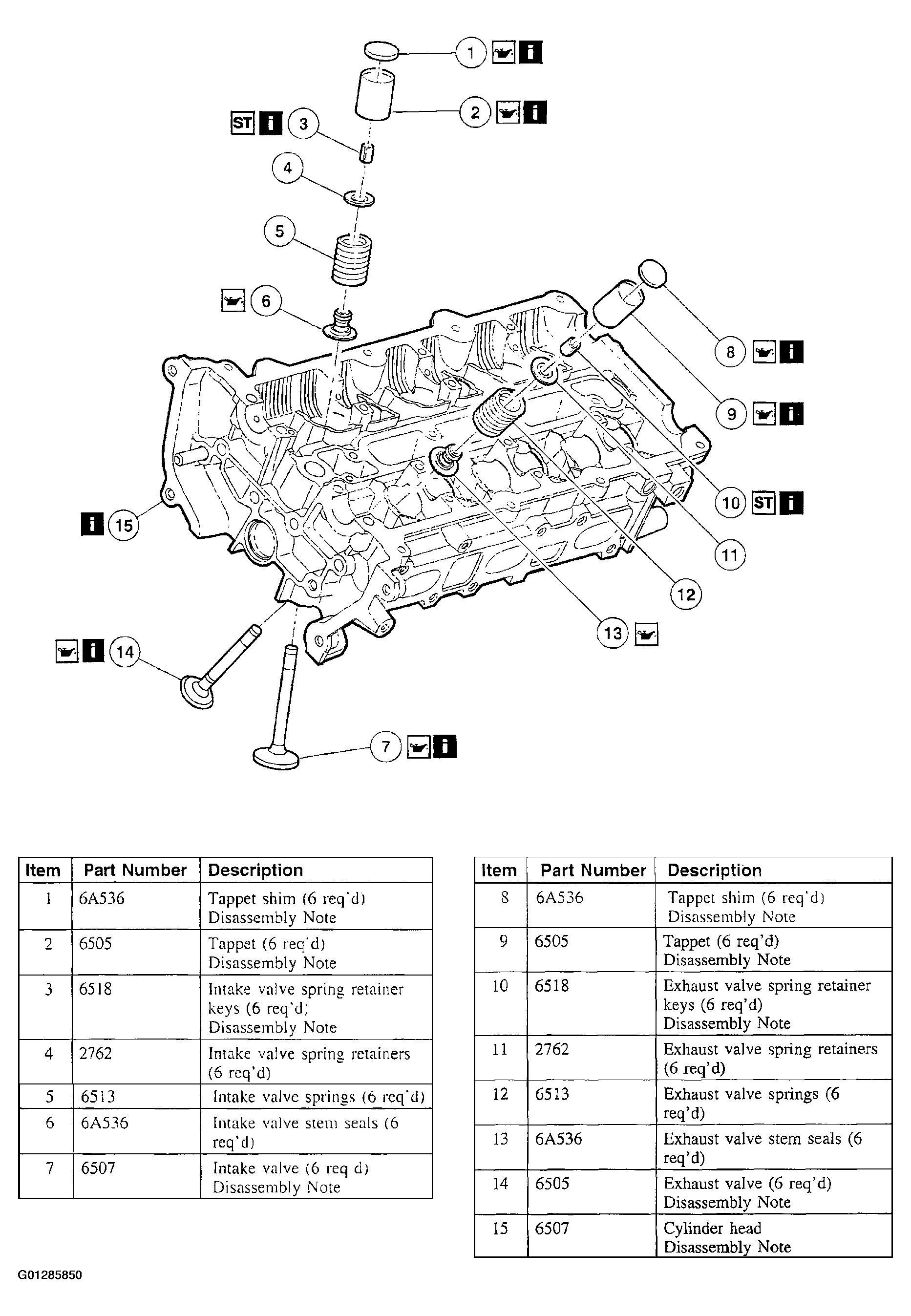

- Disassemble the components in the order indicated in the following illustration and table.
- To assemble, reverse the disassembly procedure.
Courtesy of FORD MOTOR CO.
- Repeat the procedure until all of the valves are removed.
