Test C

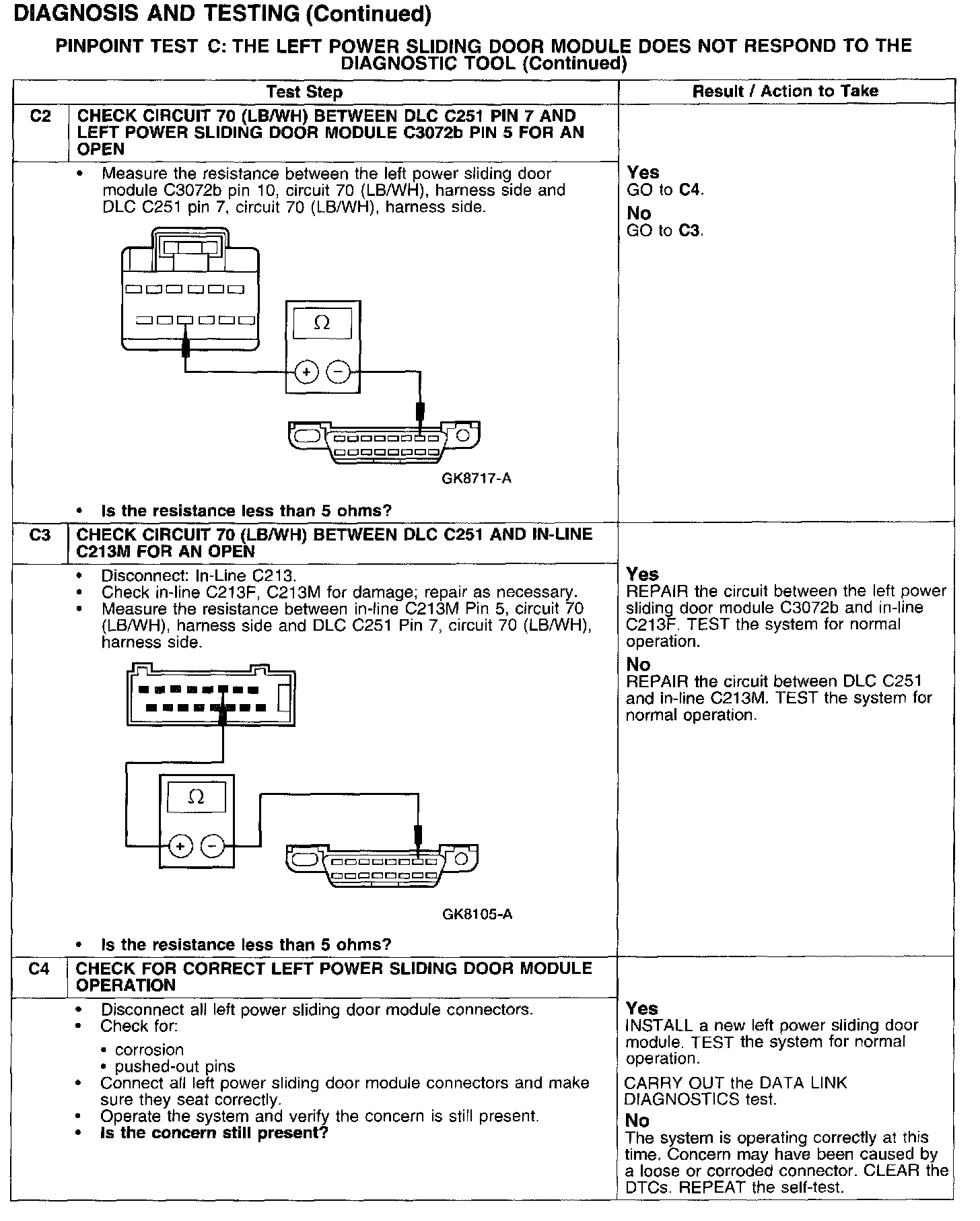

PINPOINT TEST C: THE LEFT POWER SLIDING DOOR MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


Test C1:






Test C2-C4:
