Test B

PINPOINT TEST B: THE PARKING AID MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


Test B1:

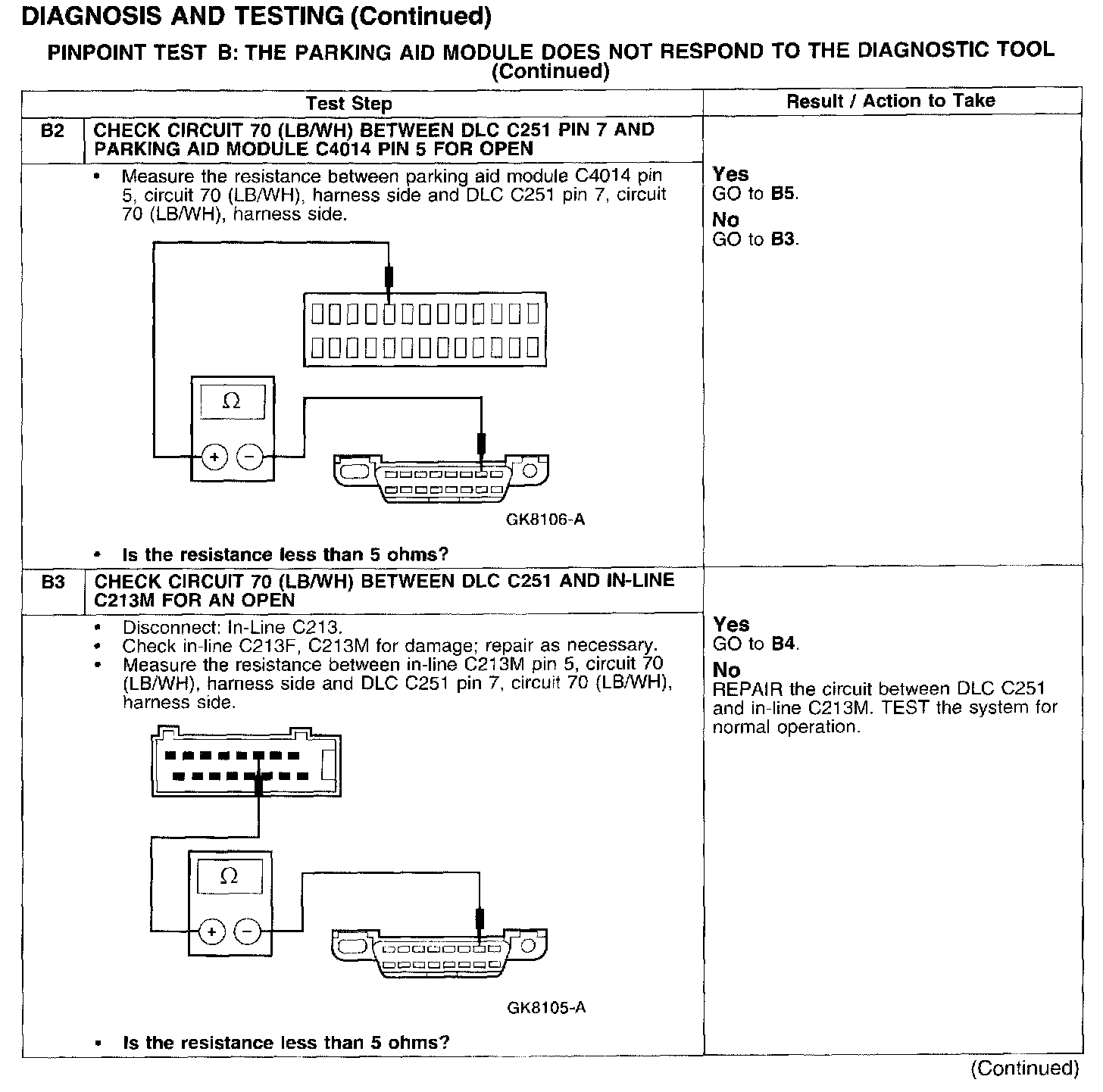

Test B2-B3:

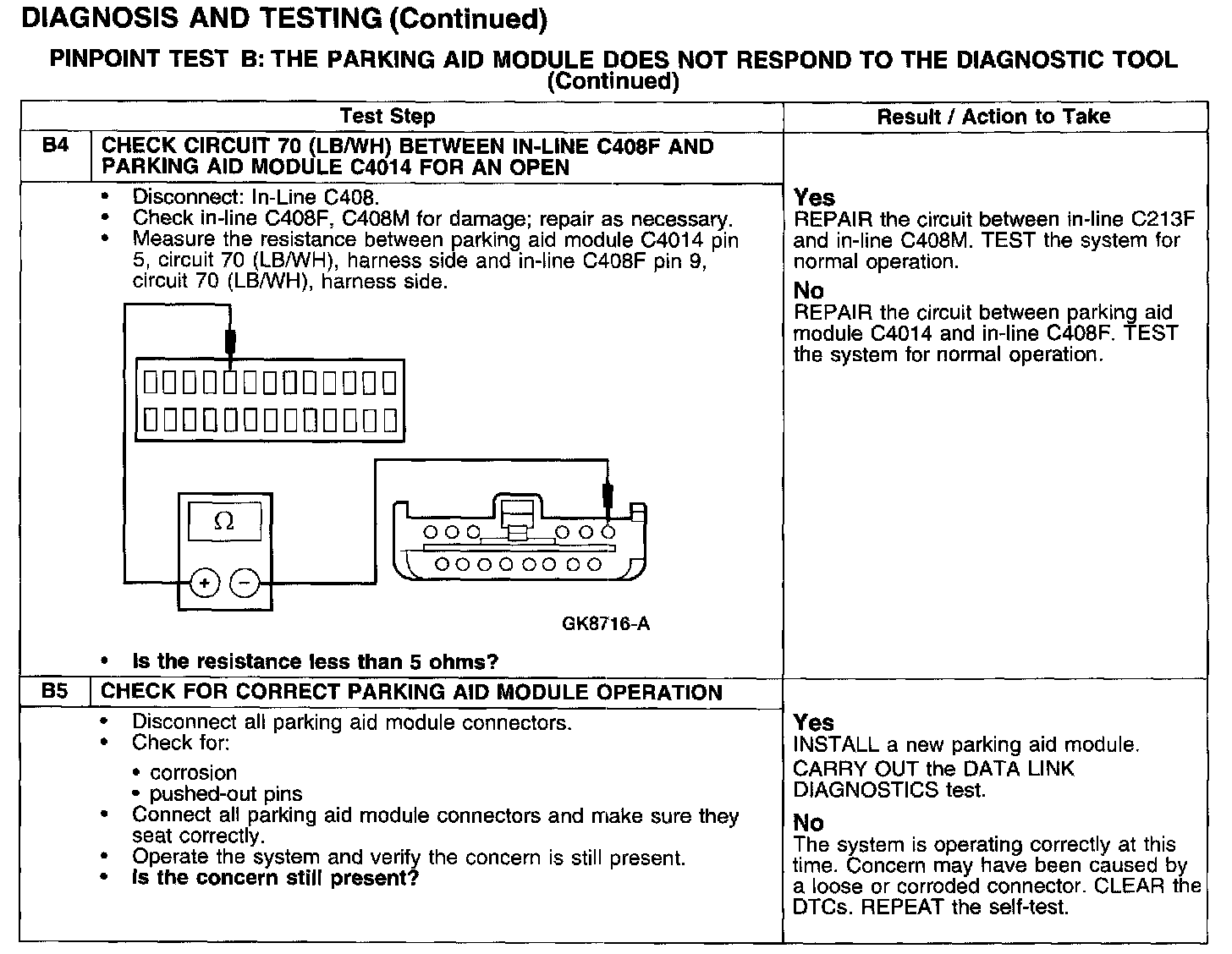

Test B4-B5:
