Engine-External Components

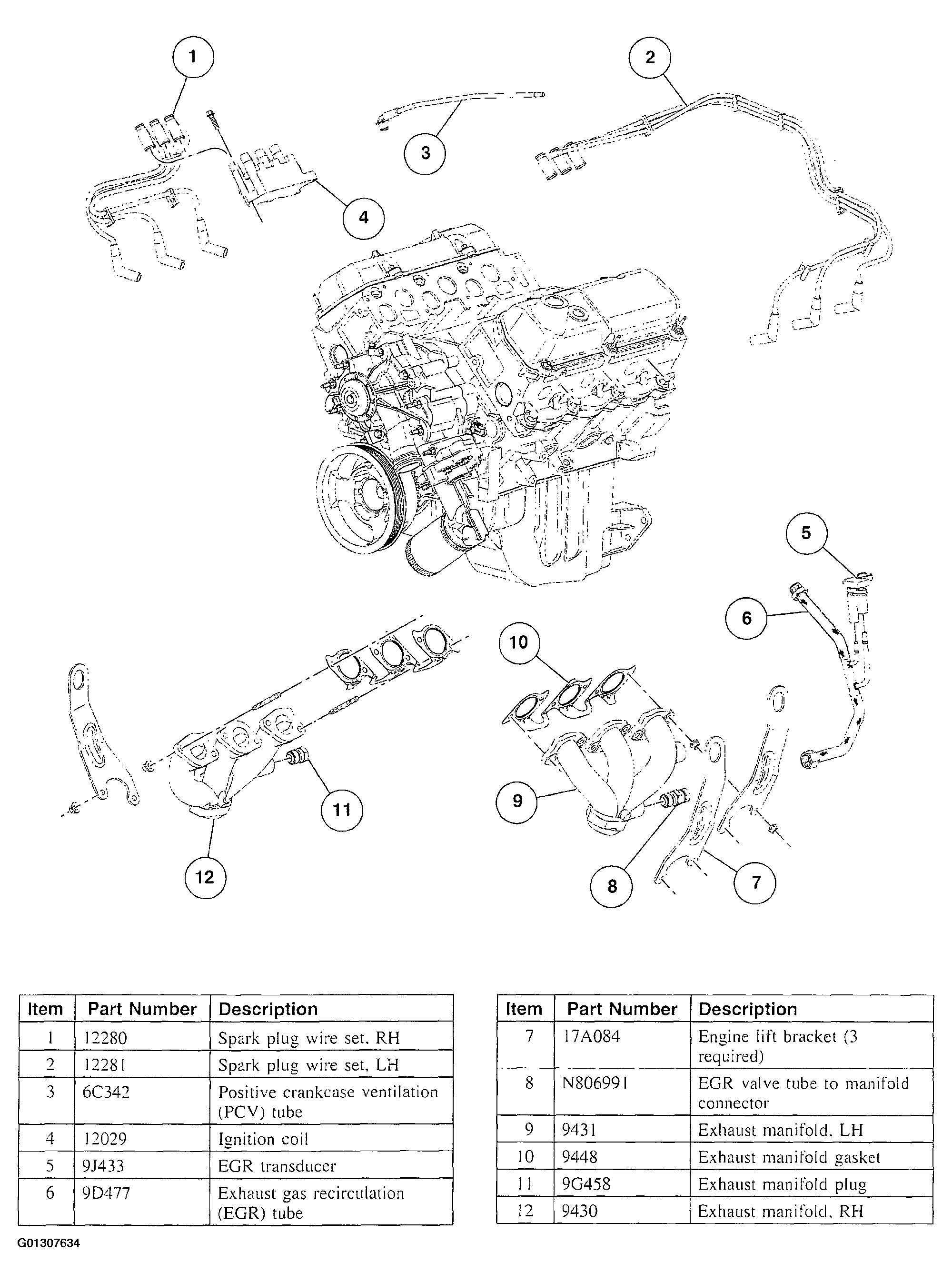

Fig 1: Exploded View Of Engine-External Components
G01307634Courtesy of FORD MOTOR CO.
