Engine-Front Components

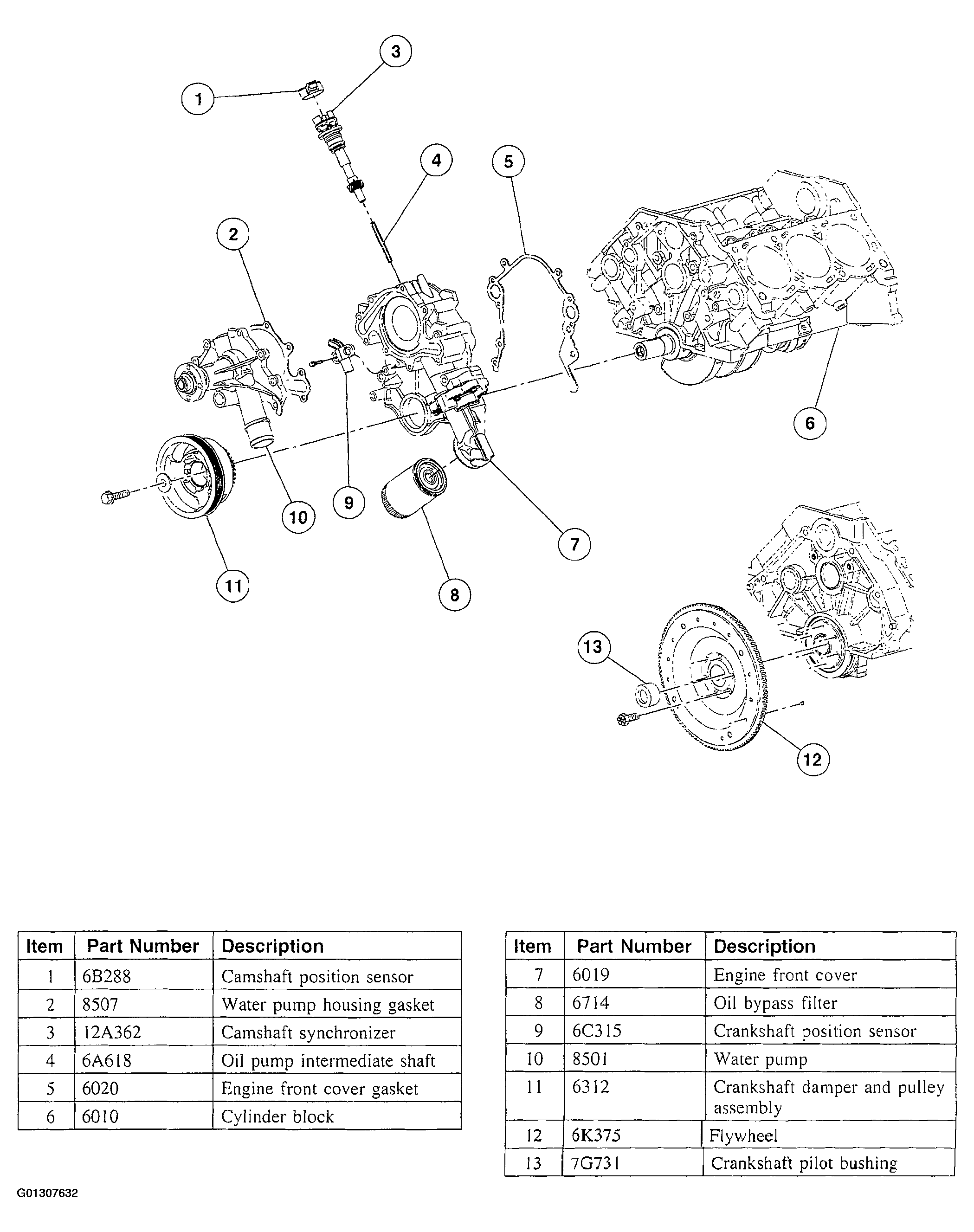

Fig 1: Exploded View Of Engine-Front Components
G01307632Courtesy of FORD MOTOR CO.
