Automatic Transmission
>>
Specifications
>>
Band and Clutch Application Chart A
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Band and Clutch Application Chart A

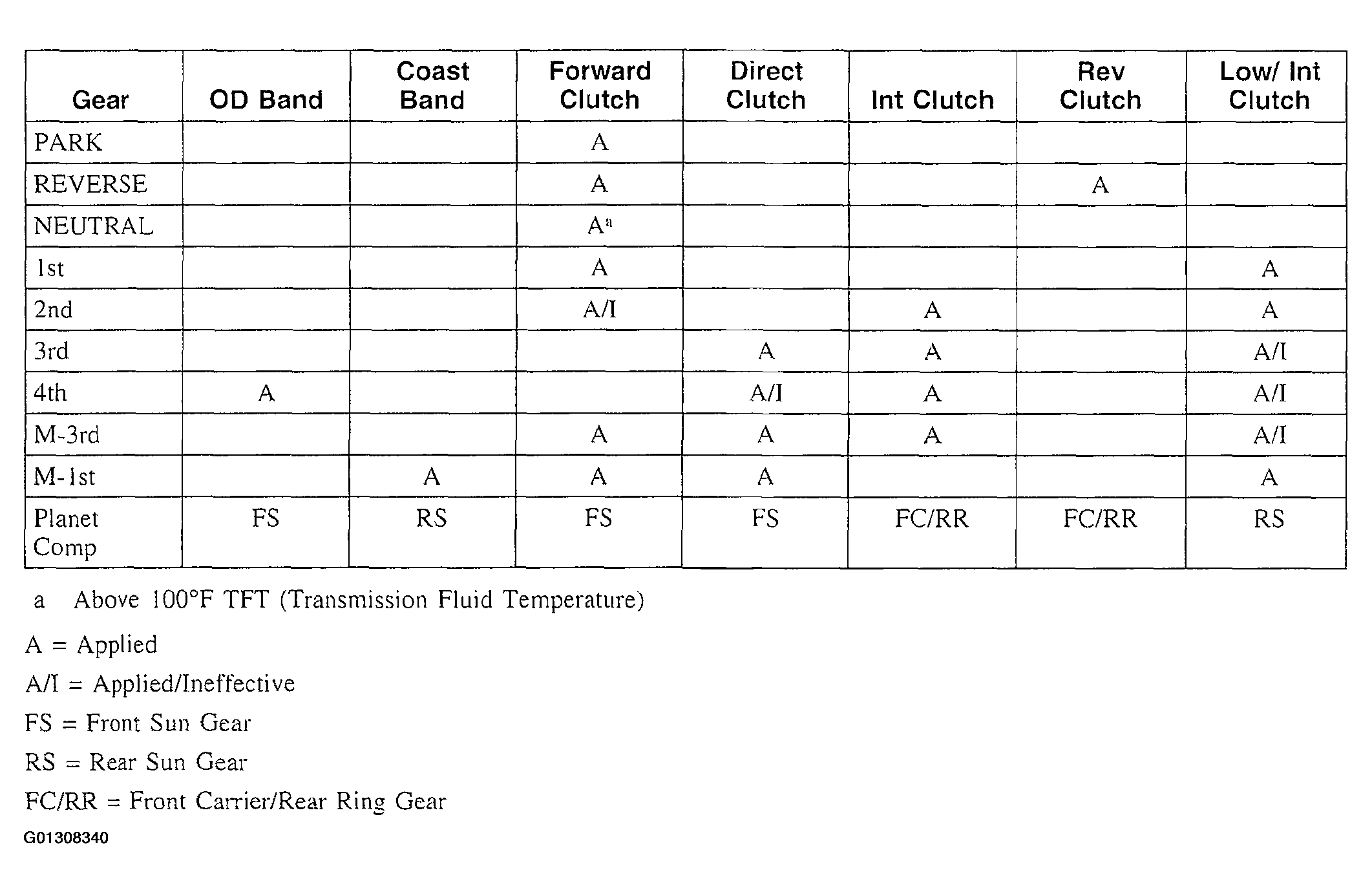

Fig 1: Band and Clutch Application Chart A
Courtesy of FORD MOTOR CO.
