Wheel Alignment Angles: Dogtracking

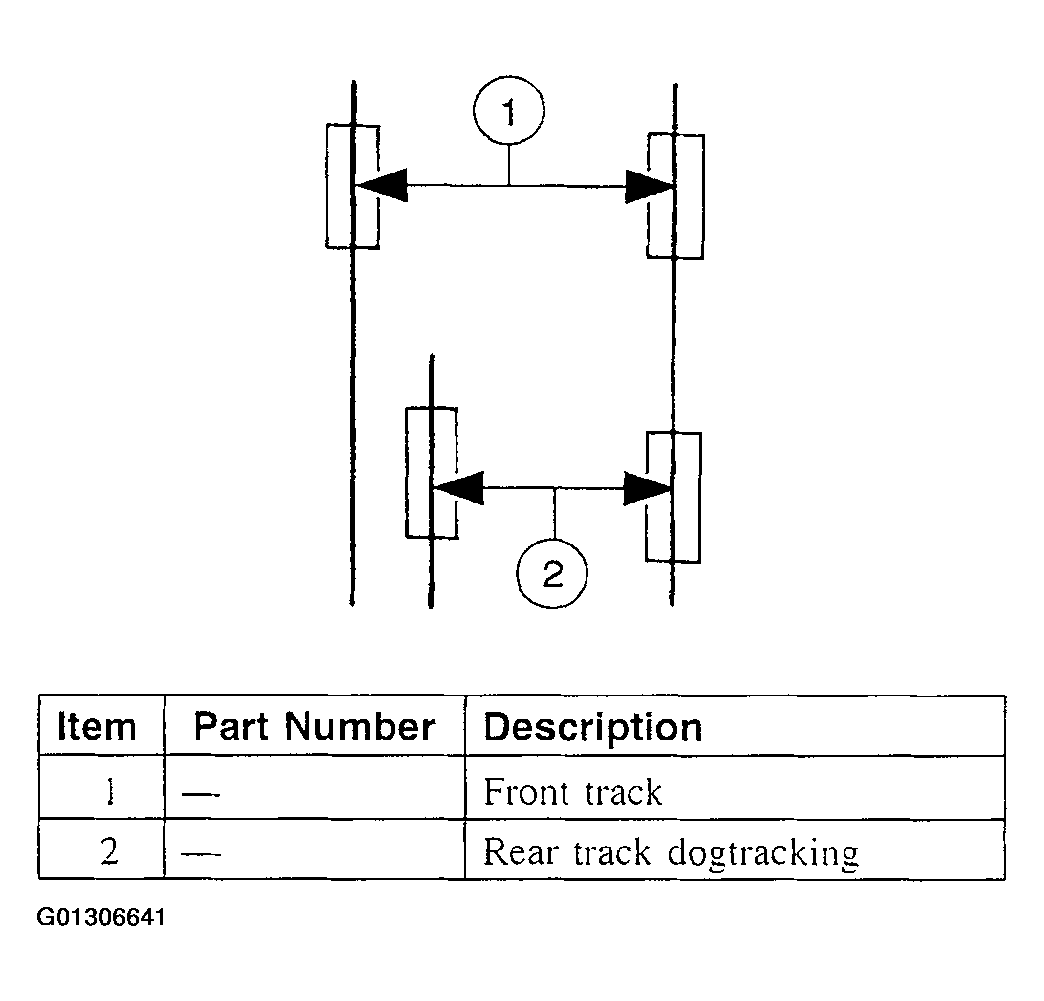

Fig 1: Dogtracking
G01306641Courtesy of FORD MOTOR CO.

Dogtracking is the condition in which the rear axle is not square to the chassis. Heavily crowned roads can give the illusion of dogtracking.
