Items 10-9: Piston and Connecting Rod Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The connecting rod must be installed into the piston with identification markings toward the front.

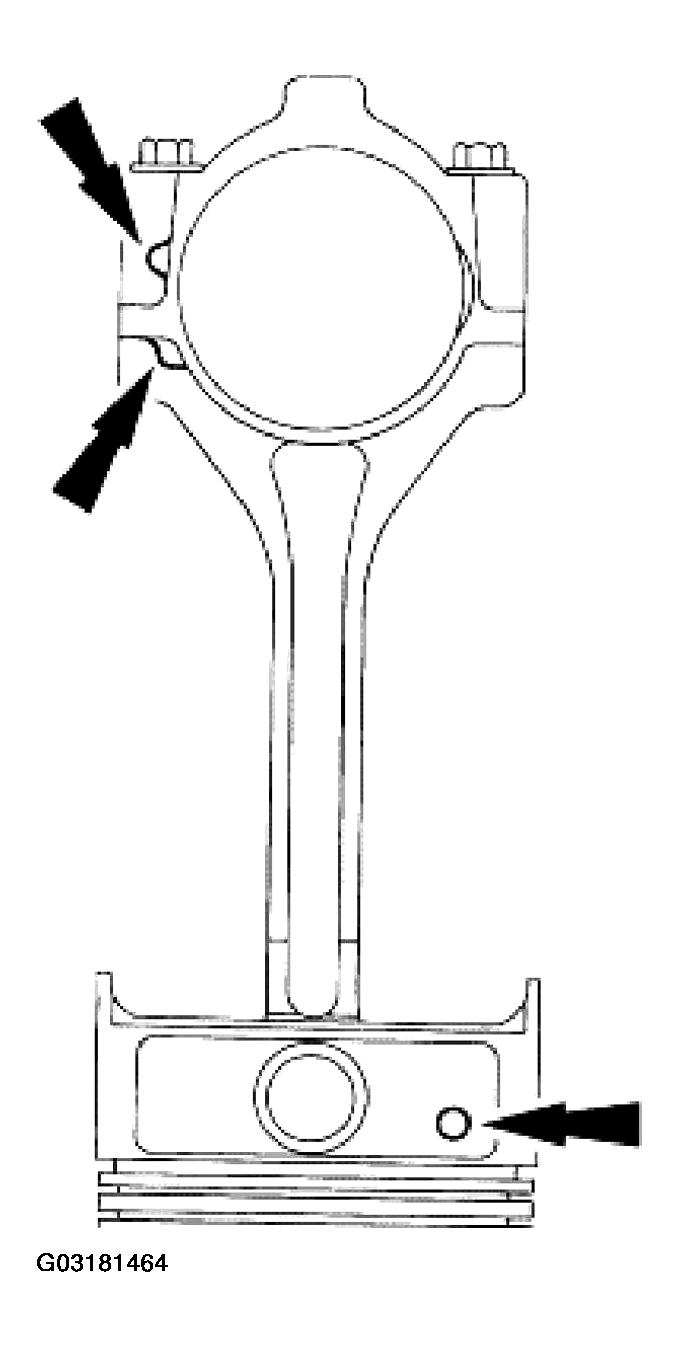

    Fig 1: Identifying Piston And Connecting Rod Identification Marks
    G03181464Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
