Data Link Connector (DLC) C251

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Data Link Connector (DLC) C251 Connector Pinouts
G02238675Courtesy of FORD MOTOR CO.

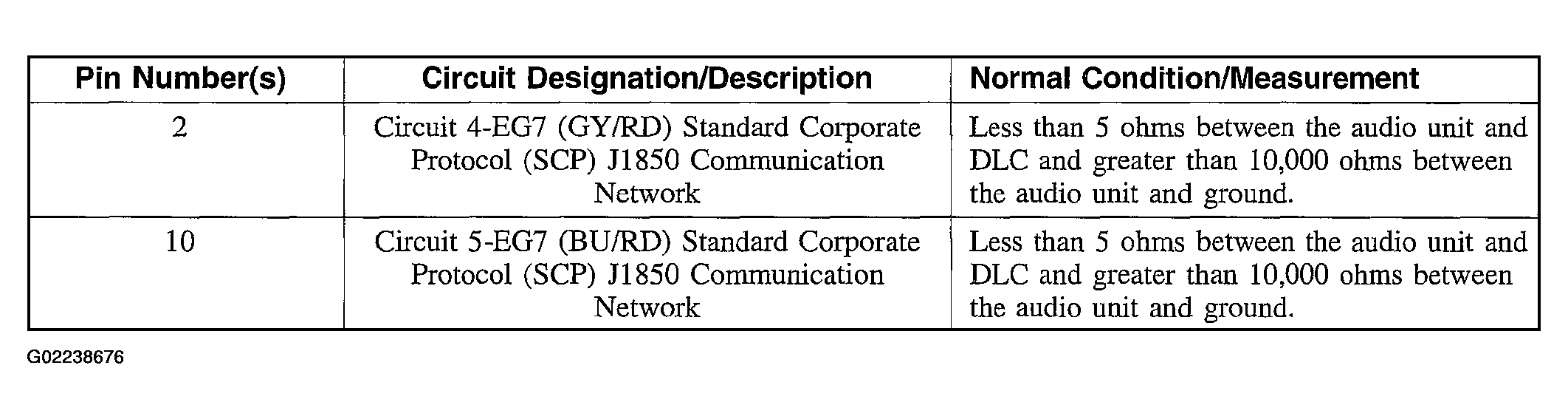

Fig 2: Data Link Connector (DLC) C251 Connector Pins Reference Chart
G02238676Courtesy of FORD MOTOR CO.
