Pinpoint Test H: Overdrive Cancel Switch Not Working

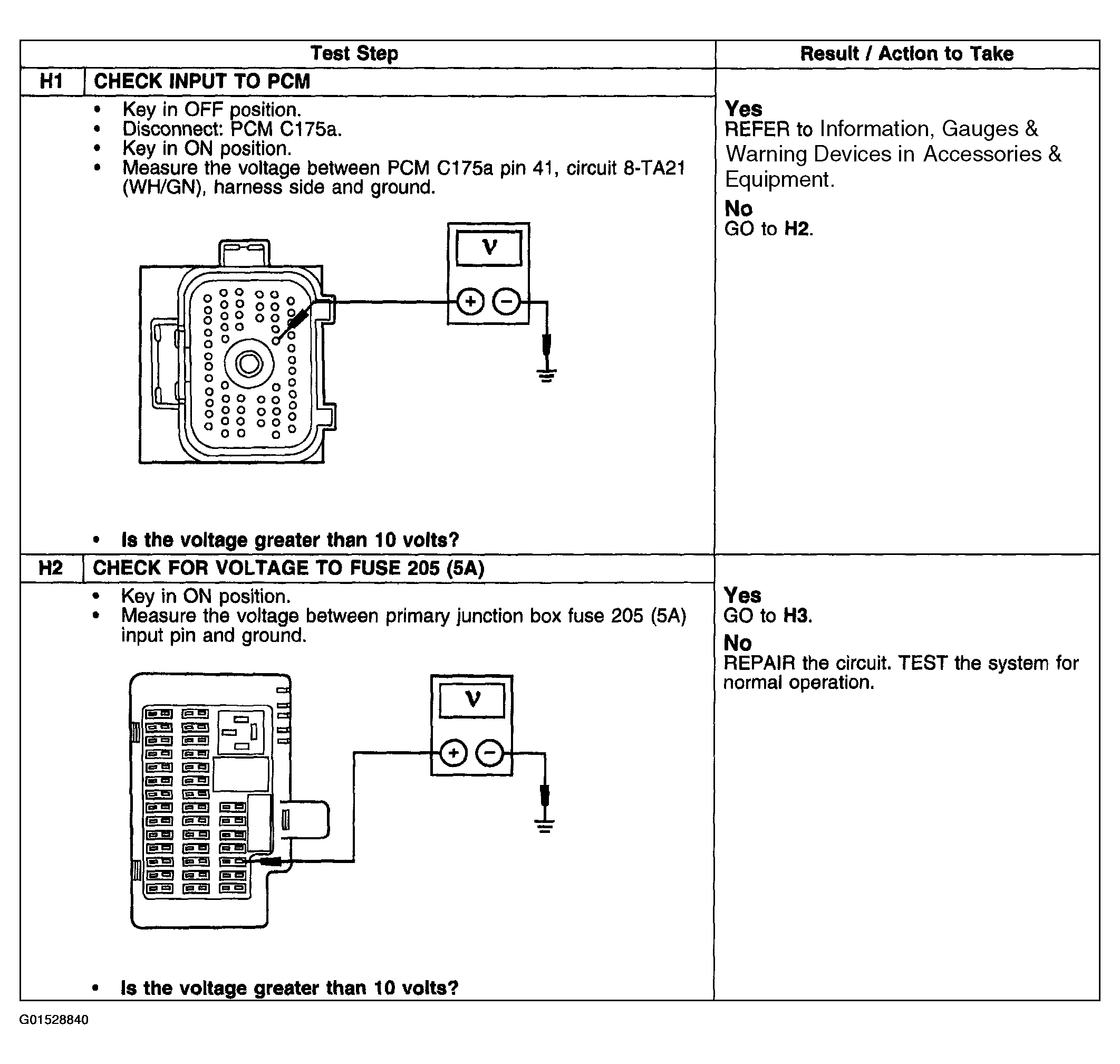

Fig 1: Pinpoint Test H: Overdrive Cancel Switch Not Working (H1-H2)
G01528840Courtesy of FORD MOTOR CO.

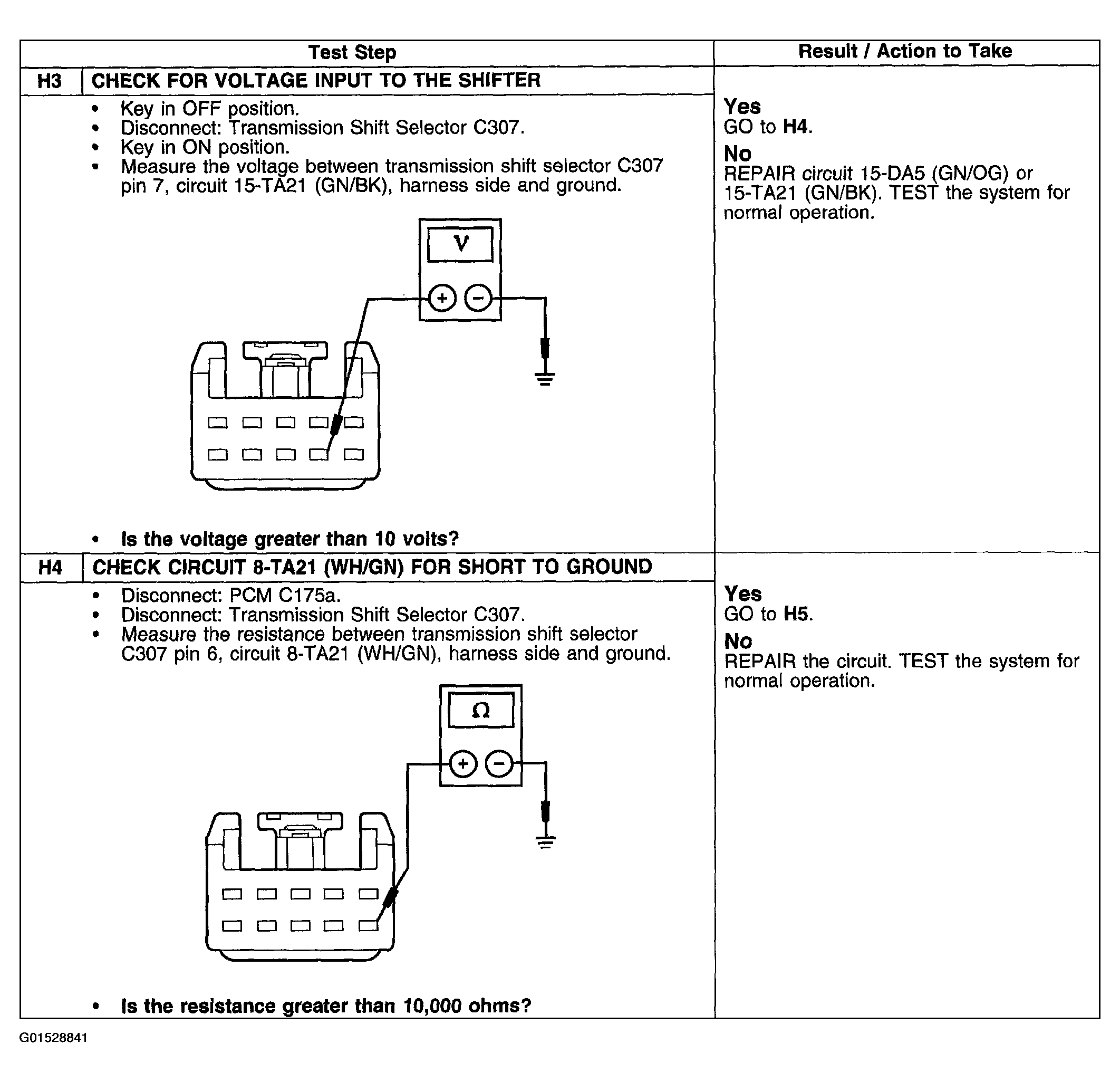

Fig 2: Pinpoint Test H: Overdrive Cancel Switch Not Working (H3-H4)
G01528841Courtesy of FORD MOTOR CO.

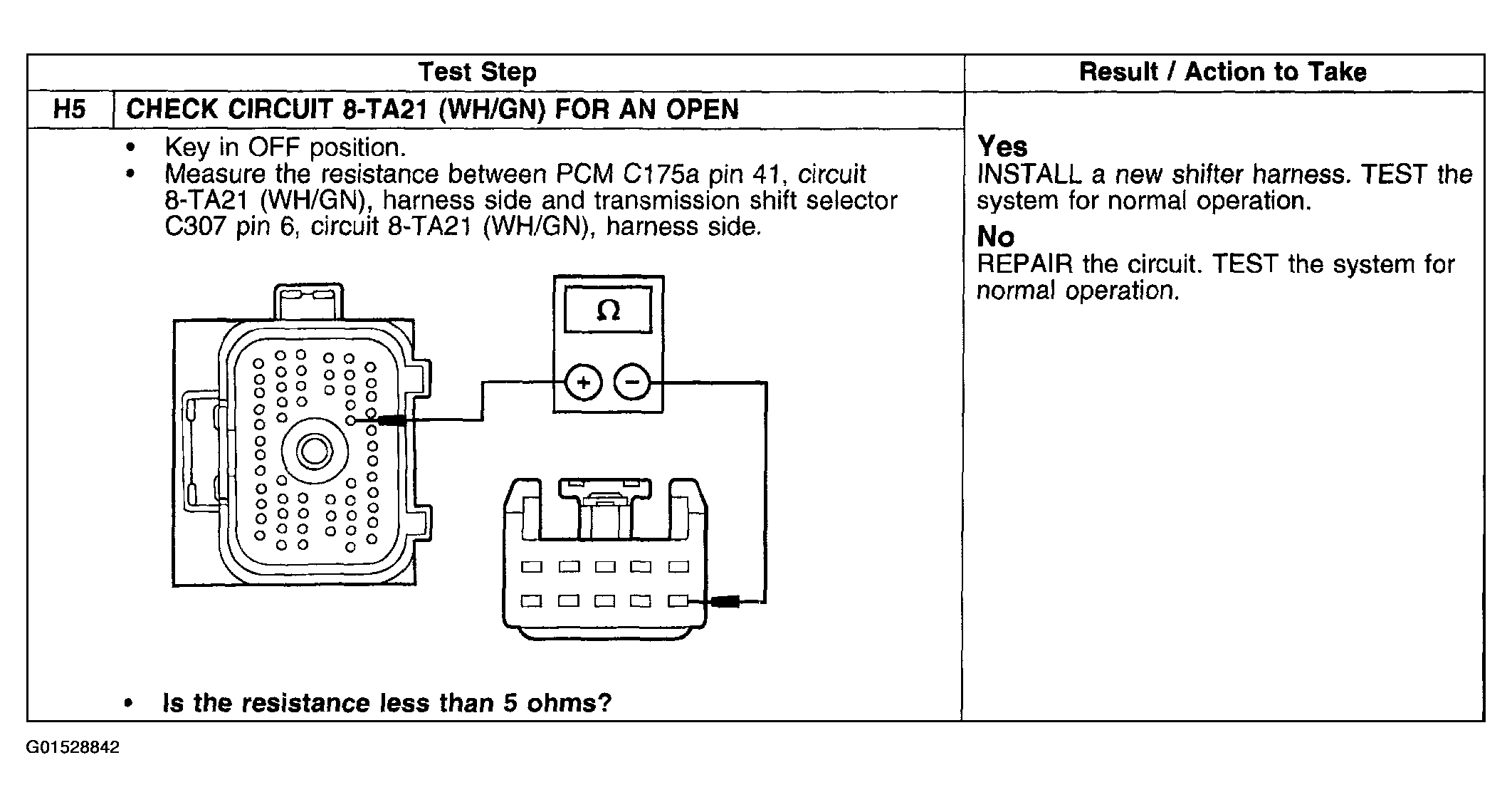

Fig 3: Pinpoint Test H: Overdrive Cancel Switch Not Working (H5)
G01528842Courtesy of FORD MOTOR CO.
